2004 DODGE INTREPID key

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states which have an I/M (Inspection and
Maintenance) requirement, this check verifies the
following: the MIL (Malfunction Indicator Lamp)
is functioning and is not on when the engine is running,
and that the OBD (On Board Diagnostic) system is ready
for testing.
Normally, the OBD system will be ready. The OBD
system maynotbe ready if your vehicle was recently
serviced, if you recently had a dead battery, or a battery
replacement. If the OBD system should be determined
not ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key actuated test
which you can use prior to going to the test station. To
check if your vehicle’s OBD system is ready, you must do
the following:
1. Insert your ignition key into the ignition switch.2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see your MIL symbol come on as part of a normal
bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn off
the ignition key or start the engine. This means that
your vehicle’s OBD system isnot readyand you
shouldnotproceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn off the ignition key or
start the engine. This means that your vehicle’s OBD
system isreadyand you can proceed to the I/M
station.
170 MAINTAINING YOUR VEHICLE

Hood Latch
When performing other under hood services, the hood
latch release mechanism and safety catch should be
inspected, cleaned, and lubricated.
It is important to maintain proper lubrication to insure
that the hood mechanisms work properly and safely.
Multi-Purpose Lubricant, NLGI Grade 2, should be ap-
plied sparingly to all pivot and sliding contact areas.
External Lock Cylinders
Lubricate the external lock cylinders twice a year, prefer-
ably in the fall and spring. Apply a small amount of
lubricant, such as Mopar Lock Cylinder Lubricant di-
rectly into the lock cylinder (avoid excess lubricant).
Insert the key into the lock cylinder and rotate from the
unlocked to the locked position; without adding more
lubricant. Repeat this procedure three or four times. Wipe
all the lubricant off the key with a clean cloth, to avoid
soiling clothing.
If you use a lubricant that cannot be dispensed directly
into the lock cylinder, apply a small amount of the
lubricant to the key. Insert the key into the lock cylinder,then proceed as described above, to distribute the lubri-
cant within the lock cylinder. Pay attention to trunk
hinges, especially during cold weather, to ensure ease of
trunk operation.
Other Body Mechanisms
The following body mechanisms should be inspected
and, if necessary, all pivot and sliding contact areas of
these components should be lubricated with the lubricant
specified as follows:
Engine Oil
•
Door hinges
•Hood hinges
•Trunk hinges
Smooth White Body Lubricant - Such as Mopar
Spray White Lube:
•
Hood hinge springs and links
•Lock cylinders
•Parking brake mechanism
MAINTAINING YOUR VEHICLE 185
7

Cooling System
WARNING!
•When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition key
to the OFF position. The fan is temperature con-
trolled and can start at any time the ignition key is
in the ON position.
•You or others can be badly burned by hot coolant
or steam from your radiator. If you see or hear
steam coming from under the hood, don’t open
the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap
when the radiator is hot.
Coolant Checks
Check coolant protection every 12 months (before the
onset of freezing weather, where applicable). If coolant is
dirty or rusty in appearance, the system should be
drained, flushed and refilled with fresh coolant.Check the front of the radiator and condenser for any
accumulation of bugs, leaves, etc. Clean the radiator and
condenser by gently spraying water from a garden hose
at the back of the core.
Check the engine cooling system hoses for condition and
tightness of connection. Inspect the entire system for
leaks. Any hoses that show cuts or severe abrasion must
be replaced.
Cooling System — Drain, Flush and Refill
At the intervals shown on the Maintenance Schedules (5
years/100,000 miles), the system should be drained,
flushed and refilled.
If the solution is dirty and contains a considerable
amount of sediment, clean and flush with a reliable
cooling system cleaner. Follow with a thorough rinsing to
remove all deposits and chemicals.
Engine Coolant Disposal
Used ethylene glycol based engine coolant is a regulated
substance requiring proper disposal. Check with your
local authorities to determine the disposal rules for your
community. Do not store ethylene glycol based engine
188 MAINTAINING YOUR VEHICLE

About Your Brakes...................... 134
ABS (Anti-Lock Brake) System...........91,134
Accident Damage....................... 199
Adding Engine Coolant (Antifreeze)......... 189
Adding Fuel.......................... 146
Air Cleaner, Engine..................... 180
Air Conditioner Maintenance.............. 182
Air Conditioning.................... 114,117
Air Conditioning Controls............. 114,117
Air Conditioning, Operating Tips........... 123
Air Conditioning Refrigerant.............. 182
Air Conditioning System................. 182
Air Pressure, Tires...................136,137
Airbag................................ 33
Airbag Deployment....................36,37
Airbag Light.....................37,40,48,90
Airbag Maintenance...................... 39
Alarm System.......................... 23
Alignment and Balance.................. 143
Antifreeze Disposal..................... 188
Antifreeze (Engine Coolant)............... 189
Anti-Lock Brake System.................. 134
Anti-Lock Warning Light.................. 91Anti-Theft Security Alarm................. 23
Anti-Theft System....................... 23
Appearance Care....................... 197
Auto Down Power Windows............... 25
Automatic Door Locks.................... 16
Automatic Mirrors....................... 53
Automatic Off, Interior Lights.............. 60
Automatic Temperature Control............ 117
Automatic Transaxle..................129,194
Fluid and Filter Changes................ 197
Fluid Level Check..................... 195
Reset Mode......................... 130
Selection Of Lubricant................. 194
Shifting............................ 130
Special Additives..................... 197
Backfire, Engine........................ 180
Ball Joints............................ 184
Battery............................158,181
Emergency Starting.................... 158
Gas Caution......................158,181
Jump Starting........................ 158
Keyless Transmitter Replacement.......... 22
238 INDEX

Additives........................... 146
Filler Cap........................... 147
Filter.............................. 180
Gauge.............................. 88
Light............................... 88
Materials Added...................... 146
Octane Rating........................ 143
System Hoses........................ 194
Fuses.............................201,202
Garage Door Opener..................... 70
GasCap .............................. 147
Gasoline, Reformulated.................. 144
Gasoline/Oxygenate Blends............... 144
Gauges
Coolant Temperature................... 89
Fuel................................ 88
Oil Pressure.......................... 88
Speedometer/Odometer................. 91
Glass Cleaning......................... 200
Glove Compartment..................... 14
Hazard Warning Flasher.................. 152Head Restraints......................... 57
Headlights
Bulb Replacement..................... 204
Cleaning............................ 200
Dimmer Switch....................... 64
Lights On Reminder.................... 62
Switch.............................. 62
Time Delay........................... 62
Heater............................ 114,117
High Beam Indicator..................... 89
Holder, Cup........................... 52
Homelink Transmitter.................... 70
Hood Latch Maintenance................. 185
Hood Release.......................... 59
Hook, Coat............................ 52
Hoses............................191,194
Ignition
Key ...............................9,12
Lock............................... 13
Illuminated Entry....................... 14
Immobilizer............................. 9
Infant Restraint......................... 41
242 INDEX

Instrument Cluster.....................87,88
Instrument Panel and Controls.............. 86
Instrument Panel Cover.................. 200
Instrument Panel Lens Cleaning............ 201
Interior Fuses.......................... 202
Interior Lights.......................... 60
Introduction............................ 4
Jack Operation......................... 154
Jump Starting......................... 158
Key, Replacement....................... 10
Key, Sentry............................. 9
Key-In Reminder........................ 12
Keyless Entry System..................... 18
Keys.................................. 9
Knee Bolster........................... 33
Lap/Shoulder Belts...................... 27
LATCH
(Lower Anchors and Tether for CHildren)..... 44
Latches
Hood.............................. 185Lead Free Gasoline...................... 143
Leaks, Fluid............................ 48
Light Bulbs........................... 204
Lights
Airbag..........................37,48,90
Anti-Lock............................ 91
Automatic Off......................60,61
Back-Up............................ 207
Battery Saver.....................60,61,63
Brake Warning.....................92,132
Center Mounted Stop.................. 206
Check Engine......................... 90
Courtesy/Reading..................... 61
Cruise.............................. 89
Daytime Running...................... 63
Dimmer Switch, Headlight............... 64
Dome............................... 70
Door Ajar............................ 89
Exterior............................. 62
Exterior Check........................ 48
Fog .............................63,206
Hazard Warning Flasher................ 152
Headlight Switch...................... 62
INDEX 243
10

Headlights........................... 62
Headlights On Reminder................ 62
High Beam Indicator................... 89
Illuminated Entry...................... 14
Instrument Cluster..................... 61
Interior...........................14,60
License............................. 207
Low Fuel............................ 88
Low Washer Fluid..................... 89
Malfunction Indicator................90,169
Map Reading......................... 61
Oil Pressure.......................... 88
Park.............................62,205
Passing............................. 64
Reading............................. 70
Rear Tail............................ 207
Seat Belt Reminder..................... 89
Security Alarm........................ 24
Service Engine Soon................... 169
Side Marker......................... 205
Theft Alarm.......................... 10
Traction Control..................66,88,136
Trunk Ajar........................... 88Turn Signal.....................89,205,207
Voltage.............................. 91
Locks
Child Protection....................... 16
Cylinder............................ 185
Door.............................14,15
Glove Compartment.................... 14
Lubricants............................ 184
Luggage Carrier........................ 148
Luggage Rack......................... 148
Lumbar Support........................ 57
Maintenance Free Battery................. 181
Maintenance Schedule................... 212
Light Duty ScheduleB................ 215
ScheduleA......................... 222
ScheduleB......................... 215
Malfunction Indicator Light.............90,170
Manual, Service........................ 233
Master Key............................. 9
Memory Seat........................... 21
Mirrors............................... 53
Automatic Dimming.................... 53

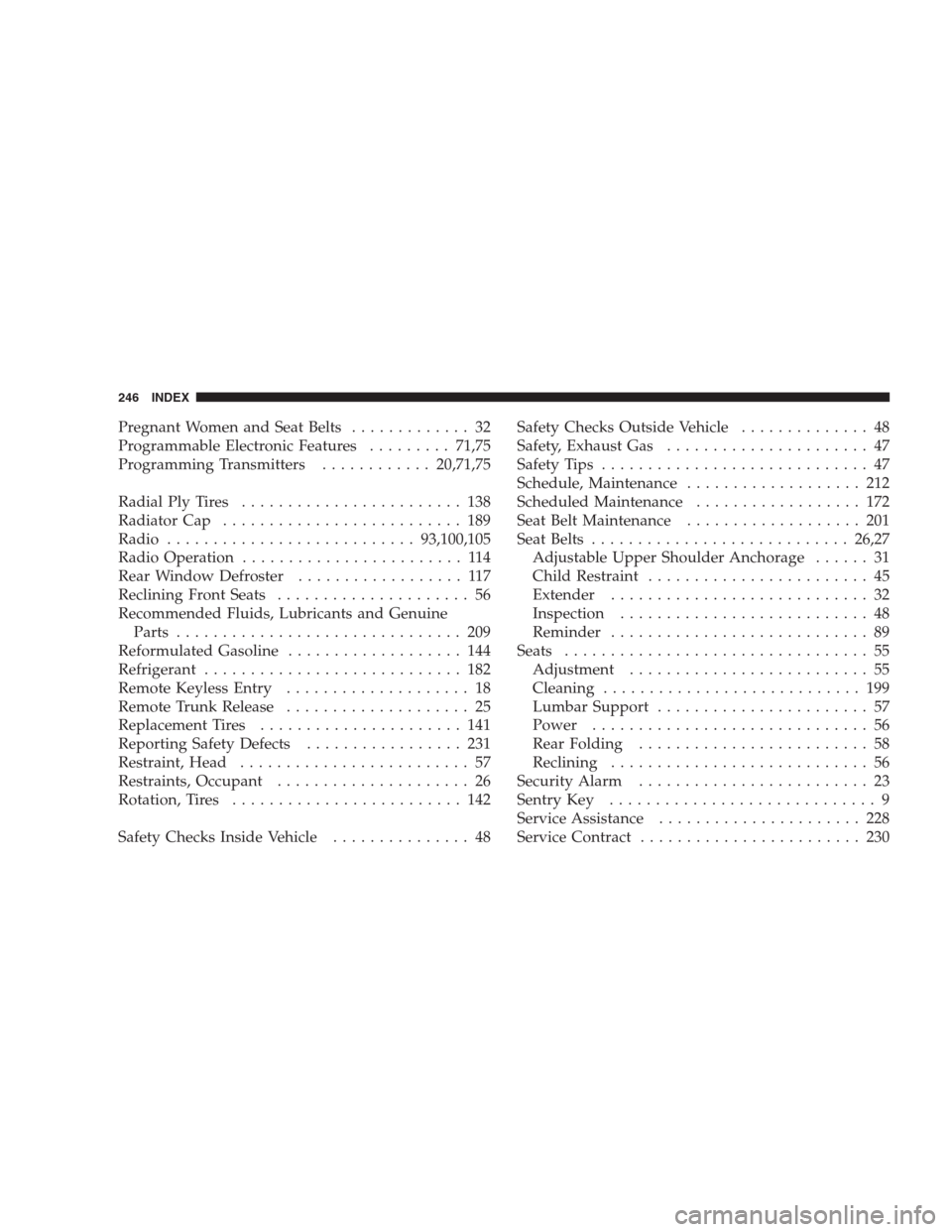

244 INDEX

Pregnant Women and Seat Belts............. 32
Programmable Electronic Features.........71,75
Programming Transmitters............20,71,75
Radial Ply Tires........................ 138
Radiator Cap.......................... 189
Radio...........................93,100,105
Radio Operation........................ 114
Rear Window Defroster.................. 117
Reclining Front Seats..................... 56
Recommended Fluids, Lubricants and Genuine
Parts............................... 209
Reformulated Gasoline................... 144
Refrigerant............................ 182
Remote Keyless Entry.................... 18
Remote Trunk Release.................... 25
Replacement Tires...................... 141
Reporting Safety Defects................. 231
Restraint, Head......................... 57
Restraints, Occupant..................... 26
Rotation, Tires......................... 142
Safety Checks Inside Vehicle............... 48Safety Checks Outside Vehicle.............. 48
Safety, Exhaust Gas...................... 47
Safety Tips............................. 47
Schedule, Maintenance................... 212
Scheduled Maintenance.................. 172
Seat Belt Maintenance................... 201
Seat Belts............................26,27
Adjustable Upper Shoulder Anchorage...... 31
Child Restraint........................ 45
Extender............................ 32
Inspection........................... 48
Reminder............................ 89
Seats................................. 55
Adjustment.......................... 55
Cleaning............................ 199
Lumbar Support....................... 57
Power.............................. 56
Rear Folding......................... 58
Reclining............................ 56
Security Alarm......................... 23
Sentry Key............................. 9
Service Assistance...................... 228
Service Contract........................ 230
246 INDEX
