2004 DODGE GRAND CARAVAN light

REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb Number
Center & Rear Dome Light .................. 578
Center & Rear Reading Lights ............... 578
Front Door Courtesy Light .................. 578
Front Header Reading Lights (If Equipped) ...... 578
Instrument Cluster Lights ................. PC74
Liftgate Light(s) .......................... 578
Overhead Console Reading Lights .......... PC579
Removable Console Light (If Equipped) ......... 194
Visor Vanity Lights .................... 6501966
NOTE: For lighted switches, see your dealer for replace-
ment instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement. LIGHT BULBS Ð Exterior Bulb Number
Back-up, Tail, Stop, Turn Signal, & Sidemarker . . . 3057
Center High-Mounted Stop Light ............. 921
Fog Light ............................. 9040
Front Side marker, Park/Turn Signal ......... 3157A
Headlight ............................. 9007
License ................................ 168338 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Headlights
1. Remove the three screws securing the headlight mod-
ule.
2. Turn the bulb socket retaining ring counterclockwise. 3. Disconnect the electrical connector and replace the
bulb. MAINTAINING YOUR VEHICLE 339
7

CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol. Front Park/Turn Signal and Sidemarker Lights
1. Remove the three screws securing the headlight mod-
ule.
2. Twist the turn signal socket to remove from the
headlight module and pull bulb from socket.340 MAINTAINING YOUR VEHICLE

3. Replace bulb, reinstall socket and then reinstall the
headlight module. Front Fog Light
1. Reach behind the front fascia from under the vehicle.
2. Twist the front fog light bulb to remove from the fog
light module.
3. Disconnect the electrical connector and replace the
bulb.
CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol. MAINTAINING YOUR VEHICLE 341
7

Rear Tail, Stop, Turn Signal, Side Marker and
Back-up Lights
1. Raise the liftgate.
2. Remove the two light assembly push-in type fasteners.
3. Squeeze the socket assembly tabs to remove it from the
housing. 4. Pull the bulb to remove it from the socket.
5. Replace the bulb, reinstall the socket, and reattach the
light assembly.342 MAINTAINING YOUR VEHICLE

Center High Mounted Stop Light (CHMSL)
1. Remove the two screws securing the CHMSL.
2. Twist the bulb socket to remove from the CHMSL
housing.
3. Pull the bulb out of the socket.
4. Replace the bulb, reinstall the socket and reattach the
CHMSL. License Light
1. Remove the two lens assembly mounting screws.
2. Pull the bulb out of the socket. Replace the bulb and
reattach the lens assembly.
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate) 20 Gallons 76 Liters
Engine Oil-with filter
2.4 Liter Engine 5.0 qts 4.7 Liters
3.3 & 3.8 Liter Engines 5.0 qts 4.7 Liters
Cooling System *
2.4 Liter Engines 11.4 qts 10.7 Liters
² 3.3 & 3.8 Liter Engines 13.4 qts 12.6 Liters
* Includes heater and coolant recovery bottle filled to
MAX level.
² * Add 2.9 quarts (2.8 liters) if equipped with a rear
heater. MAINTAINING YOUR VEHICLE 343
7

² Taxi, police, or delivery service (commercial ser-
vice). L
² Off-road or desert operation.
NOTE: Most vehicles are operated under the conditions
listed for Schedule 9 B 9 .
Second is Schedule ªAº . It is for vehicles that are not
operated under any of the conditions listed under Sched-
ule 9 B 9 .
Use the schedule that best describes your driving condi-
tions. Where time and mileage are listed, follow the
interval that occurs first.
CAUTION!Failure to perform the required maintenance items
may result in damage to the vehicle. At Each Stop for Fuel
² Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
² Check the windshield washer solvent and add if
required.
Once a Month
² Check tire pressure and look for unusual wear or
damage.
² Inspect the battery and clean and tighten the terminals
as required.
² Check the fluid levels of coolant reservoir, brake
master cylinder and transmission; add as needed.
² Check all lights and all other electrical items for correct
operation. MAINTENANCE SCHEDULES 349
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

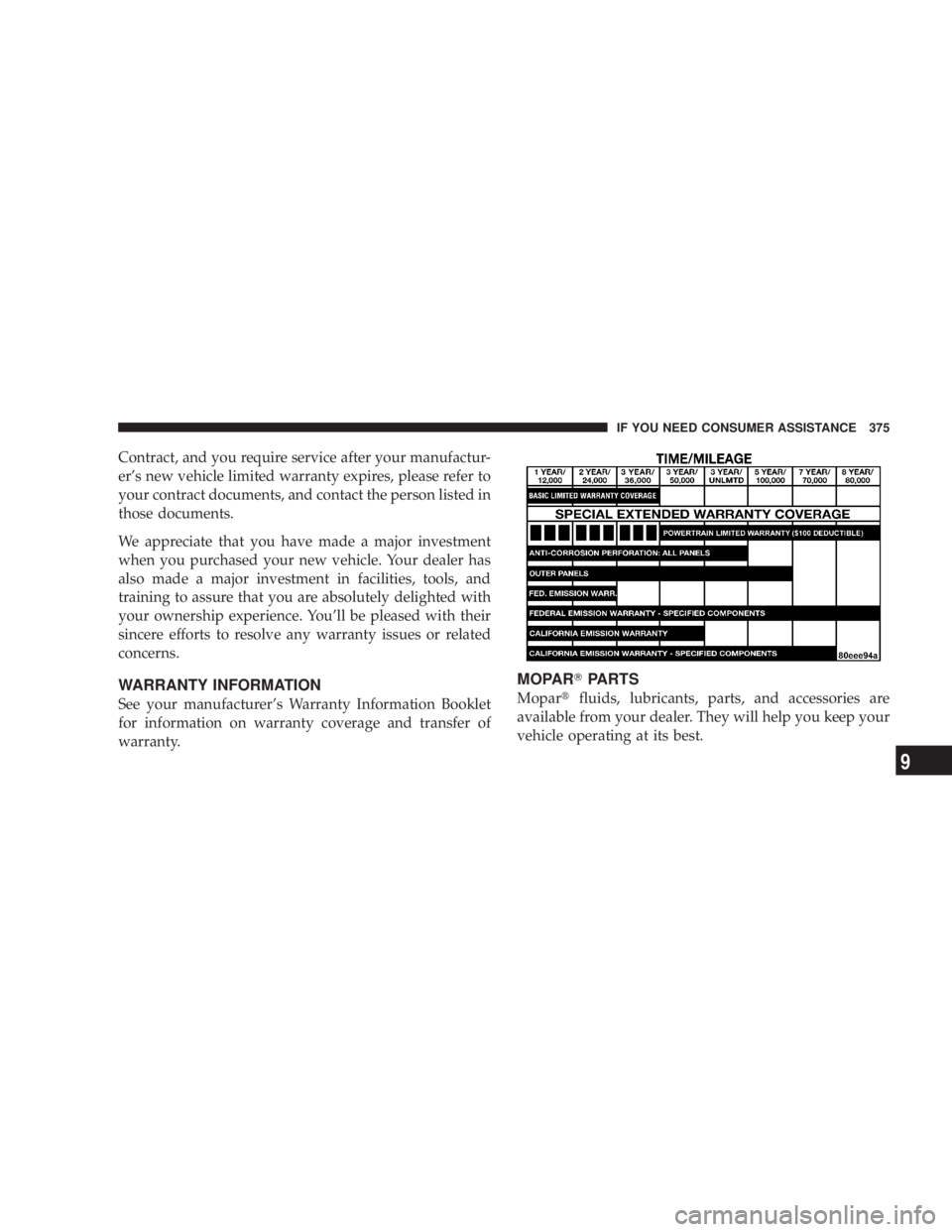

Contract, and you require service after your manufactur-
er's new vehicle limited warranty expires, please refer to
your contract documents, and contact the person listed in
those documents.
We appreciate that you have made a major investment
when you purchased your new vehicle. Your dealer has
also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
your ownership experience. You'll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
WARRANTY INFORMATION
See your manufacturer's Warranty Information Booklet
for information on warranty coverage and transfer of
warranty. MOPAR T PARTS
Mopar t fluids, lubricants, parts, and accessories are
available from your dealer. They will help you keep your
vehicle operating at its best. IF YOU NEED CONSUMER ASSISTANCE 375
9
