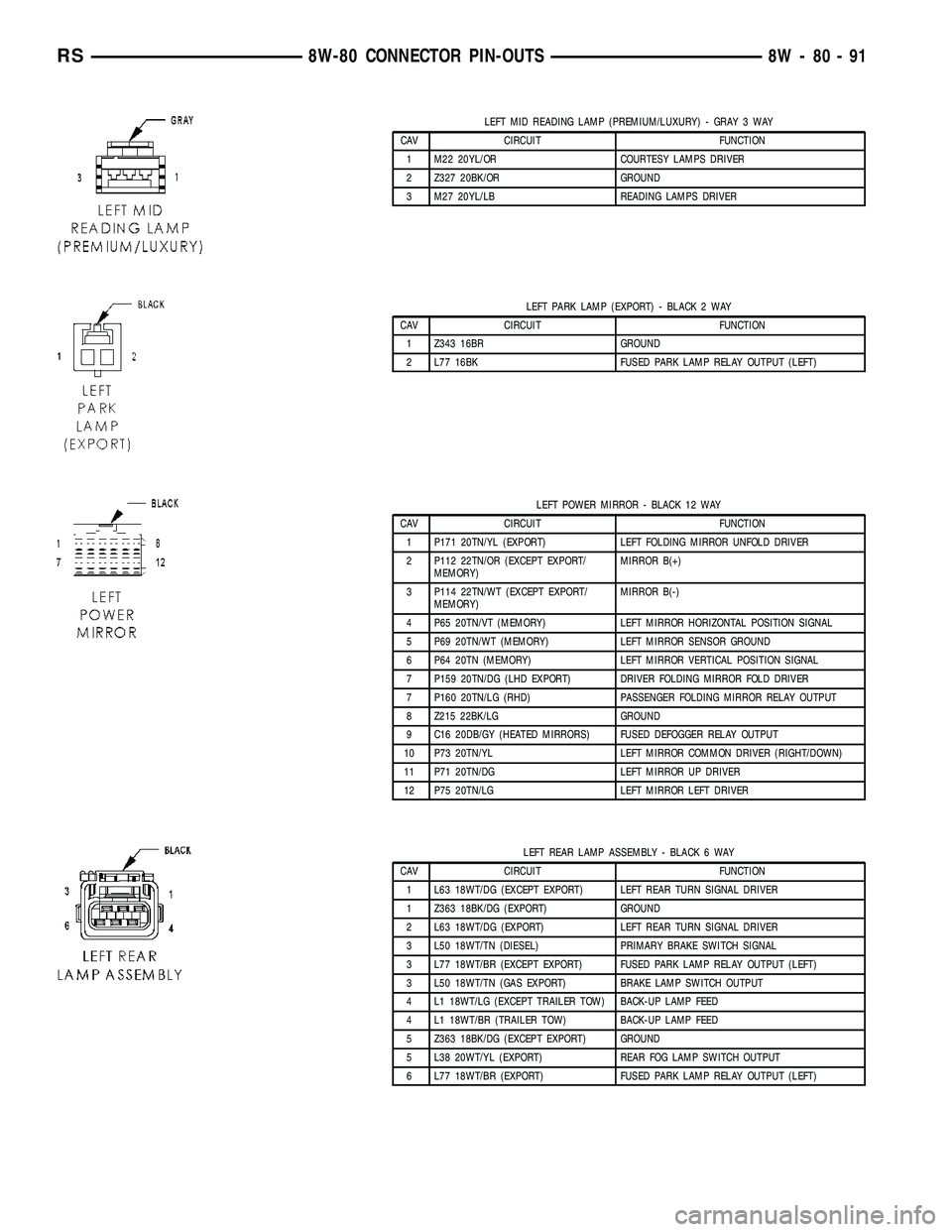

LEFT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 22TN/OR (EXCEPT EXPORT/
MEMORY)MIRROR B(+)
3 P114 22TN/WT (EXCEPT EXPORT/
MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P159 20TN/DG (LHD EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
7 P160 20TN/LG (RHD) PASSENGER FOLDING MIRROR RELAY OUTPUT
8 Z215 22BK/LG GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED DEFOGGER RELAY OUTPUT
10 P73 20TN/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P75 20TN/LG LEFT MIRROR LEFT DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG (EXCEPT EXPORT) LEFT REAR TURN SIGNAL DRIVER
1 Z363 18BK/DG (EXPORT) GROUND
2 L63 18WT/DG (EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
3 L77 18WT/BR (EXCEPT EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (GAS EXPORT) BRAKE LAMP SWITCH OUTPUT
4 L1 18WT/LG (EXCEPT TRAILER TOW) BACK-UP LAMP FEED
4 L1 18WT/BR (TRAILER TOW) BACK-UP LAMP FEED
5 Z363 18BK/DG (EXCEPT EXPORT) GROUND
5 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
6 L77 18WT/BR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
RS8W-80 CONNECTOR PIN-OUTS8W-80-91

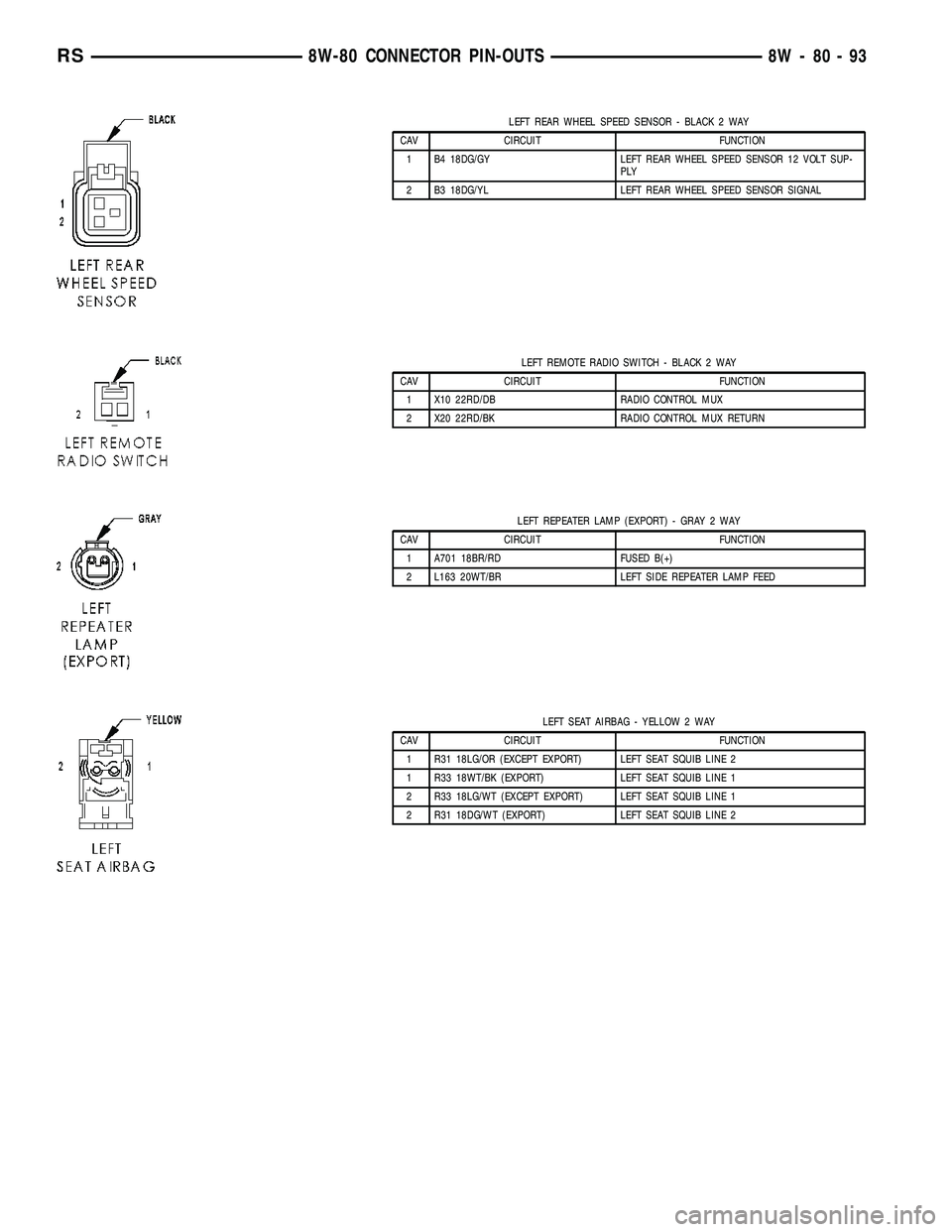

LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
LEFT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X10 22RD/DB RADIO CONTROL MUX
2 X20 22RD/BK RADIO CONTROL MUX RETURN
LEFT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+)
2 L163 20WT/BR LEFT SIDE REPEATER LAMP FEED
LEFT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R31 18LG/OR (EXCEPT EXPORT) LEFT SEAT SQUIB LINE 2
1 R33 18WT/BK (EXPORT) LEFT SEAT SQUIB LINE 1
2 R33 18LG/WT (EXCEPT EXPORT) LEFT SEAT SQUIB LINE 1
2 R31 18DG/WT (EXPORT) LEFT SEAT SQUIB LINE 2
RS8W-80 CONNECTOR PIN-OUTS8W-80-93

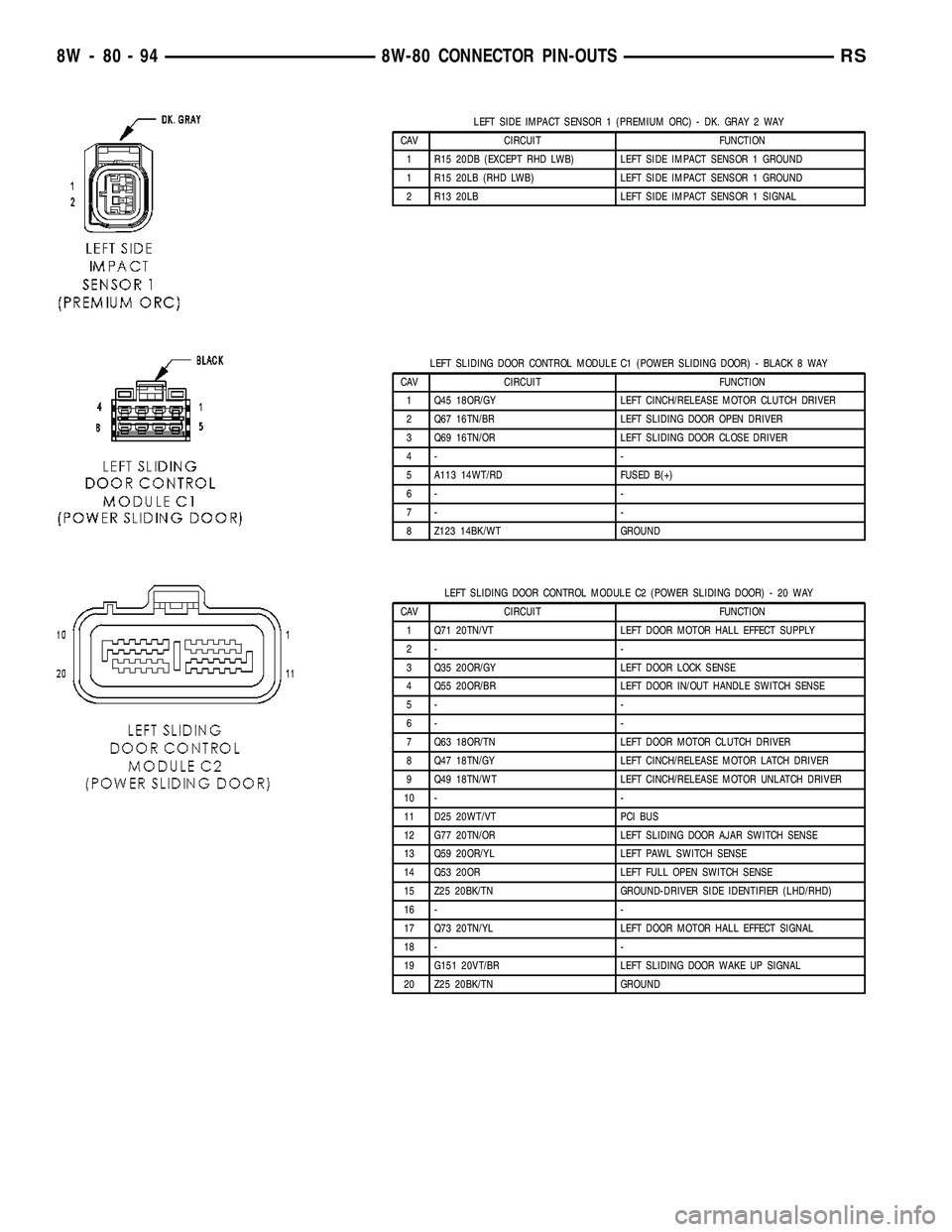

LEFT SIDE IMPACT SENSOR 1 (PREMIUM ORC) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 R15 20DB (EXCEPT RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
1 R15 20LB (RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
LEFT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z123 14BK/WT GROUND
LEFT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - 20 WAY
CAV CIRCUIT FUNCTION
1 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY
2- -
3 Q35 20OR/GY LEFT DOOR LOCK SENSE
4 Q55 20OR/BR LEFT DOOR IN/OUT HANDLE SWITCH SENSE
5- -
6- -
7 Q63 18OR/TN LEFT DOOR MOTOR CLUTCH DRIVER
8 Q47 18TN/GY LEFT CINCH/RELEASE MOTOR LATCH DRIVER
9 Q49 18TN/WT LEFT CINCH/RELEASE MOTOR UNLATCH DRIVER
10 - -
11 D25 20WT/VT PCI BUS
12 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SENSE
13 Q59 20OR/YL LEFT PAWL SWITCH SENSE
14 Q53 20OR LEFT FULL OPEN SWITCH SENSE
15 Z25 20BK/TN GROUND-DRIVER SIDE IDENTIFIER (LHD/RHD)
16 - -
17 Q73 20TN/YL LEFT DOOR MOTOR HALL EFFECT SIGNAL
18 - -
19 G151 20VT/BR LEFT SLIDING DOOR WAKE UP SIGNAL
20 Z25 20BK/TN GROUND
8W - 80 - 94 8W-80 CONNECTOR PIN-OUTSRS

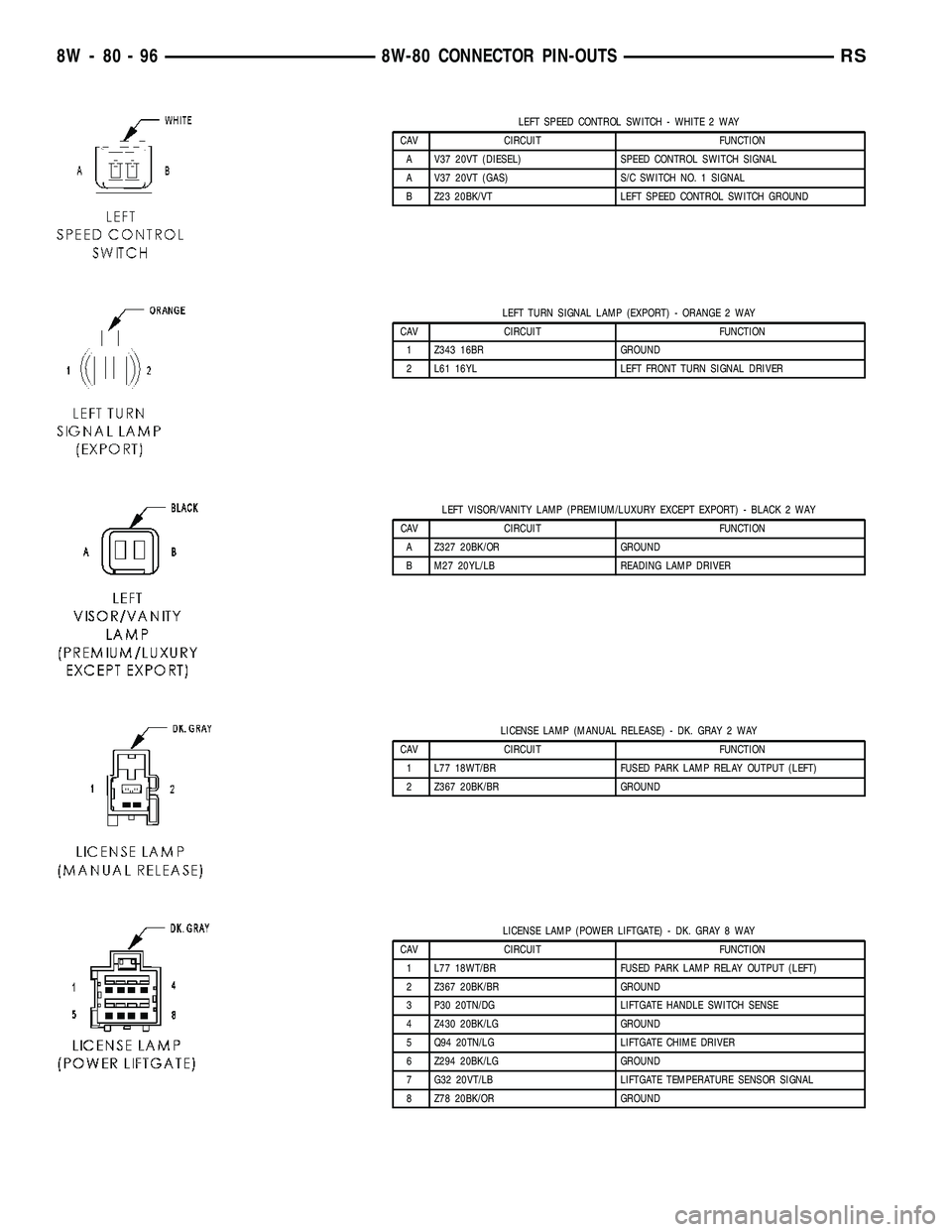

LEFT SPEED CONTROL SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
A V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
A V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
B Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
LEFT TURN SIGNAL LAMP (EXPORT) - ORANGE 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L61 16YL LEFT FRONT TURN SIGNAL DRIVER
LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
8W - 80 - 96 8W-80 CONNECTOR PIN-OUTSRS

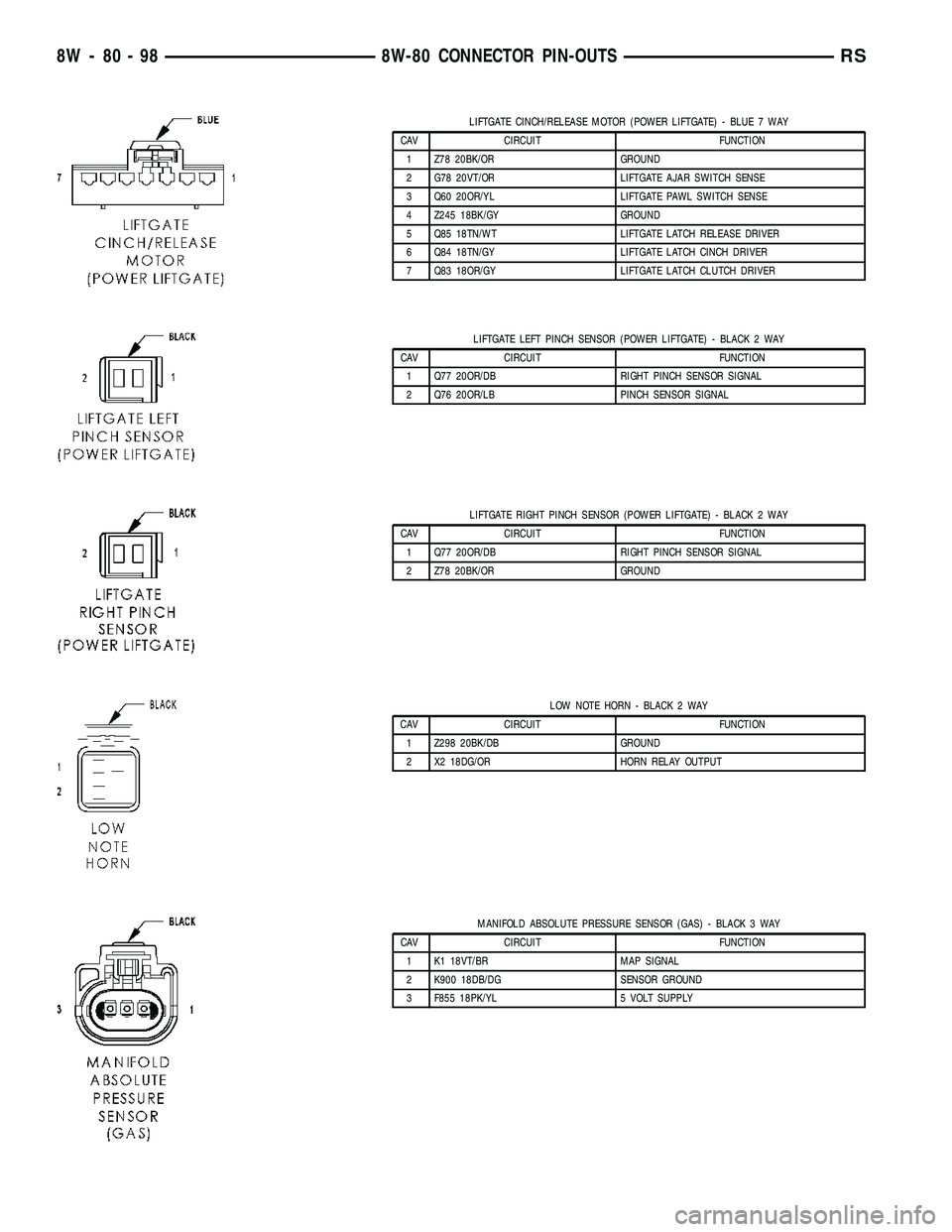

LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
4 Z245 18BK/GY GROUND
5 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
6 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
7 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z298 20BK/DB GROUND
2 X2 18DG/OR HORN RELAY OUTPUT
MANIFOLD ABSOLUTE PRESSURE SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K1 18VT/BR MAP SIGNAL
2 K900 18DB/DG SENSOR GROUND
3 F855 18PK/YL 5 VOLT SUPPLY
8W - 80 - 98 8W-80 CONNECTOR PIN-OUTSRS

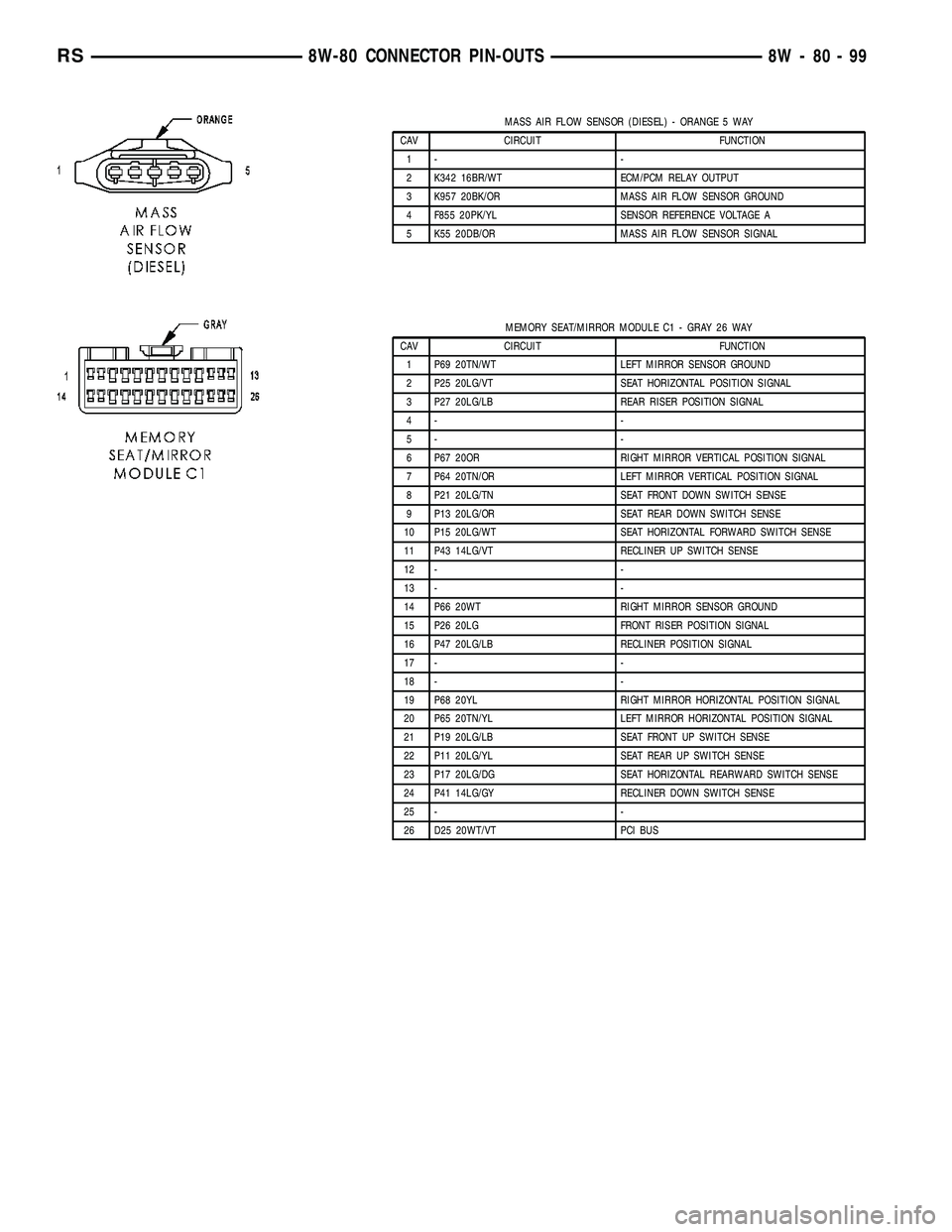

MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY
CAV CIRCUIT FUNCTION
1- -
2 K342 16BR/WT ECM/PCM RELAY OUTPUT
3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
5 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
MEMORY SEAT/MIRROR MODULE C1 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 P69 20TN/WT LEFT MIRROR SENSOR GROUND
2 P25 20LG/VT SEAT HORIZONTAL POSITION SIGNAL
3 P27 20LG/LB REAR RISER POSITION SIGNAL
4- -
5- -
6 P67 20OR RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P64 20TN/OR LEFT MIRROR VERTICAL POSITION SIGNAL
8 P21 20LG/TN SEAT FRONT DOWN SWITCH SENSE
9 P13 20LG/OR SEAT REAR DOWN SWITCH SENSE
10 P15 20LG/WT SEAT HORIZONTAL FORWARD SWITCH SENSE
11 P43 14LG/VT RECLINER UP SWITCH SENSE
12 - -
13 - -
14 P66 20WT RIGHT MIRROR SENSOR GROUND
15 P26 20LG FRONT RISER POSITION SIGNAL
16 P47 20LG/LB RECLINER POSITION SIGNAL
17 - -
18 - -
19 P68 20YL RIGHT MIRROR HORIZONTAL POSITION SIGNAL
20 P65 20TN/YL LEFT MIRROR HORIZONTAL POSITION SIGNAL
21 P19 20LG/LB SEAT FRONT UP SWITCH SENSE
22 P11 20LG/YL SEAT REAR UP SWITCH SENSE
23 P17 20LG/DG SEAT HORIZONTAL REARWARD SWITCH SENSE
24 P41 14LG/GY RECLINER DOWN SWITCH SENSE
25 - -
26 D25 20WT/VT PCI BUS
RS8W-80 CONNECTOR PIN-OUTS8W-80-99

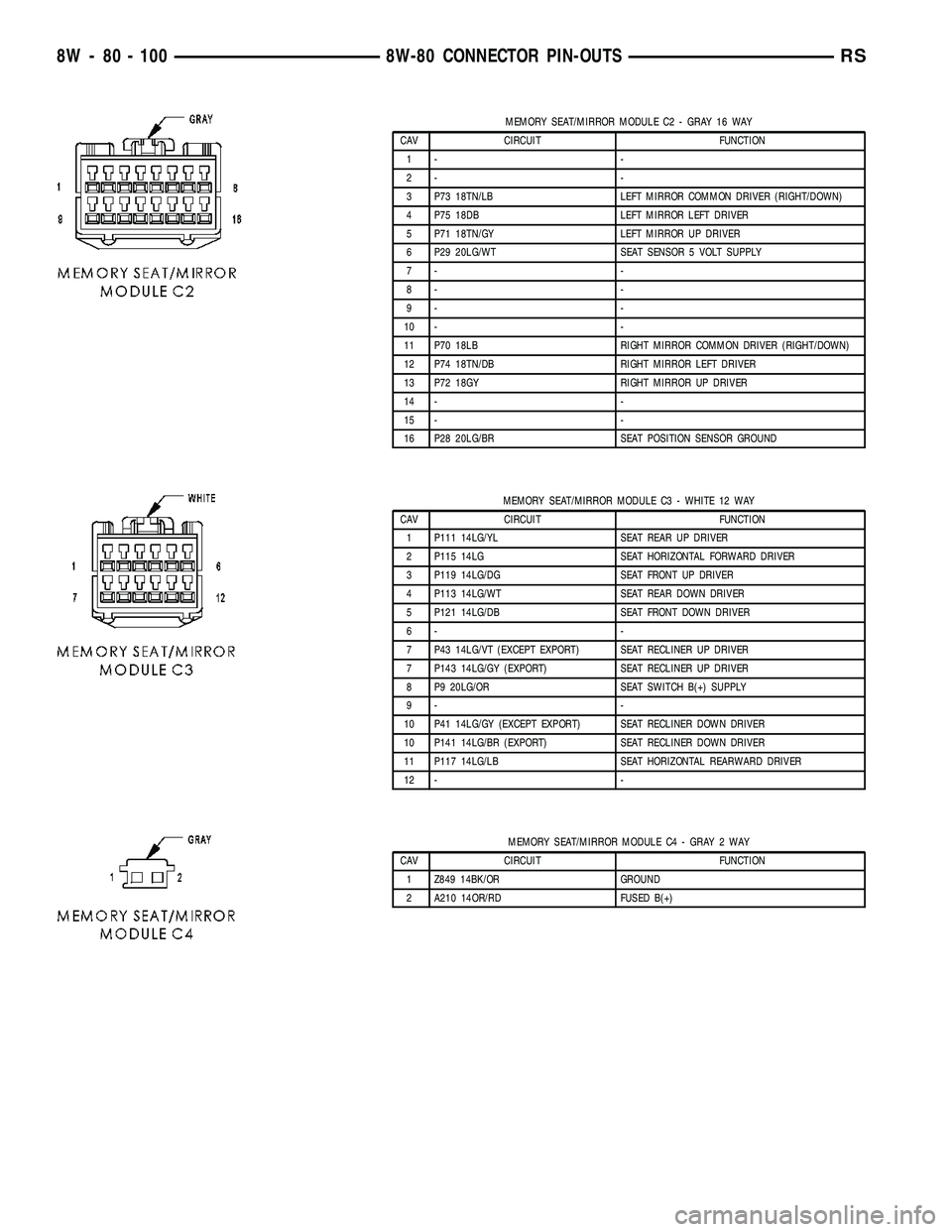

MEMORY SEAT/MIRROR MODULE C2 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 P73 18TN/LB LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 P75 18DB LEFT MIRROR LEFT DRIVER
5 P71 18TN/GY LEFT MIRROR UP DRIVER
6 P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
7- -
8- -
9- -
10 - -
11 P70 18LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
12 P74 18TN/DB RIGHT MIRROR LEFT DRIVER
13 P72 18GY RIGHT MIRROR UP DRIVER
14 - -
15 - -
16 P28 20LG/BR SEAT POSITION SENSOR GROUND
MEMORY SEAT/MIRROR MODULE C3 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 P111 14LG/YL SEAT REAR UP DRIVER
2 P115 14LG SEAT HORIZONTAL FORWARD DRIVER
3 P119 14LG/DG SEAT FRONT UP DRIVER
4 P113 14LG/WT SEAT REAR DOWN DRIVER
5 P121 14LG/DB SEAT FRONT DOWN DRIVER
6- -
7 P43 14LG/VT (EXCEPT EXPORT) SEAT RECLINER UP DRIVER
7 P143 14LG/GY (EXPORT) SEAT RECLINER UP DRIVER
8 P9 20LG/OR SEAT SWITCH B(+) SUPPLY
9- -
10 P41 14LG/GY (EXCEPT EXPORT) SEAT RECLINER DOWN DRIVER
10 P141 14LG/BR (EXPORT) SEAT RECLINER DOWN DRIVER
11 P117 14LG/LB SEAT HORIZONTAL REARWARD DRIVER
12 - -
MEMORY SEAT/MIRROR MODULE C4 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 A210 14OR/RD FUSED B(+)
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSRS

NATURAL VACUUM LEAK DETECTION ASSEMBLY (EXCEPT EXPORT) - LT. GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z166 18BK/WT GROUND
2 K107 18VT/WT NVLD SWITCH SIGNAL
3 K106 18VT/LB NVLD SOL CONTROL
OUTPUT SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 18DG/VT SPEED SENSOR GROUND
2 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 22VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 22VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT EXPORT/PRE-
MIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
OXYGEN SENSOR 1/1 UPSTREAM (GAS)-4WAY
CAV CIRCUIT FUNCTION
1 Z42 18BK/LG GROUND
2 K99 18BR/LG O2 1/1 HEATER CONTROL
3 K902 18BR/DG O2 RETURN (UP)
4 K41 18DB/LB O2 1/1 SIGNAL
8W - 80 - 102 8W-80 CONNECTOR PIN-OUTSRS
