2004 CHRYSLER VOYAGER 02 sensor

AUTO TEMP CONTROL C3-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTOMATIC DAY/NIGHT MIRROR (LUXURY) - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 F503 20BK/PK FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z113 20BK GROUND
3 L1 20BK/WT BACK-UP LAMP FEED
4 P112 20BK/OR (EXCEPT EXPORT) MIRROR B(+)
5 P114 20BK/LB (EXCEPT EXPORT) MIRROR B(-)
6- -
7 L24 20BK/GY (EXCEPT EXPORT) AUTOMATIC HEADLAMP SWITCH SENSOR
BACK-UP LAMP SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T2 18DG/WT TRS REVERSE SENSE
2 Z252 18BK/WT GROUND
BATTERY TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K25 20BR/TN (DIESEL) BATTERY TEMPERATURE SENSOR SIGNAL
1 K91 18DB/YL (GAS) BATTERY TEMP SIGNAL
2 K900 20DB/DG (DIESEL) SENSOR GROUND
2 K900 18DB/DG (GAS) SENSOR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-13

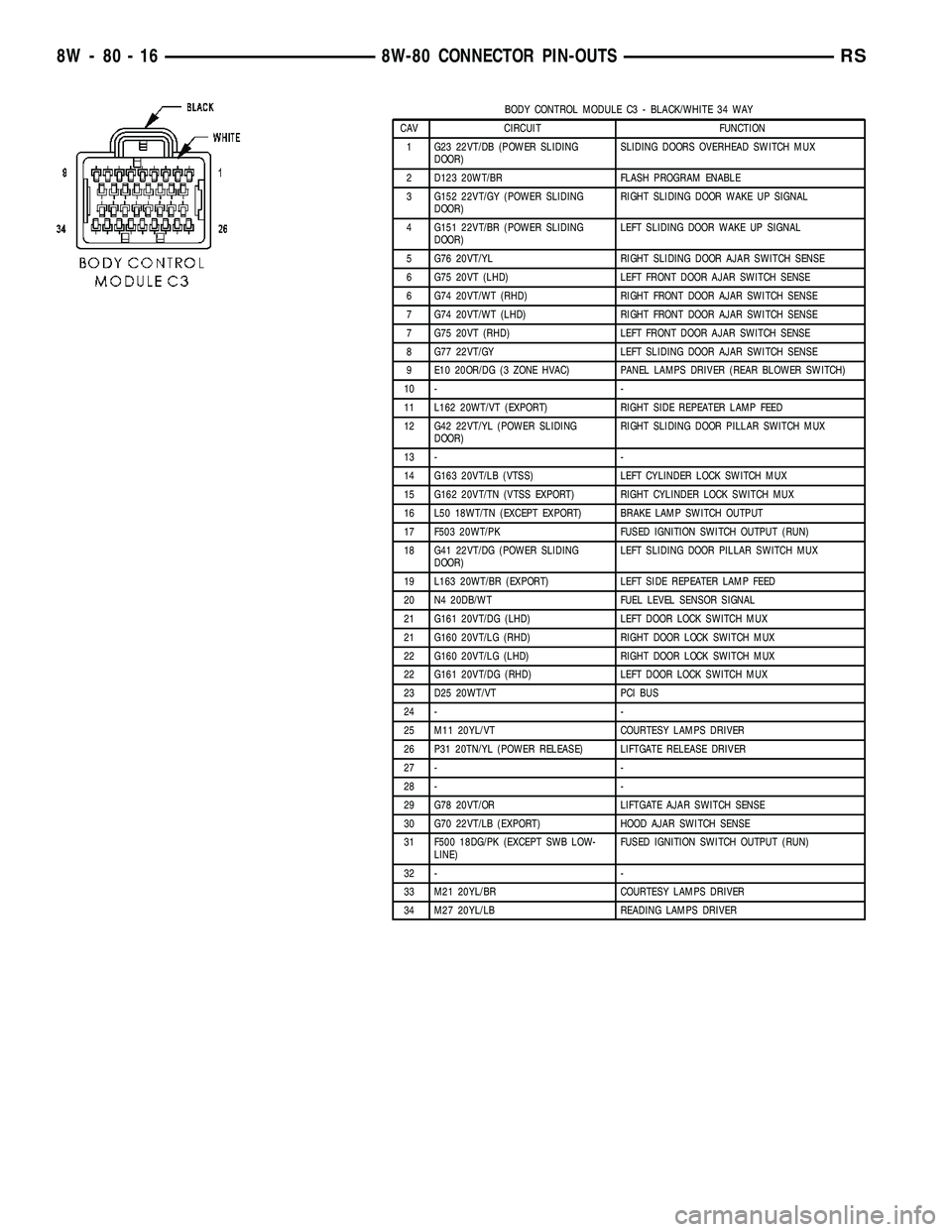

BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAY
CAV CIRCUIT FUNCTION
1 G23 22VT/DB (POWER SLIDING
DOOR)SLIDING DOORS OVERHEAD SWITCH MUX
2 D123 20WT/BR FLASH PROGRAM ENABLE
3 G152 22VT/GY (POWER SLIDING
DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 22VT/BR (POWER SLIDING
DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
8 G77 22VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/DG (3 ZONE HVAC) PANEL LAMPS DRIVER (REAR BLOWER SWITCH)
10 - -
11 L162 20WT/VT (EXPORT) RIGHT SIDE REPEATER LAMP FEED
12 G42 22VT/YL (POWER SLIDING
DOOR)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 - -
14 G163 20VT/LB (VTSS) LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/TN (VTSS EXPORT) RIGHT CYLINDER LOCK SWITCH MUX
16 L50 18WT/TN (EXCEPT EXPORT) BRAKE LAMP SWITCH OUTPUT
17 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
18 G41 22VT/DG (POWER SLIDING
DOOR)LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (EXPORT) LEFT SIDE REPEATER LAMP FEED
20 N4 20DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RELEASE) LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 22VT/LB (EXPORT) HOOD AJAR SWITCH SENSE
31 F500 18DG/PK (EXCEPT SWB LOW-
LINE)FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTSRS

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAY
CAV CIRCUIT FUNCTION
1 L91 22WT/DB HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 22VT/WT REAR WIPER SWITCH MUX RETURN
17 L900 22WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR (LHD) HEADLAMP SWITCH MUX
18 L307 22WT/BR (RHD) HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (EXPORT) REAR FOG LAMP INDICATOR DRIVER
26 X20 22GY/WT RADIO CONTROL MUX
27 G194 22VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 22BR/DB REAR WIPER SWITCH MUX
29 W52 22BR/YL FRONT WIPER SWITCH MUX
30 E2 22OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 22WT/OR FRONT FOG LAMP INDICATOR DRIVER
BOOST PRESSURE SENSOR (DIESEL)-4WAY
CAV CIRCUIT FUNCTION
1 K121 20DB BOOST PRESSURE SENSOR GROUND
2 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
4 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
8W - 80 - 18 8W-80 CONNECTOR PIN-OUTSRS

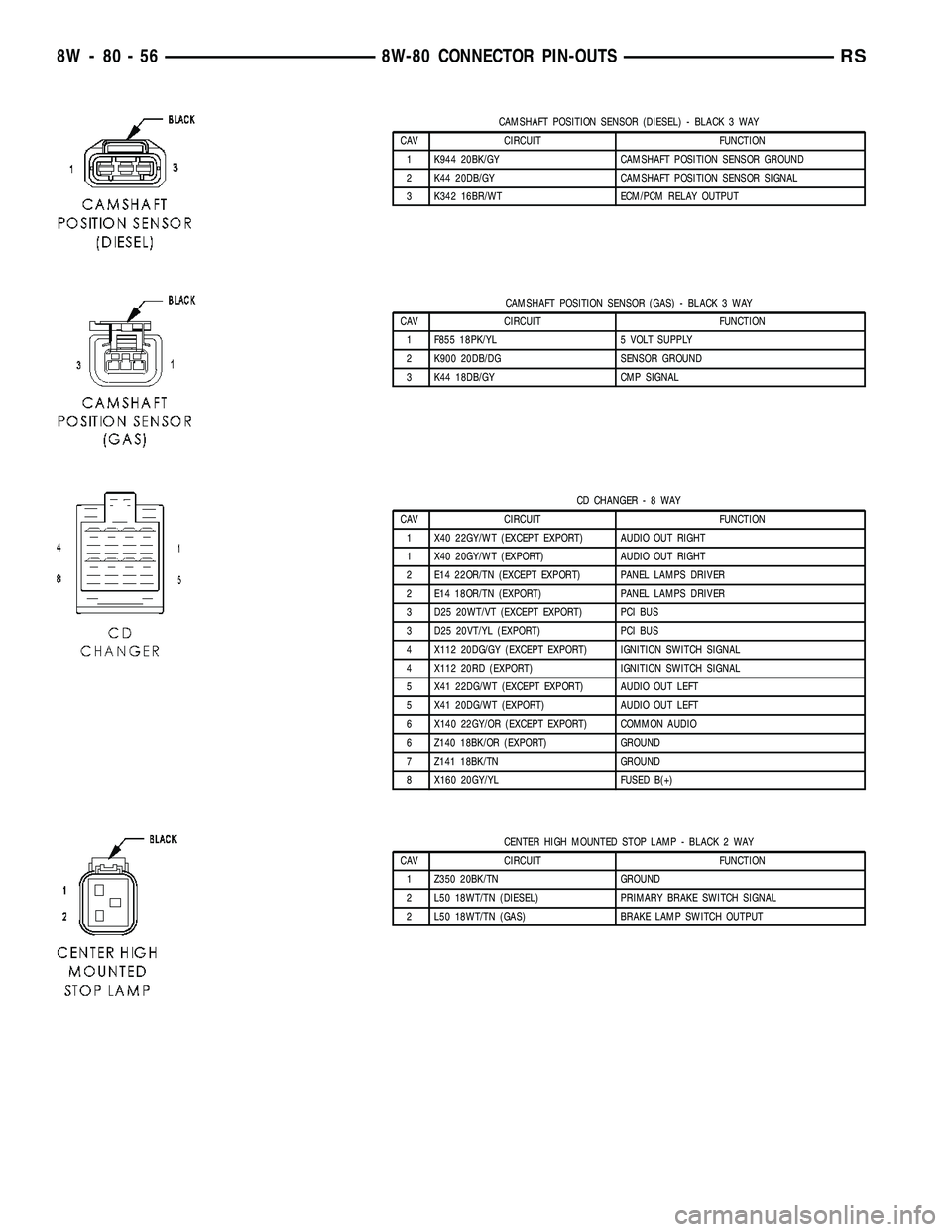

CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 18PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K44 18DB/GY CMP SIGNAL
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 22GY/WT (EXCEPT EXPORT) AUDIO OUT RIGHT
1 X40 20GY/WT (EXPORT) AUDIO OUT RIGHT
2 E14 22OR/TN (EXCEPT EXPORT) PANEL LAMPS DRIVER
2 E14 18OR/TN (EXPORT) PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT EXPORT) PCI BUS
3 D25 20VT/YL (EXPORT) PCI BUS
4 X112 20DG/GY (EXCEPT EXPORT) IGNITION SWITCH SIGNAL
4 X112 20RD (EXPORT) IGNITION SWITCH SIGNAL
5 X41 22DG/WT (EXCEPT EXPORT) AUDIO OUT LEFT
5 X41 20DG/WT (EXPORT) AUDIO OUT LEFT
6 X140 22GY/OR (EXCEPT EXPORT) COMMON AUDIO
6 Z140 18BK/OR (EXPORT) GROUND
7 Z141 18BK/TN GROUND
8 X160 20GY/YL FUSED B(+)
CENTER HIGH MOUNTED STOP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z350 20BK/TN GROUND
2 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
2 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSRS

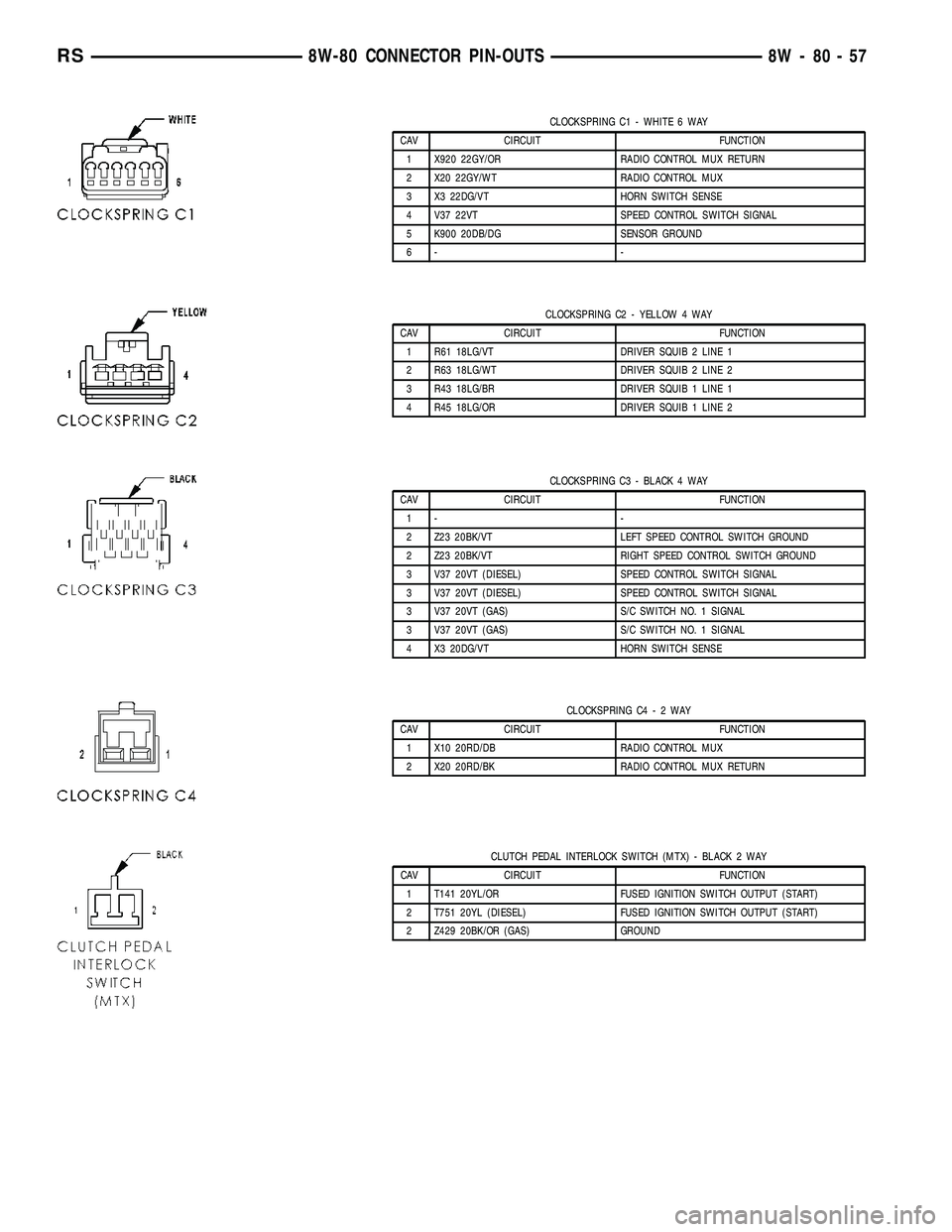

CLOCKSPRING C1 - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 X920 22GY/OR RADIO CONTROL MUX RETURN
2 X20 22GY/WT RADIO CONTROL MUX
3 X3 22DG/VT HORN SWITCH SENSE
4 V37 22VT SPEED CONTROL SWITCH SIGNAL
5 K900 20DB/DG SENSOR GROUND
6- -
CLOCKSPRING C2 - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R61 18LG/VT DRIVER SQUIB 2 LINE 1
2 R63 18LG/WT DRIVER SQUIB 2 LINE 2
3 R43 18LG/BR DRIVER SQUIB 1 LINE 1
4 R45 18LG/OR DRIVER SQUIB 1 LINE 2
CLOCKSPRING C3 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
2 Z23 20BK/VT RIGHT SPEED CONTROL SWITCH GROUND
3 V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
3 V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL
3 V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
3 V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL
4 X3 20DG/VT HORN SWITCH SENSE
CLOCKSPRING C4-2WAY
CAV CIRCUIT FUNCTION
1 X10 20RD/DB RADIO CONTROL MUX
2 X20 20RD/BK RADIO CONTROL MUX RETURN
CLUTCH PEDAL INTERLOCK SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
2 Z429 20BK/OR (GAS) GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-57

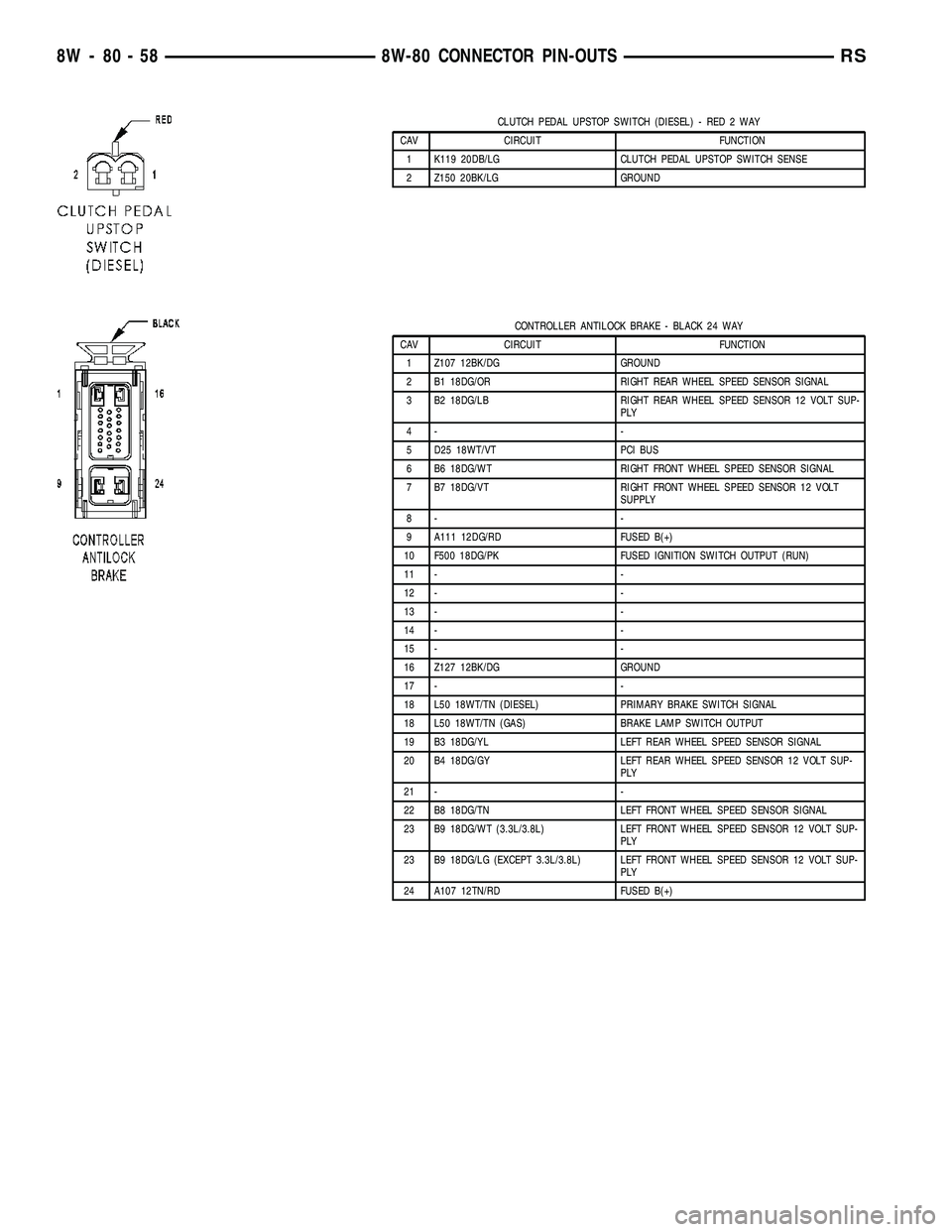

CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z107 12BK/DG GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
18 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
23 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
24 A107 12TN/RD FUSED B(+)
8W - 80 - 58 8W-80 CONNECTOR PIN-OUTSRS

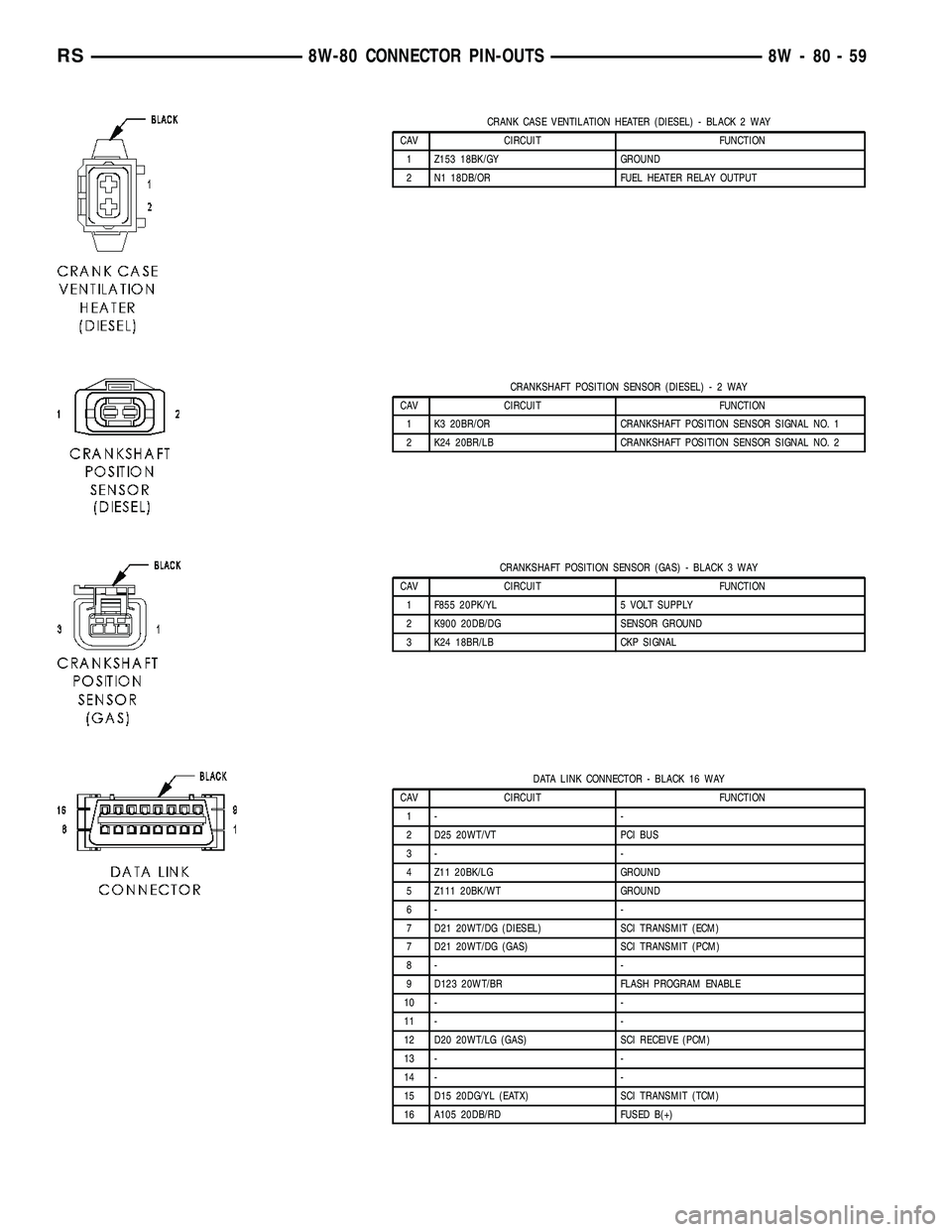

CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z153 18BK/GY GROUND
2 N1 18DB/OR FUEL HEATER RELAY OUTPUT
CRANKSHAFT POSITION SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
2 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 20PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K24 18BR/LB CKP SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 20BK/LG GROUND
5 Z111 20BK/WT GROUND
6- -
7 D21 20WT/DG (DIESEL) SCI TRANSMIT (ECM)
7 D21 20WT/DG (GAS) SCI TRANSMIT (PCM)
8- -
9 D123 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 D20 20WT/LG (GAS) SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20DG/YL (EATX) SCI TRANSMIT (TCM)
16 A105 20DB/RD FUSED B(+)
RS8W-80 CONNECTOR PIN-OUTS8W-80-59

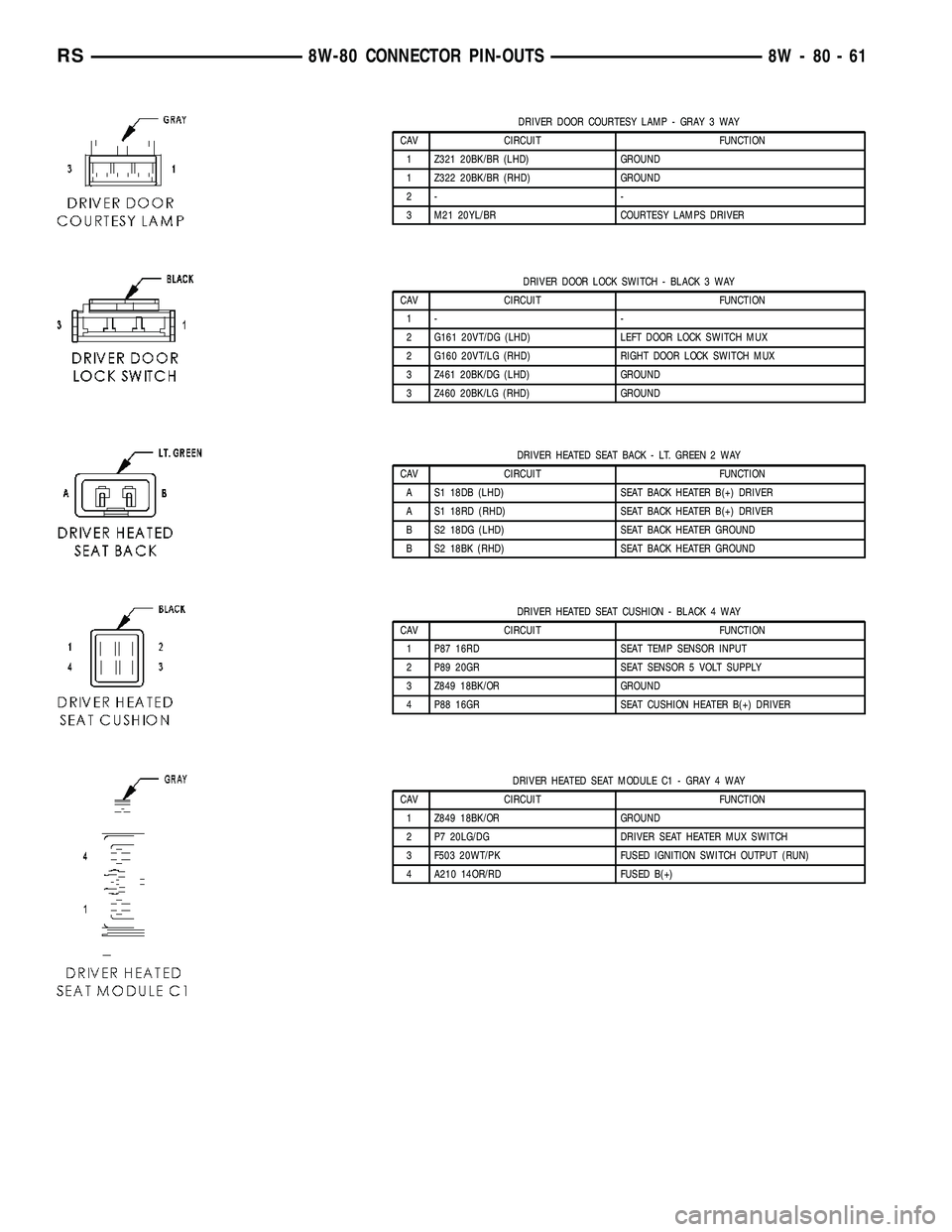

DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z321 20BK/BR (LHD) GROUND
1 Z322 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
3 Z461 20BK/DG (LHD) GROUND
3 Z460 20BK/LG (RHD) GROUND
DRIVER HEATED SEAT BACK - LT. GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
A S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
B S2 18DG (LHD) SEAT BACK HEATER GROUND
B S2 18BK (RHD) SEAT BACK HEATER GROUND
DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD SEAT TEMP SENSOR INPUT
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z849 18BK/OR GROUND
4 P88 16GR SEAT CUSHION HEATER B(+) DRIVER
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK/OR GROUND
2 P7 20LG/DG DRIVER SEAT HEATER MUX SWITCH
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
RS8W-80 CONNECTOR PIN-OUTS8W-80-61
