2004 CHRYSLER VOYAGER headlamp

WELD LOCATIONS
SPECIFICATIONS - WELD LOCATIONS
INDEX
DESCRIPTION FIGURE
FRONT FENDER SHIELD - RIGHT 64
FRONT FENDER SHIELD - LEFT 65
STRUT TOWER AND REINFORCEMENTS - RIGHT 66
SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT 67
STRUT TOWER AND REINFORCEMENTS - LEFT 68
SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT 69
FLOOR PAN REINFORCEMENTS - SIDE RAILS 70
REAR SUSPENSION BRACKETS 71
FLOOR PAN CROSS MEMBERS 72
SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY 73
STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY 74
FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION 75
REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE 76
FRONT SEAT CROSS MEMBER 77
FLOOR PAN SIDE RAIL REINFORCEMENT 78
SILL BULKHEAD REINFORCEMENTS 79
FLOOR PAN CROSS MEMBER REINFORCEMENTS 80
FRONT SEAT CROSS MEMBER 81
SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE 82
CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE 83
REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE 84
LOWER LIFTGATE PANEL LATCH REINFORCEMENT 85
ENGINE MOUNTING PLATE AND TOW BRACKET 86
HEADLAMP MOUNTING PLATE 87
LOWER RADIATOR CROSS MEMBER BRACKETS 88
CROSS MEMBER EXTENSIONS 89
JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR 90
FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY 91
FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY 92
FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY 93
REAR SUPPORT AND TIRE STOWAGE CROSS MEMBERS - LONG WHEEL BASE
ONLY94
INNER SIDE SILLS - LONG WHEEL BASE ONLY 95
WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY 96
REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 97
FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY 98
INNER SIDE SILLS - SHORT WHEEL BASE ONLY 99
23 - 166 BODY STRUCTURERS

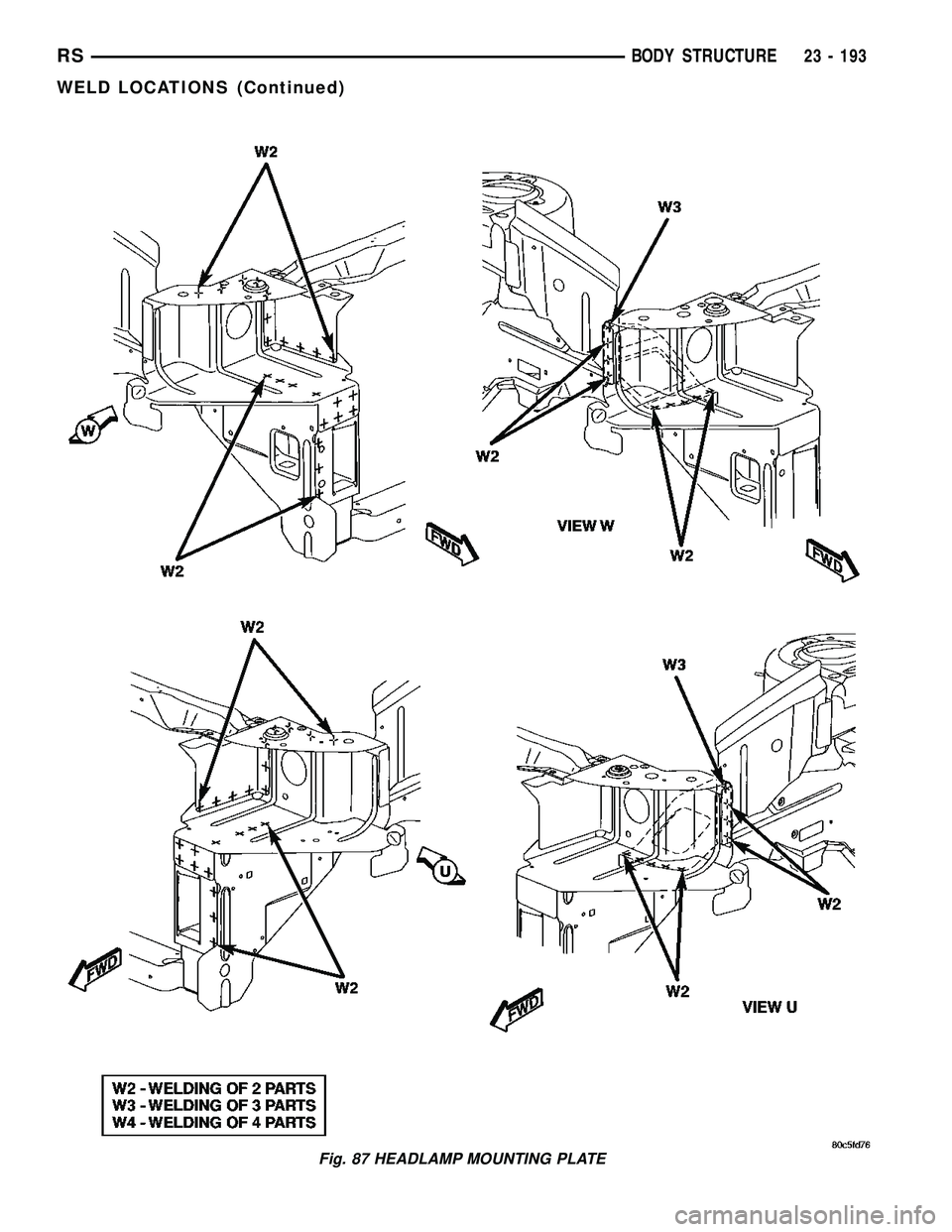

Fig. 87 HEADLAMP MOUNTING PLATE
RSBODY STRUCTURE23 - 193
WELD LOCATIONS (Continued)

heater control has detected a failure and a Diagnostic
Trouble Code (DTC) has been set. Refer to Body
Diagnostic Procedures to perform further diagnosis.
The LEDs or graphics will continue to flash even
after the ignition switch is cycled Off and On, until a
successful calibration is completed or until the vehi-
cle has been driven about 13 kilometers (8 miles).
REMOVAL
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the center bezel from the instrument
panel (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT PANEL CENTER BEZEL -
REMOVAL).
(3) Place the instrument panel center bezel unit
face down on a suitable work surface. Take the
proper precautions to protect the center bezel from
cosmetic damage.
(4) If the vehicle is equipped with the optional
Automatic Temperature Control (ATC) system, dis-
connect the infrared sensor jumper harness connector
from the receptacle on the back of the A/C-heater
control (Fig. 9).
(5) Remove the six screws that secure the A/C-
heater control to the back of the instrument panel
center bezel.
(6) Remove the A/C-heater control from the instru-
ment panel center bezel.
INSTALLATION
(1) Position the A/C-heater control onto the back of
instrument panel center bezel.
(2) Install the six screws that secure the A/C-
heater control to the back of the instrument panel
center bezel. Tighten the screws to 2 N´m (17 in.
lbs.).
(3) If the vehicle is equipped with the optional
ATC system, reconnect the infrared sensor jumper
harness connector to A/C-heater control.(4) Install the center bezel onto the instrument
panel (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT PANEL CENTER BEZEL - INSTAL-
LATION).
(5) Reconnect the battery negative cable.
A/C PRESSURE TRANSDUCER
DESCRIPTION
The A/C pressure transducer is a switch that is
installed on a fitting located on the refrigerant liquid
line between the receiver/drier and the expansion
valve in the right rear corner of the engine compart-
ment. An internally threaded hex fitting on the
transducer connects it to the externally threaded
Schrader-type fitting on the liquid line. A rubber
O-ring seals the connection between the transducer
and the liquid line fitting. Three terminals within a
molded plastic connector receptacle on the top of the
transducer connect it to the vehicle electrical system
through a wire lead and connector of the headlamp
and dash wire harness.
The A/C pressure transducer cannot be adjusted or
repaired and, if faulty or damaged, it must be
replaced.
OPERATION
The A/C pressure transducer monitors the pres-
sures in the high side of the refrigerant system
through its connection to a fitting on the liquid line.
The transducer will change its internal resistance in
response to the pressures it monitors. The power-
train control module (PCM) provides a five volt ref-
Fig. 9 A/C-Heater Control
1 - INFRARED SENSOR CONNECTOR (ATC ONLY)
2 - INFRARED SENSOR HARNESS (ATC ONLY)
3 - A/C-HEATER CONTROL AREA
4 - SCREW (6)
5- INSTRUMENT PANEL CENTER BEZEL
RSCONTROLS - FRONT24-21
A/C HEATER CONTROL (Continued)
