2004 CHRYSLER 300 M Owners Manual

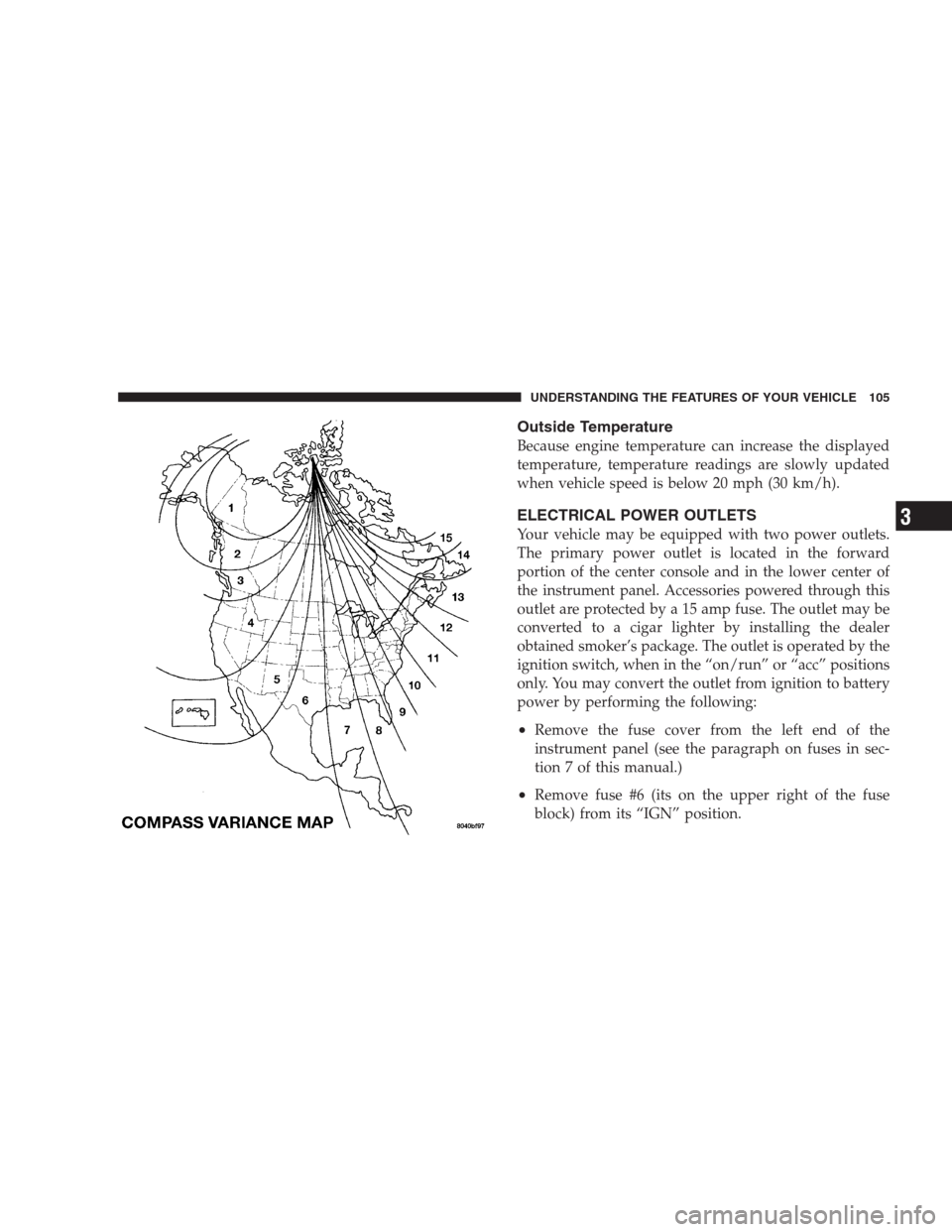

Outside Temperature
Because engine temperature can increase the displayed
temperature, temperature readings are slowly updated
when vehicle speed is below 20 mph (30 km/h).
ELECTRICAL POWER OUTLETS
Your vehicle may be equipped with two power outlets.
The primary power outlet is located in the forward
portion of the center console and in the lower center of
the instrument panel. Accessories powered through this
outlet are protected by a 15 amp fuse. The outlet may be
converted to a cigar lighter by installing the dealer
obtained smoker’s package. The outlet is operated by the
ignition switch, when in the “on/run” or “acc” positions
only. You may convert the outlet from ignition to battery
power by performing the following:
•Remove the fuse cover from the left end of the
instrument panel (see the paragraph on fuses in sec-
tion 7 of this manual.)
•Remove fuse #6 (its on the upper right of the fuse
block) from its “IGN” position.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105
3

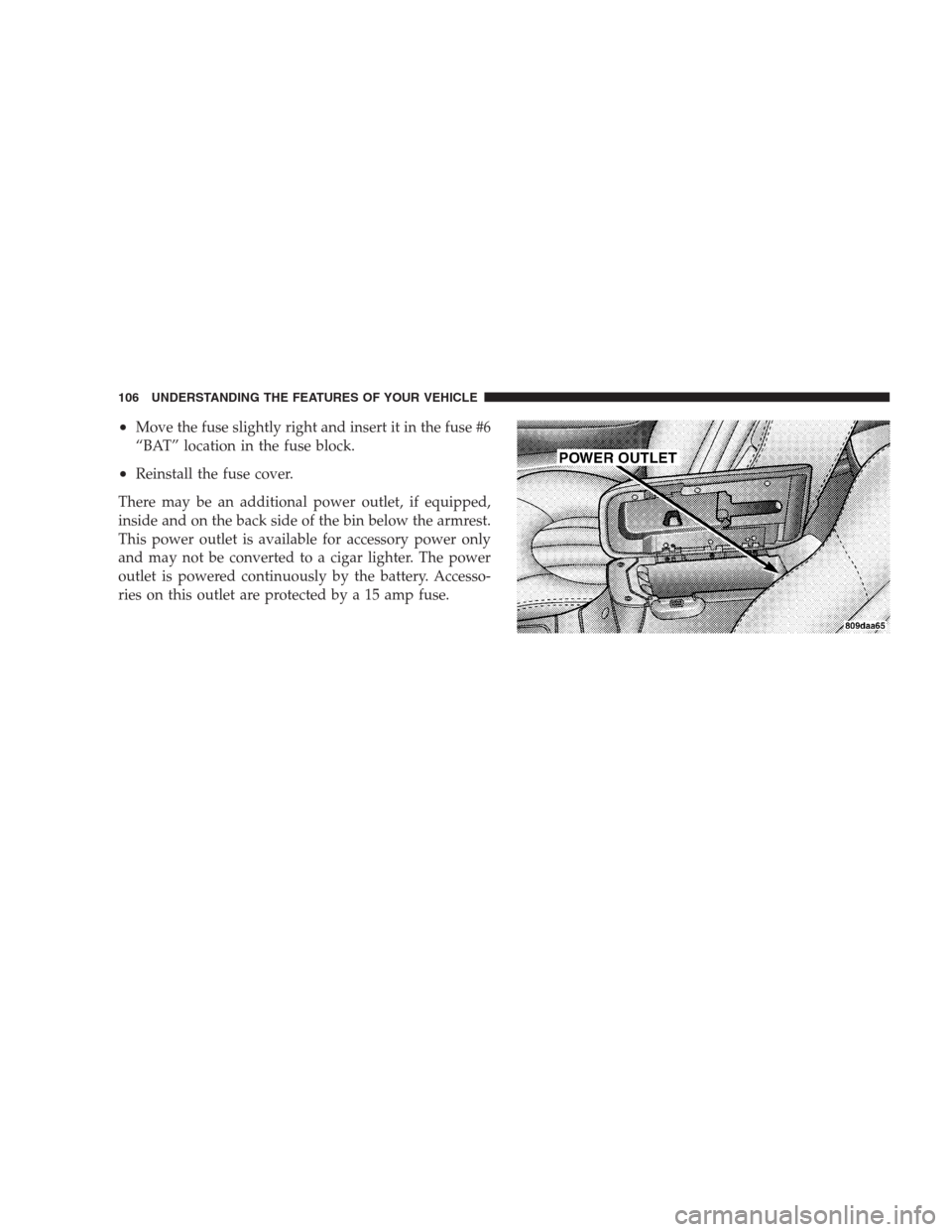

•Move the fuse slightly right and insert it in the fuse #6
“BAT” location in the fuse block.
•Reinstall the fuse cover.
There may be an additional power outlet, if equipped,
inside and on the back side of the bin below the armrest.
This power outlet is available for accessory power only
and may not be converted to a cigar lighter. The power
outlet is powered continuously by the battery. Accesso-
ries on this outlet are protected by a 15 amp fuse.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

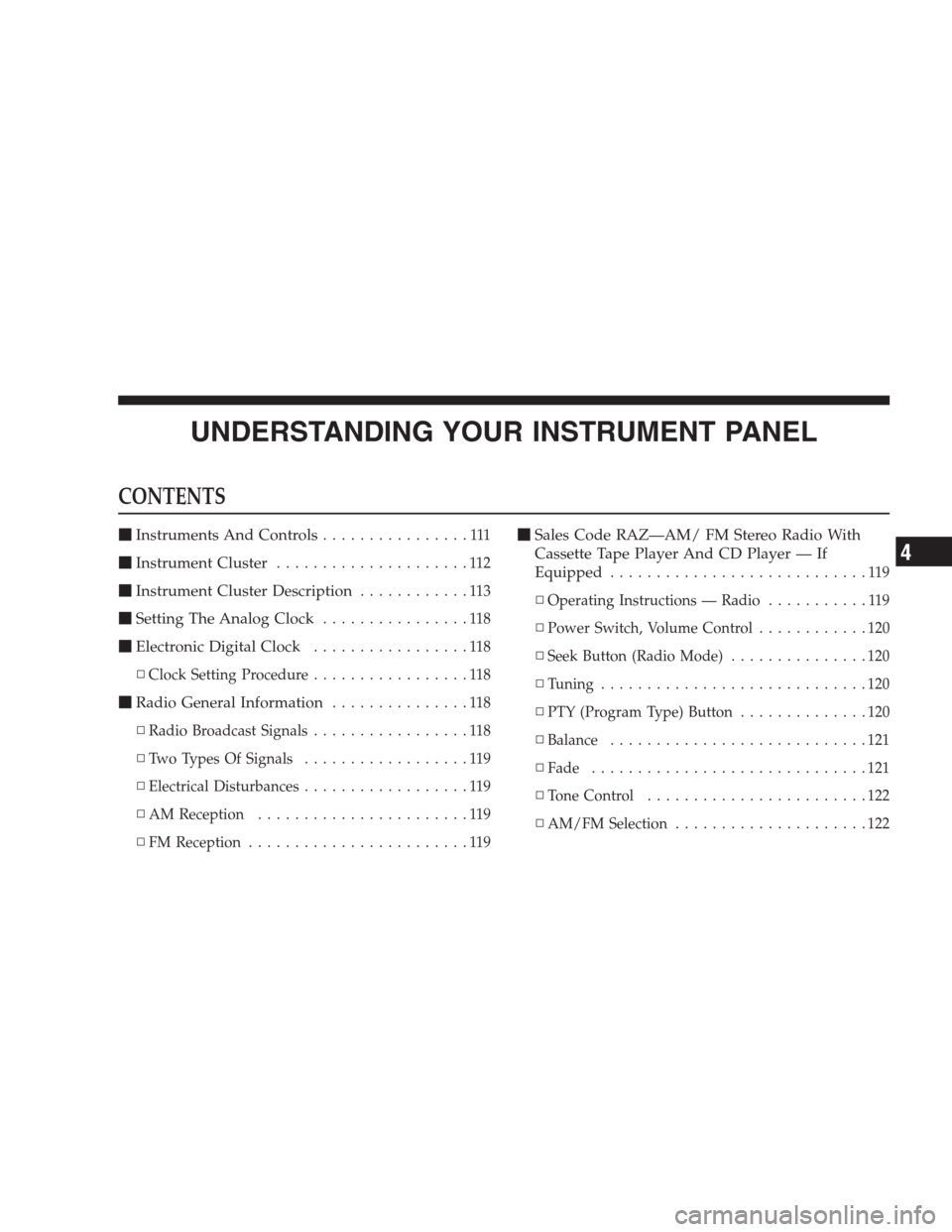

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instruments And Controls................111
Instrument Cluster.....................112
Instrument Cluster Description............113
Setting The Analog Clock................118
Electronic Digital Clock.................118
▫Clock Setting Procedure.................118
Radio General Information...............118
▫Radio Broadcast Signals.................118
▫Two Types Of Signals..................119
▫Electrical Disturbances..................119
▫AM Reception.......................119
▫FM Reception........................119
Sales Code RAZ—AM/ FM Stereo Radio With
Cassette Tape Player And CD Player — If
Equipped
............................119
▫Operating Instructions — Radio...........119
▫Power Switch, Volume Control............120
▫Seek Button (Radio Mode)...............120
▫Tuning.............................120
▫PTY (Program Type) Button..............120
▫Balance............................121
▫Fade..............................121
▫Tone Control........................122
▫AM/FM Selection.....................122
4

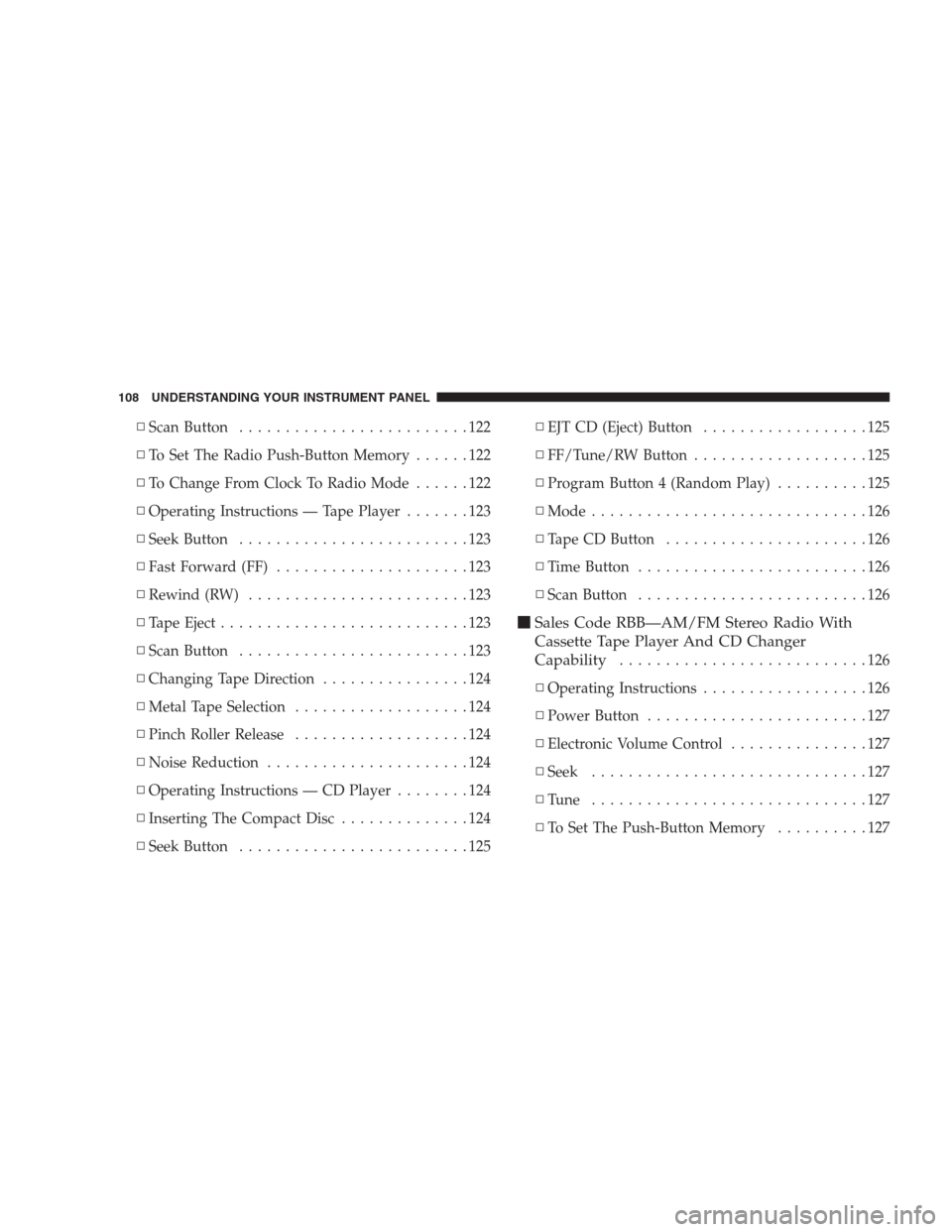

▫Scan Button.........................122
▫To Set The Radio Push-Button Memory......122
▫To Change From Clock To Radio Mode......122
▫Operating Instructions — Tape Player.......123
▫Seek Button.........................123
▫Fast Forward (FF).....................123
▫Rewind (RW)........................123
▫Tape Eject...........................123
▫Scan Button.........................123
▫Changing Tape Direction................124
▫Metal Tape Selection...................124
▫Pinch Roller Release...................124
▫Noise Reduction......................124
▫Operating Instructions — CD Player........124
▫Inserting The Compact Disc..............124
▫Seek Button.........................125▫EJT CD (Eject) Button..................125
▫FF/Tune/RW Button...................125
▫Program Button 4 (Random Play)..........125
▫Mode..............................126
▫Tape CD Button......................126
▫Time Button.........................126
▫Scan Button.........................126
Sales Code RBB—AM/FM Stereo Radio With
Cassette Tape Player And CD Changer
Capability
...........................126
▫Operating Instructions..................126
▫Power Button........................127
▫Electronic Volume Control...............127
▫Seek..............................127
▫Tune ..............................127
▫To Set The Push-Button Memory..........127
108 UNDERSTANDING YOUR INSTRUMENT PANEL

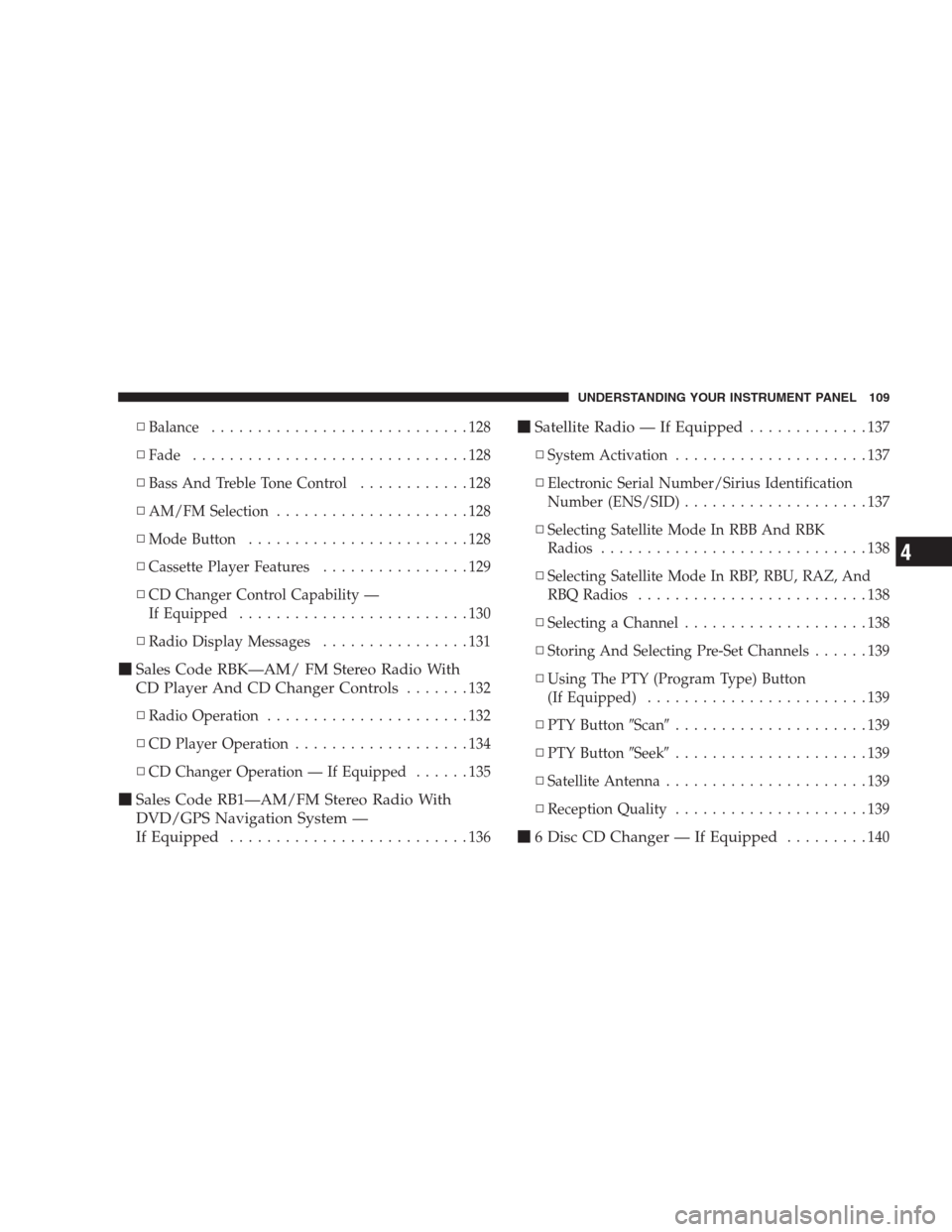

▫Balance............................128
▫Fade..............................128
▫Bass And Treble Tone Control............128
▫AM/FM Selection.....................128
▫Mode Button........................128
▫Cassette Player Features................129
▫CD Changer Control Capability —
If Equipped.........................130
▫Radio Display Messages................131
Sales Code RBK—AM/ FM Stereo Radio With
CD Player And CD Changer Controls
.......132
▫Radio Operation......................132
▫CD Player Operation...................134
▫CD Changer Operation — If Equipped......135
Sales Code RB1—AM/FM Stereo Radio With
DVD/GPS Navigation System —
If Equipped
..........................136
Satellite Radio — If Equipped.............137
▫System Activation.....................137
▫Electronic Serial Number/Sirius Identification
Number (ENS/SID)....................137
▫Selecting Satellite Mode In RBB And RBK
Radios.............................138
▫Selecting Satellite Mode In RBP, RBU, RAZ, And
RBQ Radios.........................138
▫Selecting a Channel....................138
▫Storing And Selecting Pre-Set Channels......139
▫Using The PTY (Program Type) Button
(If Equipped)........................139
▫PTY ButtonScan.....................139
▫PTY ButtonSeek.....................139
▫Satellite Antenna......................139
▫Reception Quality.....................139
6 Disc CD Changer — If Equipped.........140
UNDERSTANDING YOUR INSTRUMENT PANEL 109
4

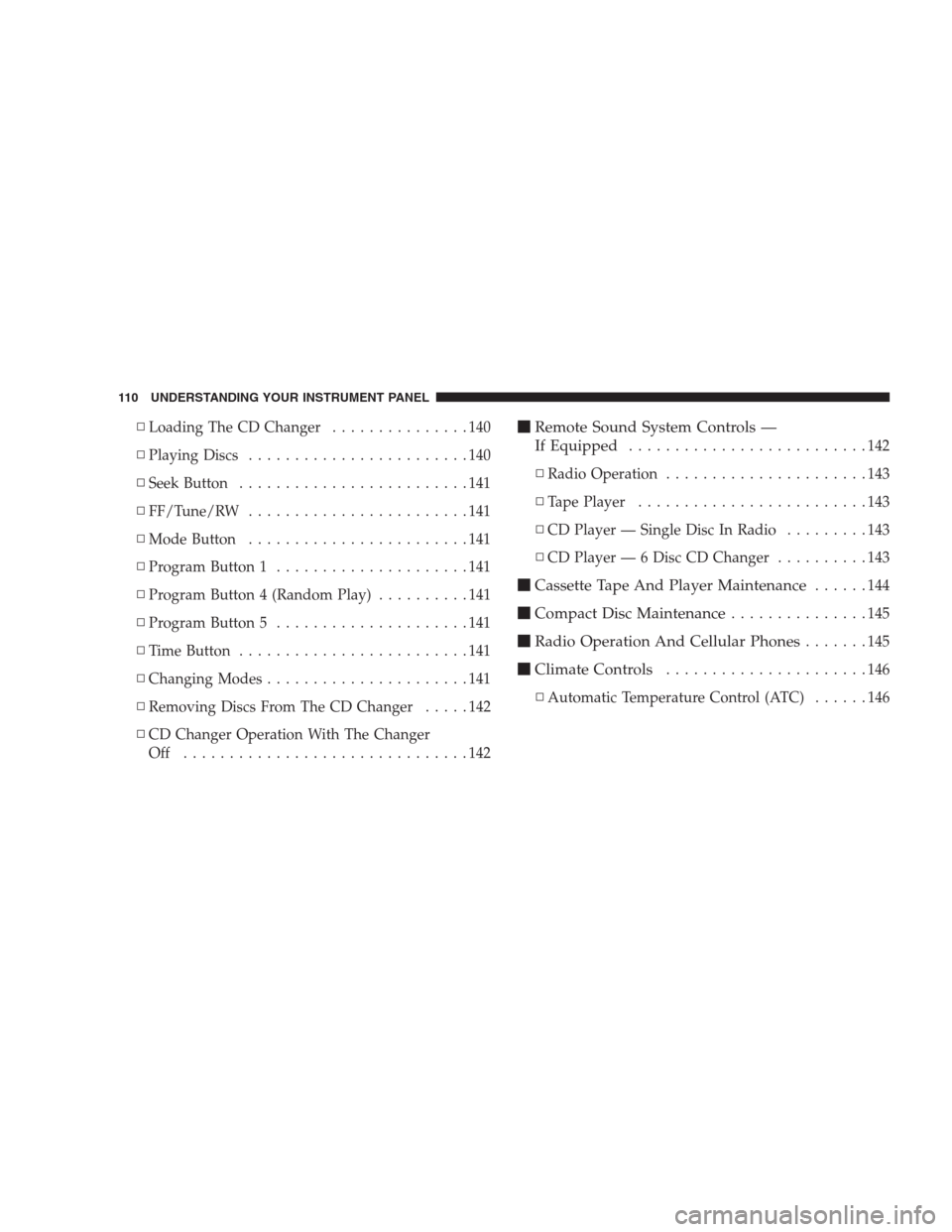

▫Loading The CD Changer...............140
▫Playing Discs........................140
▫Seek Button.........................141
▫FF/Tune/RW........................141
▫Mode Button........................141
▫Program Button 1.....................141
▫Program Button 4 (Random Play)..........141
▫Program Button 5.....................141
▫Time Button.........................141
▫Changing Modes......................141
▫Removing Discs From The CD Changer.....142
▫CD Changer Operation With The Changer
Off ...............................142Remote Sound System Controls —
If Equipped
..........................142
▫Radio Operation......................143
▫Tape Player.........................143
▫CD Player — Single Disc In Radio.........143
▫CD Player — 6 Disc CD Changer..........143
Cassette Tape And Player Maintenance......144
Compact Disc Maintenance...............145
Radio Operation And Cellular Phones.......145
Climate Controls......................146
▫Automatic Temperature Control (ATC)......146
110 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENTS AND CONTROLS
UNDERSTANDING YOUR INSTRUMENT PANEL 111
4

INSTRUMENT CLUSTER
112 UNDERSTANDING YOUR INSTRUMENT PANEL
