2004 CHEVROLET TAHOE Owners Manual

Anchor the top strap to one of the following anchor
points. Be sure to use an anchor point located on the
same side of the vehicle as the seating position
where the child restraint will be placed.
If you have an adjustable head restraint, route the top
strap under it.
{CAUTION:
Each top tether bracket is designed to anchor
only one child restraint. Attaching more than
one child restraint to a single bracket could
cause the anchor to come loose or even break
during a crash. A child or others could be
injured if this happens. To help prevent injury
to people and damage to your vehicle, attach
only one child restraint per bracket.
Once you have the top strap anchored, you will be
ready to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say.
Top Strap Anchor Location
Tahoe/Suburban models with rear seats:A child
restraint with a top strap should only be used in
the second or third row. Don’t use a child restraint with
a top strap in the front seat because there’s no place
to anchor the top strap.
Do not secure a child restraint with a top strap in the
right front passenger’s position or the third row driver’s
side position if a national or local law requires that
the top strap be anchored, or if the instructions
that come with the child restraint say that the top strap
must be anchored. There is no place to anchor the
top strap in these positions.
An anchor loop bracket for a top strap is located at the
bottom rear of the seat cushion for each seating
position in the second row, and for the center seating
position in the third row.
1-59

Tahoe models:A child restraint with a top strap should
only be used in the second or third row. Don’t use a
child restraint with a top strap in the right front
passenger’s position, because there’s no place to
anchor the top strap. Suburban Second Row Seat, Bucket Seats Similar
Third Row Bench Seat
1-60

Do not secure a child restraint with a top strap in the
right front passenger’s position or the third row driver’s
side position if a national or local law requires that
the top strap be anchored, or if the instructions
that come with the child restraint say that the top strap
must be anchored. There is no place to anchor the
top strap in these positions.
An anchor loop bracket for a top strap is located at the
bottom rear of the seat cushion for the center seating
position in the third row.
Tahoe Second Row Seat
Third Row 50/50 Split Bench Seat
1-61

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You will nd
anchors in the center and right side passenger second
row seating positions for bench seats, and the
outboard passenger positions for bucket seats.
This system, designed to make installation of child
restraints easier, does not use the vehicle’s safety belts.
Instead, it uses vehicle anchors and child restraint
attachments to secure the restraints. Some restraints
also use another vehicle anchor to secure a top tether
strap.A. Lower Anchorage
B. Lower Anchorage
C. Top Tether
1-62

A. Lower Anchorage
B. Lower Anchorage
In order to use the LATCH system in your vehicle, you
need a child restraint designed for that system.
To assist you in locating the lower anchors for this child
restraint system, each seating position with the
LATCH system has a visible metal anchorage point in
the seat where the seatback meets the seat cushion.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
1-63

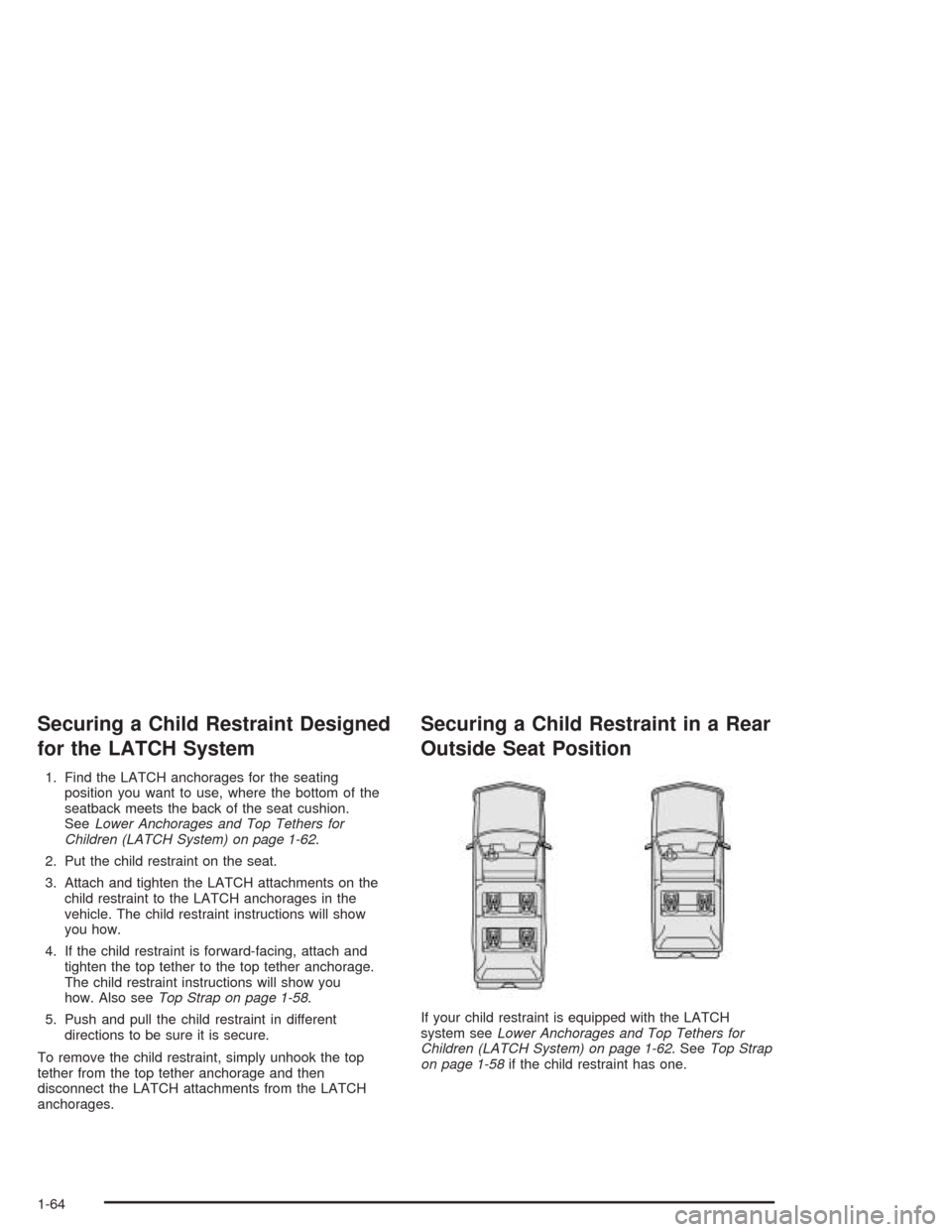

Securing a Child Restraint Designed
for the LATCH System
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
SeeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-62.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also seeTop Strap on page 1-58.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint is equipped with the LATCH
system seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-62. SeeTop Strap
on page 1-58if the child restraint has one.
1-64

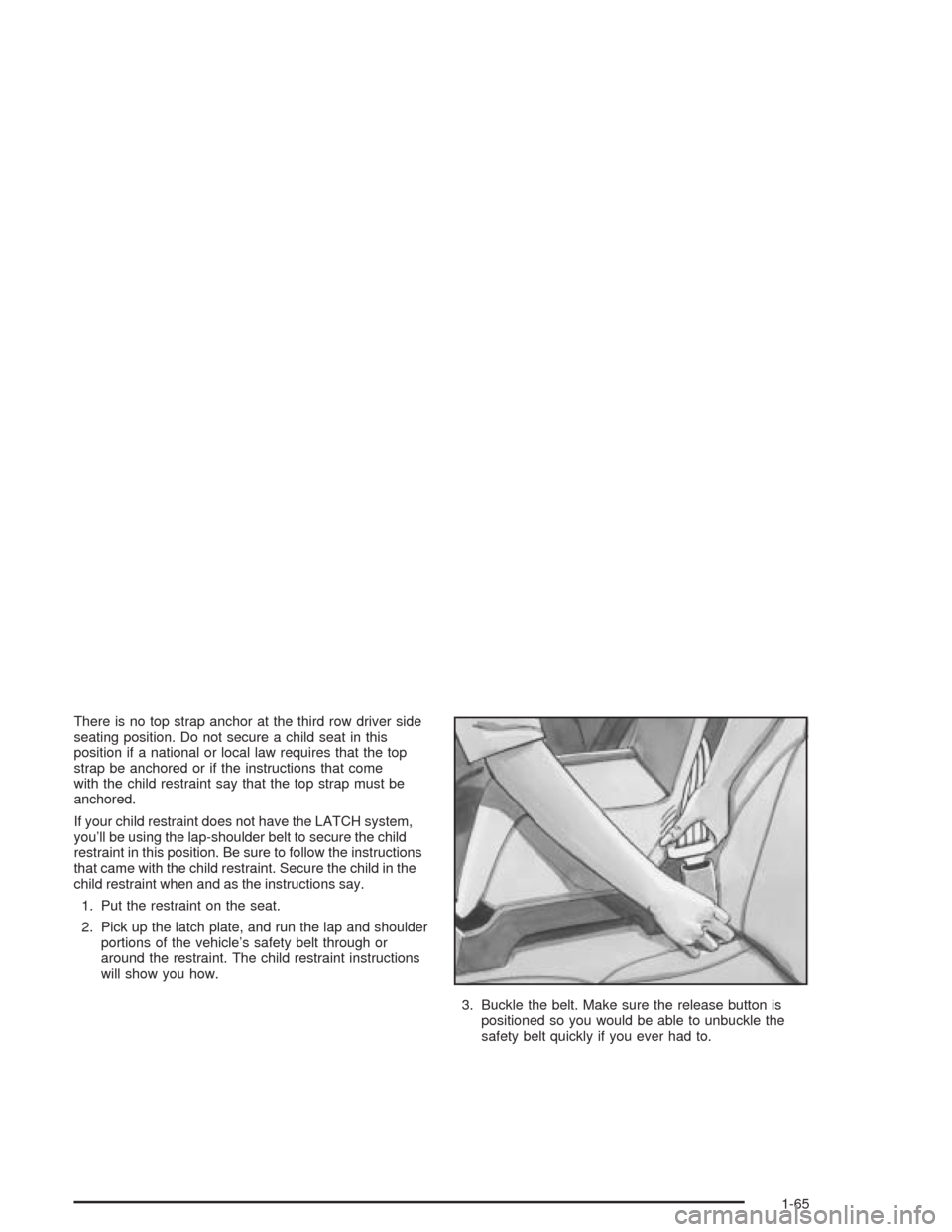

There is no top strap anchor at the third row driver side
seating position. Do not secure a child seat in this
position if a national or local law requires that the top
strap be anchored or if the instructions that come
with the child restraint say that the top strap must be
anchored.
If your child restraint does not have the LATCH system,
you’ll be using the lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the instructions
that came with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-65

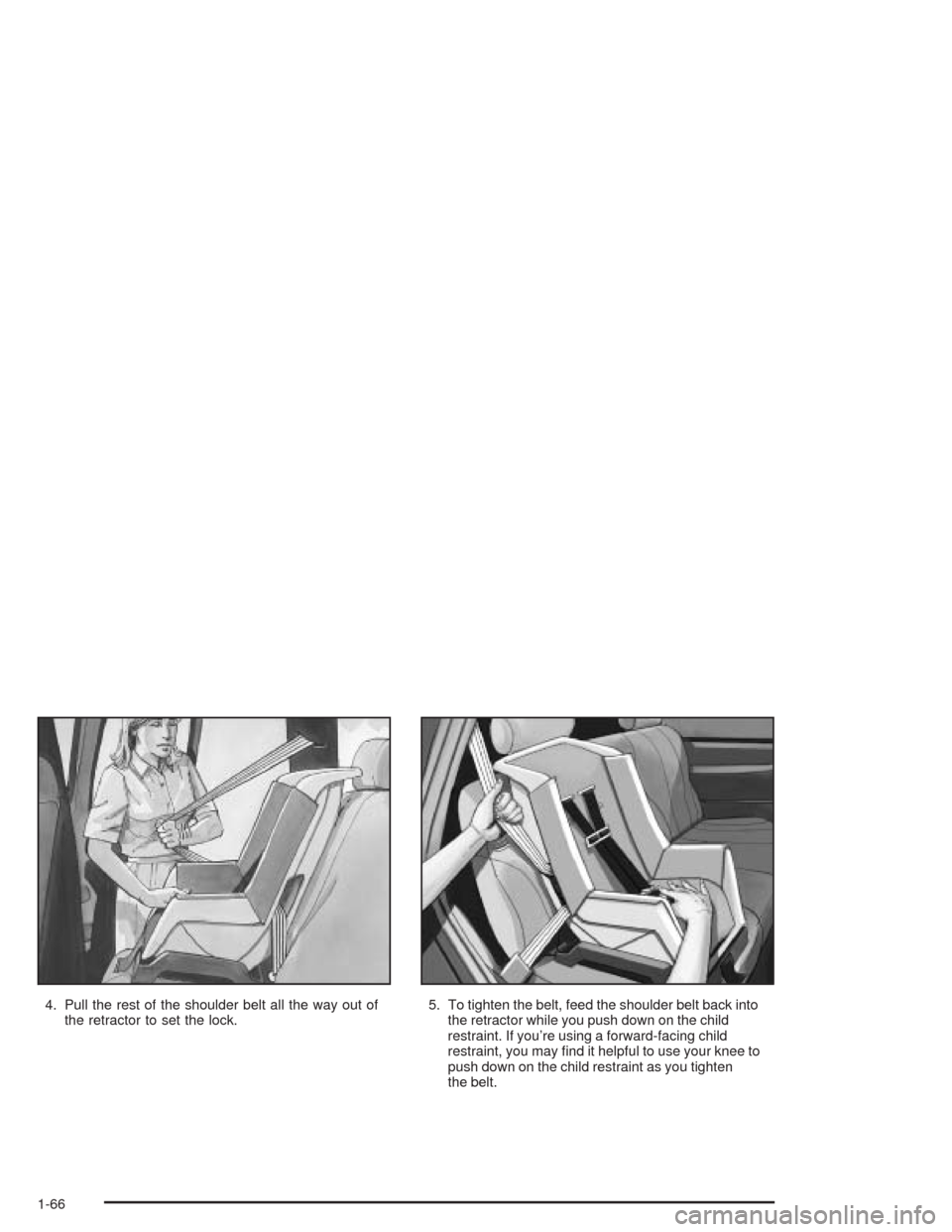

4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.5. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. If you’re using a forward-facing child
restraint, you may nd it helpful to use your knee to
push down on the child restraint as you tighten
the belt.
1-66
