2004 CHEVROLET SILVERADO Owners Manual

{CAUTION:
If the air bag readiness light in the instrument
panel cluster ever comes on when you have
turned off the air bag, it means that something
may be wrong with the air bag system. The
right front passenger’s air bag could inate
even though the switch is off. If this ever
happens, have the vehicle serviced promptly.
Until you have the vehicle serviced, do not let
anyone whom the national government has
identied as a member of a passenger air bag
risk group sit in the right front passenger’s
position (for example, do not secure a
rear-facing child restraint in the right front
passenger’s seat). See″Air Bag Off Switch″in
the Index.1. Your vehicle has a right front passenger’s frontal air
bag. SeeAir Bag Off Switch on page 1-73and
Passenger Sensing System on page 1-78. If your
child restraint is forward-facing, move the seat as far
back as it will go before securing the restraint in
this seat. SeeManual Seats on page 1-3orPower
Seats on page 1-4. If you need to use a rear-facing
child restraint in this seat, make sure the air bag
is off once the child restraint has been installed.
When the passenger sensing system or the air bag
off switch has turned off the right front passenger’s
frontal air bag, the off indicator in the passenger
air bag status indicator should light and stay lit when
you turn the ignition to RUN or START. See
Passenger Air Bag Status Indicator on page 3-40.
2. Find the LATCH anchorages where the bottom of
the seatback meets the back of the cushion.
3. Put the child restraint on the seat.
4. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show you
how.
5. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also seeTop Strap on page 1-42.
1-51

6. Push and pull the child restraint in different
directions to be sure it is secure.
7. If your vehicle has the passenger sensing system
and the air bag is off, the off indicator will be lit and
stay lit in the inside rearview mirror when the key
is turned to RUN or START. Never put a rear-facing
child restraint in the right front passenger seat
unless the air bag is off.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the restraint.
If after reinstalling the child restraint and restarting the
vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, use the air bag off switch to
turn off the air bag or secure the child in the child
restraint in a rear seat position in the vehicle if one is
available and check with your dealer. SeeAir Bag
Off Switch on page 1-73for more on this, including
important safety information.For heavy duty pickups without the passenger
sensing system, use the air bag off switch to turn the
air bag off or install the infant restraint in a rear
seat position.
{CAUTION:
If the air bag ON indicator comes on when you
have a rear-facing child restraint installed in
the right front passenger’s seat, it means that
the passenger sensing system has not turned
off the passenger’s frontal air bag. A child in a
rear-facing child restraint can be seriously
injured or killed if the right front passenger’s
air bag inates. This is because the back of
the rear-facing child restraint would be very
close to the inating air bag. Don’t use a
rear-facing child restraint in the right front
passenger’s seat unless the air bag is off.
To remove the child restraint, unhook the top tether
from the top tether anchorage and then disconnect the
LATCH attachments from LATCH anchorages.
1-52

If you had turned the air bag off with the switch,
remember to be sure to use the air bag off switch to
turn on the right front passenger’s air bag when
you remove the child restraint from the vehicle unless
the person who will be sitting there is a member of
a passenger air bag risk group. SeeAir Bag Off Switch
on page 1-73.
{CAUTION:
If the right front passenger’s air bag is turned
off for a person who isn’t in a risk group
identied by the national government, that
person won’t have the extra protection of an
air bag. In a crash, the air bag wouldn’t be able
to inate and help protect the person sitting
there. Don’t turn off the passenger’s air bag
unless the person sitting there is in a risk
group. See″Air Bag Off Switch″in the
Index for more on this, including important
safety information.
Securing a Child Restraint in a Rear
Outside Seat Position
Extended Cab and Crew Cab
There is limited space in the rear seating of an extended
cab model. If you want to secure a child restraint in a
rear outside seating position, be sure to study the
instructions that came with your child restraint to see if
there is enough room to secure your seat properly.
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-47. SeeTop Strap
on page 1-42if the child restraint has one.
If your child restraint does not have the LATCH system,
you’ll be using the lap-shoulder belt to secure the child
restraint in this position. Be sure to follow the instructions
that came with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1. Put the restraint on the seat.
1-53

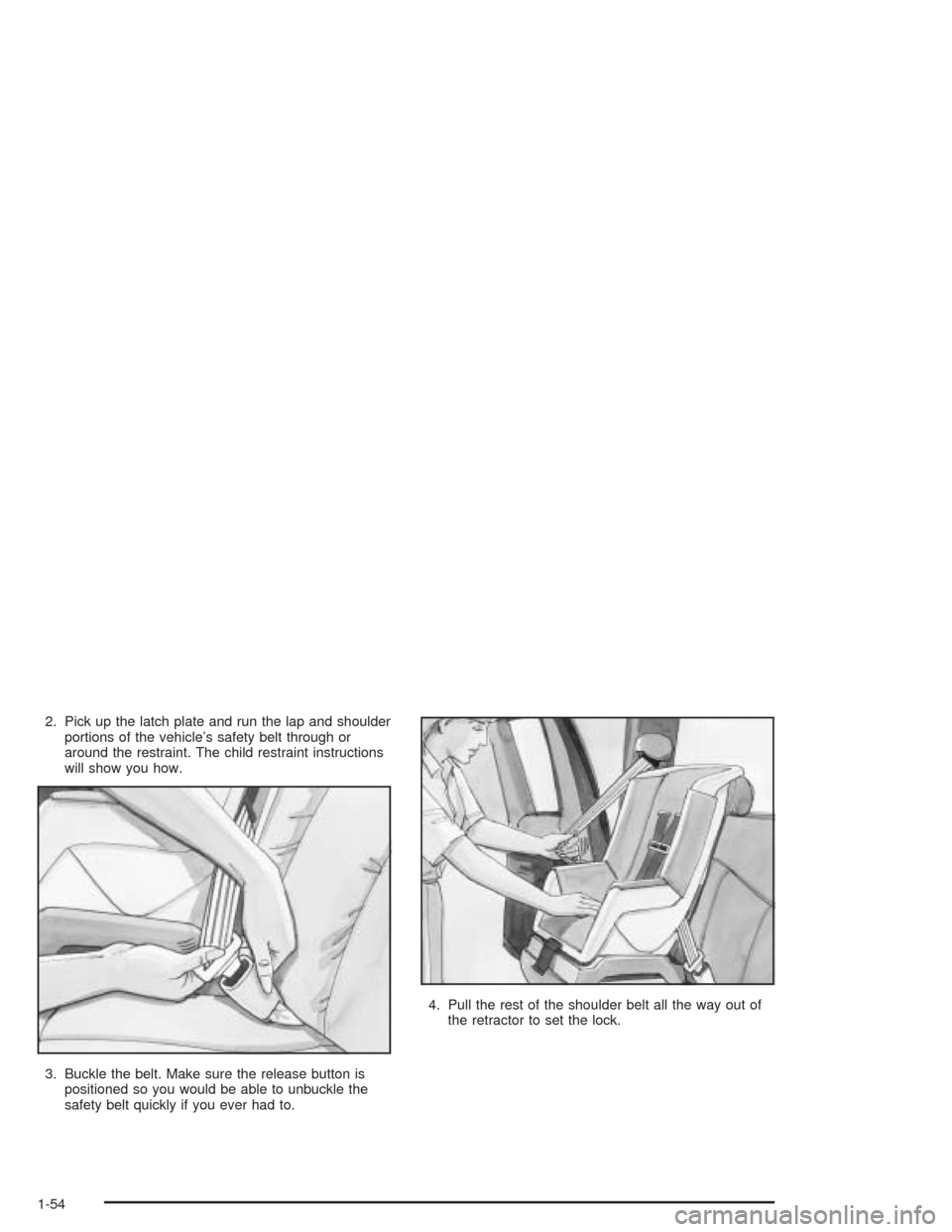

2. Pick up the latch plate and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-54

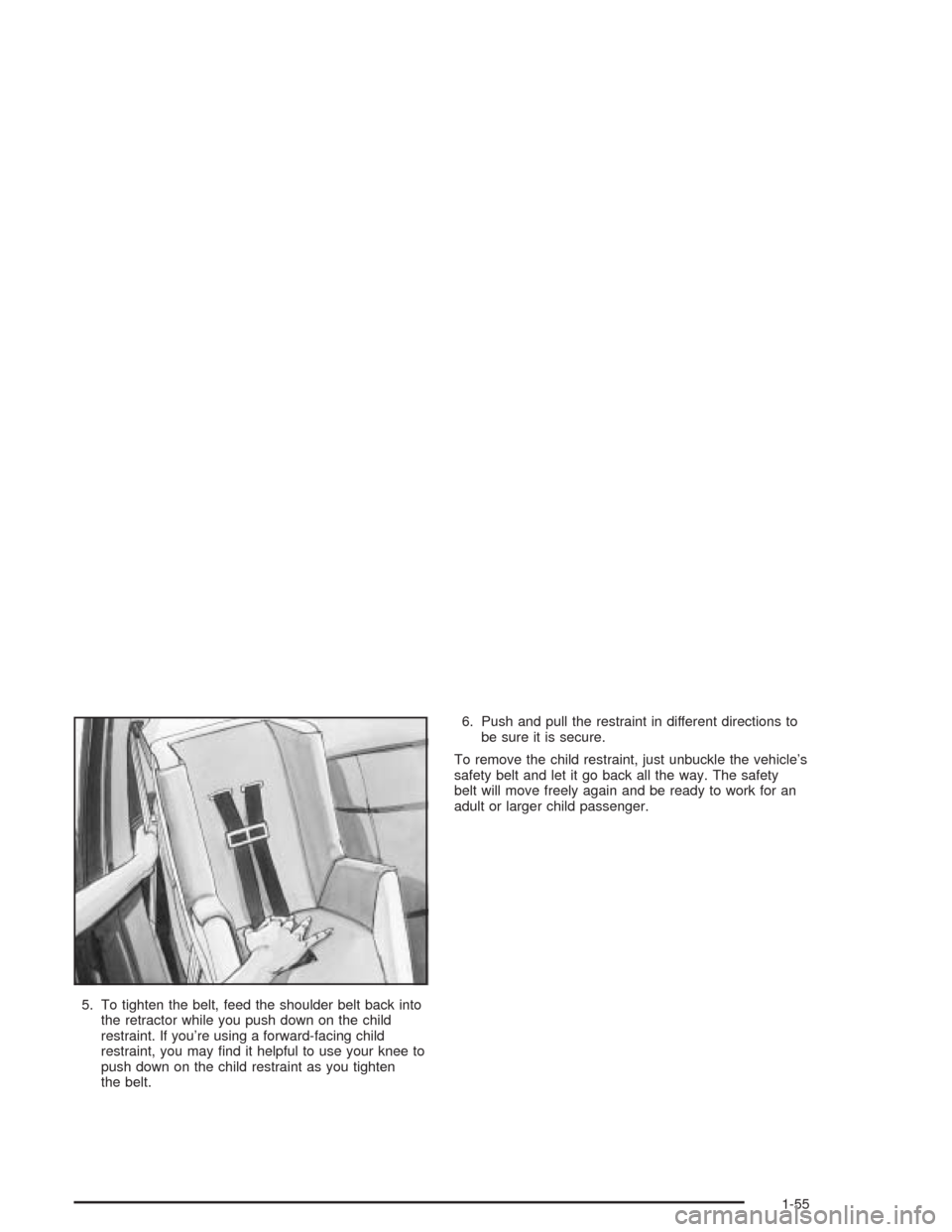

5. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child
restraint. If you’re using a forward-facing child
restraint, you may nd it helpful to use your knee to
push down on the child restraint as you tighten
the belt.6. Push and pull the restraint in different directions to
be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-55

Securing a Child Restraint in a
Center Rear Seat Position
If you have a extended cab or crew cab pickup, you can
secure a child restraint in the center rear seat position.
Crew Cab
When you secure a child restraint in the center rear
seat position of a crew cab, you’ll be using a
lap-shoulder belt that works the same way as the safety
belts in the rear outside seat positions. For instructions
on how to secure a child restraint using a lap-shoulder
belt seeSecuring a Child Restraint in a Rear Outside
Seat Position on page 1-53.
Extended Cab
There is limited space in the rear seating area of an
extended cab model. If you want to secure a child
restraint in a rear seat position of an extended cab
model, especially in the rear center seat position,
be sure to study the instructions that came with your
child restraint to see if there is enough room to secure
your child restraint properly.
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-47. SeeTop Strap
on page 1-42if the child restraint has one.
If your child restraint does not have the LATCH system,
you’ll be using the lap belt to secure a child restraint
in the center rear seat position of an extended cab. Be
sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1-56

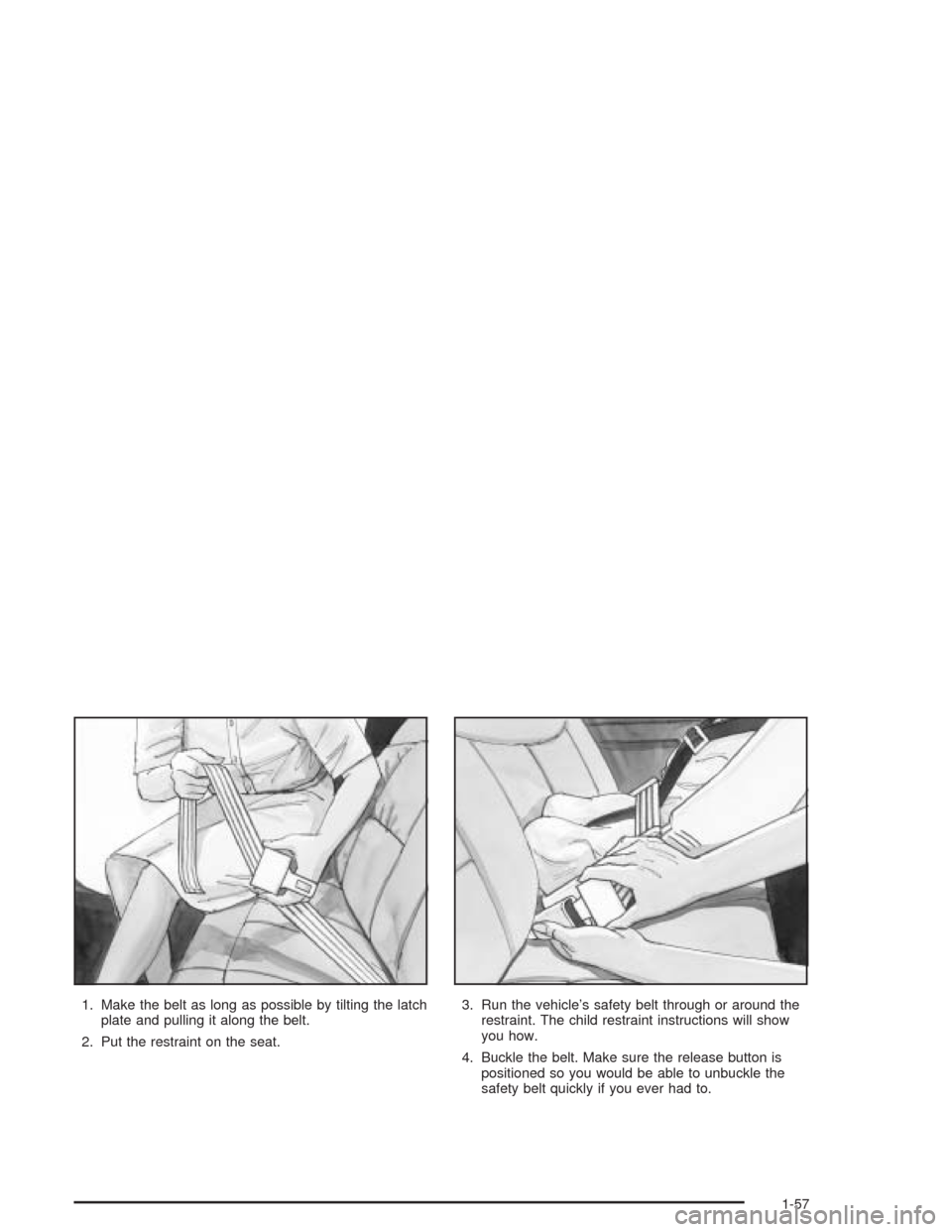

1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-57

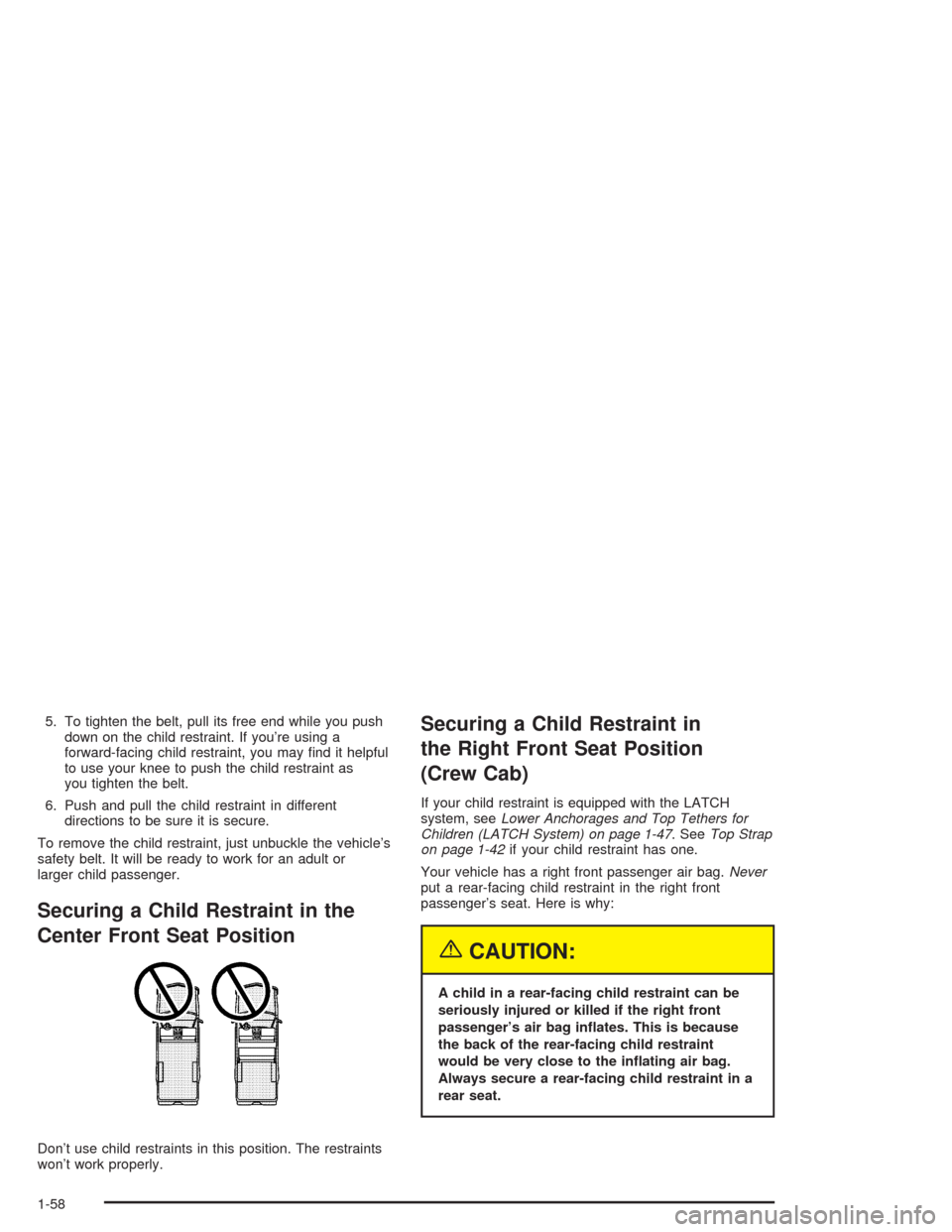

5. To tighten the belt, pull its free end while you push
down on the child restraint. If you’re using a
forward-facing child restraint, you may nd it helpful
to use your knee to push the child restraint as
you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult or
larger child passenger.
Securing a Child Restraint in the
Center Front Seat Position
Don’t use child restraints in this position. The restraints
won’t work properly.
Securing a Child Restraint in
the Right Front Seat Position
(Crew Cab)
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-47. SeeTop Strap
on page 1-42if your child restraint has one.
Your vehicle has a right front passenger air bag.Never
put a rear-facing child restraint in the right front
passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s air bag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating air bag.
Always secure a rear-facing child restraint in a
rear seat.
1-58
