2004 CHEVROLET EXPRESS CARGO VAN Owners Manual

{CAUTION:
Each top tether bracket is designed to anchor
only one child restraint. Attaching more than
one child restraint to a single bracket could
cause the anchor to come loose or even break
during a crash. A child or others could be
injured if this happens. To help prevent injury
to people and damage to your vehicle, attach
only one child restraint per bracket.
Once you have the top strap anchored, you’ll be ready
to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say.
Top Strap Anchor Location
Cargo Van
On vehicles with a front passenger seat, the anchor for
a top strap is located at the rear of the seat cushion
on the right front passenger’s seat.
Cargo Van
1-51

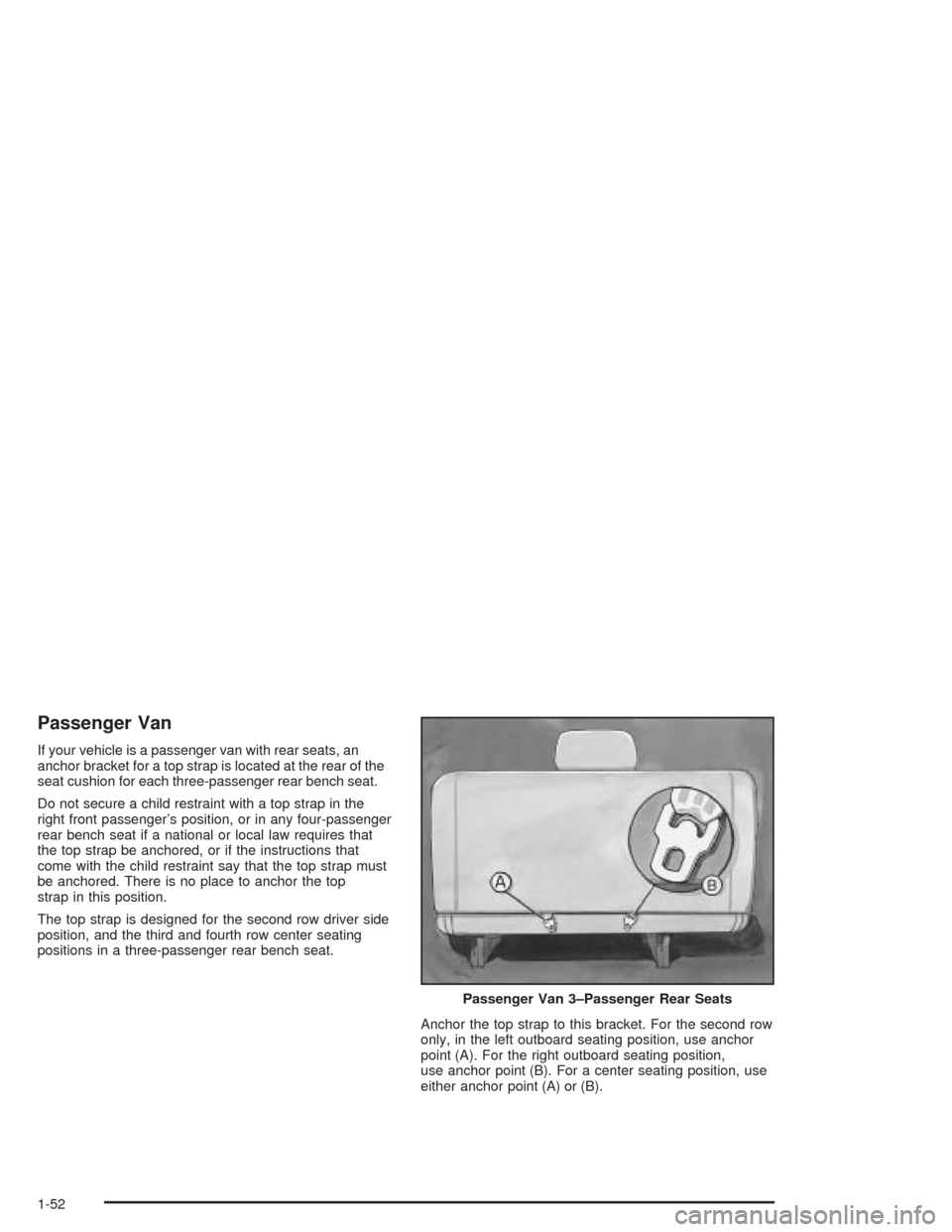

Passenger Van
If your vehicle is a passenger van with rear seats, an
anchor bracket for a top strap is located at the rear of the
seat cushion for each three-passenger rear bench seat.
Do not secure a child restraint with a top strap in the
right front passenger’s position, or in any four-passenger
rear bench seat if a national or local law requires that
the top strap be anchored, or if the instructions that
come with the child restraint say that the top strap must
be anchored. There is no place to anchor the top
strap in this position.
The top strap is designed for the second row driver side
position, and the third and fourth row center seating
positions in a three-passenger rear bench seat.
Anchor the top strap to this bracket. For the second row
only, in the left outboard seating position, use anchor
point (A). For the right outboard seating position,
use anchor point (B). For a center seating position, use
either anchor point (A) or (B).Passenger Van 3–Passenger Rear Seats
1-52

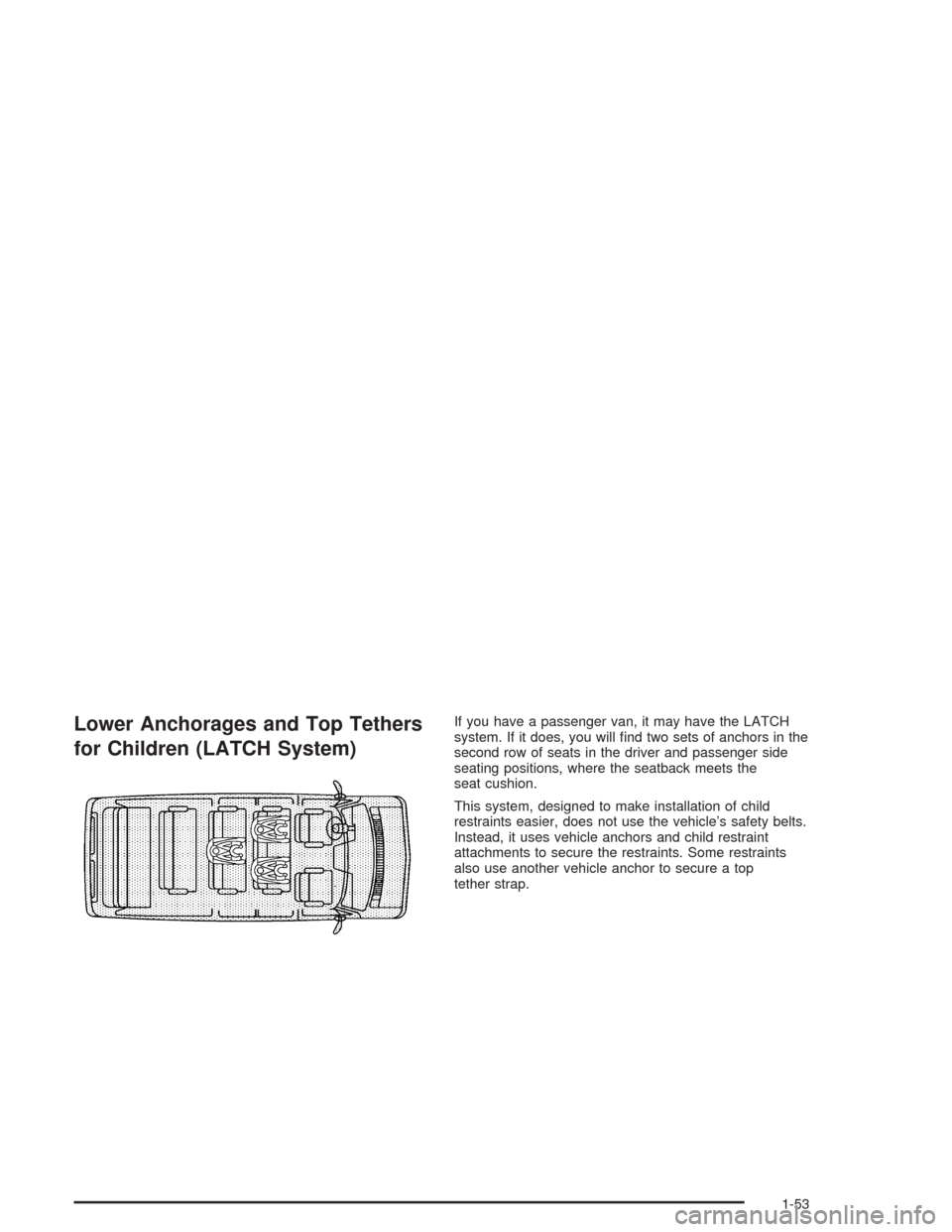

Lower Anchorages and Top Tethers
for Children (LATCH System)If you have a passenger van, it may have the LATCH
system. If it does, you will nd two sets of anchors in the
second row of seats in the driver and passenger side
seating positions, where the seatback meets the
seat cushion.
This system, designed to make installation of child
restraints easier, does not use the vehicle’s safety belts.
Instead, it uses vehicle anchors and child restraint
attachments to secure the restraints. Some restraints
also use another vehicle anchor to secure a top
tether strap.
1-53

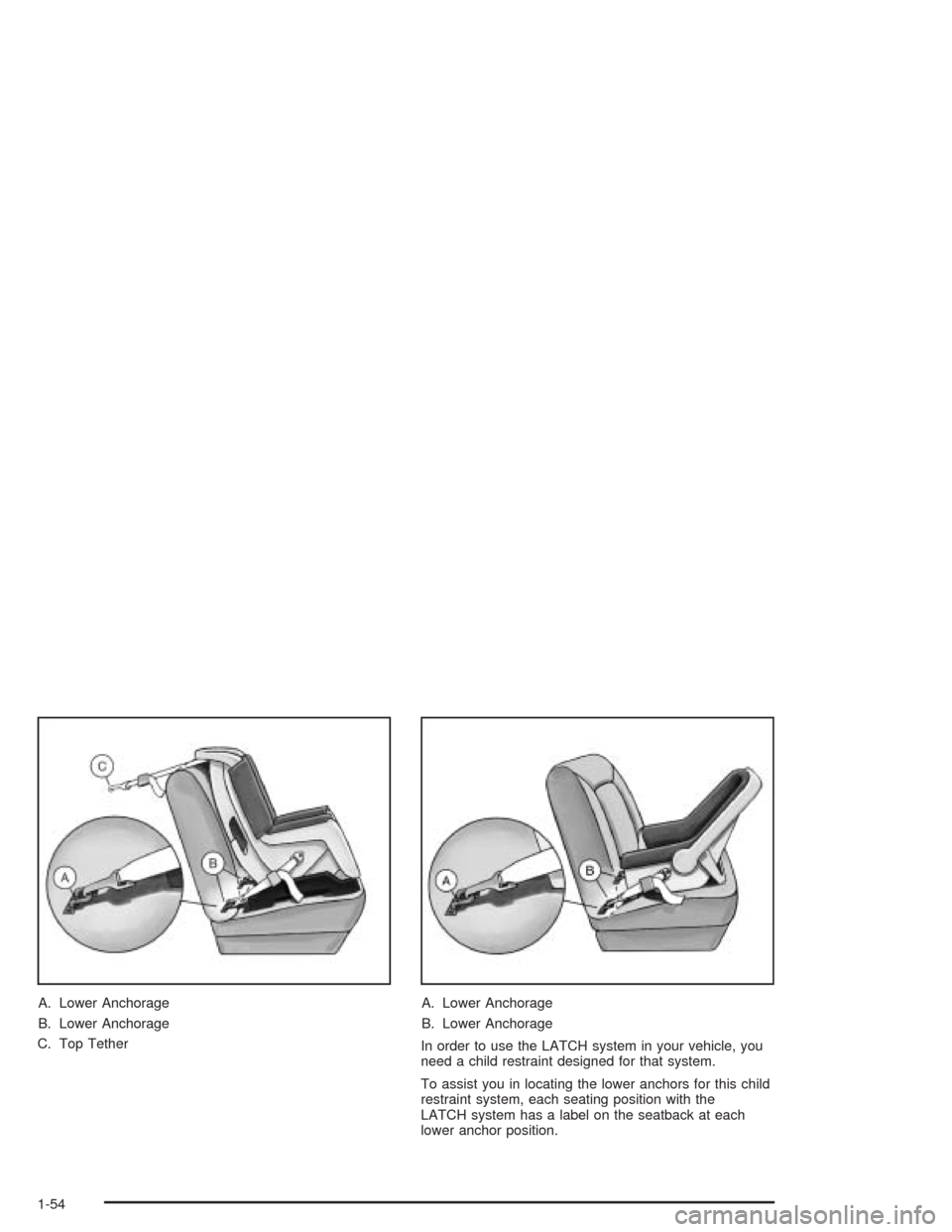

A. Lower Anchorage
B. Lower Anchorage
C. Top TetherA. Lower Anchorage
B. Lower Anchorage
In order to use the LATCH system in your vehicle, you
need a child restraint designed for that system.
To assist you in locating the lower anchors for this child
restraint system, each seating position with the
LATCH system has a label on the seatback at each
lower anchor position.
1-54

The LATCH system labels
are located on the
outboard and inboard
positions of the seats.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
Securing a Child Restraint Designed
for the LATCH System (Rear)
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also seeTop Strap on page 1-50.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
1-55

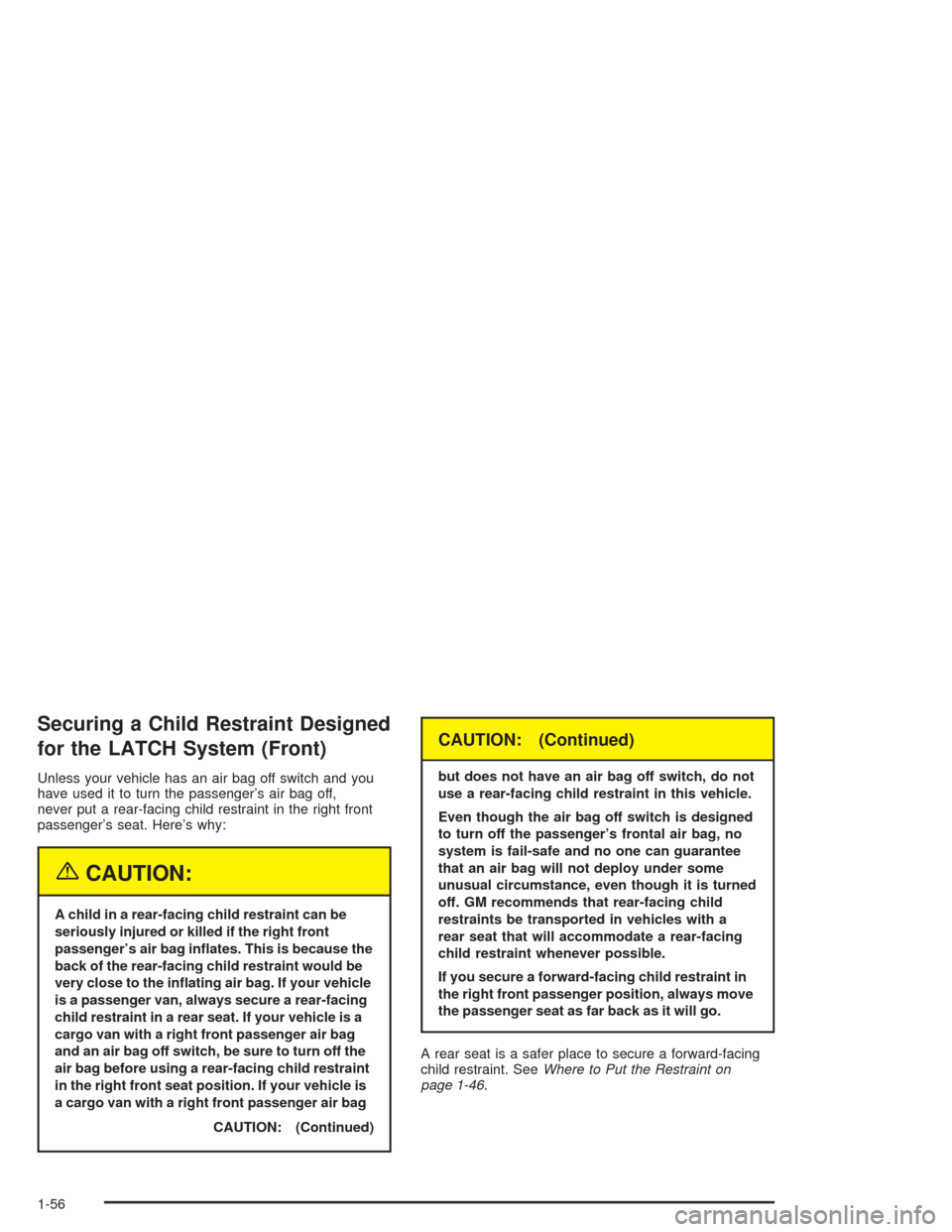

Securing a Child Restraint Designed
for the LATCH System (Front)
Unless your vehicle has an air bag off switch and you
have used it to turn the passenger’s air bag off,
never put a rear-facing child restraint in the right front
passenger’s seat. Here’s why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s air bag inates. This is because the
back of the rear-facing child restraint would be
very close to the inating air bag. If your vehicle
is a passenger van, always secure a rear-facing
child restraint in a rear seat. If your vehicle is a
cargo van with a right front passenger air bag
and an air bag off switch, be sure to turn off the
air bag before using a rear-facing child restraint
in the right front seat position. If your vehicle is
a cargo van with a right front passenger air bag
CAUTION: (Continued)
CAUTION: (Continued)
but does not have an air bag off switch, do not
use a rear-facing child restraint in this vehicle.
Even though the air bag off switch is designed
to turn off the passenger’s frontal air bag, no
system is fail-safe and no one can guarantee
that an air bag will not deploy under some
unusual circumstance, even though it is turned
off. GM recommends that rear-facing child
restraints be transported in vehicles with a
rear seat that will accommodate a rear-facing
child restraint whenever possible.
If you secure a forward-facing child restraint in
the right front passenger position, always move
the passenger seat as far back as it will go.
A rear seat is a safer place to secure a forward-facing
child restraint. SeeWhere to Put the Restraint on
page 1-46.
1-56

{CAUTION:
If the air bag readiness light ever comes on
when you have turned off the air bag, it means
that something may be wrong with the air bag
system. The right front passenger’s air bag
could inate even though the switch is off. If
this ever happens, don’t let anyone whom the
national government has identied as a
member of a passenger air bag risk group sit
in the right front passenger’s position (for
example, don’t secure a rear-facing child
restraint in your vehicle) until you have your
vehicle serviced. See″Air Bag Off Switch″in
the Index.
1. If your vehicle has a passenger air bag and an air
bag off switch, and you are using a rear-facing child
restraint in this seat, make sure the air bag is
turned off. SeeAir Bag Off Switch on page 1-77.
If your child restraint is forward-facing, always move
the seat as far back as it will go before securing
it in this seat. SeePower Seat on page 1-4or
Manual Seats on page 1-3.2. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
3. Put the child restraint on the seat.
4. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
5. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also seeTop Strap on page 1-50.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
1-57

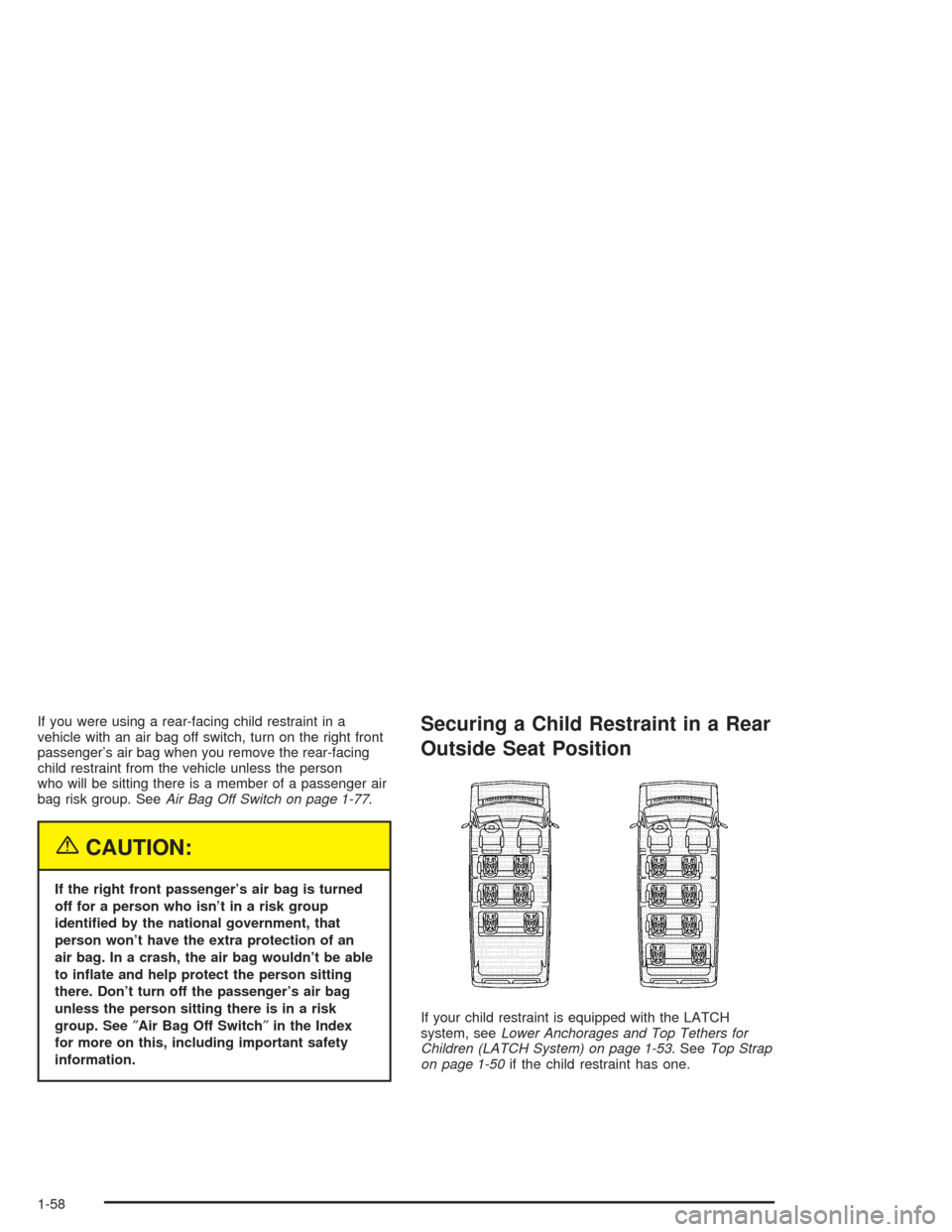

If you were using a rear-facing child restraint in a
vehicle with an air bag off switch, turn on the right front
passenger’s air bag when you remove the rear-facing
child restraint from the vehicle unless the person
who will be sitting there is a member of a passenger air
bag risk group. SeeAir Bag Off Switch on page 1-77.
{CAUTION:
If the right front passenger’s air bag is turned
off for a person who isn’t in a risk group
identied by the national government, that
person won’t have the extra protection of an
air bag. In a crash, the air bag wouldn’t be able
to inate and help protect the person sitting
there. Don’t turn off the passenger’s air bag
unless the person sitting there is in a risk
group. See″Air Bag Off Switch″in the Index
for more on this, including important safety
information.
Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-53. SeeTop Strap
on page 1-50if the child restraint has one.
1-58
