2004 CADILLAC ESCALADE ESV Owners Manual

Heated Seats
If your vehicle has this
feature, the buttons used
to control this feature
are located on the back of
the center console. The
engine must be running for
the heated seat feature
to work.
To heat the seat, press the button to cycle through the
temperature settings of high and low. Press the
button a third time to turn the feature off. An indicator
light will glow for each heat setting when the feature is
operating.
The heated rear seats will shut off automatically when
the ignition is turned off.
Heated and Cooled Seats
Escalade Platinum ESV
vehicles will be equipped
with this feature. The
buttons used to control this
feature are located on
the back of the center
console.
With the heated and cooled seats you can choose high,
medium or low heat or cool settings. The seats will
only operate either in the heat or cool mode; for
example, you cannot cool the seat cushion while heating
the seatback. An amber light will ash when a setting
cannot be selected.
1-11

To operate the heated and cooled seats, do the
following:
1. Press the red heat button (A) or the blue cool
button (B).
2. Choose one of the following:
I(Seatback Only):This can only be used for the
heat feature. Press this button to heat the seatback and
cycle through the heat settings of high, medium, low
and off. Red indicator lights will glow for each heat
setting chosen: three lights for high, two for medium and
one for low. A light in the button will also glow to
indicate the seatback heat is on.
J(Entire Seat):Press this button to heat or cool the
entire seat and cycle through the settings of high,
medium, low and off. Red (for heat) or blue (for cool)
indicator lights will glow for each setting chosen:
three lights for high, two for medium and one for low.
60/40 Split Bench Seat
If your vehicle has a 60/40 split bench, the seatbacks
can be folded to give you more cargo space.
Folding the Seatbacks
(60/40 Split Bench Seat)
The rear seat may have a 60/40 split seat which may
be folded down to create a load oor and give you more
cargo space. On the Escalade, the rear seatbacks
are equipped with rearward folding head restraints.
When the seatback is being folded down, the head
restraint will automatically fold rearward.
To fold the rear seat, do the following:
1. Make sure that nothing is under or in front of
the seat.
2. Pull up on the strap
loop located at the rear
of the seat cushion
and ip the seat
cushion forward.
3.Escalade:Pull the seatback forward and fold it
down until it is at.
1-12

Escalade ESV:On the passenger side of
Escalade ESV models, the lever at the base of the
seat must be pulled up to release the seatback. Pull
the seatback forward and fold it down until it is at.
If the seatback cannot fold at because it interferes with
the cushion, try moving the front seat forward and/or
bringing the front seatback more upright.Once the seatbacks are folded down, on Escalade ESV
models only, the rear seat footwell area will be
exposed and will have to be covered by the load oor
panel(s). To create a load oor, do the following:
1. Release the panels from the seatbacks by pushing
forward on the latches.
2. Then fold the panels back to cover the rear seat
footwell area.
1-13

Returning the Seats to an Upright
Position
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To return the seat to the upright position, do the
following:
1. On Escalade ESV models, lift the load oor panels
and latch them into the seatback.
2. Lift the seatback up and push it rearward all
the way.
3. Lower the seat cushion until it latches into position.
4. Pull forward on the seatback and up on the seat
cushion to make sure the seat is securely in place.
5. On Escalade models, return the head restraints to
the upright position.
6. Check to see that the safety belt buckles on the
driver’s side seat are accessible to the outboard
and center occupants and are not under the
seat cushions.50/50 Split Bench Seat
If your vehicle has a 50/50 split bench, the seatback(s)
can be folded and the entire seat(s) tilted or removed
from the vehicle.
1-14

Folding the Seatbacks
To fold the seatbacks, do the following:
1. Pull up on the release
lever labeled 1 located
on the rear of the
seatback, and push the
seatback forward.
Unfolding the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.To return the seatbacks to the passenger position, do
the following:
1. Pull up on the release
lever labeled 1 and
then pull up on
the seatback or the
assist strap located on
the outboard side of
the seat until the
seatback locks into the
upright position.
2. Push forward on the seatback to make sure it is
locked into position.
1-15

Tilting the 50/50 Split Bench Seat
1. Fold the seatbacks forward using the instructions
listed previously.
2. Unlatch the seat from
the oor by pulling up
on the lever labeled 2
located on the rear
of the seat.
3. Lift the rear of the seat up from the oor and push it
forward until it locks into place. You will not be able
to unlatch the seat from the oor unless the
seatback is folded down.
The seat will now remain locked in the upright position.
Returning the Seat(s) to an Upright
Position
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
1-16

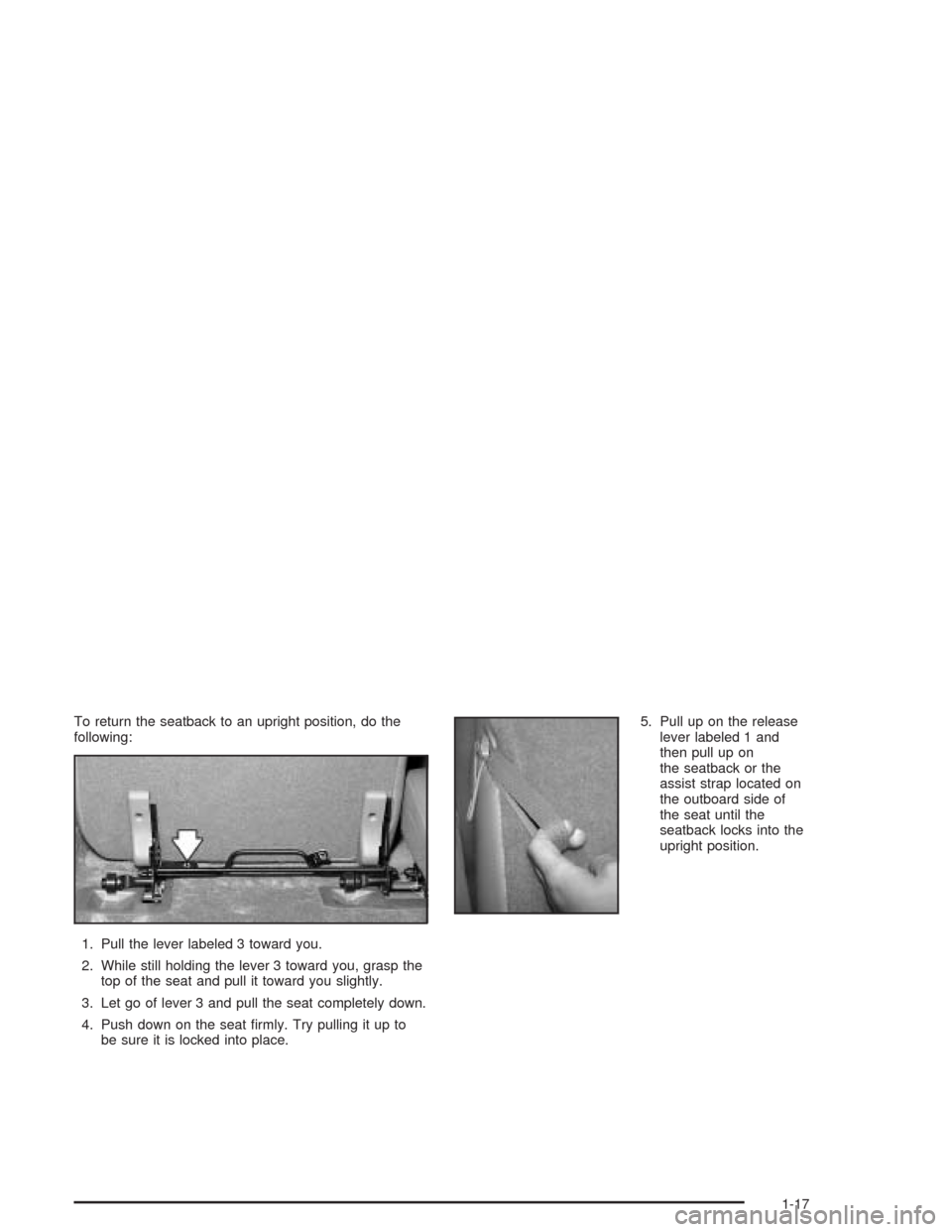

To return the seatback to an upright position, do the
following:
1. Pull the lever labeled 3 toward you.
2. While still holding the lever 3 toward you, grasp the
top of the seat and pull it toward you slightly.
3. Let go of lever 3 and pull the seat completely down.
4. Push down on the seat rmly. Try pulling it up to
be sure it is locked into place.5. Pull up on the release
lever labeled 1 and
then pull up on
the seatback or the
assist strap located on
the outboard side of
the seat until the
seatback locks into the
upright position.
1-17

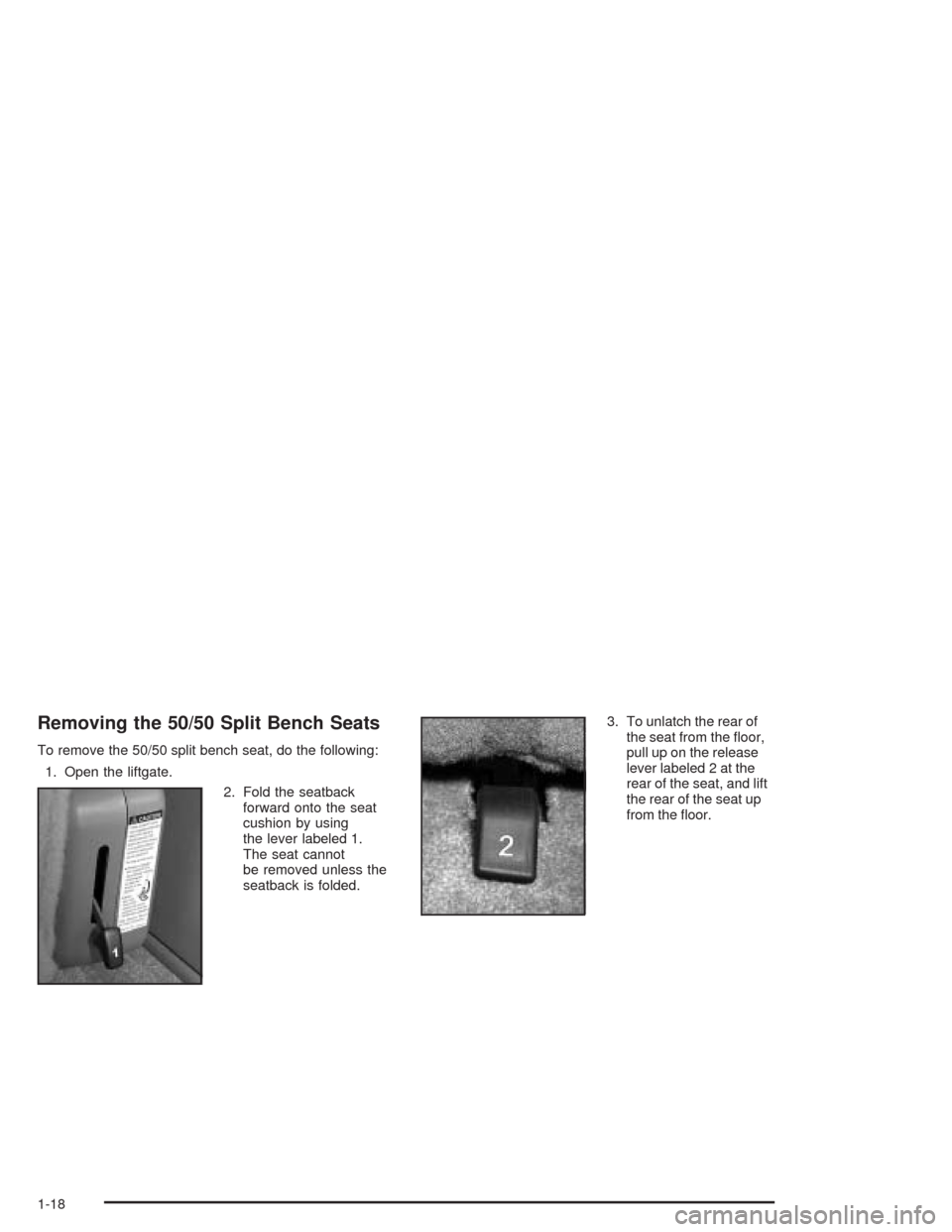

Removing the 50/50 Split Bench Seats
To remove the 50/50 split bench seat, do the following:
1. Open the liftgate.
2. Fold the seatback
forward onto the seat
cushion by using
the lever labeled 1.
The seat cannot
be removed unless the
seatback is folded.3. To unlatch the rear of
the seat from the oor,
pull up on the release
lever labeled 2 at the
rear of the seat, and lift
the rear of the seat up
from the oor.
1-18
