2004 Acura TL Owner's Manual

When using CD-R discs, use only
high quality discs labeled f or audio
use.
When recording a CD-R, the
recording must be closed f or it to
be used by the disc changer.
Play only standard round discs.
Odd-shaped discs may jam in the
driveorcauseotherproblems.
Handle your discs properly to
prevent damage and skipping.When a disc is not being played,
store it in its case to protect it f rom
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
To clean a disc, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the
recording surf ace of the disc,
causing skipping or other problems.
Remove these pieces by rubbing the
inner and outer edges with the side
of a pencil or pen.
Handle a disc by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
f rom f inger prints, liquids, and f elt-
tip pens, can cause the disc to not
play properly, or possibly jam in the
drive.
Never try to insert f oreign objects in
the disc changer.
General Inf ormation
Protecting Discs
Comf ort and Convenience Feat ures
Protecting Your Discs
134

Message Cause
If you see an error message in the
display while playing a disc, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to an Acura dealer. Solution
FOCUS Error.
No CD in the changer.
Mechanical Error.
High temperature.Press the disc eject button and remove the
disc(s). Check f or an error indication. Insert
the disc(s) again. If the code does not disappear
orthedisc(s)cannotberemoved,consultyour
Acura dealer.
Insert CD.
Press the disc eject button and remove the
disc(s). Check f or an error indication. Insert
the disc(s) again. If code does not disappear or
the disc(s) cannot be remove, consult your
Acura dealer.
Will disappear when the temperature returns to
normal.
Disc Changer Error Messages
Comf ort and Convenience Feat ures135

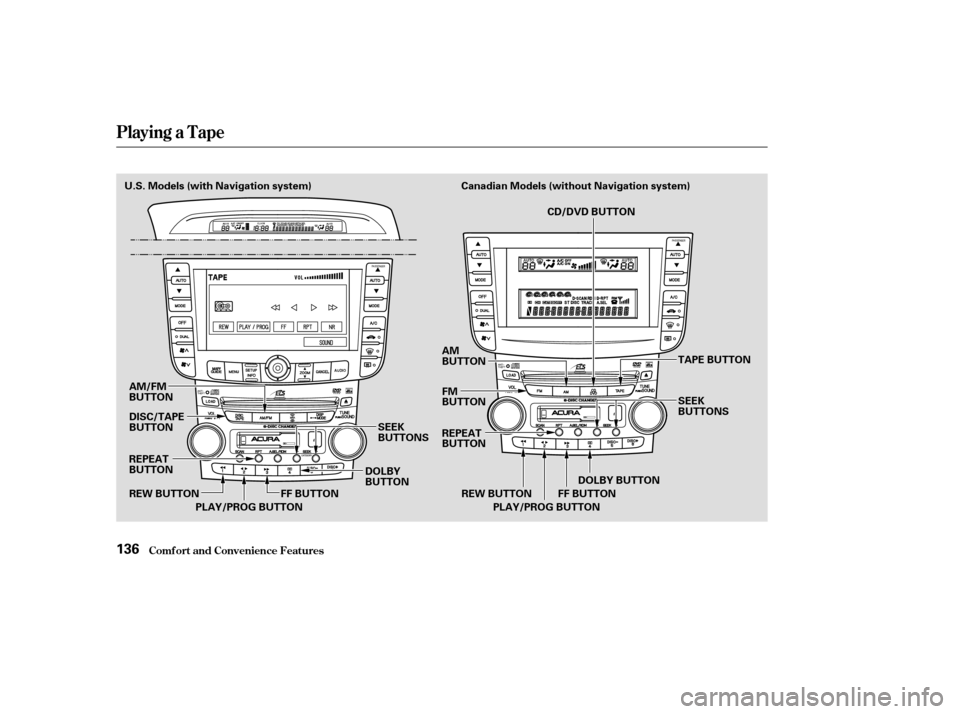

Playing a T ape
Comf ort and Convenience Feat ures136
SEEK
BUTTONS
DOLBY
BUTTON
REPEAT
BUTTON SEEK
BUTTONS
DISC/TAPE
BUTTON
AM/FM
BUTTON
FM
BUTTON AM
BUTTON
PLAY/PROG BUTTON
REW BUTTON
FF BUTTON REW BUTTON
PLAY/PROG BUTTON FF BUTTONDOLBY BUTTON
REPEAT
BUTTON TAPE BUTTON
CD/DVD BUTTON
U.S. Models (with Navigation system)
Canadian Models (without Navigation system)

Ûµ
Î
Î
CONT INUED
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PLAY/
PROG (preset2) button or touch the
PLAY/PROGiconontheaudio
display (models with navigation
system). When the player reaches
the end of the tape, it will
automatically reverse direction and
play the other side.
Dolby noise reduction turns on
when you insert a tape. Theindicator and NR icon (models with navigation system) will come on
in the display. If the tape was not
recorded in Dolby, turn it of f by
pressing the (preset 4) button
or touching the NR icon on the audio
display. Dolby remains of f until you
press the button (touch the icon)
again.
To remove the tape, press the
EJECT button. If you want to turn
the player of f , press the VOL/PWR
knob or turn of f the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it lef t
off.
To switch to the radio, Satellite Radio (U.S. models) or disc changer
while a tape is playing, press the
AM/FM button (AM or FM button
on Canadian models), button
or DISC/TAPE button (CD/DVD
buttononCanadianmodels).To
change back to the tape player, press
the DISC/TAPE button (TAPE/
AUXbuttononCanadianmodels).
To rewind the tape,
push the (preset 1 ) button or
touch the REW icon on the audio
display (models with navigation
system). You will see REW in the
display (TAPE REW on models with
navigation system). To fast forward
the tape, push the (preset 3)
button or touch the FF icon. You will
seeFFdisplayed(TAPEFFon
models with navigation system).
Press the , , or PLAY/
PROG button (icon) to take the
system out of rewind or f ast f orward.
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Playing a T ape
Comf ort and Convenience Feat ures
To Play a Tape
To Stop Playing a TapeFF/REW T ape Search Function
137

µµ´
µ
Press the SEEK button
to f ind the beginning of the current
song or passage. Press the SEEK
button to f ind the beginning of the
next song or passage. When the
system reaches the beginning of a
song or passage, it begins to play it.
Press the RPT button
or touch the RPT icon on the audio
display (models with navigation
system) to continuously play a song
or passage. You will see RPT
displayed. The track will repeat until
you press the RPT button or icon
again. Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination build up over time and
causes the sound quality to degrade.
To prevent this, you should clean the
player af ter every 30 hours of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your Acura dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.Store tapes in their cases to protect
them f rom dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
Never try to insert f oreign objects
into the tape player.
The SKIP and REPEAT
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
Playing a T ape
Comf ort and Convenience Feat ures
SK IP
REPEAT Caring f or the Player and Tapes
138
NOTE:

ÛÝ´
µ ´
µ
´ µ
Three controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel. The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button and hold it
until the desired volume is reached,
then release it.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station.If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it again to return to the previous
track. You will see the disc and track
numbers in the display.
If youareplayingatape,pressthe
top ( ) of the CH button to advance
to the next selection. Press the
bottom( )togobacktothe
previous selection. The system
senses a silent period, then goes
back to Play mode.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
XM Satellite Radio (U.S. models),
CD (if a CD is loaded), or a tape (if a
tape is loaded).
Comf ort and Convenience Feat ures
Audio System
Remote Audio Controls
139
MODE BUTTON
VOL BUTTON CH BUTTON

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
If youshouldhappentolosethecard,
you must obtain the code number
f rom an Acura dealer. To do this,
you will need the system’s serial
number.If your vehicle’s battery is discon-
nected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘CODE’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour bef ore trying again.
If thecodecardislost,anAcura
dealer can access your code with
your radio’s serial number. To
access the serial number, turn the
radio on. It must display ‘‘CODE’’,then turn the radio off. Push the
preset 1, preset 6, and power buttons
at the same time, then quickly
release. The serial number will
appear in two sets of f our digits.
You will have to store your favorite
XM stations in the preset buttons
af ter the system begins working.
Your original setting were lost when
the power was disconnected.
Radio T hef t Prot ect ion
Comf ort and Convenience Feat ures
Radio T hef t Protection
140

The security system sets
automatically 15 seconds after you
lock the doors, hood, and trunk. For
the system to activate, you must lock
the doors f rom the outside with the
key, lock tab, door lock switch, or
remote transmitter. The security
system indicator next to the driver’s
door lock starts blinking immediately
to show you the system is setting
itself .With the system set, you can still
open the trunk with the remote
transmitter without triggering the
alarm. The alarm will sound if the
trunk is opened with the trunk
releasebuttononthedriver’sdoor,
thetrunkreleasehandlebehindthe
trunk pass-through cover, or the
emergency trunk opener.
The security system will not set if
the hood, trunk, or any door is not
f ully closed. If the system will not set,
check the Door and Trunk Open
Monitor on the multi-inf ormation
display (see page ) to see if the
doors and trunk are f ully closed.
Since it is not part of the monitor
display, manually check the hood.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lash if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or 2 minutes, then
the system resets. To reset an
alarming system bef ore the 2
minutes have elapsed, unlock the
driver’s door with the key or use the
remote transmitter.
Once the security system is set,
opening any door or the hood
without using the key or the remote
transmitter will cause the system to
alarm. It also alarms if the radio is
removed f rom the dashboard or the
wiring is cut. 60
Security System
Comf ort and Convenience Feat ures141
SECURITY SYSTEM LIGHT
