2004 Acura RL fuse box

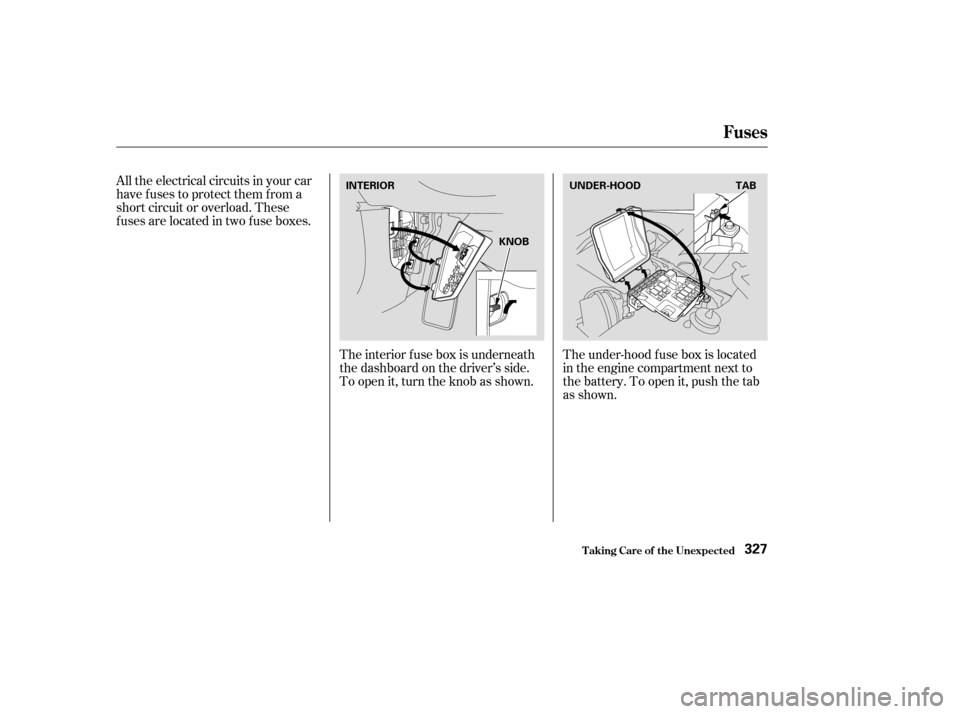

The under-hood f use box is located
in the engine compartment next to
the battery. To open it, push the tab
as shown.
The interior f use box is underneath
the dashboard on the driver’s side.
To open it, turn the knob as shown.
All the electrical circuits in your car
have fuses to protect them from a
short circuit or overload. These
f uses are located in two f use boxes.
Fuses
T aking Care of t he Unexpect ed327
INTERIOR
KNOBUNDER-HOOD
TAB

Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head screw-
driver.Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each f use with the f use
puller provided in the door of the
interior f use box.
Remove the cover f rom the f use
box. Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
If something electrical in your car
stops working, the f irst thing you
should check f or is a blown f use.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
not the cause. Replace any blown
f uses and check the component’s
operation. 3.
1.
2. 4.
330 331
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed328
FUSE
BLOWN FUSE
PULLER

µ
No. Amps.No. Amps. Circuits Protected
Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 20 A
10 A
20 A
15 A
20 A
20 A
20 A
20 A
20 A
10 A
10 A
20 A
30 A
30 A 16
17
18
19
20
21
22
23
24
25
26
27
28
20 A
20 A
15 A
7.5 A 20 A
30 A
50 A
40 A
40 A
120 A 40 A
40 A
50 A Front Fog Light
ETS (Electrical Tilt/
Telescope Steering)
Meter
Back-up, Radio
Interior Lights
Wiper Motor
Ignition Switch
Power Window
Heater Motor
Battery
VSA Motor
Rear Window Defogger
Fuse box
Not Used
Brake, Horn
Hazard
Driver Power Window
TCS
VSA
Power Door Lock
Right Headlight Low
Left Headlight Low
Cooling Fan
Lef t Headlight High
Right Headlight High
Condenser Fan
Moonroof
Front Passenger’s Power
Seat
Fuses
T aking Care of t he Unexpect ed330
UNDER-HOOD FUSE BOX

µ
µÎ
Î
Î
No. Amps. Circuits Protected
Circuits Protected
No. Amps.
14
15
16
17
18
19
20
21
22
23
24
25
26 7.5 A
7.5 A
10 A
7.5 A 20 A
7.5 A 20 A
20 A
20 A
7.5 A 20 A
30 A Starter Signal
ACG
ACC Socket
Power Window MPCS
Front Right Power Window
Mirror
ECU (Body)
Rear Lef t Power Window
Fuel Pump
SRS
Rear Right Power Window
Ignition Coils
Not Used
Small Light
Not Used (OP)
Condenser Fan Relay,
Cooling Fan Relay
ACC, Radio
A/C Clutch, Front Heated
Seat
ECU (PCM)
SRS
Driver’s Power Seat
Reclining/Rear Height/
Power Lumber
Bose Audio System
Daytime Running Lights
Driver’s Power Seat Slide/
Front Height
Daytime Running Lights
Meter, Moonroof
1
2
3
4
5
6
7
8
9
10
11
12
13 15 A
7.5 A 10 A
20 A
20 A
10 A
20 A
20 A
10 A
20 A
7.5 A
7.5 A
On Canadian models
1:
1
1
Fuses
T aking Care of t he Unexpect ed331
INTERIOR FUSE BOX

µ
Î µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
T echnical Inf ormation
Specif ications
339
Engine
Alignment
Tires
Battery
Fuses Lights 12 V
12 V55 W (H1) (High beam)
27/8 W
3.54x3.58in(90x91mm)212 cu-in (3,474 cm
)
9.6 : 1
0.00 in (0.0 mm)
0.08 in (2.0 mm) 0°
0°30’
2°50’
P225/55R16 94V
T135/80D16 101M
30 psi (210 kPa , 2.1 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 W
21/5 W
55 W (H1)
21 W
3CP
21 W
3CP
5W
5W
3.4 W
3.4 W
2W Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Water cooled 4-stroke
SOHC V-6 gasoline engine
Toe
Camber
Caster
Size
Pressure
Capacity 12 V 55 AH/5 HR
Interior
Under-hood 65 AH/20 HR
12 V
See page 331or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 330or the fuse box
cover. See spark plug maintenance
section page
272.
Headlights
Front turn signal/parking lights
Rear turn signal lights
Brake/Taillights
Front fog lights
High-mount brake light
Front side marker lights
Back-up lights
License plate lights
Ceiling lights
Trunk light
Door courtesy lights
Vanity mirror light
Front
Rear
Front
Rear
Front
Front/Rear
Spare
Front/Rear
Sparein
Front
Rear
Low beam headlight bulbs are a type of high voltage discharge
