2004.5 PEUGEOT 807 Owners Manual

Audio - Telematics52 -
30-08-2004
53Audio - Telematics-
30-08-2004
Making a call
Press button D to display the contex-
tual menu of the telephone.
Note: pressing the end 5 of the steer-
ing column control for more than
2 seconds calls up a contextual menu
limited to the "Directory", "List of
calls" and "Voice mail" functions.
Select the function ''En-
ter number'' then enter
the number of the person
you wish to speak to us-
ing the alphanumeric
keypad.
Press button D to make the call.
Entering a number
Receiving a callMaking a call from a directory
Select the
"Directory" function to
access all the iles containing a tele-
phone number or the "List of calls"
function to access the list of the
last twenty incoming (if the number
display option is active) or outgoing
calls.
Note: there are two directories, the
RT3 GPS audio/telephone directory
and the SIM card directory. To con-
sult the SIM directory, insert your
SIM card and enter you PIN code. When a ringing sounds to
let you know that a call is
waiting, you can choose
either to accept it by
pressing button
D or the
end of the steering wheel
remote control or not to accept it by
pressing the button Q or by selecting
and validating the "NO" button on
the "Answer?" screen.
If you accept the call, to end your
communication, press button Q.
If you do not accept the call, it is
transferred to your voice mail or to a
call diversion number.
You can activate or deactivate this
transfer by pressing button Q for
more than two seconds.

Audio - Telematics54 -
30-08-2004
55Audio - Telematics-
30-08-2004

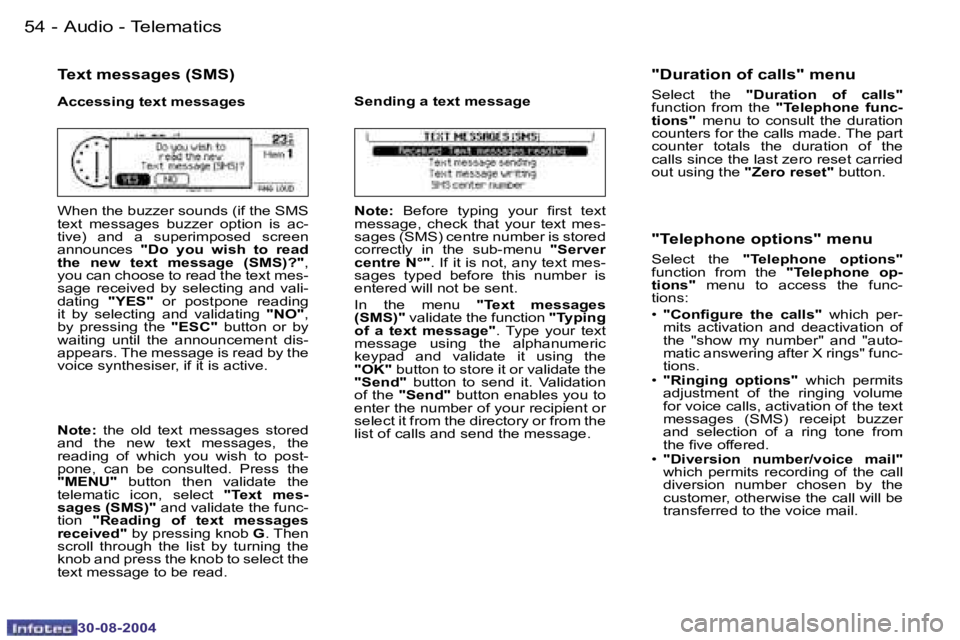

Text messages (SMS)
Accessing text messages
When the buzzer sounds (if the SMS
text messages buzzer option is ac-
tive) and a superimposed screen
announces "Do you wish to read
the new text message (SMS)?" ,
you can choose to read the text mes-
sage received by selecting and vali-
dating "YES" or postpone reading
it by selecting and validating "NO",
by pressing the "ESC" button or by
waiting until the announcement dis-
appears. The message is read by the
voice synthesiser, if it is active. Note:
Before typing your irst text
message, check that your text mes-
sages (SMS) centre number is stored
correctly in the sub-menu "Server
centre N°" . If it is not, any text mes-
sages typed before this number is
entered will not be sent.
In the menu "Text messages
(SMS)" validate the function "Typing
of a text message" . Type your text
message using the alphanumeric
keypad and validate it using the
"OK" button to store it or validate the
"Send" button to send it. Validation
of the "Send" button enables you to
enter the number of your recipient or
select it from the directory or from the
list of calls and send the message.
Sending a text message
"Duration of calls" menu
Select the
"Duration of calls"
function from the "Telephone func-
tions"
menu to consult the duration
counters for the calls made. The part
counter totals the duration of the
calls since the last zero reset carried
out using the "Zero reset" button.
Note: the old text messages stored
and the new text messages, the
reading of which you wish to post-
pone, can be consulted. Press the
"MENU" button then validate the
telematic icon, select "Text mes-
sages (SMS)" and validate the func-
tion "Reading of text messages
received" by pressing knob G. Then
scroll through the list by turning the
knob and press the knob to select the
text message to be read.
"Telephone options" menu
Select the "Telephone options"
function from the "Telephone op-
tions" menu to access the func-
tions:
• ฀ "Conigure the calls" which per-
mits activation and deactivation of
the "show my number" and "auto-
matic answering after X rings" func-
tions.
• ฀ "Ringing options" which permits
adjustment of the ringing volume
for voice calls, activation of the text
messages (SMS) receipt buzzer
and selection of a ring tone from
the ive offered.
• ฀ "Diversion number/voice mail"
which permits recording of the call
diversion number chosen by the
customer, otherwise the call will be
transferred to the voice mail.

Audio - Telematics54 -
30-08-2004
55Audio - Telematics-
30-08-2004

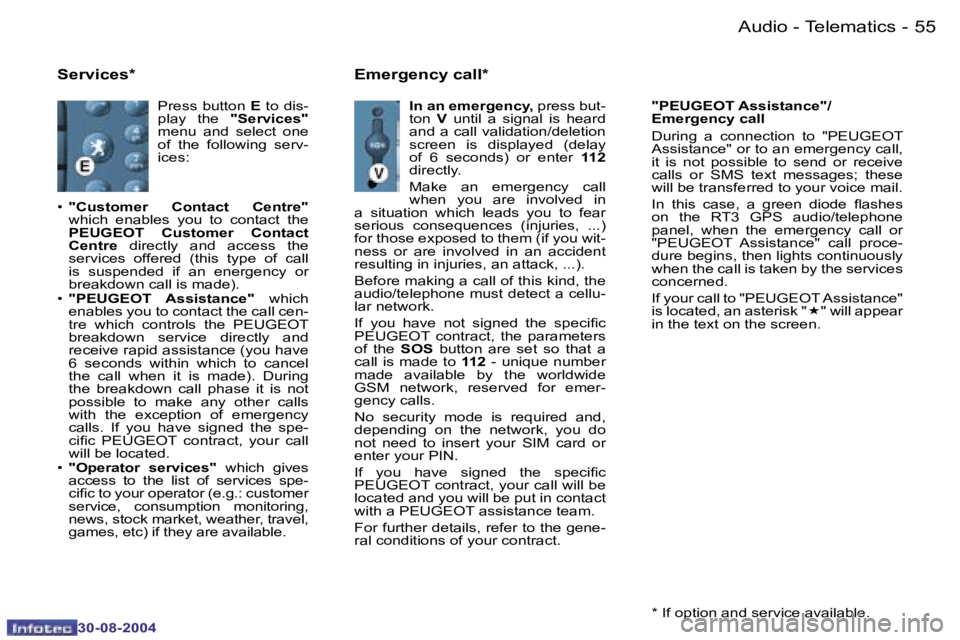

Press button E to dis-
play the "Services"
menu and select one
of the following serv-
ices:
Services*
In an emergency, press but-
ton V until a signal is heard
and a call validation/deletion
screen is displayed (delay
of 6 seconds) or enter 112
directly.
Make an emergency call
when you are involved in
a situation which leads you to fear
serious consequences (injuries, ...)
for those exposed to them (if you wit-
ness or are involved in an accident
resulting in injuries, an attack, ...).
Before making a call of this kind, the
audio/telephone must detect a cellu-
lar network.
If you have not signed the speciic
PEUGEOT contract, the parameters
of the SOS button are set so that a
call is made to 112 - unique number
made available by the worldwide
GSM network, reserved for emer-
gency calls.
No security mode is required and,
depending on the network, you do
not need to insert your SIM card or
enter your PIN.
If you have signed the speciic
PEUGEOT contract, your call will be
located and you will be put in contact
with a PEUGEOT assistance team.
For further details, refer to the gene-
ral conditions of your contract.
Emergency call*
* If option and service available.
•
฀ "Customer Contact Centre"
which enables you to contact the
PEUGEOT Customer Contact
Centre directly and access the
services offered (this type of call
is suspended if an energency or
breakdown call is made).
• ฀ "PEUGEOT Assistance" which
enables you to contact the call cen-
tre which controls the PEUGEOT
breakdown service directly and
receive rapid assistance (you have
6 seconds within which to cancel
the call when it is made). During
the breakdown call phase it is not
possible to make any other calls
with the exception of emergency
calls. If you have signed the spe-
ciic PEUGEOT contract, your call
will be located.
• ฀ "Operator services" which gives
access to the list of services spe-
ciic to your operator (e.g.: customer
service, consumption monitoring,
news, stock market, weather, travel,
games, etc) if they are available. "PEUGEOT Assistance"/
Emergency call
During a connection to "PEUGEOT
Assistance" or to an emergency call,
it is not possible to send or receive
calls or SMS text messages; these
will be transferred to your voice mail.
In this case, a green diode lashes
on the RT3 GPS audio/telephone
panel, when the emergency call or
"PEUGEOT Assistance" call proce-
dure begins, then lights continuously
when the call is taken by the services
concerned.
If your call to "PEUGEOT Assistance"
is located, an asterisk "
«" will appear
in the text on the screen.

Audio - Telematics56 -
30-08-2004
57Audio - Telematics-
30-08-2004

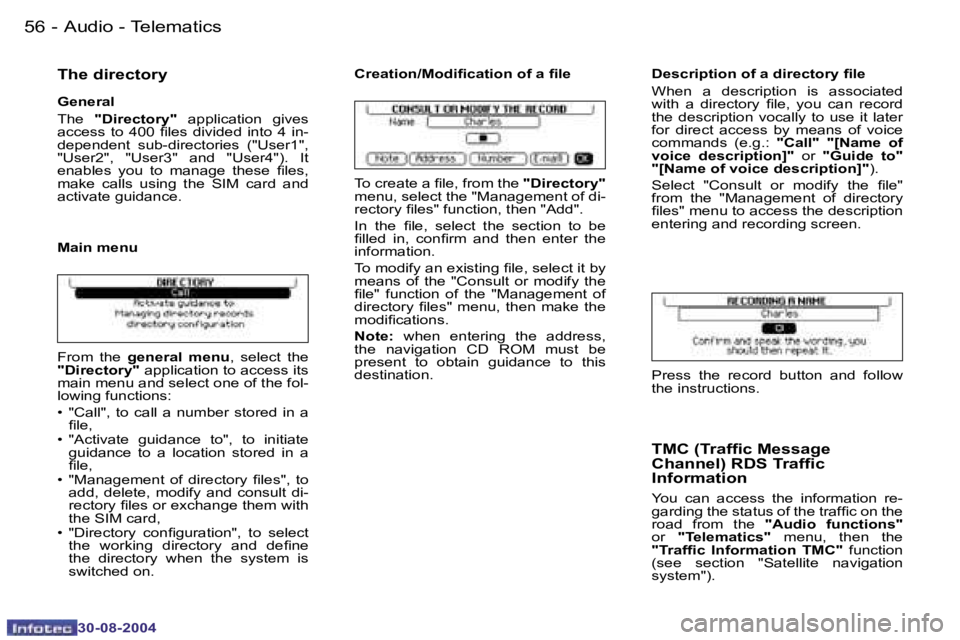

The directory
General
The "Directory" application gives
access to 400 iles divided into 4 in-
dependent sub-directories ("User1",
"User2", "User3" and "User4"). It
enables you to manage these iles,
make calls using the SIM card and
activate guidance.
From the general menu , select the
"Directory" application to access its
main menu and select one of the fol-
lowing functions:
• "Call", to call a number stored in a ile,
• "Activate guidance to", to initiate guidance to a location stored in a
ile,
• "Management of directory iles", to add, delete, modify and consult di-
rectory iles or exchange them with
the SIM card,
• "Directory coniguration", to select the working directory and deine
the directory when the system is
switched on.
Main menu
To create a ile, from the
"Directory"
menu, select the "Management of di-
rectory iles" function, then "Add".
In the ile, select the section to be
illed in, conirm and then enter the
information.
To modify an existing ile, select it by
means of the "Consult or modify the
ile" function of the "Management of
directory iles" menu, then make the
modiications.
Note: when entering the address,
the navigation CD ROM must be
present to obtain guidance to this
destination.
Creation/Modiication of a ile Description of a directory il
e
When a description is associated
with a directory ile, you can record
the description vocally to use it later
for direct access by means of voice
commands (e.g.: "Call" "[Name of
voice description]" or "Guide to"
"[Name of voice description]" ).
Select "Consult or modify the ile"
from the "Management of directory
iles" menu to access the description
entering and recording screen.
Press the record button and follow
the instructions.
TMC (Trafic Message
Channel) RDS Trafic
Information
You can access the information re-
garding the status of the trafic on the
road from the "Audio functions"
or "Telematics" menu, then the
"Trafic Information TMC" function
(see section "Satellite navigation
system").

Audio - Telematics56 -
30-08-2004
57Audio - Telematics-
30-08-2004

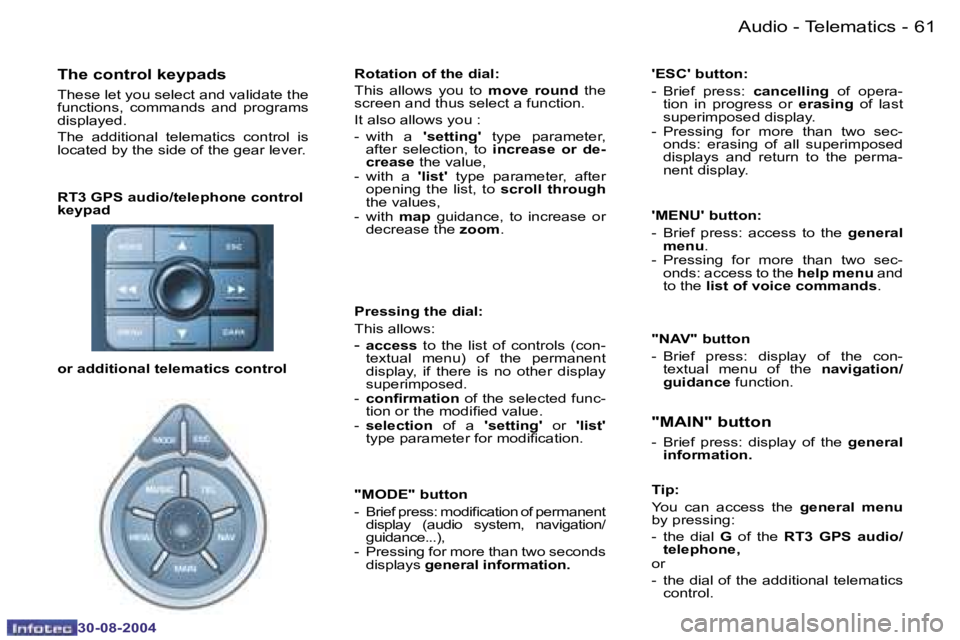

VOICE COMMANDS
The voice commands make it pos-
sible to use pre-recorded words or
phrases to control a certain number
of functions of the RT3 GPS audio/
telephone.
They are organised in three levels
(levels 1, 2 and 3).
When you say a level 1 command,
the system makes the level 2 com-
mands available; when you say a
level 2 command, the system makes
the level 3 commands available.Notes:
- between two key words, a screen
indicates the time remaining and
the key word recognised,
- in the absence of any voice com- mands, this function will be swi-
tched off after approximately ive
seconds,
- if a command is not understood, the system transmits the phrase
"Pardon" and displays "Word not
recognised" on the screen.
Saying the phrase "Help" or "What
can I say" displays all of the com-
mands available on the screen.
Saying the phrase "Cancel" cancels
all of the voice commands.
Miscellaneous phrases: STOP/
DELETE/YES/NO/PREVIOUS/NEXTActivation of the voice commands

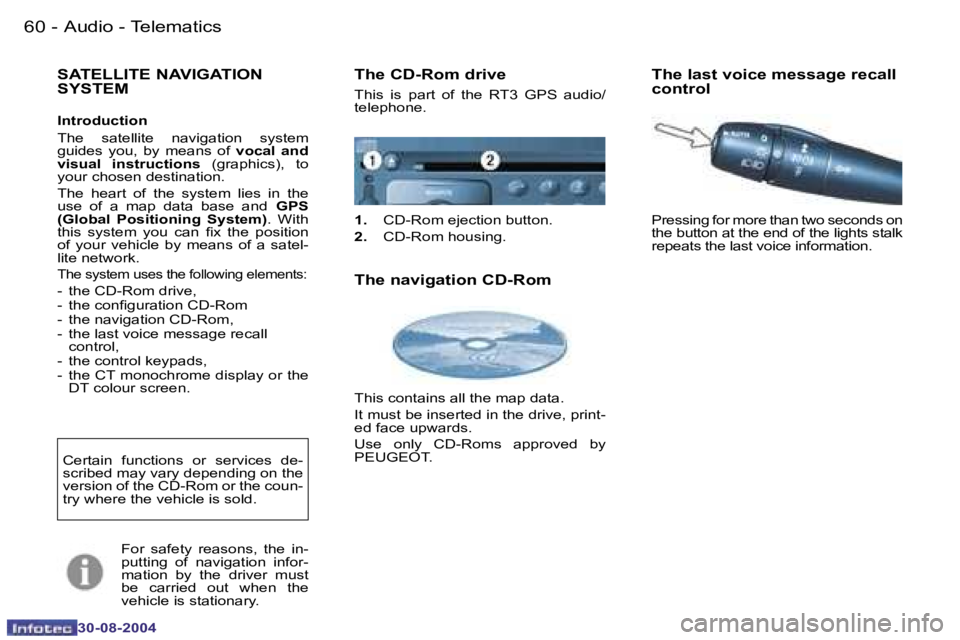

Press the button on the end of the
lights stalk to activate or deacitvate
this function.
Example: to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3" .
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested.

Audio - Telematics58 -
30-08-2004
59Audio - Telematics-
30-08-2004

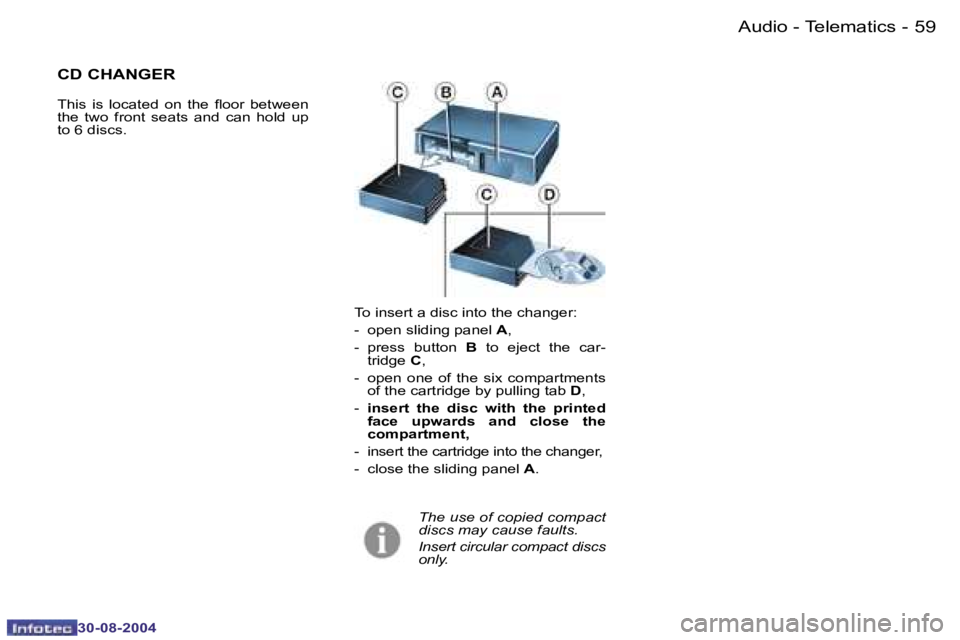

To insert a disc into the changer:
- open sliding panel
A,
- press button
B to eject the car-
tridge C,
- open one of the six compartments of the cartridge by pulling tab
D,
-
insert the disc with the printed
face upwards and close the
compartment,
- insert the cartridge into the changer,
- close the sliding panel
A.
This is located on the loor between
the two front seats and can hold up
to 6 discs.
CD CHANGER
The use of copied compact
discs may cause faults.
Insert circular compact discs
only.

Audio - Telematics60 -
30-08-2004
61Audio - Telematics-
30-08-2004
SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions (graphics), to
your chosen destination.
The heart of the system lies in the
use of a map data base and
GPS
(Global Positioning System) . With
this system you can ix the position
of your vehicle by means of a satel-
lite network.
The system uses the following elements:
- the CD-Rom drive,
- the coniguration CD-Rom
- the navigation CD-Rom,
- the last voice message recall control,
- the control keypads,
- the CT monochrome display or the DT colour screen.
Certain functions or services de-
scribed may vary depending on the
version of the CD-Rom or the coun-
try where the vehicle is sold.
For safety reasons, the in-
putting of navigation infor-
mation by the driver must
be carried out when the
vehicle is stationary.
The CD-Rom drive
This is part of the RT3 GPS audio/
telephone.
1. CD-Rom ejection button.
2. CD-Rom housing.
The navigation CD-Rom
This contains all the map data.
It must be inserted in the drive, print-
ed face upwards.
Use only CD-Roms approved by
PEUGEOT.
The last voice message recall
control
Pressing for more than two seconds on
the button at the end of the lights stalk
repeats the last voice information.

Audio - Telematics60 -
30-08-2004
61Audio - Telematics-
30-08-2004
RT3 GPS audio/telephone control
keypad
The control keypads
These let you select and validate the
functions, commands and programs
displayed.
The additional telematics control is
located by the side of the gear lever.
or additional telematics controlRotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you :
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, after
opening the list, to scroll through
the values,
- with map guidance, to increase or
decrease the zoom. 'ESC' button:
- Brief press:
cancelling of opera-
tion in progress or erasing of last
superimposed display.
- Pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication.
"MODE" button
- Brief press: modiication of permanent display (audio system, navigation/
guidance...),
- Pressing for more than two seconds displays general information. 'MENU' button:
- Brief press: access to the
general
menu .
- Pressing for more than two sec- onds: access to the help menu and
to the list of voice commands .
"NAV" button
- Brief press: display of the con- textual menu of the navigation/
guidance function.
"MAIN" button
- Brief press: display of the general
information.
Tip:
You can access the general menu
by pressing:
- the dial G of the RT3 GPS audio/
telephone,
or
- the dial of the additional telematics control.
