2004.5 PEUGEOT 807 Owners Manual

Access98 -
30-08-2004
99Access-
30-08-2004
Opening/Closing using the
remote control:
- press button C to open or close the
rear right door.
- press button D to open or close the
rear left door.
Note: the electric sliding side doors
are itted with an obstacle detection
system.
If an obstacle appears while the door
is closing, the door re-opens.
If an obstacle appears while the door
is opening, the door stops.
In both cases, complete the required
action manually using the handle. The force with which the
door moves may cause
injury.
When opening or closing
the door, ensure that noth-
ing prevents the required manoeuvre.
Do not leave children or animals
near the door controls without su-
pervision. If necessary, disarm the
controls, then remove the key from
the ignition, even for a short time.
Before setting off, check that the
door is correctly closed and locked
(see "door open" warning). Child safety
A - Mechanical
This prevents either of the rear doors
being opened from inside.
F
Turn the switch
A a quarter of a
turn using the ignition key.
B - Electric
This disarms all the electrical con-
trols in the rear:
F electric windows,
F sliding side doors,
F sunroofs.
With the ignition on, press button
B.
The message
"Child safety acti-
vated" appears on the multi-function
display, accompanied by an audible
signal.
Always remove the ignition
key when leaving the vehi-
cle, even for a short time.

Access100 -
30-08-2004
101Access-
30-08-2004
TAILGATE
Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked
by the remote control or the driver's
door or passenger door lock.
To open, operate the handle A and
lift the tailgate.
Note: The tailgate locks automati-
cally when the vehicle is being driven
at more than 6 mph (10 km/h) and
unlocks when one of the front doors
is opened.
Tailgate release
This enables the tailgate to be
unlocked in the event of a central
locking fault.
F Fold back a 2nd row rear seat,
F Fold back a 3rd row rear seat or
the bench seat to gain access to
the lock from inside the boot,
F Insert a small screwdriver into
hole B in the lock and push it
towards the left to unlock the tail-
gate.
REAR WINDOWS
To partially open the rear windows,
tilt the lever and push it fully to lock
the windows in the open position.
"Tailgate open" warning
When the engine is running or the
vehicle is being driven, you are
warned if the tailgate is not closed
correctly by a diagram on the multi-
function display, accompanied by an
audible signal.

Access100 -
30-08-2004
101Access-
30-08-2004
SUNROOFS
You have three sunroofs each with
an independent control.
However, the front passengers' con-
trol can also operate the two rear
sunroofs simultaneously.
• to partially open the roof: press
and hold part A of the switch,
• to open the roof completely:
press part A of the switch briely,
• to close it completely: press part
B of the switch briely, then keep it
pressed,
• safety auto-reverse.
When the sunroof is sliding closed
and meets an obstacle, it stops then
partially opens again. Notes:

In the event of unwanted opening of
the roof on closing (for example, in
the presence of ice), if the sunroof
does not close, press section A of
the control until the roof is fully open,
then close the roof.
Continue to press the control for
approximately one second after
closing.
Following reconnection of the bat-
tery, in the event of a malfunction,
release the control and press it again
until the roof is fully closed. Continue
to press the control for approximately
ive seconds after closing.
The safety auto-reverse function
is not active during these opera-
tions. Always remove the key
from the ignition when leav-
ing the vehicle, even for a
short time.
Always ensure that the
sunroofs are closed correctly before
leaving the vehicle.
In the event of contact during opera-
tion of the roof, you must reverse the
movement of the roof. To do this,
press the switch concerned.
When the driver operates the roof
switch, he must ensure that no one
is preventing correct closing of the
roof.
The driver must ensure that the pas-
sengers use the sunroof correctly.
Be aware of children when operating
the roof.
Disarming of the 2nd and 3rd row
controls:
- press the rear electrical functions disarming switch.
Note: the sunroof shutter is manual.
To open it, lift the handle and slide it
rearwards.
To close it, slide it forwards until the
handle locks.
Do not open the sunroofs immedi-
ately after a shower or immediately
after washing the car.

Access102 -
30-08-2004
FILLING THE FUEL TANK
Low fuel level
OPENING THE BONNET
From inside:
- lift the cover located at the left foot of the driver's seat.
- pull the control upwards.
From outside: lift the catch and
raise the bonnet. The tank must be illed with fuel with
the engine off
.
F Open the fuel iller lap.
F Insert the key then turn it to the
left.
F Remove the cap and attach it to
the clip located on the inside of
the lap.
A label on the inside of the lap indi-
cates which type of fuel to use.
If you ill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is approx-
imately 18 gallons (80 litres).
F After illing the tank, lock the cap
and close the lap.
When the tank's minimum
level is reached, this warning
light comes on, accompa-
nied by the message "Fuel
level low" on the multifunc-
tion display.
You have enough fuel left to cover
approximately 30 miles (50 km).
If the warning light lashes, this indi-
cates a fuel gauge malfunction.
Contact a PEUGEOT dealer.
If the warning light lashes, accom-
panied by the message "Fuel circuit
disarmed" , this indicates that the
fuel supply has been cut off.
Restore the supply (refer to the cor-
responding section). When the fuel iller lap is
open, a system limits the
opening of the rear left slid-
ing side door.
The key cannot be re-
moved from the cap's lock until the
cap is reitted on the tank.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is properly locked.
"Bonnet open" warning

This warning is linked to the alarm
option only.
With the engine running or the vehicle
moving, a diagram on the multi-
function display accompanied by an
audible signal, warns you that the
bonnet is not properly closed.

103Visibility-
30-08-2004
LIGHTING CONTROL
Front and rear lights
Selection is by turning ring A.
Lights off
Dipped beam/
Main beam Front fog lights (1st rotation
of the ring forwards)
Side lights on
Automatic switching
on of lights Dipped beam/main beam change
Pull the stalk fully towards you.
Front and rear fog
lights (2nd rotation
of the ring forwards)
These operate with the side lights
and the dipped beam headlamps. These operate with the side lights
and the dipped beam headlamps.
Note:
to switch off the front and rear
fog lights, turn the ring rearwards
twice in succession.
In clear weather or in rain,
both day and night, rear
fog lights dazzle and are
prohibited.
Do not forget to switch
them off when they are no longer
needed.
Automatic switching on of the lights
switches off the rear fog lamps, but
the front fog lamps remain on.
Left: downwards.
Right: upwards.
Direction indicators
(lashers)
Lights-on buzzer
When the ignition is switched off,
when the driver's door is opened, a
buzzer sounds, accompanied by the
message
"Side lights on" on the
multi-function display if you have left
your lights on.
Front and rear fog lights
Rotate ring B forwards to switch on
and rearwards to switch off. The sta-
tus is conirmed by the light on the
instrument panel.

Visibility104 -
30-08-2004
105Visibility-
30-08-2004
AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatically if
the light is poor. They switch off when
the light becomes bright enough.
Note: In foggy weather, the bright-
ness sensor can detect suficient
light. As a consequence, the lights
will not come on automatically.
This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
F Start with the key in the accesso-
ries position (1st notch),
F
Place the lights stalk in position 0,
F Press the end of the stalk for more
than two seconds.
Note: after the ignition is switched off
and depending on the brightness, the
lights remain on for approximately
45 seconds or until the vehicle is
locked.
Do not cover the brightness sensor
located in the centre of the fascia.
It is used for automatic switching
on of the lights.
Operating check
Activation
Activation of this function is accom-
panied by an audible signal and the
message "Automatic lighting ac-
tive" on the multi-function display.
Disarming
Disarming of the function is accom-
panied by an audible signal.
Note: the function is disarmed tem-
porarily when the driver uses the
manual lighting controls.

Visibility104 -
30-08-2004
105Visibility-
30-08-2004

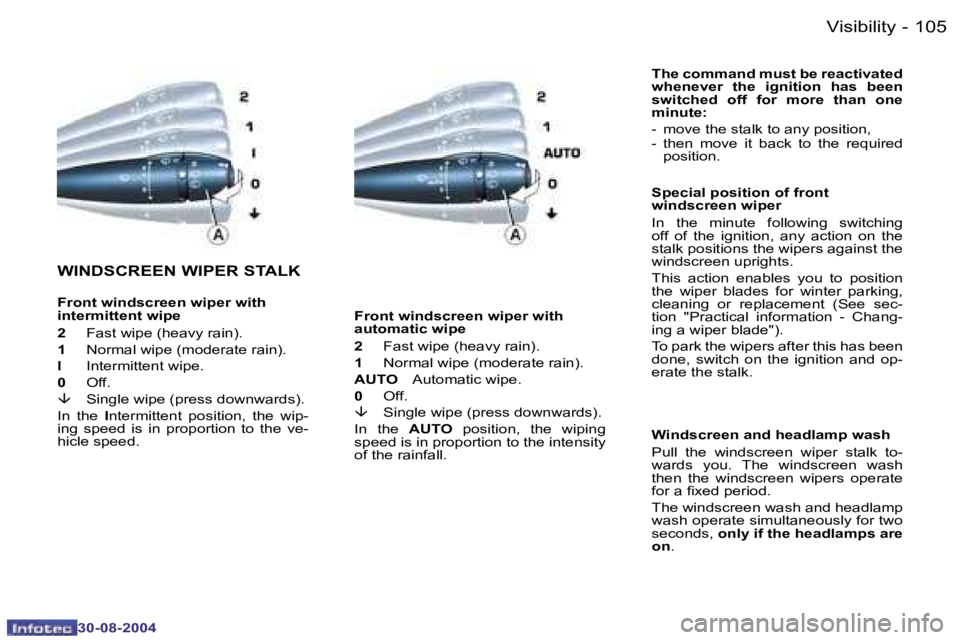

Front windscreen wiper with
automatic wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
â Single wipe (press downwards).
In the AUTO position, the wiping
speed is in proportion to the intensity
of the rainfall.
WINDSCREEN WIPER STALK
Front windscreen wiper with
intermittent wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
â Single wipe (press downwards).
In the Intermittent position, the wip-
ing speed is in proportion to the ve-
hicle speed. The command must be reactivated
whenever the ignition has been
switched off for more than one
minute:
- move the stalk to any position,
- then move it back to the required
position.
Special position of front
windscreen wiper
In the minute following switching
off of the ignition, any action on the
stalk positions the wipers against the
windscreen uprights.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See sec-
tion "Practical information - Chang-
ing a wiper blade").
To park the wipers after this has been
done, switch on the ignition and op-
erate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a ixed period.
The windscreen wash and headlamp
wash operate simultaneously for two
seconds, only if the headlamps are
on .

Visibility106 -
30-08-2004
107Visibility-
30-08-2004
Automatic timed windscreen
wipers
The automatically timed wiping is
controlled by a rain sensor itted on
the windscreen.
In the AUTO position, the wind-
screen wipers operate automatically
and adapt their speed to the inten-
sity of the rainfall .
Do not cover the rain sen-
sor located at the bottom
centre of the windscreen.
When using an automatic
car wash, switch off the ig-
nition or check that the wiper control
is not in the automatic position.
In winter it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe. In winter, in the presence
of a considerable amount
of snow or ice, switch on
the rear screen demister.
Once de-icing is complete,
remove the snow or ice which has
accumulated on the rear wiper blade.
You can now operate the rear wind-
screen wiper. Turn ring
A to the irst
notch. The wiping speed
is inversely proportional to
the speed of the vehicle. Turn ring
A past the irst
notch: the windscreen
wash then the windscreen
wiper operate for a speci-
ied time.
Operating check
Activation
When the function is activated, the
message "Automatic windscreen
wipers activated" appears on the
multi-function display. Automatic rear windscreen
wiping
F
place the front wipers stalk in a
position other than 0.
F engage reverse gear.
F the rear wiper operates with inter-
mittent wiping.
Note: this function cannot be dis-
armed if a bicycle carrier is itted.
Therefore, you must it a special bi-
cycle carrier, approved by PEUGEOT,
or contact a PEUGEOT dealer.Rear windscreen wiperRear windscreen wash
