2004.5 Peugeot 307 CC Dag Owner's Manual

84
30-08-2004
85
30-08-2004
YOUR 307 CC IN DETAIL
THE KEYS
You have two identical keys. They al-
low you to switch on the ignition and
operate the passenger air bag dis-
arming switch and the boot opening
button disarming switch as well as to
independently operate the lock on
the driver's door, the fuel iller cap
and the glove box.
The remote control
This permits remote locking, dead-
locking and unlocking of the vehicle,
locating of the vehicle, folding of the
exterior mirrors and partial opening
of the boot.
A second press on button A within
ive seconds of deadlocking changes
this to normal locking.
This is conirmed by ixed lighting of
the direction indicators for approxi-
mately two seconds.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
F press button
A, the courtesy lights
come on and the direction indica-
tors lash for a few seconds.
Central locking/Unlocking
From the driver's door, the keys allow
you to:
- lock the doors and boot simultane- ously,
- unlock the driver's door. Opening this door unlocks the passenger
door.
The boot can only be unlocked by
pressing the locking/unlocking button
from inside the vehicle, with the key
in the switch (refer to the correspond-
ing section).
Locking
Press button A to lock the vehicle.
This is conirmed by ixed lighting of
the direction indicators for approxi-
mately two seconds.
Unlocking
Press button B to unlock the vehicle.
This is conirmed by rapid lashing of
the direction indicators.
Note: if the vehicle is locked and
unlocking is activated inadvertently,
unless one of the doors or the boot is
opened within 30 seconds, the vehi-
cle will lock automatically.
Partial opening of the boot
Press and hold
button B to partially
open the boot, in addition to unlock-
ing the vehicle.
Vehicles itted with deadlocking
Warning: deadlocking renders the
internal and external door locking
controls inoperative.
Pressing button A deadlocks the
vehicle.
This is conirmed by ixed lighting of
the direction indicators for approxi-
mately two seconds.

84
30-08-2004
85
30-08-2004
YOUR 307 CC IN DETAIL
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
If the system does not function
correctly, the central locking button
indicator light, situated in the centre
of the fascia, lashes rapidly when the
ignition is switched on (2nd notch). In
this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
Confidential card
The conidential card contains the
identiication code necessary for any
work carried out by a PEUGEOT
dealer on the electronic immobiliser
system. This code is hidden by a
ilm, which should be removed only
if necessary.
Keep your card in a safe place,
never inside the vehicle.
Changing the battery of the
remote control
Warning that the battery is lat is given
by an audible signal accompanied by
the message
''Remote control bat-
tery low'' on the multifunction dis-
play.
To replace the battery, remove the
screw then unclip the casing using
a coin at the ring (CR 2016/3 volt
battery).
If the remote control does not work
after the battery has been changed,
reprogramme the remote control.
Key in ignition
A buzzer sounds on opening the driv-
er's door, if the key has been left in
the ignition.
Programming the remote
control
F Switch off the ignition.
F Switch the ignition on again.
F Press button
A immediately for a
few seconds.
F Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
is now working again.

86
30-08-2004
87
30-08-2004
YOUR 307 CC IN DETAIL

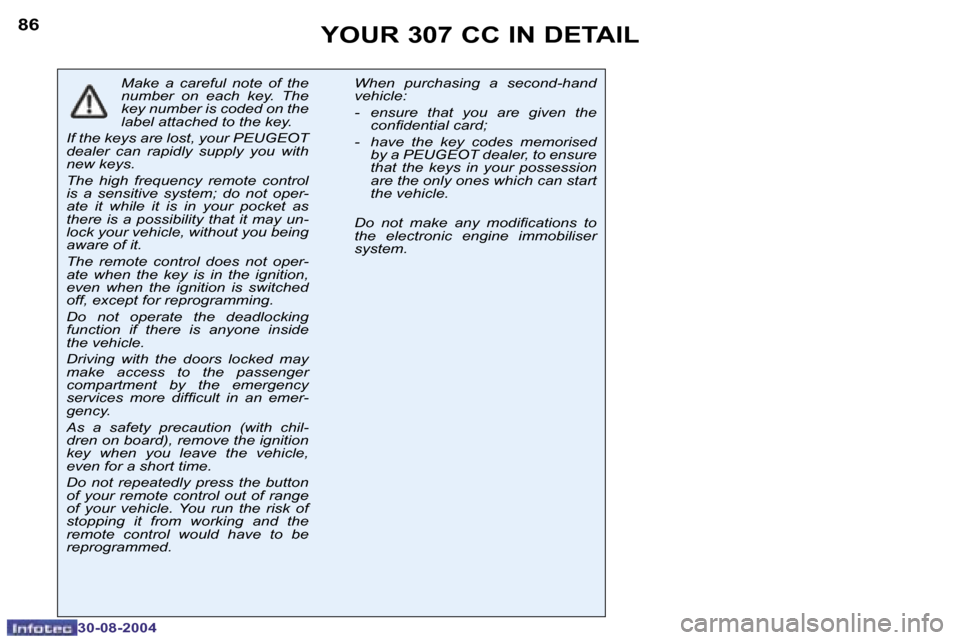

Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock your vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more dificult in an emer-
gency.
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
of your vehicle. You run the risk of
stopping it from working and the
remote control would have to be
reprogrammed. When purchasing a second-hand
vehicle:
- ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

84
30-08-2004
85
30-08-2004
YOUR 307 CC IN DETAIL
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
If the system does not function
correctly, the central locking button
indicator light, situated in the centre
of the fascia, lashes rapidly when the
ignition is switched on (2nd notch). In
this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
Confidential card
The conidential card contains the
identiication code necessary for any
work carried out by a PEUGEOT
dealer on the electronic immobiliser
system. This code is hidden by a
ilm, which should be removed only
if necessary.
Keep your card in a safe place,
never inside the vehicle.
Changing the battery of the
remote control
Warning that the battery is lat is given
by an audible signal accompanied by
the message
''Remote control bat-
tery low'' on the multifunction dis-
play.
To replace the battery, remove the
screw then unclip the casing using
a coin at the ring (CR 2016/3 volt
battery).
If the remote control does not work
after the battery has been changed,
reprogramme the remote control.
Key in ignition
A buzzer sounds on opening the driv-
er's door, if the key has been left in
the ignition.
Programming the remote
control
F Switch off the ignition.
F Switch the ignition on again.
F Press button
A immediately for a
few seconds.
F Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
is now working again.

86
30-08-2004
87
30-08-2004
YOUR 307 CC IN DETAIL
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock your vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more dificult in an emer-
gency.
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
of your vehicle. You run the risk of
stopping it from working and the
remote control would have to be
reprogrammed. When purchasing a second-hand
vehicle:
- ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

86
30-08-2004
87
30-08-2004
YOUR 307 CC IN DETAIL
THE ALARM
This provides two types of protection:
- exterior protection: it sounds if
a door, the boot or the bonnet is
opened.
- interior protection
: it sounds if
the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).
Note: the interior protection alarm
does not function if the vehicle's roof
is open (cabriolet position). When the alarm is triggered, the si-
ren sounds and the direction indica-
tor lights lash for thirty seconds.
After triggering, the alarm remains set.
Warning:
if the alarm has been trig-
gered ten times in succession, on the
eleventh time it becomes inactive.
Note: if button A indicator light
lashes rapidly, the alarm has been
triggered while you were away from
your vehicle. F
Set the alarm by locking or dead-
locking using the remote control
(button
A indicator light lashes
once a second).
Note: when the alarm is set but the
remote control does not operate:
F Unlock the door with the key and
open it. The alarm is triggered.
F Switch on the ignition. The alarm
is disarmed.
* According to destination.
Setting the alarm
F Switch off the ignition and get out
of the vehicle.
F Set the alarm by locking or dead-
locking using the remote control
(button
A indicator light lashes
once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use the door
lock.
Disarming
Unlock the vehicle with the remote control
key (button A indicator light goes out).
Note: if the alarm has been triggered
while you were away from your vehi-
cle, the rapid lashing of the indicator
light will stop when you switch on the
ignition.
To set the alarm with exterior
protection only
If, while you are away from the ve-
hicle, you wish to leave a window
partially open or a pet inside the
vehicle, you should choose exterior
protection only.
F Switch off the ignition,
F In the next ten seconds, press
button
A until the indicator light is
on continuously,
F Get out of the vehicle,
Incorrect operation
When the ignition is switched on, if
button A lights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic activation*
The alarm is activated automatically
two minutes after the last closure of a
door or the boot.
In order to avoid accidental triggering
of the alarm when a door or the boot
is opened, it is essential to irst press
the unlocking button on the remote
control.

88
30-08-2004
89
30-08-2004
Reinitialisation of the automatic
partial opening of the door
windows
Carry out this operation following
reconnection of the battery and
reinitialisation of the electric windows
(see corresponding section):
F partially open the door,
F close the door,
F wait for a few seconds,
F place your hand behind the
handle, the window automatically
lowers by a few centimetres.
YOUR 307 CC IN DETAIL
THE DOORS
Opening the doors from
outside
When you place your hand behind
the handle, the window automati-
cally lowers by a few millimetres. It
rises again after a few seconds and
adjusts automatically on closing to
provide perfect sealing.
Notes: when the vehicle is unlocked,
if you leave your hand on the handle
for more than 5 seconds, the window
rises again. Remove your hand to
reactivate the system.
When washing your vehicle:
- do not forget to lock it to avoid any risk of automatic partial opening of
the windows,
- avoid soaking the upper part of the windows.
Opening the doors
from inside
The door opening controls do not
function when the vehicle is dead-
locked.
Before carrying out any
work which requires
cutting off of the bat-
tery, lower the windows
to make it easier to open and
close the doors.
In the event of a battery cut-off, it
is still possible to open the doors.
However, it is imperative that the
door is not slammed on closing.
It will be necessary to reinitialise
the window controls and the auto-
matic partial opening of the door
windows.
Contact a PEUGEOT dealer as
soon as possible.

88
30-08-2004
89
30-08-2004
YOUR 307 CC IN DETAIL
BOOT
Opening the boot
F Press and hold button B on the
remote control to partially open
the boot, or press button
C on the
boot.
Closing the boot
F Use the interior grab handles to
close the boot.
F Press the centre of the boot with
both hands until it locks.
To protect the boot against theft, but-
ton
C can be disarmed. Turn the lock D a quarter of a turn to the right using
the key.
The boot can only be opened using
the remote control.
If the "automatic central locking" func-
tion is activated (see corresponding
section), the boot locks automatically
when the vehicle is being driven at
6 mph (10 km/h).
To unlock it, press button
A, with the
key in the ignition [speed less than
6 mph (10 km/h)].
Automatic central locking
The doors and the boot lock auto-
matically when driving [speed great-
er than 6 mph (10 km/h)].
Above 6 mph (10 km/h), a brief press
on button
A momentarily unlocks the
doors.
You can activate or disarm this function.
Locking/Unlocking from the
inside
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in par- ticular the boot) if you place the key
in the switch.
