2004.5 PEUGEOT 206 Owners Manual

94 -
31-01-2005
SEAT BELTS

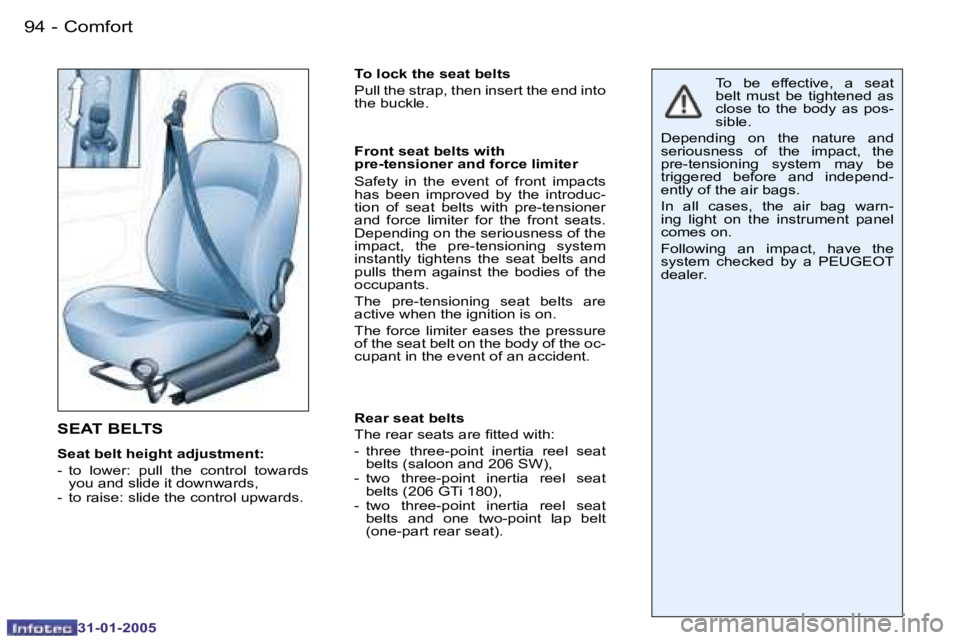

Seat belt height adjustment:
- to lower: pull the control towards you and slide it downwards,
- to raise: slide the control upwards. To lock the seat belts
Pull the strap, then insert the end into
the buckle.
To be effective, a seat
belt must be tightened as
close to the body as pos-
sible.
Depending on the nature and
seriousness of the impact, the
pre-tensioning system may be
triggered before and independ-
ently of the air bags.
In all cases, the air bag warn-
ing light on the instrument panel
comes on.
Following an impact, have the
system checked by a PEUGEOT
dealer.
Front seat belts with
pre-tensioner and force limiter
Safety in the event of front impacts
has been improved by the introduc-
tion of seat belts with pre-tensioner
and force limiter for the front seats.
Depending on the seriousness of the
impact, the pre-tensioning system
instantly tightens the seat belts and
pulls them against the bodies of the
occupants.
The pre-tensioning seat belts are
active when the ignition is on.
The force limiter eases the pressure
of the seat belt on the body of the oc-
cupant in the event of an accident.
Rear seat belts
The rear seats are itted with:
- three three-point inertia reel seat
belts (saloon and 206 SW),
- two three-point inertia reel seat belts (206 GTi 180),
- two three-point inertia reel seat belts and one two-point lap belt
(one-part rear seat).
Comfort

95
-
31-01-2005
THE KEYS
The keys allow you to switch on the
ignition, operate the steering lock,
the passenger air bag disarming
switch, the fuel iller cap and the boot
(saloon), as well as independently
operate the locks on the front doors. Locking
Press button
A to lock the vehicle.
This is conirmed by ixed lighting of
the direction indicators for approxi-
mately two seconds. Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
F
press button A, the courtesy lights
come on and the direction indica-
tors lash for a few seconds.
Changing the battery of the
remote control
Warning that the battery is lat is given
by an audible signal accompanied by
the message "Remote control battery
low" on the multifunction display.
To replace the battery, remove the screw
then unclip the casing using a coin at the
ring (CR 2016/3 volt battery).
If the remote control does not work
after the battery has been changed,
reprogram the remote control.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left
in the ignition.
Programming the remote
control
F Switch off the ignition.
F Switch the ignition on again.
F Press button A immediately for a
few seconds.
F Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
is now working again.
Central locking and unlocking
The keys allow you to lock or unlock
the doors and tailgate, from the front
doors.
If one of the doors, the tailgate or the
rear screen (206 SW) is open, the
central locking does not work.
The remote control
This performs the same functions as
the key, at a distance. Unlocking
Press button
B to unlock the vehicle.
This is conirmed by the rapid
lashing of the direction indicators.
Special feature on 206 SW: Press
and hold button B to unlock the vehi-
cle and open the rear screen.
If the vehicle is locked and the
unlocking control is pressed with-
out the doors being opened within
30 seconds, the vehicle will re-lock
automatically.
Avoid pressing the buttons of your
remote control out of range of your
vehicle. You risk causing it not to
work and the remote control would
then have to be reprogrammed (see
corresponding section).
Accesses

96 -
31-01-2005
97
-
31-01-2005
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code.
When the ignition is switched on, the
code must be recognised for starting
to be possible.

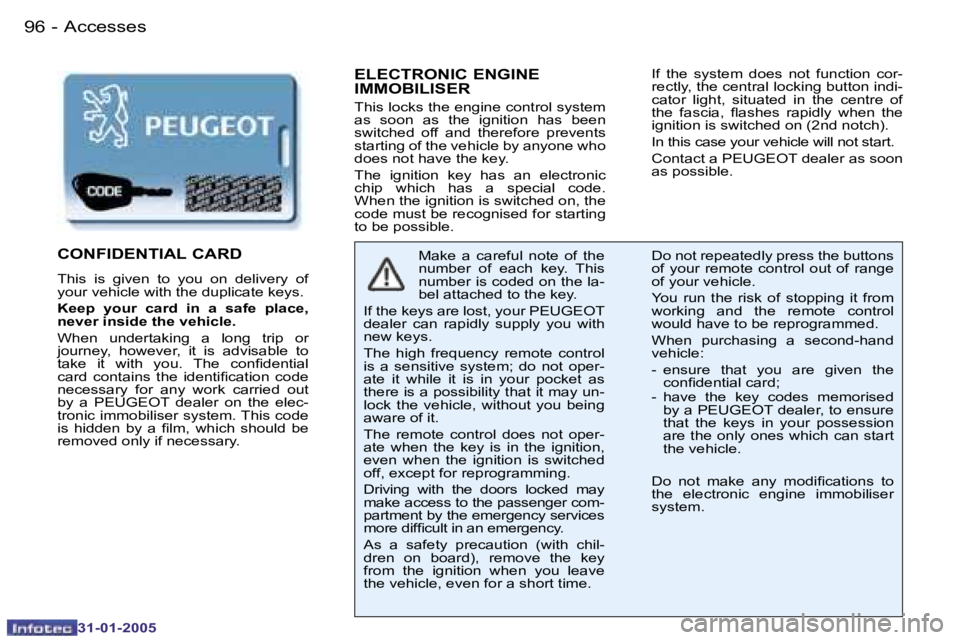

CONFIDENTIAL CARD
This is given to you on delivery of
your vehicle with the duplicate keys.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or
journey, however, it is advisable to
take it with you. The conidential
card contains the identiication code
necessary for any work carried out
by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code
is hidden by a ilm, which should be
removed only if necessary. Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more dificult in an emergency.
As a safety precaution (with chil-
dren on board), remove the key
from the ignition when you leave
the vehicle, even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.
If the system does not function cor-
rectly, the central locking button indi-
cator light, situated in the centre of
the fascia, lashes rapidly when the
ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
Accesses

166 -
31-01-2005
167
-
31-01-2005
Special features
DEADLOCKING
Deadlocking the doors is an additional security device. When i t is used it means
that the interior and exterior door locking controls cannot ope n the doors.
There are two methods of operation:
• with the ignition key, using the driver's door lock;
• with the remote control, which has two buttons:
A. Deadlocking/locking of the doors and tailgate.
B. Unlocking.
Using the key
To deadlock , turn the key towards the rear of the vehicle.
To lock , within 5 seconds of deadlocking, turn the key once more towa rds the
rear of the vehicle.
To unlock , turn the key towards the front of the vehicle.
Using the remote control
To deadlock
Press once on button A to deadlock
the vehicle.
This is indicated by ixed lighting of
the direction indicators for approxi-
mately two seconds.
A second press on button A within
ive seconds of deadlocking changes
this to normal locking.
This is indicated by ixed lighting of
the direction indicates for approxi-
mately two seconds.
To unlock
Press once on button B to unlock the
vehicle.
This is indicated by rapid lashing of
the direction indicators.

166 -
31-01-2005
167
-
31-01-2005
Special features
Important
After deadlocking the vehicle, the
doors can be unlocked only from
the outside of the vehicle: if any-
one is inside the vehicle, unlocking
is impossible from inside.
If the battery has been discon-
nected:
• The deadlocking remains active.
• It is possible to open one of
the front doors with the ignition
key, but the key only opens the

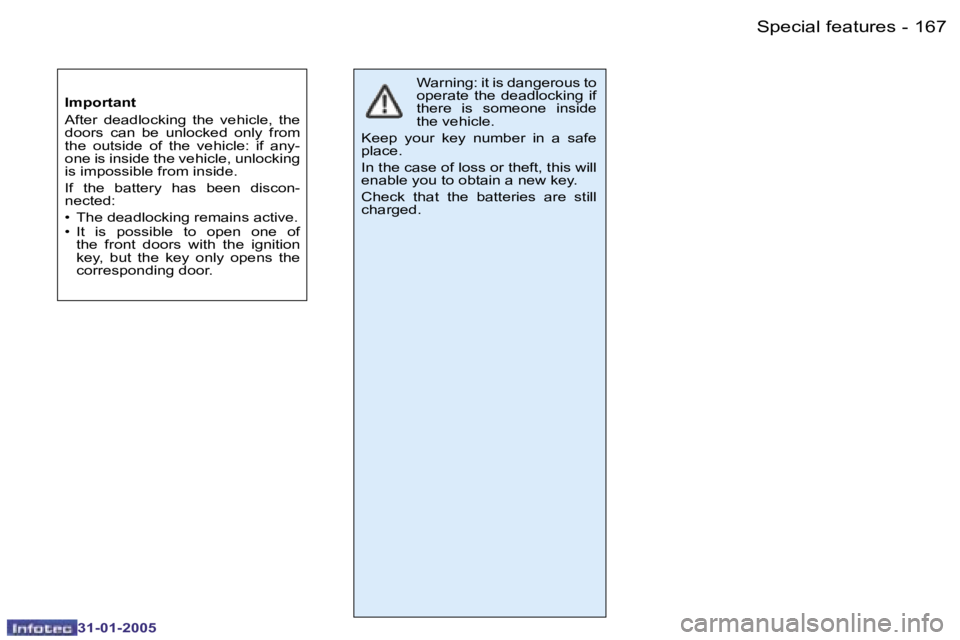

corresponding door. Warning: it is dangerous to
operate the deadlocking if
there is someone inside
the vehicle.
Keep your key number in a safe
place.
In the case of loss or theft, this will
enable you to obtain a new key.
Check that the batteries are still
charged.

96 -
31-01-2005
97
-
31-01-2005
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code.
When the ignition is switched on, the
code must be recognised for starting
to be possible.
CONFIDENTIAL CARD
This is given to you on delivery of
your vehicle with the duplicate keys.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or
journey, however, it is advisable to
take it with you. The conidential
card contains the identiication code
necessary for any work carried out
by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code
is hidden by a ilm, which should be
removed only if necessary. Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more dificult in an emergency.
As a safety precaution (with chil-
dren on board), remove the key
from the ignition when you leave
the vehicle, even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.
If the system does not function cor-
rectly, the central locking button indi-
cator light, situated in the centre of
the fascia, lashes rapidly when the
ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.
Accesses

168 -
31-01-2005
169
-
31-01-2005
Special features
THE ALARM*
Setting and deactivating the
alarm system
Switching off the siren.
The alarm completes the security
equipment for your vehicle. It offers
two types of protection.
• external protection: when it is set,
the alarm sounds if one of the
doors, the boot or the bonnet is
opened;
• internal protection: when it is set, the
alarm sounds if the sensors detect
air movement in the passenger
compartment (a broken window),
or movement within the car.
The alarm also has an anti-tamper
function.
If there is an attempt to tamper with
the wires to the siren, control unit or
the battery, the siren sounds and the
direction indicators light. Setting the alarm
(external and internal protection)
Switch the ignition off and get out
of the vehicle.
Deadlock the vehicle.
The doors lock.
The direction indicators light for two
seconds.
The red light on the switch lashes
once a second.
5 seconds later, internal protection
is set.
45 seconds later, external protection
is set.
Note:
when the alarm is triggered,
the siren sounds for thirty seconds.
After the thirty seconds it stops, but
the alarm remains set.
Warning
When the alarm is triggered, if a
door, the tailgate or bonnet is not
closed correctly, the siren sounds
for a moment. If the vehicle is closed
correctly in the following 45 seconds,
the alarm is activated and the di-
rection indicators remain on for two
seconds. In all cases, the alarm is
activated after 45 seconds. Disarming the alarm
(internal and external protection)
Press the unlocking button of the re-
mote control key.
The doors unlock.
The direction indicators lash for two
seconds.
The red light on the switch goes out.
Note:
if the warning light continues to
lash after de-activation of the alarm,
it is a sign that the alarm has been
triggered. The lashing will stop when
the ignition is switched on.
* According to country.

168 -
31-01-2005
169
-
31-01-2005
Special features
Emergency cut-off
(If the remote control is not
working)
Unlock the doors with the key.
Open the door.
The alarm is triggered.
• Turn on the ignition.
• The locking system recognises the key.
• The siren stops and the alarm is disarmed. Selection of the type of protection
Locking without activating the
alarm
Special precautions
To set the alarm to external
protection only.
If you want to leave a window partial-
ly open, or a pet inside the vehicle,
you need to select external protec-
tion only:
• Switch off the ignition.
• Within the next ten seconds, press
the internal protection button 1
until the warning light comes on
continuously.
• Get out of the vehicle.
• Deadlock the vehicle.
• The doors lock.
• The direction indicators light for two seconds.
• The red light on the switch lashes once a second.
To de-activate external protection
only
Press the unlocking button on the
remote control.
The doors unlock.
The direction indicators lash for two
seconds.
The red light on the switch goes out. To lock the vehicle without setting
the alarm
It is the remote control which sets
the alarm.
Therefore, to lock the vehicle
without setting the alarm: use the
key.
To recharge or replace the
battery:
• Turn on the ignition.
• You have 10 seconds after turning
on the ignition to press the internal
protection switch 1 and hold it down
for two seconds.
• The warning light lashes rapidly for three seconds.
• You can now disconnect the battery.
After reconnecting the battery:
• Deadlock, then unlock the vehicle using the remote control.
The alarm will be set after the next
deadlocking operation.
In no circumstances must
you carry out modiica-
tions to the alarm.
