2003 YAMAHA YZF-R1 engine

OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU02937
Recommended shift points
(for Switzerland only) The recommended shift points during
acceleration are shown in the table be-
low.CF-02ENOTE:_ When shifting down two gears at a
time, reduce the speed accordingly
(e.g., down to 35 km/h when shifting
from 5th to 3rd gear). _
EAU04754
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU01128
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1,600 km. For this rea-
son, you should read the following ma-
terial carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full-throttle oper-
ation or any condition that might result
in engine overheating must be avoided.
Shift point
(km/h)
1st→2nd
2nd→3rd
3rd→4th
4th→5th
5th→6th20
30
40
50
60
U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU03172*
0–1,000 km
Avoid prolonged operation above
6,000 r/min.
1,000–1,600 km
Avoid prolonged operation above
7,000 r/min.
EC000052*
CAUTION:_ After 1,000 km of operation, the en-
gine oil must be changed and the oil
filter cartridge replaced. _1,600 km and beyond
The vehicle can now be operated nor-
mally.
EC000053
CAUTION:_

Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
_
NOTE:_ During and after the engine break-in
period, the exhaust heat may cause
discoloration of the exhaust pipe, but
this is normal. _
EAU00461
Parking When parking, stop the engine, and
then remove the key from the main
switch.
EW000058
WARNING
_

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on
soft ground, otherwise the
motorcycle may overturn.
_
EC000062
CAUTION:_ Never park in an area where there
are fire hazards such as grass or
other flammable materials. _
U5PWE1.book Page 4 Monday, July 8, 2002 10:28 AM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing cowlings and panels ..... 6-5
Checking the spark plugs .................................... 6-8
Engine oil and oil filter cartridge .......................... 6-9
Coolant .............................................................. 6-13
Replacing the air filter element .......................... 6-17
Adjusting the engine idling speed ...................... 6-19
Adjusting the throttle cable free play .................. 6-20
Adjusting the valve clearance ............................ 6-20
Tires ................................................................... 6-21
Cast wheels ....................................................... 6-24
Adjusting the clutch lever free play .................... 6-24
Adjusting the brake pedal position ..................... 6-25
Adjusting the rear brake light switch .................. 6-26
Checking the front and rear brake pads ............. 6-26
Checking the brake fluid level ............................ 6-27
Changing the brake fluid .................................... 6-28
Drive chain slack ................................................ 6-29
Lubricating the drive chain ................................. 6-30
Checking and lubricating the cables .................. 6-31Checking and lubricating the throttle grip and
cable ............................................................... 6-31
Checking and lubricating the brake and
clutch levers .................................................... 6-31
Lubricating the brake pedal ............................... 6-32
Checking and lubricating the sidestand ............ 6-32
Checking the front fork ...................................... 6-33
Checking the steering ....................................... 6-33
Checking the wheel bearings ............................ 6-34
Battery ............................................................... 6-34
Replacing the fuses .......................................... 6-36
Replacing a headlight bulb ................................ 6-37
Tail/brake light ................................................... 6-38
Replacing a turn signal light bulb ...................... 6-39
Replacing the license plate light bulb ................ 6-39
Supporting the motorcycle ................................ 6-40
Front wheel ....................................................... 6-41
Rear wheel ........................................................ 6-43
Troubleshooting ................................................. 6-45
Troubleshooting charts ...................................... 6-46
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10
*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
13 Drive chainCheck chain slack.
Make sure that the rear wheel is properly aligned.
Clean and lubricate.Every 1,000 km and after washing
the motorcycle or riding in the rain
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20,000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.√√√√ √
16 SidestandCheck operation.
Lubricate.√√√√ √
17*Sidestand switchCheck operation.√√√√√ √
18*Front forkCheck operation and for oil leakage.√√√√
19*Shock absorber
assemblyCheck operation and shock absorber for oil leakage.√√√√
20*Rear suspension relay
arm and connecting arm
pivoting pointsCheck operation.√√√√
21*Electronic fuel injectionAdjust engine idling speed and synchronization.√√√√√ √
22 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
23 Engine oil filter cartridgeReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
EAU01880
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal col-
or when the motorcycle is ridden nor-
mally), and all spark plugs installed in
the engine should have the same color.
If any spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the motorcycle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Specified spark plug:
CR9E
IA 9 (NGK) or
IU27D (DENSO)
a. Spark plug gapSpark plug gap:
0.8–0.9 mm
U5PWE1.book Page 8 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:_ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. _
EAU04913
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _
2. Start the engine, warm it up for
several minutes, and then turn it off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.NOTE:_ The engine oil should be between the
minimum and maximum level marks. _4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level. Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf)1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
U5PWE1.book Page 9 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10

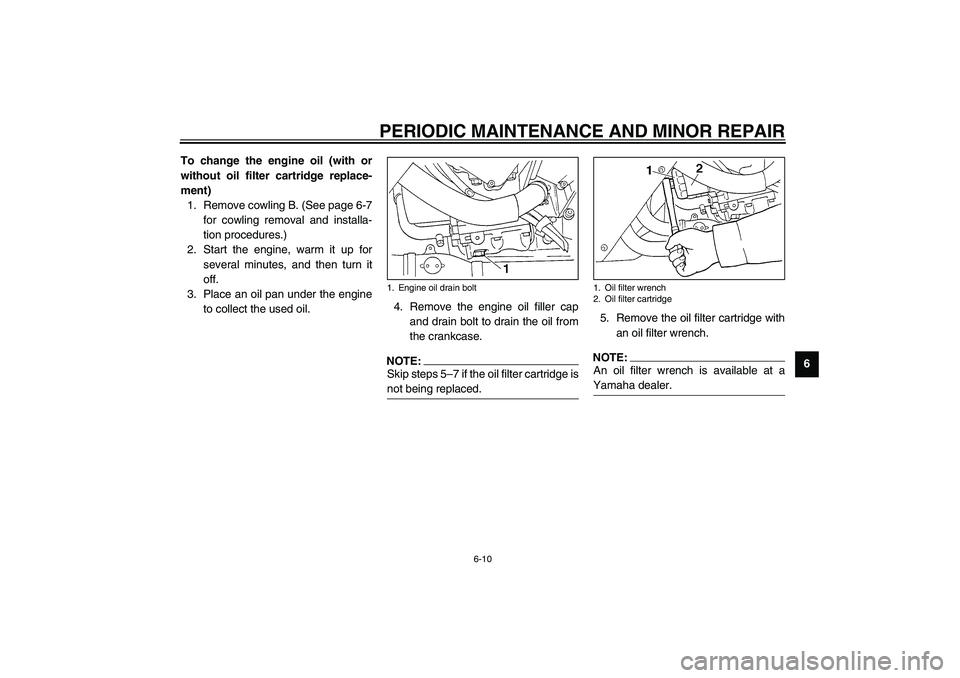

6 To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Remove cowling B. (See page 6-7
for cowling removal and installa-
tion procedures.)
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:_ Skip steps 5–7 if the oil filter cartridge is
not being replaced. _
5. Remove the oil filter cartridge with
an oil filter wrench.NOTE:_ An oil filter wrench is available at a
Yamaha dealer. _
1. Engine oil drain bolt
1. Oil filter wrench
2. Oil filter cartridge
U5PWE1.book Page 10 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
66. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
NOTE:_ Make sure that the O-ring is properly
seated. _
7. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.
8. Install the engine oil drain bolt, and
then tighten it to the specified
torque.NOTE:_ Check the washer for damage and re-
place it if necessary. _
9. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
1. O-ring
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge
replacement:
2.9 L
With oil filter cartridge
replacement:
3.1 L
Total amount (dry engine):
3.8 L
U5PWE1.book Page 11 Monday, July 8, 2002 10:28 AM
