2003 YAMAHA SUV 1200 Owners Manual

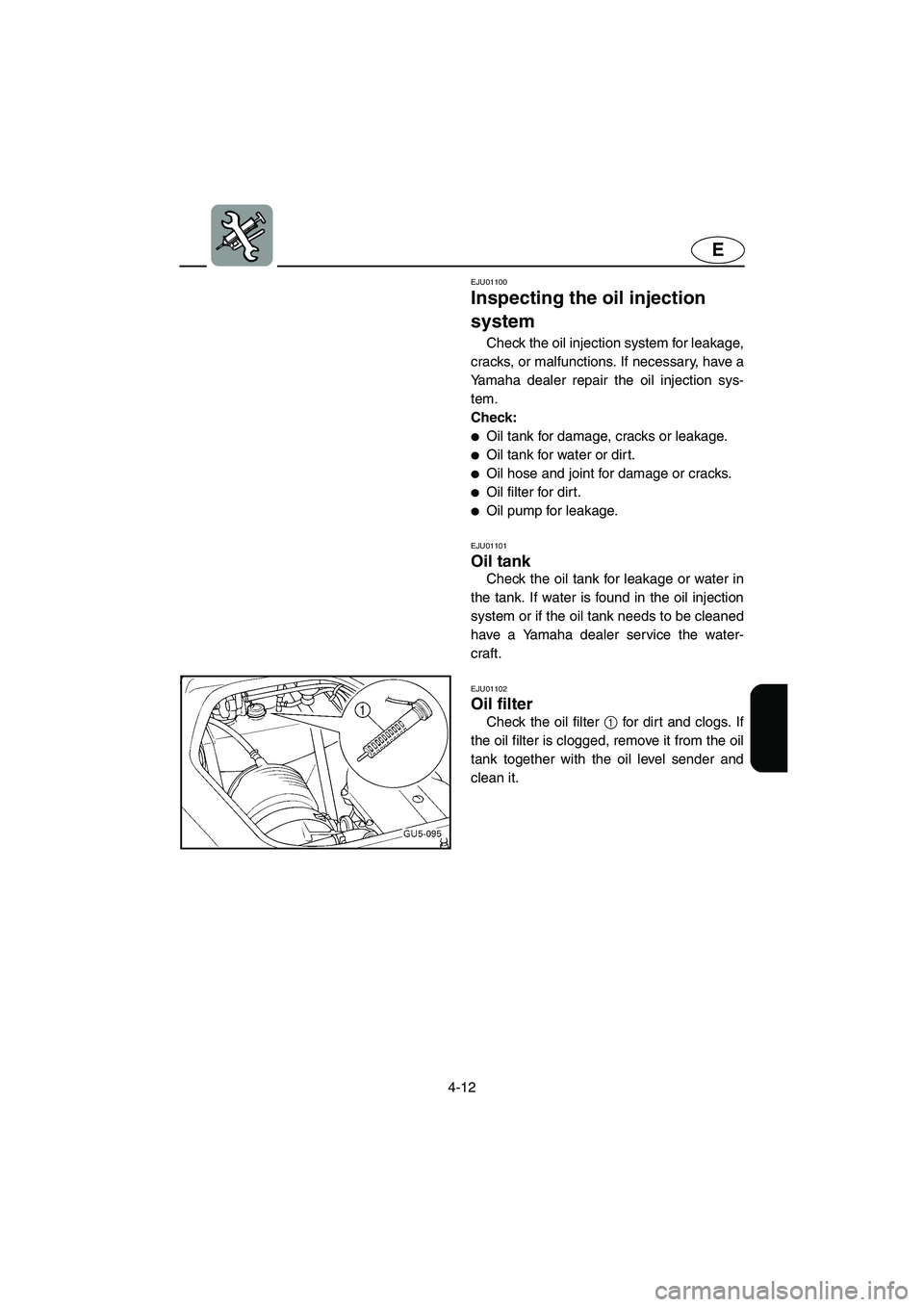

4-12
E
EJU01100
Inspecting the oil injection
system
Check the oil injection system for leakage,
cracks, or malfunctions. If necessary, have a
Yamaha dealer repair the oil injection sys-
tem.
Check:

Oil tank for damage, cracks or leakage.

Oil tank for water or dirt.

Oil hose and joint for damage or cracks.

Oil filter for dirt.

Oil pump for leakage.
EJU01101
Oil tank
Check the oil tank for leakage or water in
the tank. If water is found in the oil injection
system or if the oil tank needs to be cleaned
have a Yamaha dealer service the water-
craft.
EJU01102
Oil filter
Check the oil filter 1 for dirt and clogs. If
the oil filter is clogged, remove it from the oil
tank together with the oil level sender and
clean it.
UGU572.book Page 12 Wednesday, August 28, 2002 1:31 PM

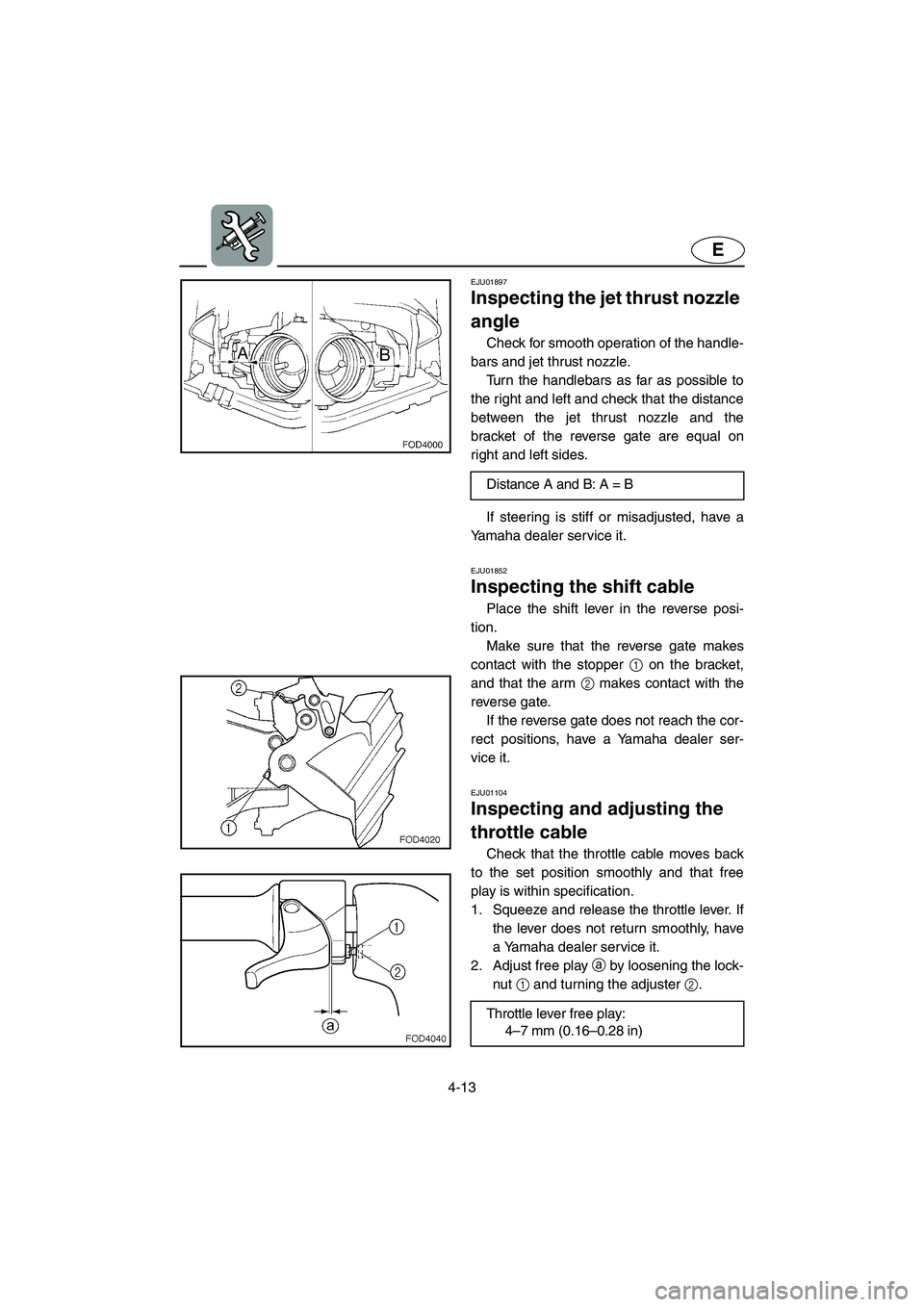

4-13
E
EJU01897
Inspecting the jet thrust nozzle
angle
Check for smooth operation of the handle-
bars and jet thrust nozzle.
Turn the handlebars as far as possible to
the right and left and check that the distance
between the jet thrust nozzle and the
bracket of the reverse gate are equal on
right and left sides.
If steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU01852
Inspecting the shift cable
Place the shift lever in the reverse posi-
tion.
Make sure that the reverse gate makes
contact with the stopper 1 on the bracket,
and that the arm 2 makes contact with the
reverse gate.
If the reverse gate does not reach the cor-
rect positions, have a Yamaha dealer ser-
vice it.
EJU01104
Inspecting and adjusting the
throttle cable
Check that the throttle cable moves back
to the set position smoothly and that free
play is within specification.
1. Squeeze and release the throttle lever. If
the lever does not return smoothly, have
a Yamaha dealer service it.
2. Adjust free play a by loosening the lock-
nut 1 and turning the adjuster 2. Distance A and B: A = B
Throttle lever free play:
4–7 mm (0.16–0.28 in)
UGU572.book Page 13 Wednesday, August 28, 2002 1:31 PM

4-14
E
EJU01842
Inspecting the QSTS
mechanism
Check that the shift lock lever moves back
to the lock position smoothly, that the QSTS
selector locks and unlocks properly, and that
the jet thrust nozzle moves up or down.
1. Squeeze and release the shift lock lever.
2. Check that the QSTS selector locks
when the lever is released.
3. Check that the selector turns smoothly
when the lever is squeezed and held in
place.
4. Check that the angle of the jet thrust
nozzle changes when the selector is
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
UGU572.book Page 14 Wednesday, August 28, 2002 1:31 PM

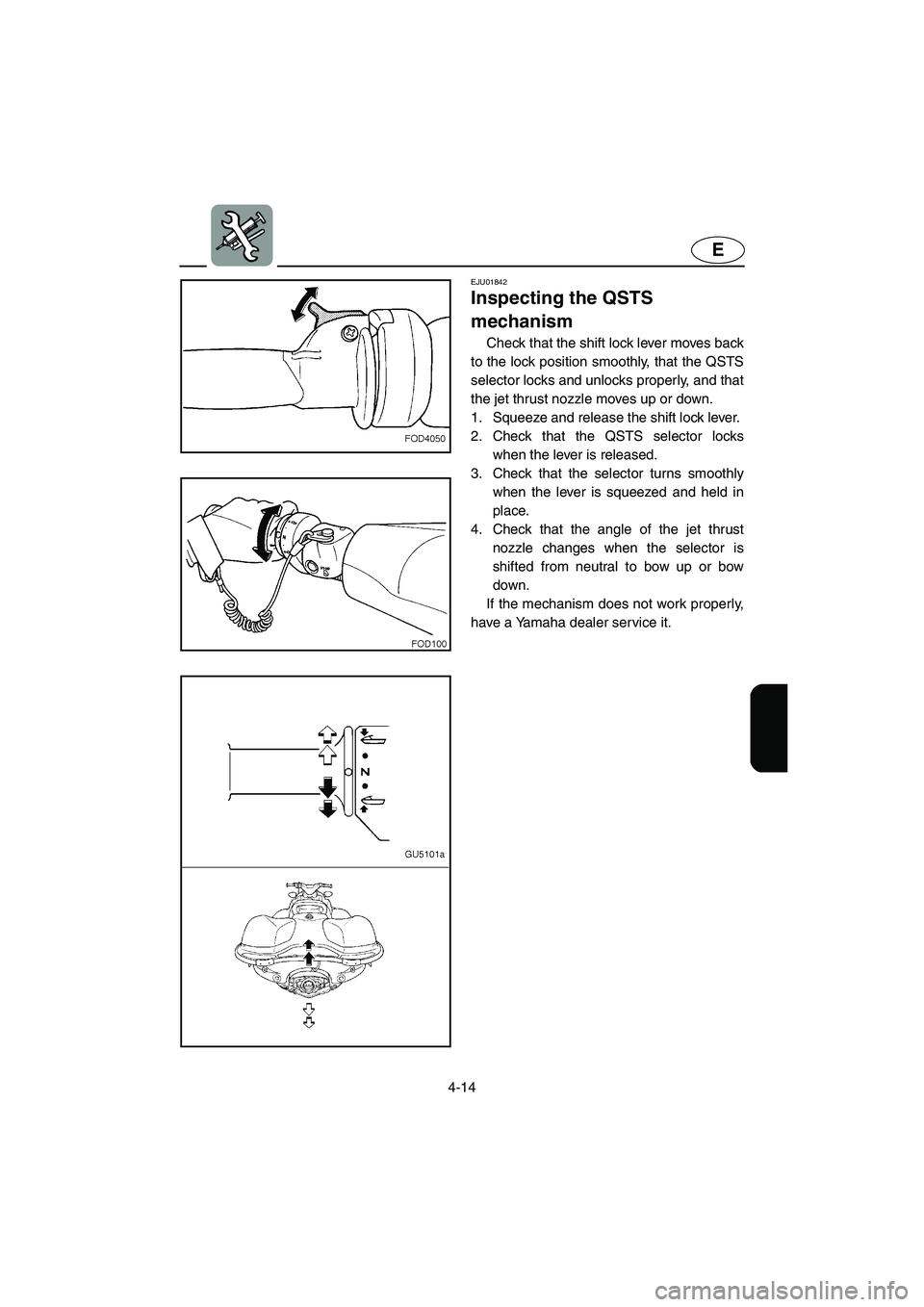

4-15
E
EJU01342
Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if the center electrode porcelain is
very white, this could indicate an intake air
leak or carburetion problem in that cylinder.
Do not attempt to diagnose any problems
yourself. Have a Yamaha dealer service the
watercraft.
Remove and inspect the spark plug peri-
odically; heat and deposits will cause the
spark plug to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Measure the spark plug gap a with a
wire thickness gauge before installing the
spark plug. Adjust the gap to specification if
necessary.
To reinstall spark plug:
1. Clean the gasket surface.
2. Wipe any dirt from the threads of the
spark plug.
3. Screw the spark plug to the correct
torque. Standard spark plug: BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Spark plug torque:
25 N·m (2.5 kgf·m, 18 ft·lb)
UGU572.book Page 15 Wednesday, August 28, 2002 1:31 PM

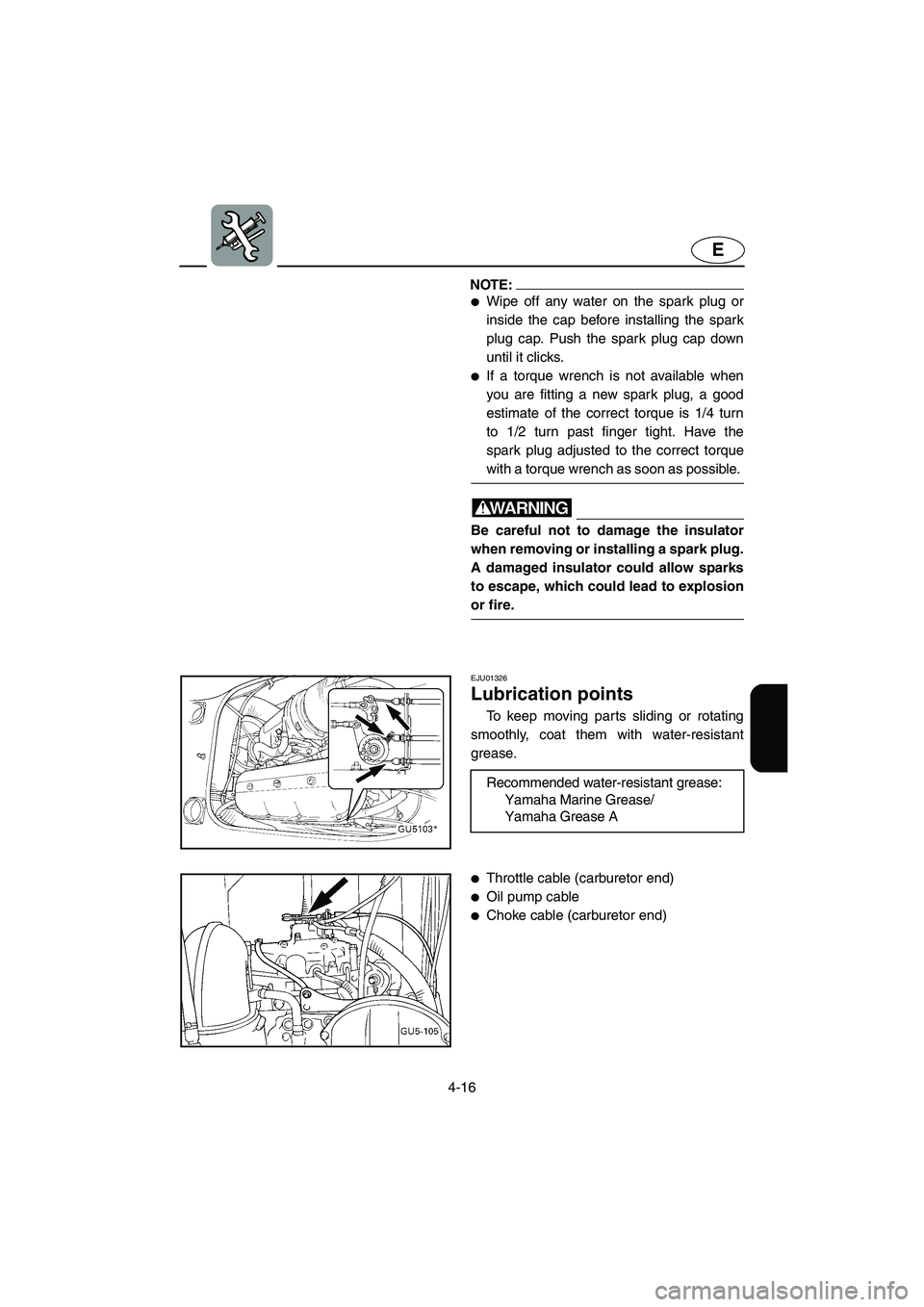

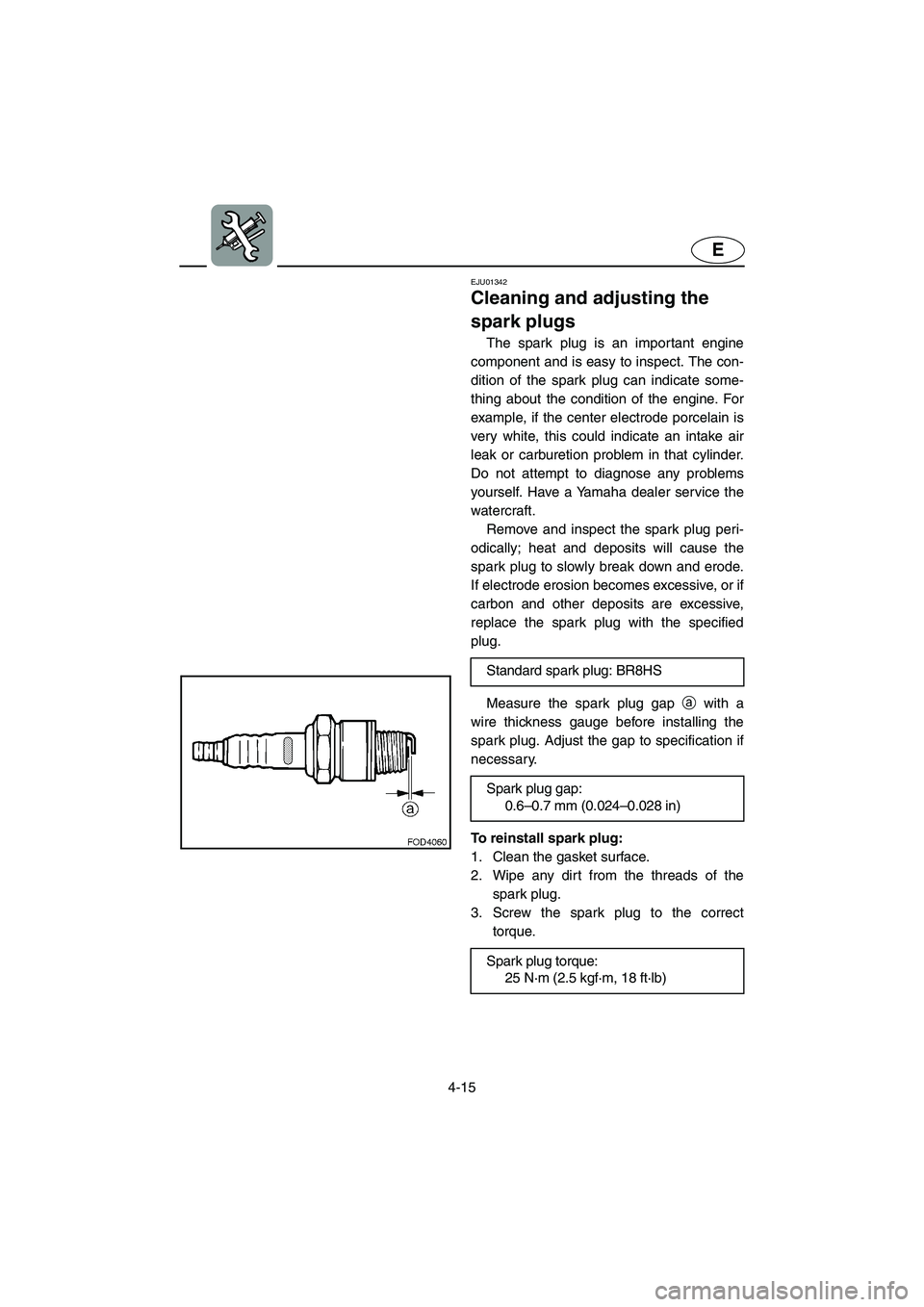

4-16
E
NOTE:@
Wipe off any water on the spark plug or
inside the cap before installing the spark
plug cap. Push the spark plug cap down
until it clicks.

If a torque wrench is not available when
you are fitting a new spark plug, a good
estimate of the correct torque is 1/4 turn
to 1/2 turn past finger tight. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
@
WARNING@ Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks
to escape, which could lead to explosion
or fire.
@
EJU01326
Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (carburetor end)

Oil pump cable

Choke cable (carburetor end)
UGU572.book Page 16 Wednesday, August 28, 2002 1:31 PM

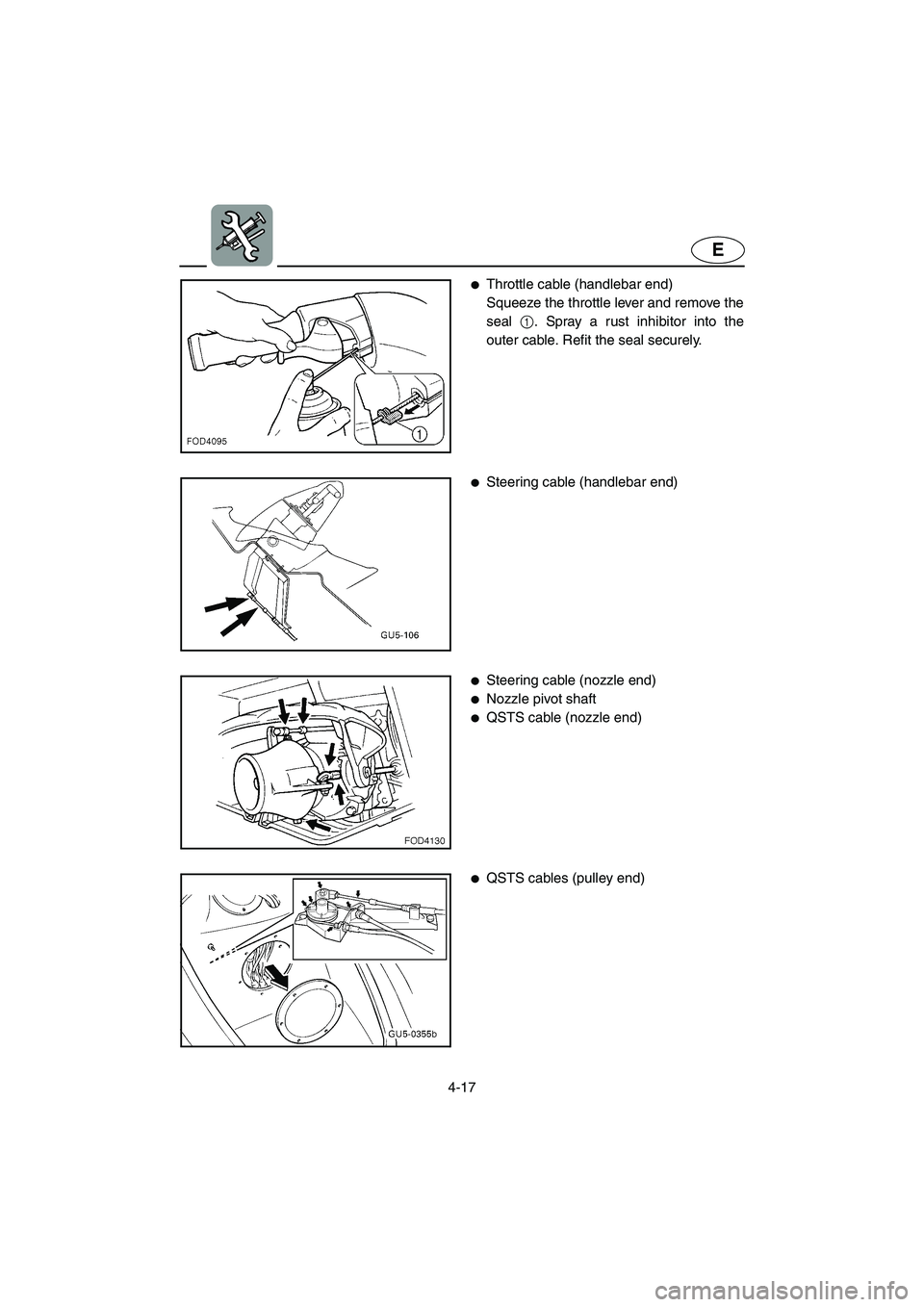

4-17
E

Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal 1. Spray a rust inhibitor into the
outer cable. Refit the seal securely.

Steering cable (handlebar end)

Steering cable (nozzle end)

Nozzle pivot shaft

QSTS cable (nozzle end)

QSTS cables (pulley end)
UGU572.book Page 17 Wednesday, August 28, 2002 1:31 PM

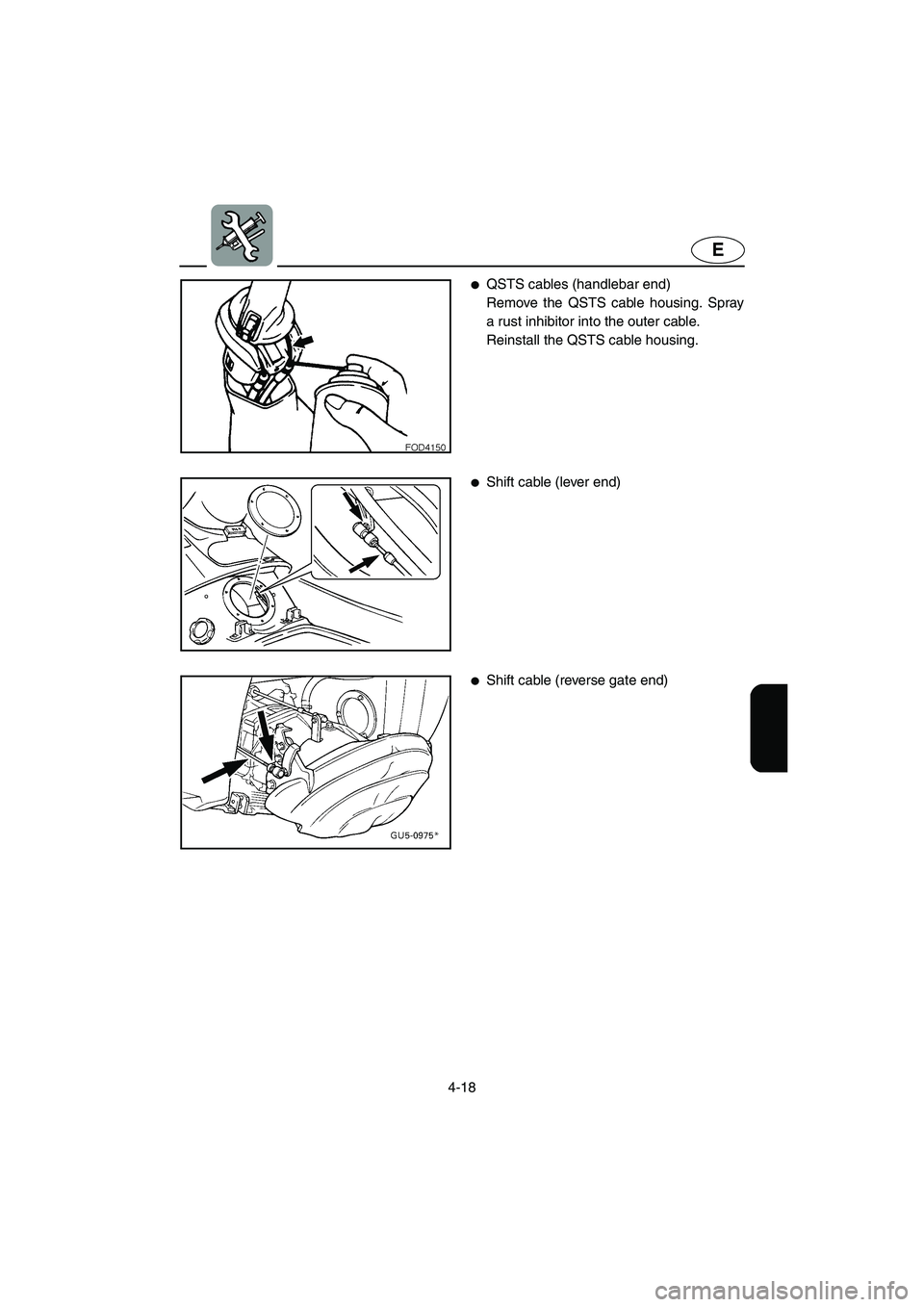

4-18
E

QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray
a rust inhibitor into the outer cable.
Reinstall the QSTS cable housing.

Shift cable (lever end)

Shift cable (reverse gate end)
UGU572.book Page 18 Wednesday, August 28, 2002 1:31 PM

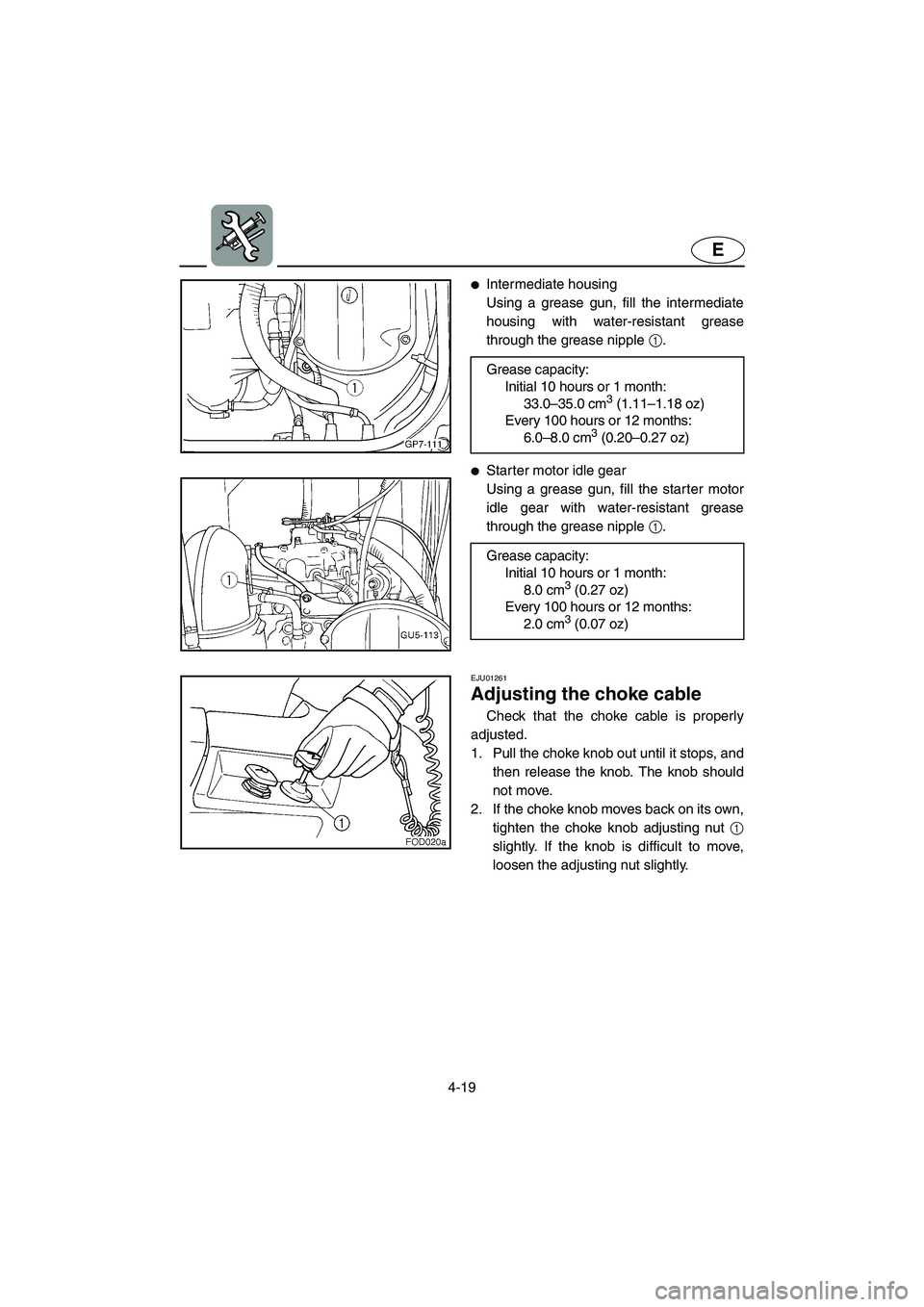

4-19
E

Intermediate housing
Using a grease gun, fill the intermediate
housing with water-resistant grease
through the grease nipple 1.

Starter motor idle gear
Using a grease gun, fill the starter motor
idle gear with water-resistant grease
through the grease nipple 1. Grease capacity:
Initial 10 hours or 1 month:
33.0–35.0 cm
3 (1.11–1.18 oz)
Every 100 hours or 12 months:
6.0–8.0 cm
3 (0.20–0.27 oz)
Grease capacity:
Initial 10 hours or 1 month:
8.0 cm
3 (0.27 oz)
Every 100 hours or 12 months:
2.0 cm
3 (0.07 oz)
EJU01261
Adjusting the choke cable
Check that the choke cable is properly
adjusted.
1. Pull the choke knob out until it stops, and
then release the knob. The knob should
not move.
2. If the choke knob moves back on its own,
tighten the choke knob adjusting nut 1
slightly. If the knob is difficult to move,
loosen the adjusting nut slightly.
