2003 YAMAHA KODIAK 400 warning

5-4
WARNING
Always inspect your ATV each time you use it to make sure the ATV is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Own-
er’s Manual. Failure to inspect increases the possibility of an accident or equipment damage.
AVERTISSEMENT
_ Toujours effectuer ces contrôles avant chaque départ afin de s’assurer que le VTT peut être utilisé en toute sécu-
rité. Toujours respecter les procédés et intervalles de contrôle et d’entretien repris dans ce manuel. Omettre ces
contrôles accroît les risques d’accident ou d’endommagement du véhicule. _
ADVERTENCIA
_ Inspeccionar siempre el ATV cada vez que vaya a utilizarse, para asegurarse de que está en condicio-
nes de funcionar sin peligro. Seguir siempre los procedimientos y programas de inspección y mante-
nimiento descritos en el Manual del Propietario. Si no se inspecciona la máquina, aumenta el riesgo de
accidente o avería. _U5TE60.book Page 4 Monday, June 10, 2002 8:47 AM

5-7
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, the brake system should be inspected by a
Yamaha dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, in-
spect the brake pads for wear. (See page 8-87.)
WARNING
_ Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual,
have a Yamaha dealer check for the cause. _
U5TE60.book Page 7 Monday, June 10, 2002 8:47 AM

5-11
CAUTION:_ Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system. _
WARNING
_

Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is over-
filled, fuel could spill out due to heat from
the engine or the sun.


Be careful not to spill fuel, especially on
the engine or exhaust pipe which can
cause a fire and severe injury. Wipe up any
spilled fuel immediately.


Do not refuel right after the engine has
been running and is still very hot.


Be sure the fuel tank cap is closed secure-
ly.
_
U5TE60.book Page 11 Monday, June 10, 2002 8:47 AM

5-21
CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use distilled water if you cannot
get soft water. _
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.Coolant reservoir capacity:
0.25 L
U5TE60.book Page 21 Monday, June 10, 2002 8:47 AM

5-25
EBU00158
Tires
Always use the recommended tires.
WARNING
Use of improper tires on this ATV, or operation
of this ATV with improper or uneven tire pres-
sure, may cause loss of control, increasing
your risk of accident.
Pay attention to the following.
1. The tires listed below have been approved
by Yamaha Motor Co., Ltd. for this model.
Other tire combinations are not recom-
mended.(For Europe)
(For Oceania)2. The tires should be set to the recommend-
ed pressure:
Manufacturer Size Type
Front MAXXIS AT25
× 8 - 12 M911Y
Rear MAXXIS AT25
× 10 - 12 M912Y
Manufacturer Size Type
Front CHENG-SHIN AT25
× 8 - 12 C828
Rear CHENG-SHIN AT25
× 10 - 12 C828
U5TE60.book Page 25 Monday, June 10, 2002 8:47 AM

6-1
EBU00162
OPERATION
Read the Owner’s Manual carefully before riding
the ATV.
WARNING
Read the Owner’s Manual carefully to become
familiar with all controls. Loss of control could
cause an accident or injury. If there is a control
or function you do not understand, ask your
Yamaha dealer.
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM

6-3
EBU01265
Starting a cold engine
WARNING
_ Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision. _1. Apply the rear brake lever.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON”, and then set
the engine stop switch to “”.
4. Shift the drive select lever into the neutral po-
sition.
U5TE60.book Page 3 Monday, June 10, 2002 8:47 AM

6-15

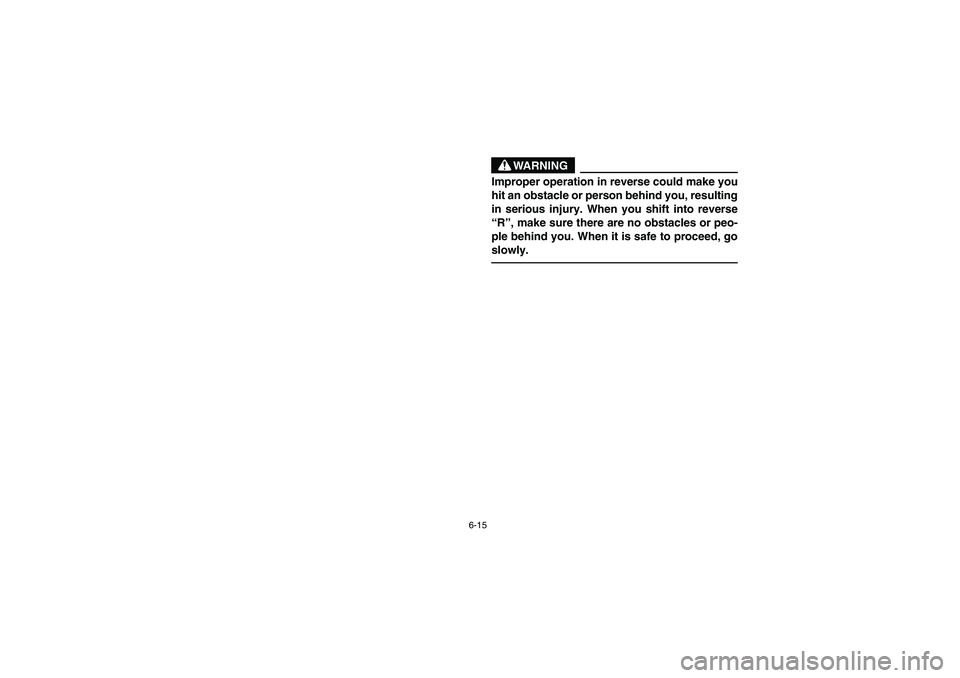

WARNING
_ Improper operation in reverse could make you
hit an obstacle or person behind you, resulting
in serious injury. When you shift into reverse
“R”, make sure there are no obstacles or peo-
ple behind you. When it is safe to proceed, go
slowly. _
U5TE60.book Page 15 Monday, June 10, 2002 8:47 AM
