Page 16 of 426
EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Speedometer ........................................ 4-7
Fuel gauge ........................................... 4-9
Handlebar switches ............................ 4-11
Throttle lever ...................................... 4-17
Speed limiter ...................................... 4-19
Front brake lever ................................ 4-21
Rear brake pedal and lever ................ 4-23
Parking brake ..................................... 4-25
Drive select lever ................................ 4-27
1234
Recoil starter ...................................... 4-29
Fuel tank cap ..................................... 4-29
Fuel cock............................................ 4-31
Starter (choke) ................................... 4-33
Seat.................................................... 4-35
Storage box........................................ 4-37
Front carrier ....................................... 4-39
Rear carrier ........................................ 4-39
Front shock absorber adjustment ...... 4-41
Rear shock absorber adjustment ....... 4-45
Auxiliary DC jack ................................ 4-47
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-23
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
5
U5TE60.book Page 1 Monday, June 10, 2002 8:47 AM
Page 50 of 426
2-15
WARNING
_
Always turn off the engine when refueling.
Do not refuel right after the engine has
been running and is still very hot.
Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or while in the vicini-
ty of sparks, open flames, or other sources
of ignition such as the pilot lights of water
heaters and clothes dryers. Gasoline can
catch fire and you could be burned.
When transporting the machine in another
vehicle, be sure it is kept upright and that
the fuel cock is in the “OFF” position. Oth-
erwise, fuel may leak out of the carburetor
or fuel tank.
Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gaso-
line vapor, or get some gasoline in your
eyes, see your doctor immediately. If gaso-
line spills on your skin, wash with soap
and water. If gasoline spills on your cloth-
ing, change your clothes.
_
U5TE60.book Page 15 Monday, June 10, 2002 8:47 AM
Page 66 of 426
4-3 1. Coolant temperature warning light “”
2. Reverse indicator light “R”
3. Four-wheel drive indicator light “”
4. Neutral indicator light “N”
1. Témoin d’avertissement de la température du liquide de
refroidissement “”
2. Témoin de marche arrière “R”
3. Témoin 4x4 “”
4. Témoin de point mort “N”
1. Luz de aviso de la temperatura del refrigerante “”
2. Luz de control de marcha atrás “R”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de control de punto muerto “N”
EBU00043
Indicator lights
EBU01223
Coolant temperature warning light “”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
To check the coolant temperature warning light,
shift the drive select lever into neutral, turn the key
to “ON”, and then press the start switch. If the light
does not come on, have a Yamaha dealer inspect
the electrical circuit.CAUTION:_
The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.
Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
U5TE60.book Page 3 Monday, June 10, 2002 8:47 AM
Page 68 of 426

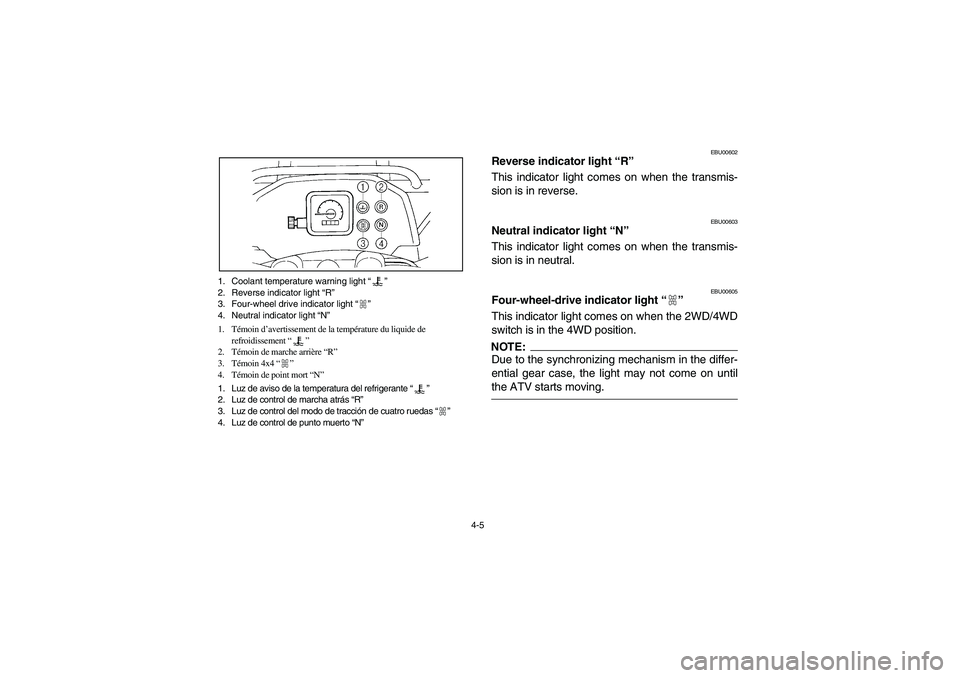

4-5 1. Coolant temperature warning light “”
2. Reverse indicator light “R”
3. Four-wheel drive indicator light “”
4. Neutral indicator light “N”
1. Témoin d’avertissement de la température du liquide de
refroidissement “”
2. Témoin de marche arrière “R”
3. Témoin 4x4 “”
4. Témoin de point mort “N”
1. Luz de aviso de la temperatura del refrigerante “”
2. Luz de control de marcha atrás “R”
3. Luz de control del modo de tracción de cuatro ruedas “”
4. Luz de control de punto muerto “N”
EBU00602
Reverse indicator light “R”
This indicator light comes on when the transmis-
sion is in reverse.
EBU00603
Neutral indicator light “N”
This indicator light comes on when the transmis-
sion is in neutral.
EBU00605
Four-wheel-drive indicator light “”
This indicator light comes on when the 2WD/4WD
switch is in the 4WD position.NOTE:_ Due to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving. _
U5TE60.book Page 5 Monday, June 10, 2002 8:47 AM
Page 92 of 426
4-29 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU01264
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
_ Shift the drive select lever into the neutral po-
sition and apply the parking brake before start-
ing the engine or the ATV could start to move
unexpectedly, which could cause an accident. _
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
U5TE60.book Page 29 Monday, June 10, 2002 8:47 AM
Page 378 of 426

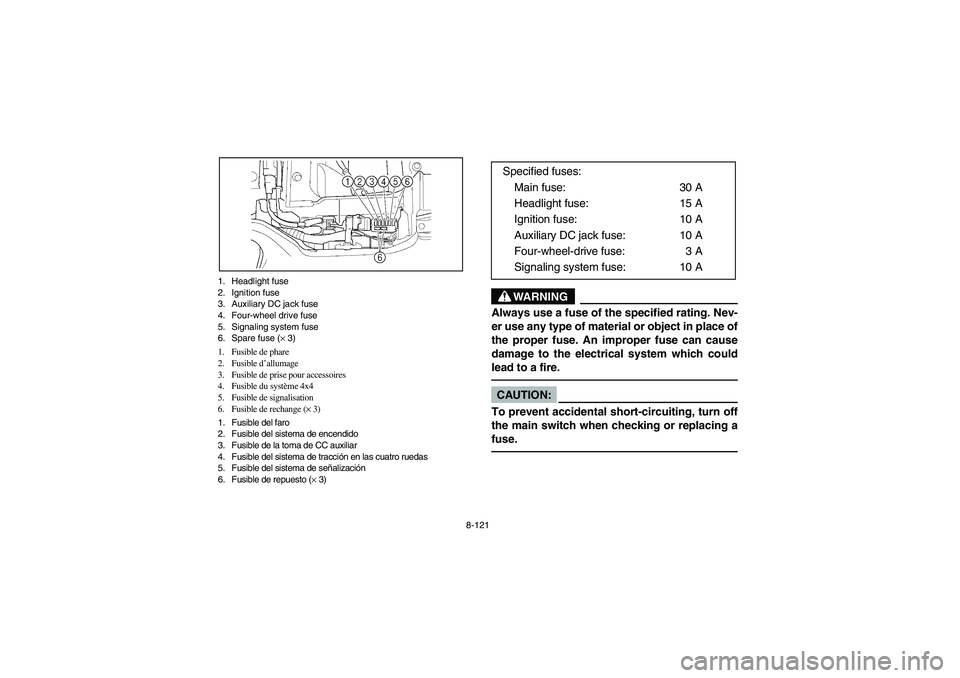

8-121 1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse
4. Four-wheel drive fuse
5. Signaling system fuse
6. Spare fuse (× 3)
1. Fusible de phare
2. Fusible d’allumage
3. Fusible de prise pour accessoires
4. Fusible du système 4x4
5. Fusible de signalisation
6. Fusible de rechange (× 3)
1. Fusible del faro
2. Fusible del sistema de encendido
3. Fusible de la toma de CC auxiliar
4. Fusible del sistema de tracción en las cuatro ruedas
5. Fusible del sistema de señalización
6. Fusible de repuesto (× 3)
WARNING
Always use a fuse of the specified rating. Nev-
er use any type of material or object in place of
the proper fuse. An improper fuse can cause
damage to the electrical system which could
lead to a fire.CAUTION:
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.Specified fuses:
Main fuse: 30 A
Headlight fuse: 15 A
Ignition fuse: 10 A
Auxiliary DC jack fuse: 10 A
Four-wheel-drive fuse: 3 A
Signaling system fuse: 10 A
U5TE60.book Page 121 Monday, June 10, 2002 8:47 AM
Page 382 of 426
8-125
3. Remove the defective bulb by pushing it in
and turning it counterclockwise.
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _4. Insert a new headlight bulb into the bulb hold-
er, push it in, and then turn the bulb clockwise
until it stops.
5. Install the bulb holder by turning it clockwise.
6. Install the bulb holder cover at the rear of the
headlight.
U5TE60.book Page 125 Monday, June 10, 2002 8:47 AM
Page 386 of 426
8-129
EBU00413
Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior. Consequently, they have a shorter service
life and can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U5TE60.book Page 129 Monday, June 10, 2002 8:47 AM
