2003 YAMAHA KODIAK 400 warning

8-105
EBU00570

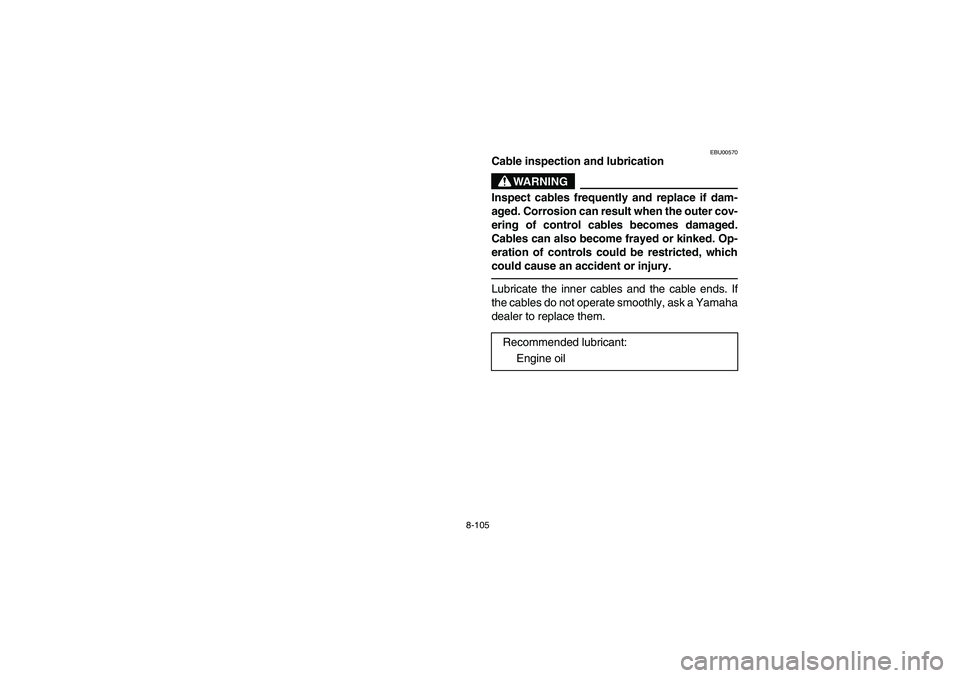

Cable inspection and lubrication
WARNING
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the outer cov-
ering of control cables becomes damaged.
Cables can also become frayed or kinked. Op-
eration of controls could be restricted, which
could cause an accident or injury.Lubricate the inner cables and the cable ends. If
the cables do not operate smoothly, ask a Yamaha
dealer to replace them.
Recommended lubricant:
Engine oil
U5TE60.book Page 105 Monday, June 10, 2002 8:47 AM

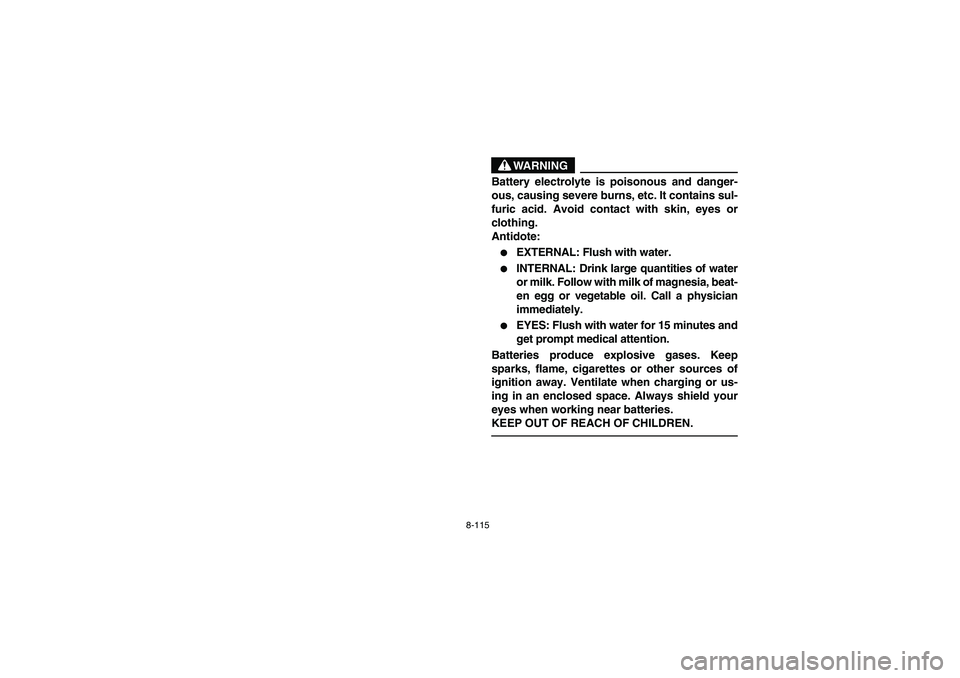

8-115
WARNING
Battery electrolyte is poisonous and danger-
ous, causing severe burns, etc. It contains sul-
furic acid. Avoid contact with skin, eyes or
clothing.
Antidote:

EXTERNAL: Flush with water.


lNTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia, beat-
en egg or vegetable oil. Call a physician
immediately.


EYES: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or us-
ing in an enclosed space. Always shield your
eyes when working near batteries.
KEEP OUT OF REACH OF CHILDREN.
U5TE60.book Page 115 Monday, June 10, 2002 8:47 AM

8-121 1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse
4. Four-wheel drive fuse
5. Signaling system fuse
6. Spare fuse (× 3)
1. Fusible de phare
2. Fusible d’allumage
3. Fusible de prise pour accessoires
4. Fusible du système 4x4
5. Fusible de signalisation
6. Fusible de rechange (× 3)
1. Fusible del faro
2. Fusible del sistema de encendido
3. Fusible de la toma de CC auxiliar
4. Fusible del sistema de tracción en las cuatro ruedas
5. Fusible del sistema de señalización
6. Fusible de repuesto (× 3)
WARNING
Always use a fuse of the specified rating. Nev-
er use any type of material or object in place of
the proper fuse. An improper fuse can cause
damage to the electrical system which could
lead to a fire.CAUTION:
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.Specified fuses:
Main fuse: 30 A
Headlight fuse: 15 A
Ignition fuse: 10 A
Auxiliary DC jack fuse: 10 A
Four-wheel-drive fuse: 3 A
Signaling system fuse: 10 A
U5TE60.book Page 121 Monday, June 10, 2002 8:47 AM

8-125
3. Remove the defective bulb by pushing it in
and turning it counterclockwise.
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _4. Insert a new headlight bulb into the bulb hold-
er, push it in, and then turn the bulb clockwise
until it stops.
5. Install the bulb holder by turning it clockwise.
6. Install the bulb holder cover at the rear of the
headlight.
U5TE60.book Page 125 Monday, June 10, 2002 8:47 AM

8-129
EBU00413
Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior. Consequently, they have a shorter service
life and can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U5TE60.book Page 129 Monday, June 10, 2002 8:47 AM

8-132
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
reservoir tank and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
U5TE60.book Page 132 Monday, June 10, 2002 8:47 AM

9-5
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish.
When finished, start the engine and let it idle
for several minutes.
WARNING
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the
linings.
U5TE60.book Page 5 Monday, June 10, 2002 8:47 AM

10-6
Bulb voltage, wattage
× quantity:
Headlight 12 V, 30/30 W
× 2
Tail/brake light 12 V, 5/21 W
× 1
Meter lighting 14 V, 3 W
× 1
Neutral indicator light 12 V, 1.7 W
× 1
Reverse indicator light 12 V, 1.7 W
× 1
Coolant temperature warning light 12 V, 1.7 W
× 1
Four-wheel drive indicator light 12 V, 1.7 W
× 1
Fuse:
Main fuse 30 A
Headlight fuse 15 A
Ignition fuse 10 A
Auxiliary DC jack fuse 10 A
Four-wheel-drive fuse 3 A
Signaling system fuse 10 AModel YFM400FA
U5TE60.book Page 6 Monday, June 10, 2002 8:47 AM
