Page 73 of 120
3-26
E

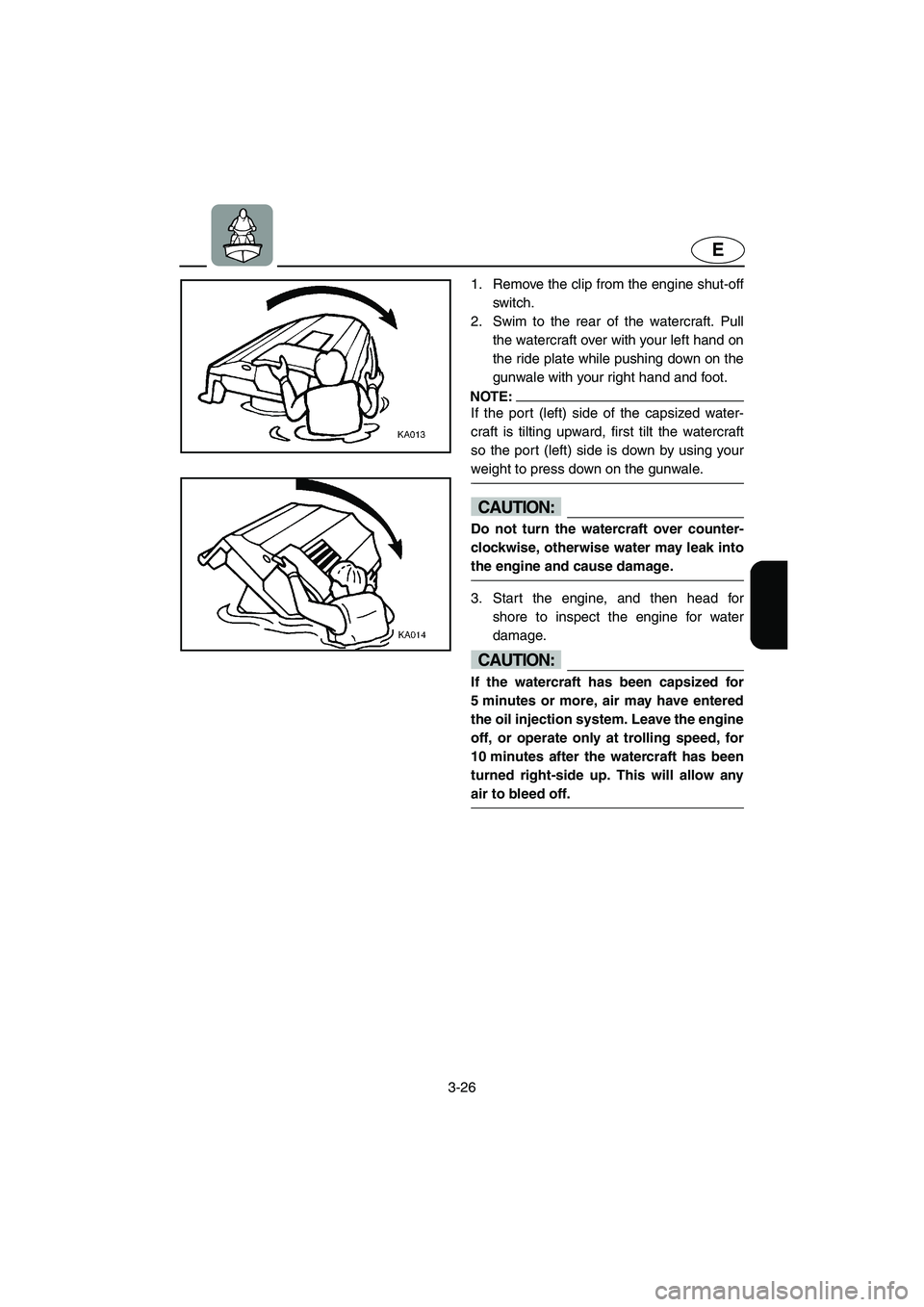

1. Remove the clip from the engine shut-off
switch.
2. Swim to the rear of the watercraft. Pull
the watercraft over with your left hand on
the ride plate while pushing down on the
gunwale with your right hand and foot.
NOTE:@ If the port (left) side of the capsized water-
craft is tilting upward, first tilt the watercraft
so the port (left) side is down by using your
weight to press down on the gunwale.
@
CAUTION:@ Do not turn the watercraft over counter-
clockwise, otherwise water may leak into
the engine and cause damage.
@
3. Start the engine, and then head for
shore to inspect the engine for water
damage.
CAUTION:@ If the watercraft has been capsized for
5 minutes or more, air may have entered
the oil injection system. Leave the engine
off, or operate only at trolling speed, for
10 minutes after the watercraft has been
turned right-side up. This will allow any
air to bleed off.
@
UF1G70.book Page 26 Wednesday, December 18, 2002 3:35 PM
Page 74 of 120
3-27
E
EJU19960
Turning the watercraft
Steering control depends on the combi-
nation of handlebar position and the amount
of throttle.
Water sucked in through the intake grate
is pressurized by the impeller in the jet
pump. As the pressurized water is expelled
from the pump through the jet thrust nozzle,
it creates thrust to move and steer the
watercraft. The higher the engine speed, the
more thrust produced.
The amount of jet thrust, in addition to the
position of the handlebars, determines how
sharply you turn.
A. More throttle produces higher thrust, so
the watercraft will turn more sharply.
B. Less throttle produces lower thrust, so
the watercraft will turn more gradually.
C. Releasing the throttle lever completely
produces only minimum thrust. If you are
traveling at speeds above trolling, you
will have rapidly decreasing ability to
steer without throttle. You may still have
some turning ability immediately after
releasing the throttle lever, but once the
engine slows down, the watercraft will no
longer respond to handlebar input until
you apply throttle again or you reach
trolling speed.
At trolling speed, the watercraft can be
turned gradually by handlebar position
alone using just the amount of thrust
available at idle.
D. If the engine is stopped while riding,
there is no thrust. The watercraft will go
straight even though the handlebars are
turned.
You need throttle to steer.
UF1G70.book Page 27 Wednesday, December 18, 2002 3:35 PM
Page 75 of 120
3-28
E
WARNING@ Do not release the throttle lever when
trying to steer away from objects—you
need throttle to steer. A collision could
result in severe injury or death.
When operating at higher speeds,
make gradual turns or slow down
before turning. Sharp high-speed turns
may cause the watercraft to slide side-
ways or spin, throwing the operator
and passengers overboard which
could cause an injury.
@
This model has the Yamaha Engine Man-
agement System (YEMS) that includes an
Off-Throttle Steering (OTS) system. It will
activate at planing speeds should you
attempt to steer the watercraft after releas-
ing the throttle lever (see condition C
above). The OTS system assists in turning
by continuing to supply some thrust while
the watercraft is decelerating, but you can
turn more sharply if you apply throttle while
turning the handlebars. The OTS system
does not function below planing speeds or
when the engine is off. Once the engine
slows down, the watercraft will no longer
turn in response to handlebar input until you
apply throttle again or you reach trolling
speed.
UF1G70.book Page 28 Wednesday, December 18, 2002 3:35 PM
Page 76 of 120
3-29
E
EJU10800
Stopping the watercraft
The watercraft is not equipped with a sep-
arate braking system. It is stopped by water
resistance when the throttle lever is
released. From full speed, the watercraft
comes to a complete stop in approximately
125 m (410 ft) after the throttle is released
and the engine is stopped, although this dis-
tance will vary depending on many factors,
including gross weight, water surface condi-
tions, and wind direction. The watercraft
slows down as soon as the throttle lever is
released, but will coast for a distance before
fully stopping. If you are not sure you can
stop in time before hitting an obstacle, apply
throttle and turn in another direction.
WARNING@ Allow adequate stopping distance.
Take early action to avoid collisions.
Remember, watercraft and other boats
do not have brakes.
Operate defensively at safe speeds
and keep a safe distance away from
people, objects, and other watercraft
to give you time to stop.
Do not shut the engine off when slow-
ing down in case you need engine
power to steer away from a boat or
other obstacle that comes into your
path.
@
UF1G70.book Page 29 Wednesday, December 18, 2002 3:35 PM
Page 77 of 120
3-30
E
EJU10810

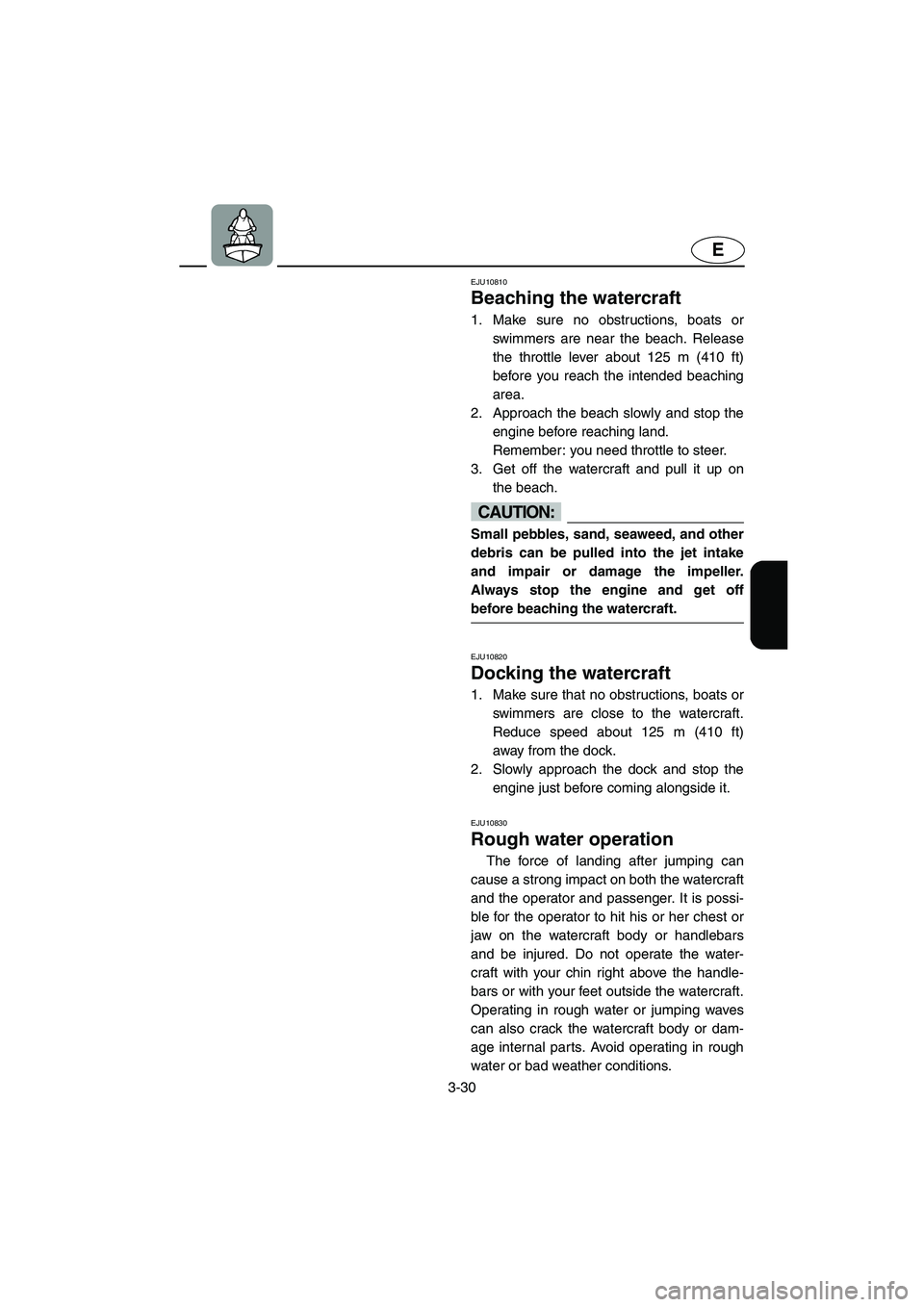

Beaching the watercraft
1. Make sure no obstructions, boats or
swimmers are near the beach. Release
the throttle lever about 125 m (410 ft)
before you reach the intended beaching
area.
2. Approach the beach slowly and stop the
engine before reaching land.
Remember: you need throttle to steer.
3. Get off the watercraft and pull it up on
the beach.
CAUTION:@ Small pebbles, sand, seaweed, and other
debris can be pulled into the jet intake
and impair or damage the impeller.
Always stop the engine and get off
before beaching the watercraft.
@
EJU10820
Docking the watercraft
1. Make sure that no obstructions, boats or
swimmers are close to the watercraft.
Reduce speed about 125 m (410 ft)
away from the dock.
2. Slowly approach the dock and stop the
engine just before coming alongside it.
EJU10830
Rough water operation
The force of landing after jumping can
cause a strong impact on both the watercraft
and the operator and passenger. It is possi-
ble for the operator to hit his or her chest or
jaw on the watercraft body or handlebars
and be injured. Do not operate the water-
craft with your chin right above the handle-
bars or with your feet outside the watercraft.
Operating in rough water or jumping waves
can also crack the watercraft body or dam-
age internal parts. Avoid operating in rough
water or bad weather conditions.
UF1G70.book Page 30 Wednesday, December 18, 2002 3:35 PM
Page 78 of 120
3-31
E
EJU20210
Post-operation checks
WARNING@ Stay away from stern when engine is run-
ning on land. Hot water and steam spurt-
ing from exhaust outlet into the air can
cause serious burns.
@
Always perform the following post-opera-
tion checks after operating the watercraft.
1. Remove the watercraft from the water.
2. Wash down the hull, handlebars, and jet
unit with fresh water.
3. Remove the seat and check the engine
compartment for water. To drain excess
water, remove the stern drain plugs, and
then raise the bow of the watercraft
enough to allow water in the bilge to
drain out.
NOTE:@ This watercraft is equipped with a jet vac-
uum bilge draining system and an electric
bilge draining system that remove water
from the engine compartment while you are
underway. However, some residual water will
remain. (See “Bilge” on page 3-8 for more
information.)
@
4. Put the watercraft in a horizontal posi-
tion.
5. Flush the cooling system to prevent it
from clogging with salt, sand, or dirt.
(See page 4-1 for flushing procedures.)
6. Drain residual water from the exhaust sys-
tem by running the engine at 4,000 r/min
for 10 to 15 seconds.
CAUTION:@ Do not run engine over 4,000 r/min on
land. Otherwise catalytic converter could
sustain serious damage.
@
UF1G70.book Page 31 Wednesday, December 18, 2002 3:35 PM
Page 79 of 120
3-32
E
7. If the watercraft will be stored for a week
or more, lubricate internal engine com-
ponents to help prevent corrosion. (See
page 4-3 for lubrication procedures.)
8. Rinse the engine and engine compart-
ment with a small amount of water.
CAUTION:@ Do not use high pressure when rinsing
the engine or engine compartment as
severe engine damage could result.
@
9. Wipe the engine and engine compart-
ment dry with a clean cloth (repeat
step 3, if necessary).
10. Wipe the hull, handlebars, and jet unit
dry with a clean cloth.
11. Spray a rust inhibitor on metallic parts to
minimize corrosion.
WARNING@ Do not spray flammable rust inhibitor
products on engine surfaces while the
engine is hot. The sprayed substance or
propellants could catch fire.
@
12. Allow the engine compartment to air dry
completely before installing the seat.
NOTE:@ Cover watercraft after engine and catalytic
converter cool down.
@
UF1G70.book Page 32 Wednesday, December 18, 2002 3:35 PM
Page 80 of 120
3-33
E
EJU20090
Transporting
When transporting the watercraft on a
trailer, secure the tie downs to the trailer
through the bow eye and stern rope holes.
CAUTION:@ Do not route ropes or tie downs over the
seat, as they may leave permanent marks
on the seat’s surface. Also, wrap the
ropes or tie downs with towels or rags
where they touch the body of the water-
craft to avoid scratching or damage.
@
UF1G70.book Page 33 Wednesday, December 18, 2002 3:35 PM
