2003 YAMAHA FX Owners Manual

4-18
E
EJU01822
Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (throttle body end)

Throttle cable (handlebar end)
Pull the throttle lever and remove the
seal1. Spray a rust inhibitor into the
outer cable. Refit the seal securely.

Steering cable (handlebar end)
UF1B71.book Page 18 Tuesday, November 12, 2002 4:17 PM

4-19
E

Steering cable (nozzle end)

Nozzle pivot shaft

QSTS cable (nozzle end)

QSTS cables (pulley end)

QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray
a rust inhibitor into the outer cable.
Reinstall the QSTS cable housing.

Shift cable (lever end)
UF1B71.book Page 19 Tuesday, November 12, 2002 4:17 PM

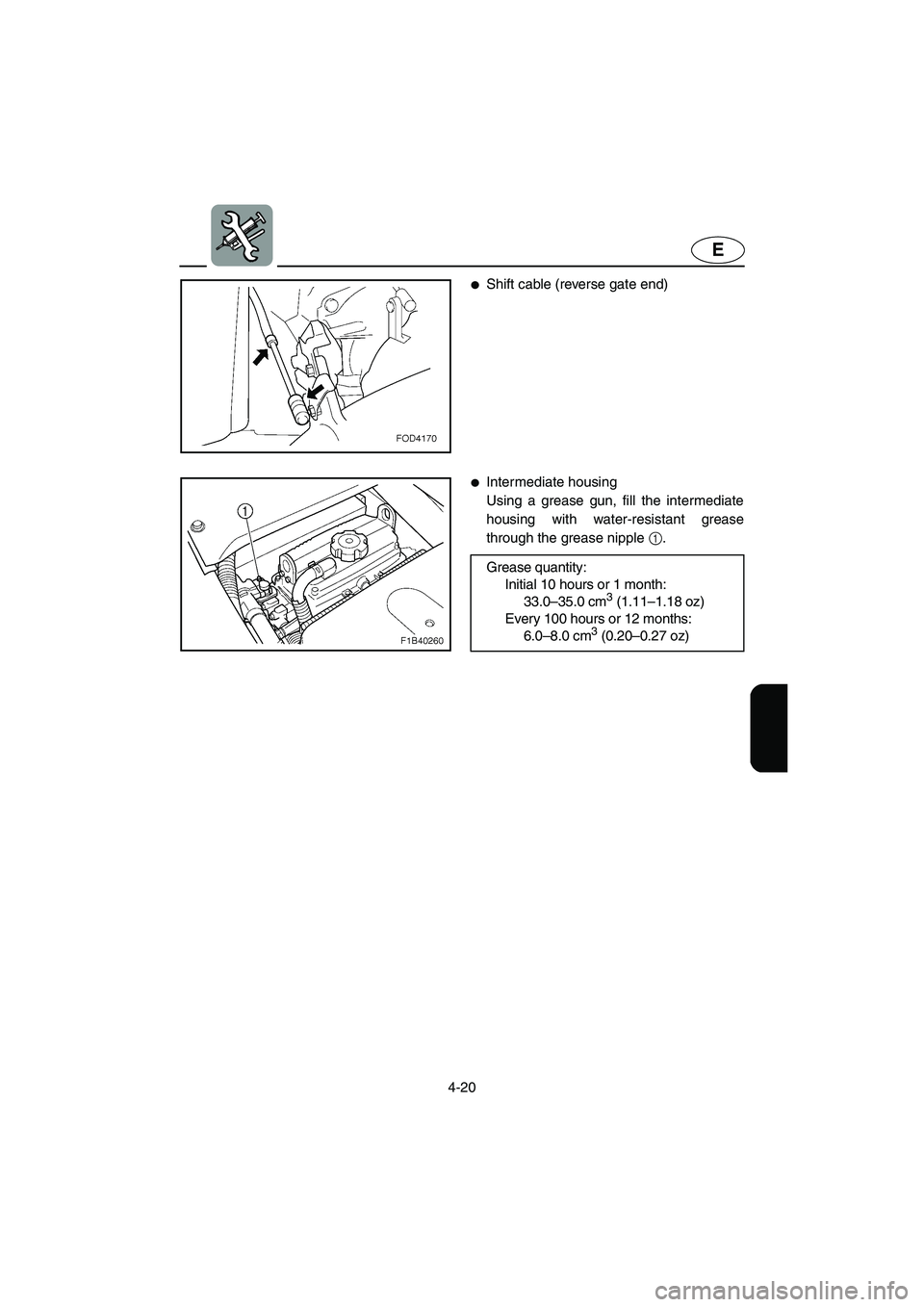

4-20
E

Shift cable (reverse gate end)

Intermediate housing
Using a grease gun, fill the intermediate
housing with water-resistant grease
through the grease nipple 1.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm
3 (1.11–1.18 oz)
Every 100 hours or 12 months:
6.0–8.0 cm
3 (0.20–0.27 oz)
UF1B71.book Page 20 Tuesday, November 12, 2002 4:17 PM

4-21
E
EJU01971
Inspecting the battery
Check the level of the battery electrolyte
and make sure that the negative and posi-
tive leads are securely tightened.
WARNING@
Battery electrolyte is poisonous and
dangerous, causing severe burns, etc.
Electrolyte contains sulfuric acid.
Avoid contact with skin, eyes, or cloth-
ing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call phy-
sician immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases.
Keep sparks, flame, cigarettes, etc.,
well away. If using or charging the bat-
tery in an enclosed space, make sure
that it is well ventilated. Always shield
your eyes when working near batter-
ies.
KEEP OUT OF THE REACH OF CHIL-
DREN.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@
Be careful not to place the battery on
its side.

Be sure to remove the battery from the
battery compartment when adding
electrolyte or charging the battery.
@
UF1B71.book Page 21 Tuesday, November 12, 2002 4:17 PM

4-22
E
To replenish the battery:
1. Make sure that the electrolyte level is
between the upper 1 and lower 2 level
marks.
2. Refill the battery with distilled water if
necessary.
CAUTION:@ Normal tap water contains minerals that
are harmful to a battery. Use only dis-
tilled water for replenishing the battery.
@
To recharge the battery:
CAUTION:@ Do not attempt to charge a battery hast-
ily. Battery life could be shortened.
@
It is recommended to have a Yamaha
dealer charge the battery. If you charge the
battery yourself, carefully read the battery
charger instructions before charging and fol-
low the points below.
1. Remove all caps from the battery cell.
2. Add distilled water to the specified level if
the electrolyte level is low.
3. Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases are discharged vigorously
from the battery cells.
To connect the battery terminals:
1. Make sure that the connections are cor-
rect when you install the battery in the
watercraft.
2. Make sure that the breather hose is
properly connected and that it is not
damaged or obstructed.
3. Make sure that the battery is securely
held in place.
1Positive (+): Red lead
2Negative (–): Black lead
3Breather hose
UF1B71.book Page 22 Tuesday, November 12, 2002 4:17 PM

4-23
E
EJU18231
Adjusting the fuel injection
system
The fuel injection system was set at the
Yamaha factory. Have a Yamaha dealer ser-
vice the watercraft if necessary.
CAUTION:@ Do not attempt to adjust the fuel injection
system. If the settings are changed poor
engine performance and damage may
result.
@
EJU01824
Checking the trolling speed
1. Put the watercraft in the water.
2. Start the engine and warm it up. Use the
tachometer in the multifunction meter to
check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer make this adjust-
ment.Trolling speed: 1,600–1,800 r/min
UF1B71.book Page 23 Tuesday, November 12, 2002 4:17 PM

4-24
E
EJU01825
Replacing the fuse
The fuse is in the electrical box 1.
To replace the fuse:
1. Remove the cap 2.
2. Replace the fuse 4 with the spare
fuse5 of the correct amperage by using
the special tool 3 on the reverse side of
the cap.
WARNING@ Do not use fuses of higher amperage
than those recommended. Substitution
of a fuse of improper rating can cause
extensive electrical system damage and
possible fire.
Fuse amperage:
20 A (main)
3 A (meter)
3 A (bilge pump)
UF1B71.book Page 24 Tuesday, November 12, 2002 4:17 PM

4-25
E
EJU01359
Specifications
MODEL
ITEMUnit FX140/FX Cruiser
WATERCRAFT CAPACITY
Maximum people on board Number of people 3
Maximum load capacity kg (lb) 240 (530)
DIMENSIONS
Length mm (in) 3,340 (131.5)
Width mm (in) 1,230 (48.4)
Height mm (in) 1,160 (45.7)
Dry weight kg (lb) 362 (798)
PERFORMANCE
Maximum output kW (PS) @ r/min 103.0 (140)@ 10,000
Maximum fuel consumption L/h (US gal/h, Imp gal/h) 44 (11.6, 9.7)
Cruising range at full throttle hr. 1.59
Trolling speed r/min 1,600–1,800
ENGINE
Engine type 4-stroke
Number of cylinders 4
Engine displacement
cm
3 (cu in)998 (60.9)
Bore & stroke mm (in) 74 ×
58 (2.91 ×
2.28)
Compression ratio 11.4:1
Lubrication system Dry sump
Cooling system Water cooled
Starting system Electric starter
Ignition system TCI
Spark plug CR9EB (NGK)
Spark plug gap mm (in) 0.7–0.8 (0.028–0.031)
Battery capacity V-AH 12-19
Charging system Flywheel magneto
UF1B71.book Page 25 Tuesday, November 12, 2002 4:17 PM
