2003 VOLVO XC90 Owners Manual

2003 VOLVO XC90

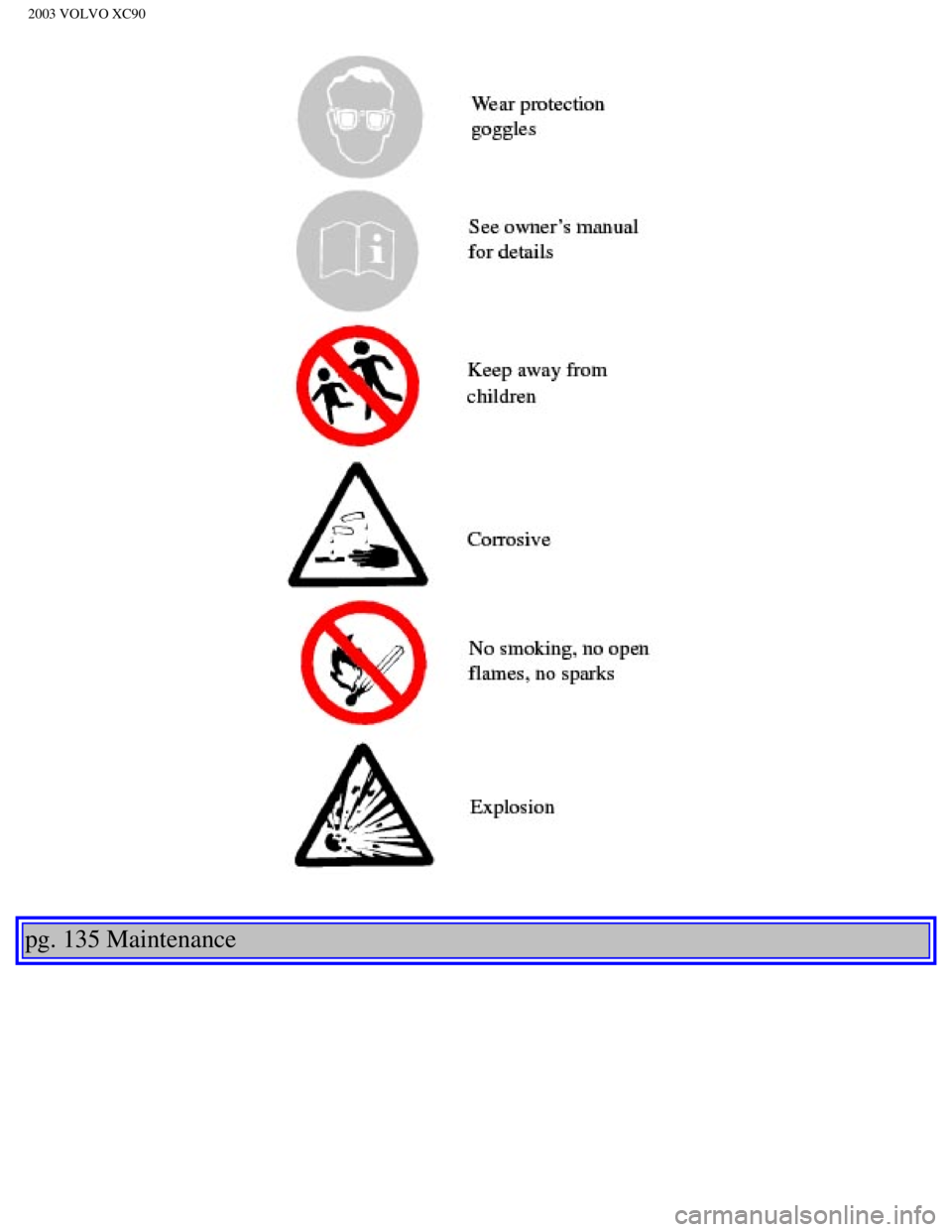

pg. 135 Maintenance
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (2 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
Replacing the battery
1. Switch off the ignition.
2. Wait at least 5 minutes after switching off the ignition before disconne\
cting the battery so that
all information in the vehicle's electrical system can be stored in the \
control modules.
3. Remove the retaining bracket and unscrew the cover over the battery. \
Wait at least 5 minutes after
switching off the ignition before disconnecting the battery so that all \
information in the vehicle's
electrical system can be stored in the control modules.
4. Disconnect the negative (ground) cable first.

5. Disconnect the positive cable and pull the ventilation hose (see nex\
t page) from the battery.
6. Lift out the old battery and put a new battery into place.
7. Connect the positive cable first.
8. Connect the negative (ground) cable.
9. Be sure that the ventilation hose (see below) is securely connected\
to the battery and that the other end
of the hose is properly routed through the ventilation opening in the fl\
oor of the battery compartment.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (3 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
10. Reinstall the cover and retaining bracket and screw it securely in p\
lace.

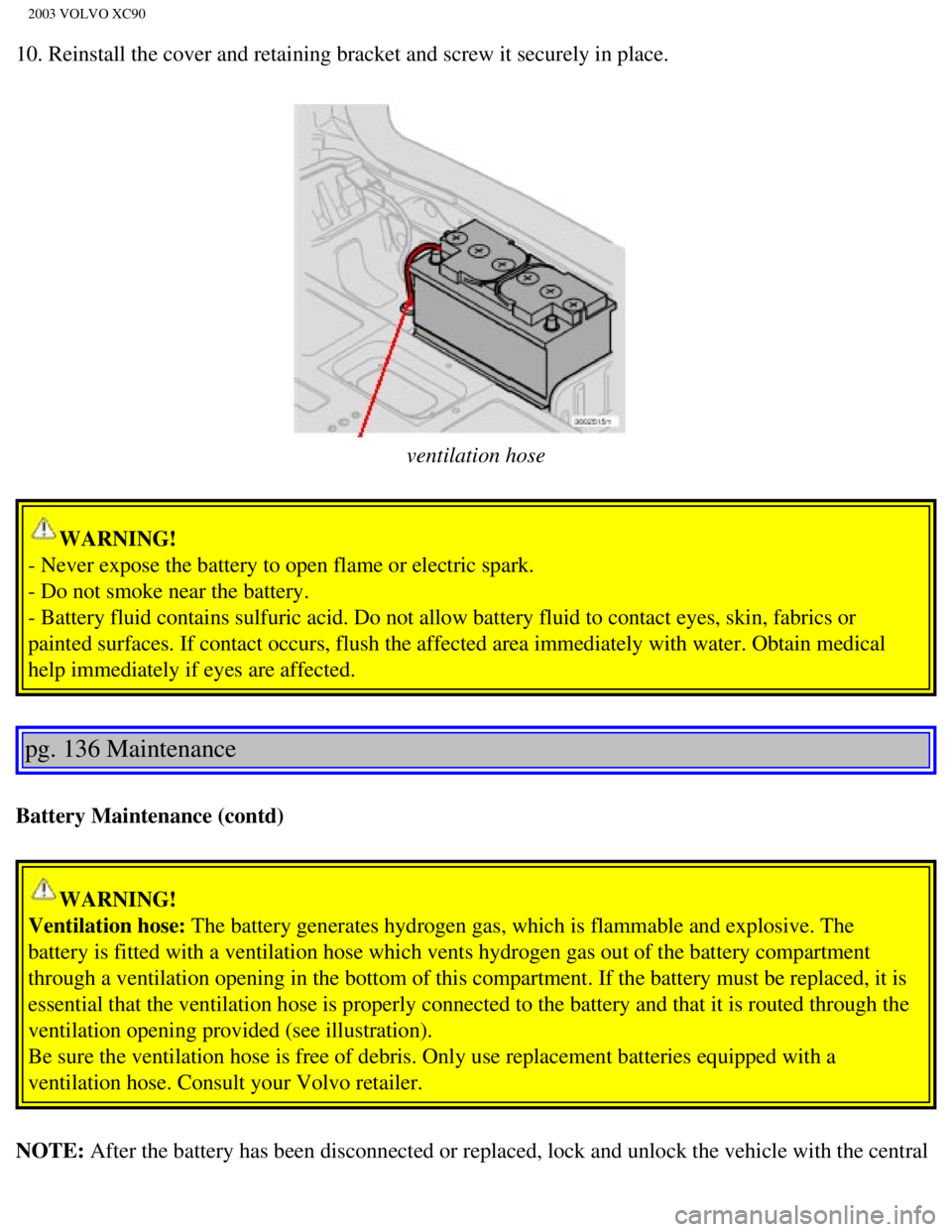

ventilation hose
WARNING!
- Never expose the battery to open flame or electric spark.
- Do not smoke near the battery.
- Battery fluid contains sulfuric acid. Do not allow battery fluid to co\
ntact eyes, skin, fabrics or
painted surfaces. If contact occurs, flush the affected area immediately\
with water. Obtain medical
help immediately if eyes are affected.
pg. 136 Maintenance
Battery Maintenance (contd)
WARNING!
Ventilation hose: The battery generates hydrogen gas, which is flammable and explosive. T\
he
battery is fitted with a ventilation hose which vents hydrogen gas out o\
f the battery compartment
through a ventilation opening in the bottom of this compartment. If the \
battery must be replaced, it is
essential that the ventilation hose is properly connected to the battery\
and that it is routed through the
ventilation opening provided (see illustration).
Be sure the ventilation hose is free of debris. Only use replacement bat\
teries equipped with a
ventilation hose. Consult your Volvo retailer.
NOTE: After the battery has been disconnected or replaced, lock and unlock the\
vehicle with the central
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (4 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
locking system's remote control to reactivate such features as the power\
windows, moonroof, courtesy
lighting, etc.
WARNING!
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead \
compounds, chemicals known
to the state of California to cause cancer and reproductive harm. Wash h\
ands after handling.
pg. 137 Maintenance
Bulbs
The following bulbs are used in the vehicle:
1. Low beam/high beam - 55W H7
2. Bi-Xenon headlight (option) - 35W D2R
3. Backup light - 21 W BA15
4. Brake light - 21W BA15
5. Turn signals, rear - PY21W(amber bulb)
6. Turn signals, front - H21W
7. Door step courtesy light/cargo area lighting - W5W
8. Vanity mirror - 1,2W
9. License plate lighting/parking light in headlight/side marker light, \
rear W5W
Side turn signal - W5W (amber bulb)
10. Fog lights, front - 55W H1
11. Fog light, rear - 21W BA5
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (5 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
12. Parking lights, rear - P21/4W
l Never touch the glass of bulbs 1, 2, 3, 10 with your fingers. Grease and\
oils from your fingers
evaporate in the heat and will leave a deposit on the reflector, quickly\
damaging it.
l Bi-Xenon headlight bulbs (option) contain trace amounts of mercury. Th\
ese bulbs should always be
disposed of by an authorized Volvo retailer.
WARNING!
Bi-Xenon headlights (option) - due to the high voltage used by these h\
eadlights, these bulbs should
only be replaced by an authorized Volvo service technician.
pg. 138 Maintenance

Retaining pins
Replacing high/low beams/turn signal/parking light bulbs
The entire lamp housing must be lifted out when replacing these bulbs.
To lift out the lamp housing:
1. Switch off the ignition.
2. Open the hood.
3. Pull up the retaining pins (see the illustration above).
4. Lift out the lamp housing.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (6 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
CAUTION
- Do not touch the glass on the halogen bulbs with your fingers. Grease,\
oil, or any other impurities
can be carbonized onto the bulb and cause damage to the reflector.
- Be sure to use bulbs of the correct type and voltage.
Location of the bulbs in the headlight housing
1. Low beam headlight/Bi-Xenon headlight (option)
2. High beam headlight
3. Turn signal
4. Parking light
5. Side marker light
pg. 139 Maintenance
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (7 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
Replacing the low beam bulb
1. Remove the plastic cover over the bulb (1) by turning it counterclo\
ckwise.
2. Pull the connector from the lamp housing (2).
3. Loosen the bulb's retaining spring by first moving it to the right an\
d then moving it out of the way.
4. Pull out the bulb from the holder.
5. Insert the new bulb (without touching the glass) in the holder.
6. Move the retaining spring up and push it slightly to the left until i\
t seats properly.
7. Press the bulb holder into place on the headlight housing.
8. Reinstall the plastic cap. The letters "HAUT" on the cap must be upwa\
rd.
Replacing the high beam bulb
1. Remove the rubber cover over the bulb (1) by pulling it off.
2. Pull the connector from the lamp housing (2).
3. Loosen the bulb's retaining spring by first moving it to the right an\
d then moving it out of the way.
4. Pull out the bulb from the holder.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (8 of 23)12/30/200\
6 4:19:04 PM

2003 VOLVO XC90
5. Insert the new bulb (without touching the glass) in the holder.
6. Move the retaining spring up and push it slightly to the left until i\
t seats properly.
7. Press the bulb holder into place on the headlight housing.
8. Press the rubber cover into place.
Replacing the parking light/side marker light bulbs
1. Turn the lamp holder approximately 1/4 turn counterclockwise and pull\
it out of the headlight housing.
2. Pull the bulb straight out.
3. Align the guide lugs on the side of the base of the new bulb in the g\
rooves in the holder and press it
into place.
4. Press the lamp holder into the place in the headlight housing and tur\
n it approximately 1/4 turn
clockwise.
pg. 140 Maintenance
Bulbs (contd)
