2003 TOYOTA TUNDRA ignition

’03 TUNDRA_U (L/O 0307)
iii
2003 TUNDRA from Jul. ’03 Prod. (OM34430U)
Spark ignition system of your
To y o t a
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference −Causing Equipment
Standard.
Installation of a mobile twoway radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as multi-
port fuel injection system/sequential multiport fuel injection
system, electronic throttle control system, cruise control
system, anti −lock brake system, SRS airbag system and
seat belt pretensioner system, be sure to check with your
Toyota dealer for precautionary measures or special in-
structions regarding installation.
Tires and loading on your To y o t a
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner ’s Manual. For details about tire inflation
pressure and load limits, see “Checking tire infla-
tion pressure” in Section 7−2 and “Vehicle load
limits” in Section 2.

’03 TUNDRA_U (L/O 0307)
ii
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instru ments and controls
NO TAG
. . . . . . . . . . . . . . . . . . .
2 Keys and DoorsNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

3 Seats, Seat belts, Steering wheel and MirrorsNO TAG
. . . . . . . . . . . .
4 Lights and WipersNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Gauges, Meters and Service reminder indicatorsNO TAG
. . . . . . . . .
6 Ignition switch, Transmission and Parking brakeNO TAG
. . . . . . . . . .
7 Car audio systemNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Air conditioning systemNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Other equipmentNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA NO TAG . . . . .
3 STARTING AND DRIVING NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY NO TAG . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPE ARANCE CARE NO TAG
6 VEHICLE MAINTENANCE AND CARE NO TAG . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 IntroductionNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
2 Engine and ChassisNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Electrical componentsNO TAG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 SPECIFICATIONS NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND CAMPER INFORMATION NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 0 INDE X NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Table of contents

’03 TUNDRA_U (L/O 0307)
4
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

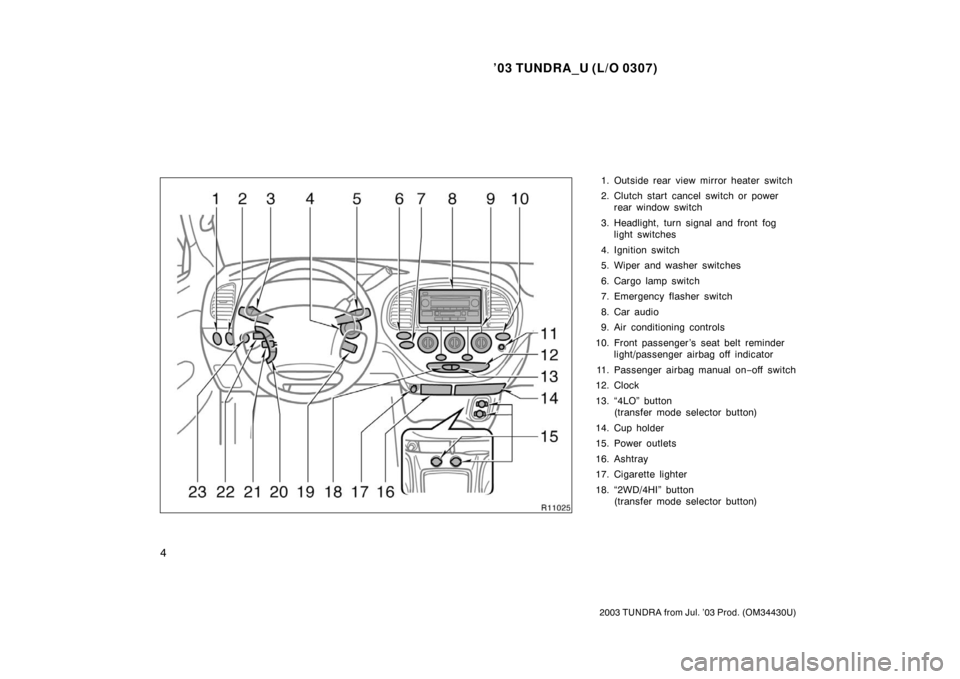

1. Outside rear view mirror heater switch
2. Clutch start cancel switch or power
rear window switch
3. Headlight, turn signal and front fog light switches
4. Ignition switch
5. Wiper and washer switches
6. Cargo lamp switch
7. Emergency flasher switch
8. Car audio
9. Air conditioning controls
10. Front passenger ’s seat belt reminder light/passenger airbag off indicator
11. Passenger airbag manual on −off switch
12. Clock
13. “4LO” button (transfer mode selector button)
14. Cup holder
15. Power outlets
16. Ashtray
17. Cigarette lighter
18. “2WD/4HI” button (transfer mode selector button)

’03 TUNDRA_U (L/O 0307)
13
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

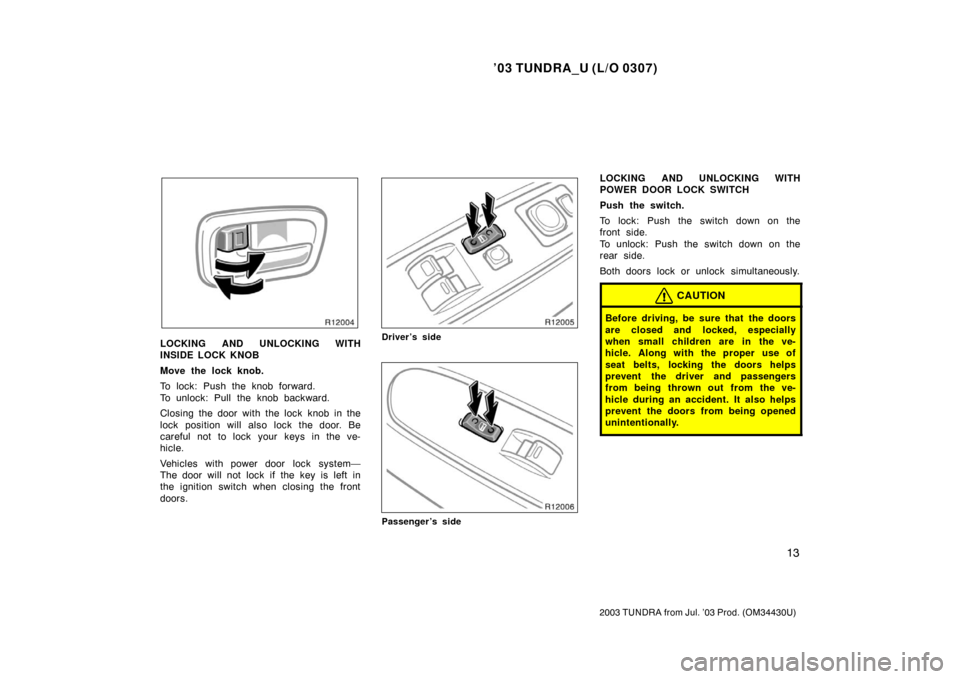

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
The door will not lock if the key is left in
the ignition switch when closing the front
doors.Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Both doors lock or unlock simultaneously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

’03 TUNDRA_U (L/O 0307)
15
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)
The remote keyless entry system is
designed to lock or unlock all the
doors or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE
DOORS
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time one beep will be heard, and the tail
lights and front side marker lights will
flash once.
Check to see that the doors are securely
locked.
If any door is not securely closed, locking
cannot be performed by the “LOCK”
switch and a beep will sound continuously
for 5 seconds. However, if the key is in
the ignition, a beep will not sound.
To stop the beep, close all the doors se-
curely or push the “UNLOCK” switch. To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, two
beeps will be heard, and the tail lights
and front side marker lights will flash
twice.
When the “UNLOCK” switch is pressed,
the interior light and ignition switch light
come on. The lights remain on for about
30 seconds unless any door is opened
and closed.
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again
and one beep will be heard, and the tail
lights and front side marker lights will
flash once.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently, flashes the head-
lights and tail lights, and turns on the
interior light.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” switch
once again, lock or unlock any door with
the key or transmitter, or turn the ignition
key from the “LOCK” to “ON” position.
The “PANIC” mode does not work when
the ignition key is in the ignition switch.

’03 TUNDRA_U (L/O 0307)
18
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

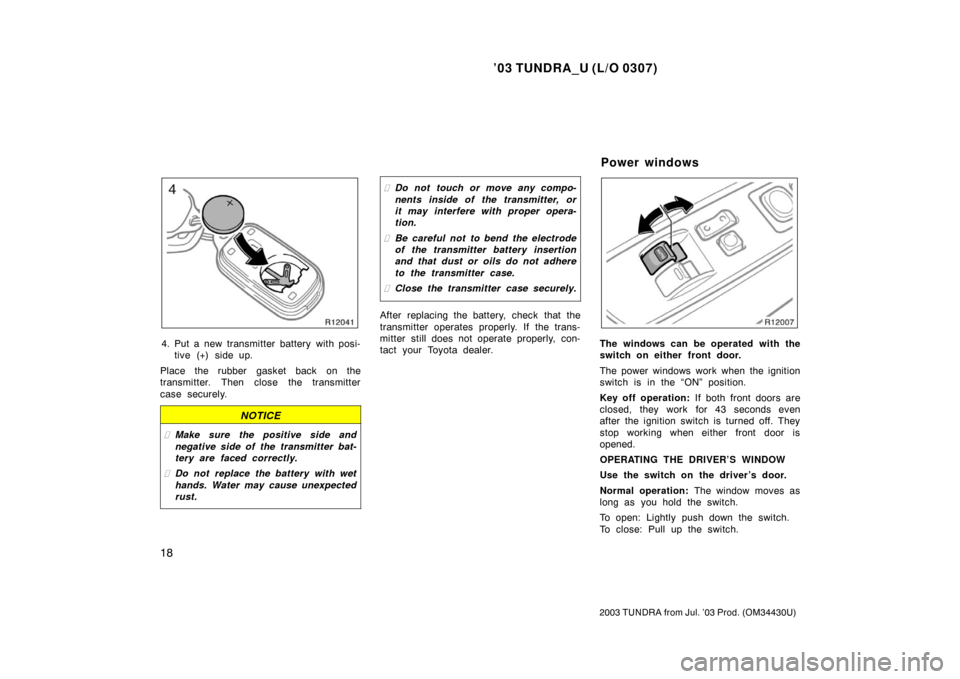

4. Put a new transmitter battery with posi-
tive (+) side up.
Place the rubber gasket back on the
transmitter. Then close the transmitter
case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper opera-
tion.
 Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
The windows can be operated with the
switch on either front door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

’03 TUNDRA_U (L/O 0307)
20
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

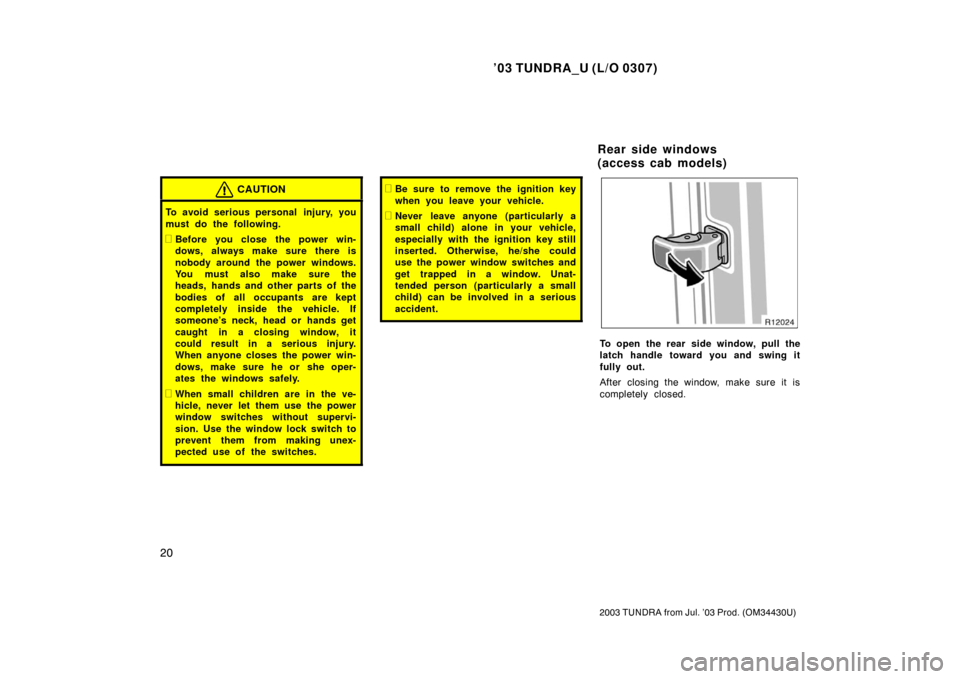

CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
To open the rear side window, pull the
latch handle toward you and swing it
fully out.
After closing the window, make sure it is
completely closed.
Rear side windows
(access cab models)

’03 TUNDRA_U (L/O 0307)
21
2003 TUNDRA from Jul. ’03 Prod. (OM 34430U)

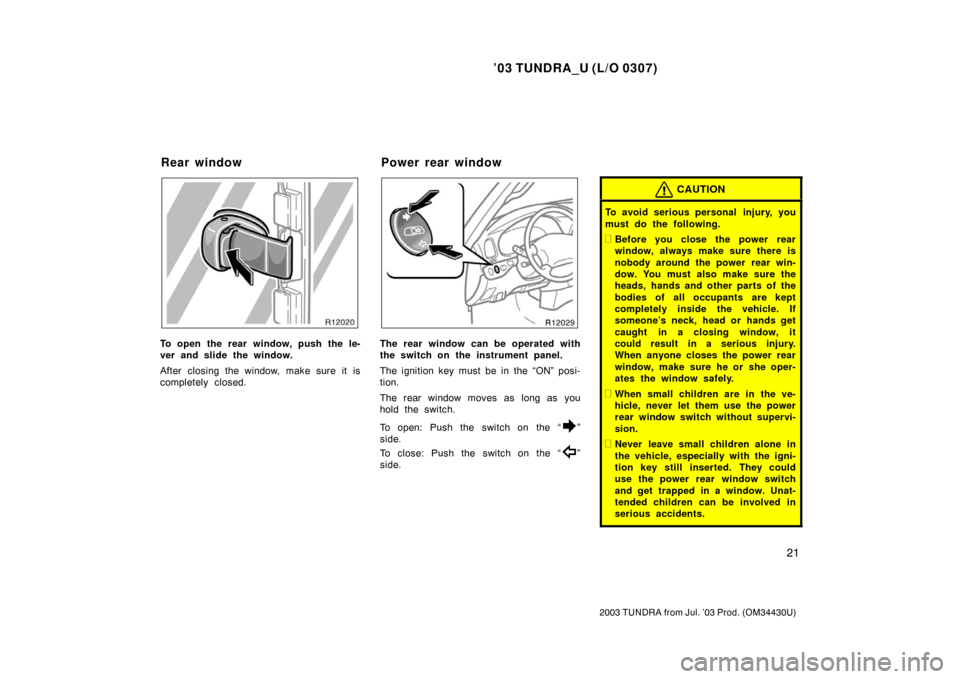

To open the rear window, push the le-
ver and slide the window.
After closing the window, make sure it is
completely closed.The rear window can be operated with
the switch on the instrument panel.
The ignition key must be in the “ON” posi-
tion.
The rear window moves as long as you
hold the switch.
To open: Push the switch on the “
”
side.
To close: Push the switch on the “
”
side.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power rear
window, always make sure there is
nobody around the power rear win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power rear
window, make sure he or she oper-
ates the window safely.
When small children are in the ve-
hicle, never let them use the power
rear window switch without supervi-
sion.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power rear window switch
and get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Rear window Power rear window
