2003 TOYOTA PRIUS key

21
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the hybrid system to start.
The indicator light will go off.
For your Toyota dealer to make you a
new key with builtin transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the hybrid system.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobiliser
system. If any unauthorized changes
or modifications are made, the proper
operation of the system cannot be
guaranteed.
For vehicles sold in U.S.A.
FCC ID: MOZ RI9BTY1
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

22

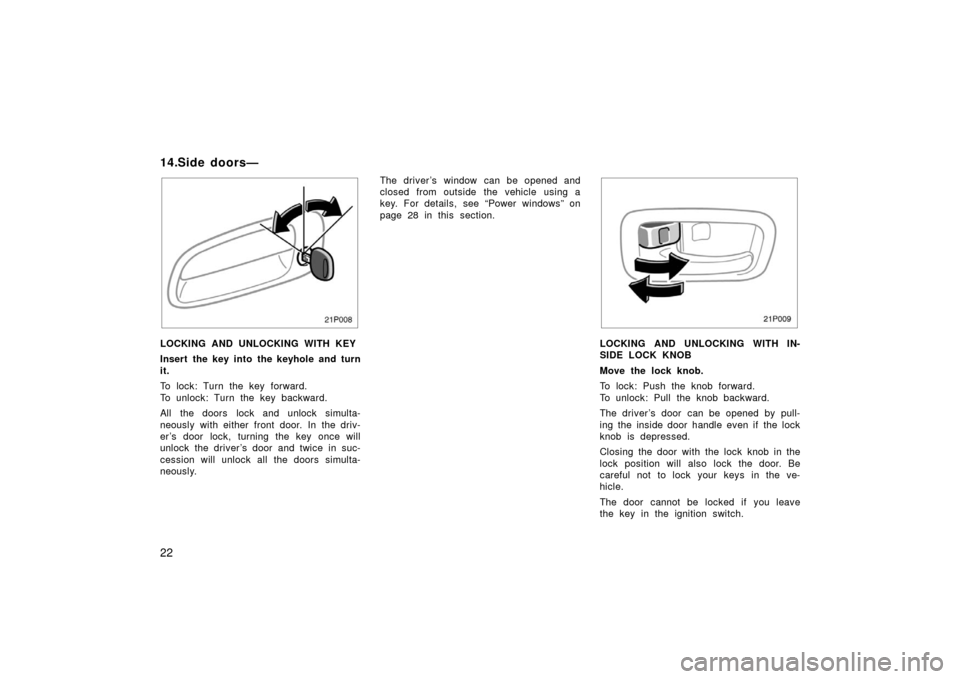

21p008
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.The driver ’s window can be opened and
closed from outside the vehicle using a
key. For details, see “Power windows” on
page 28 in this section.
21p009
LOCKING AND UNLOCKING WITH IN-
SIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The driver ’s door can be opened by pull-
ing the inside door handle even if the lock
knob is depressed.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked if you leave
the key in the ignition switch.
14.Side doors—

25
To unlock: Push the “UNLOCK” switch
once to unlock the only driver’s door.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, the
parking lights, side marker lights, license
plate lights and tail lights will flash twice.
When the “UNLOCK” switch is pressed
the interior light comes on. The lights re-
mains on for about 15 seconds unless
either door is opened then and closed.
(For further information, see “Interior light”
on page 85 in Section 23.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.

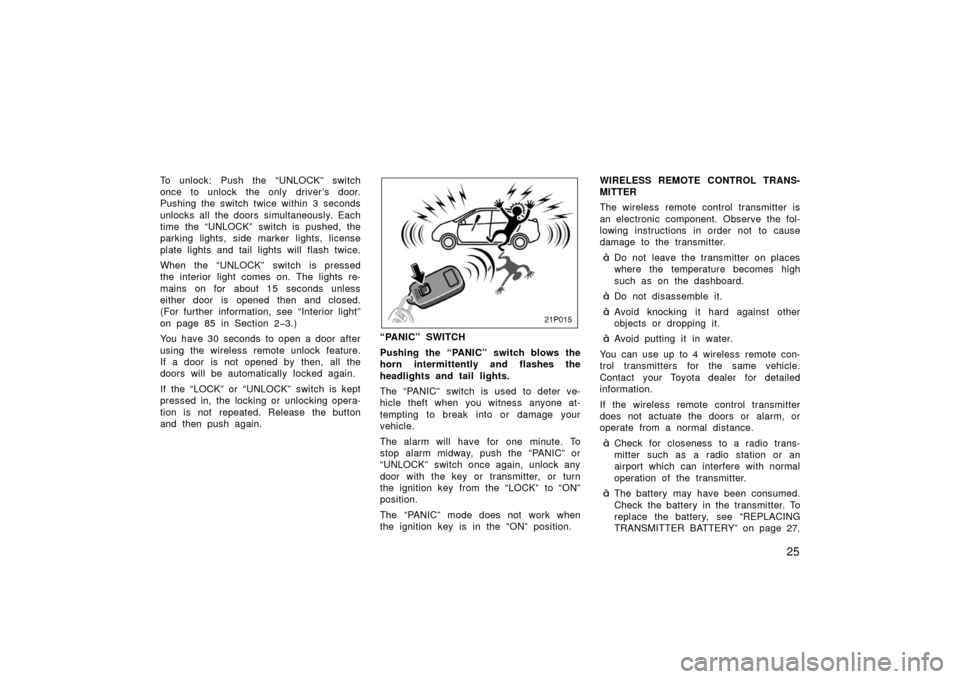

21p015
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will have for one minute. To
stop alarm midway, push the “PANIC” or
“UNLOCK” switch once again, unlock any
door with the key or transmitter, or turn
the ignition key from the “LOCK” to “ON”
position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.WIRELESS REMOTE CONTROL TRANS-
MITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY” on page 27.

28

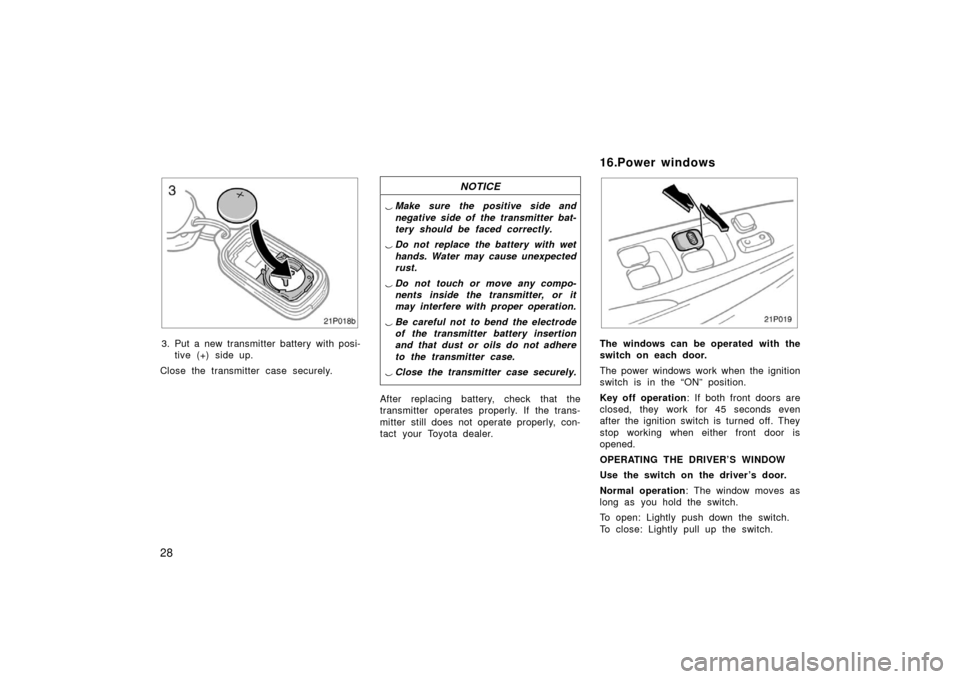

21p018b
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
21p019
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation : If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation : The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
16.Power windows

29

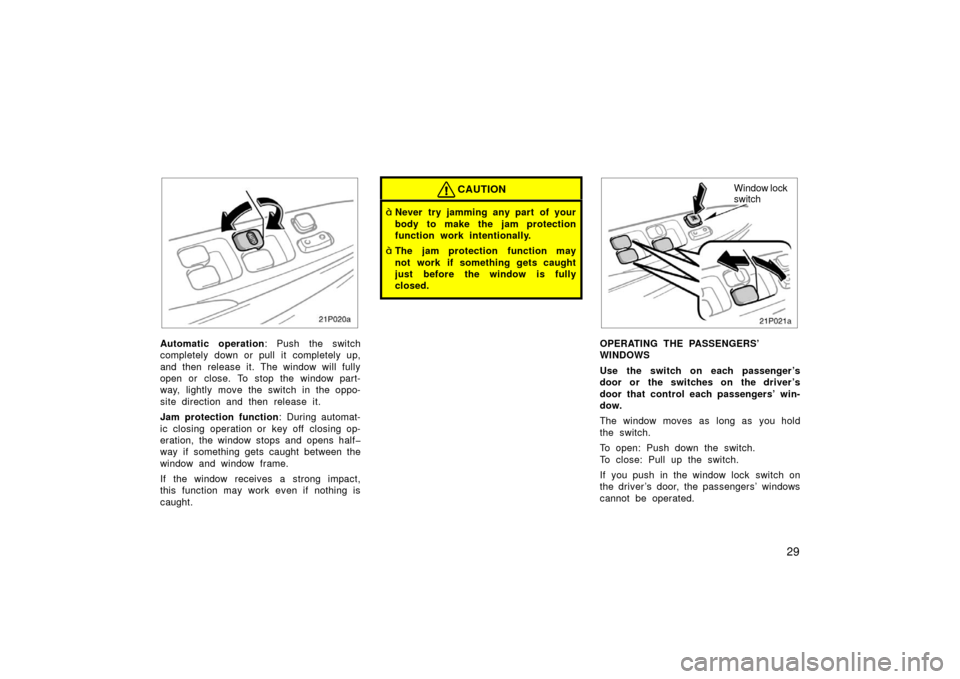

21p020a
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.21p021a
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passengers’ win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

30

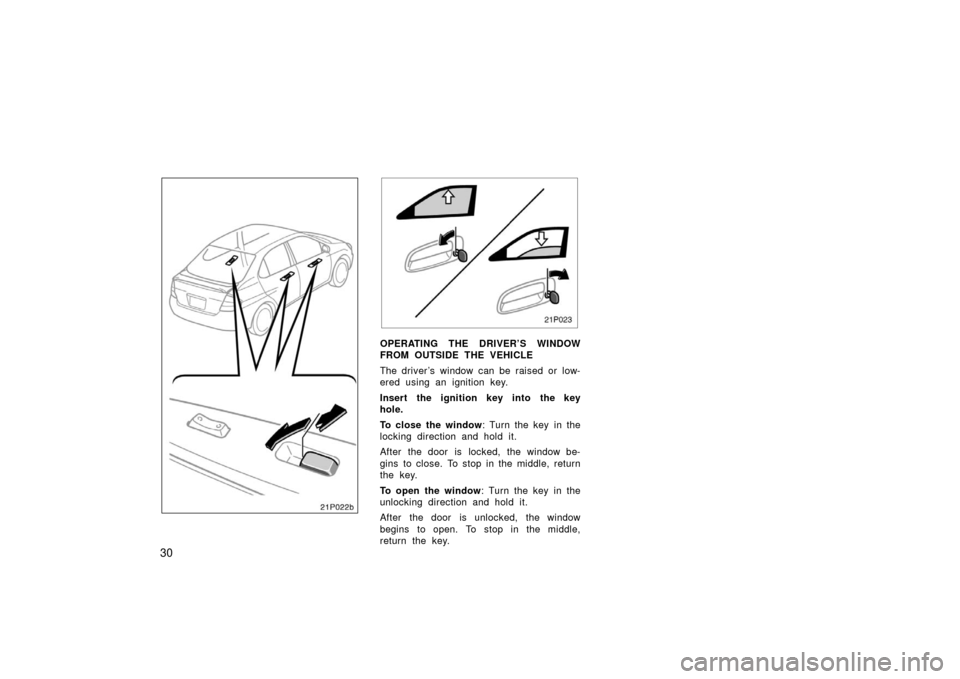

21p022b
21p023
OPERATING THE DRIVER’S WINDOW
FROM OUTSIDE THE VEHICLE
The driver ’s window can be raised or low-
ered using an ignition key.
Insert the ignition key into the key
hole.
To close the window: Turn the key in the
locking direction and hold it.
After the door is locked, the window be-
gins to close. To stop in the middle, return
the key.
To open the window : Turn the key in the
unlocking direction and hold it.
After the door is unlocked, the window
begins to open. To stop in the middle,
return the key.

31
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is no-
body around the power windows.
You must also make sure the heads,
hands and other parts of the bodies
of all occupants are kept completely
inside the vehicle. If someone’s
neck, head or hands get caught in a
closing window, it could result in a
serious injury. When anyone closes
the power windows, make sure that
he or she operates the windows
safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
21p024a
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” on
page 160 in Section 3 for precautions to
observe in loading luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out, but also pre-
vents exhaust gases from entering
the vehicle.
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
17.Trunk lid—

32

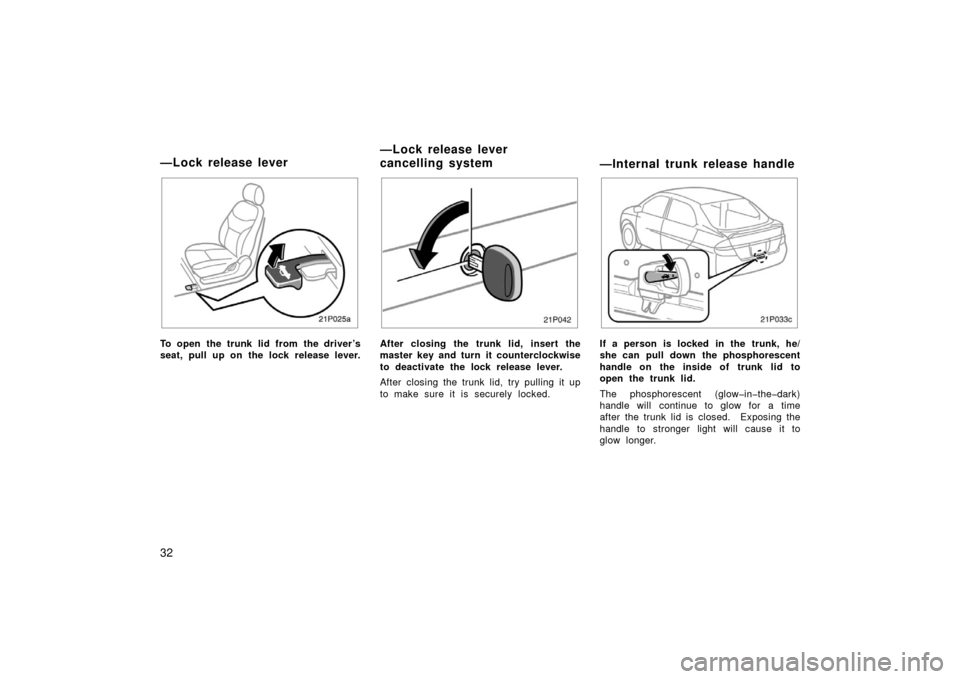

21p025a
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
21p042
After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
—Internal trunk release handle
21p033c
If a person is locked in the trunk, he/
she can pull down the phosphorescent
handle on the inside of trunk lid to
open the trunk lid.
The phosphorescent (glowinthedark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
—Lock release lever—Lock release lever
cancelling system
