2003 TOYOTA PRIUS key

34
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod
inserted into the slot could cause the
hood to bend.
19.Theft deterrent system

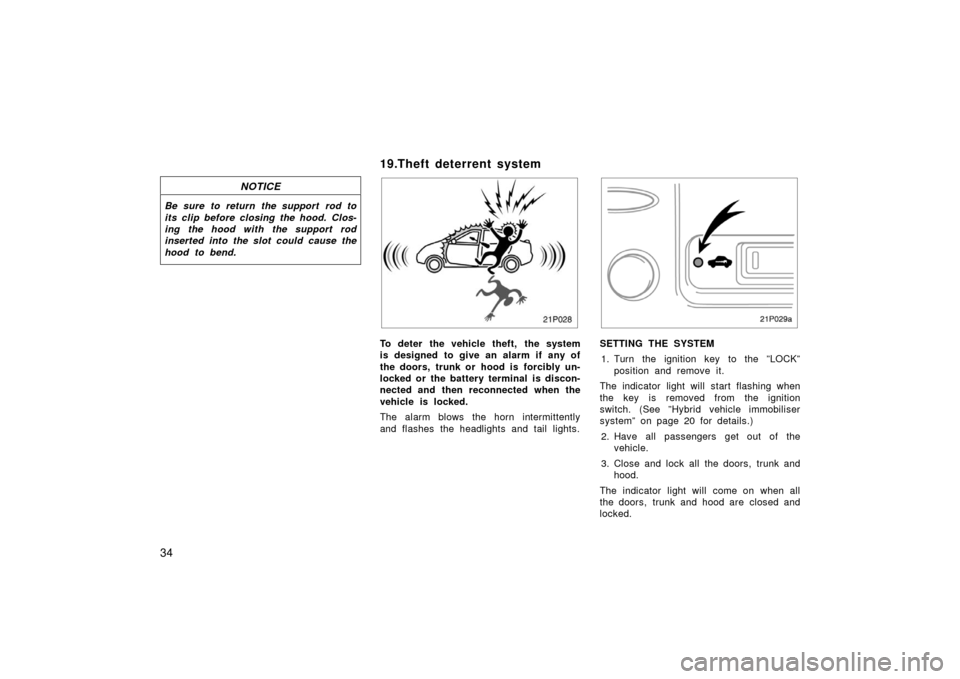

21p028
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
21p029a
SETTING THE SYSTEM1. Turn the ignition key to the ”LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Hybrid vehicle immobiliser
system” on page 20 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.

35
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter.
If the battery terminal is disconnected
and then reconnected.
The indicator light will come on when the
system is activating. If any of the doors are unlocked without
the key or wireless remote control trans-
mitter and the key is not in the ignition
switch, all the doors will be automatically
locked again.
After 1 minute, the alarm will automatically
stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
”Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:Turn the ignition key from the ”LOCK”
to ”ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned three ways. If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing on
the trunk, also check that the system
is activated when the auxiliary battery
terminal is disconnected and then re-
connected. When testing on the hood,
release the lock with the hood lock
release lever and raise the hood.
If the system does not work properly,
have it checked by your Toyota dealer.

48
22p010
This indicator comes on when the igni-
tion key is turned to the “ACC” or
“ON” position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, warning light, in-
terconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 93 in
Section 24.)
22p011
The front seat belt pretensioner system
mainly consists of the following compo-
nents and their locations are shown in the
illustration.1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are con-
trolled by the airbag sensor assembly. The
airbag sensor assembly consists of a saf-
ing sensor and airbag sensor. When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smokelike
gas may be released. This gas is harm-
less and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retrac-
tors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in death or serious injury.
Failure to follow these instructions
can result in death or serious inju-
ries. Consult your Toyota dealer
about any repairs and modifications.

49
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
front seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
22p010
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this in-
dicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the ve-
hicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the relevant
front seat pretensioner.
22p012
In the following cases, contact your Toyota
dealer as soon as possible:
The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise dam-
aged.

50

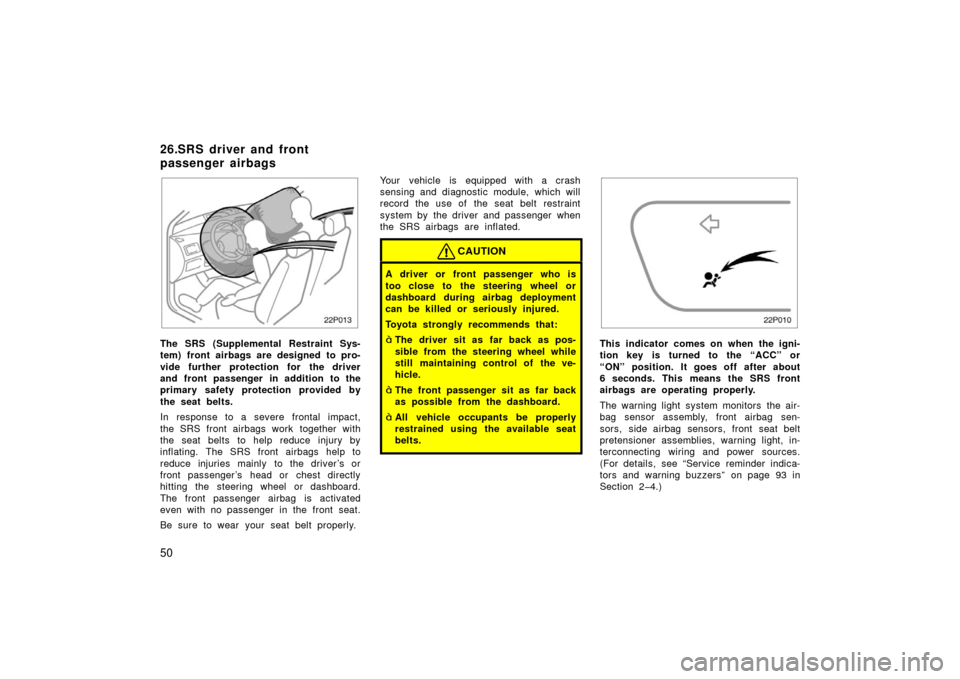

22p013
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help to
reduce injuries mainly to the driver ’s or
front passenger ’s head or chest directly
hitting the steering wheel or dashboard.
The front passenger airbag is activated
even with no passenger in the front seat.
Be sure to wear your seat belt properly.Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and pass
enger when
the SRS airbags are inflated.
CAUTION
A driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
22p010
This indicator comes on when the igni-
tion key is turned to the “ACC” or
“ON” position. It goes off after about
6 seconds. This means the SRS front
airbags are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, warning light, in-
terconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 93 in
Section 24.)
26.SRS driver and front
passenger airbags

56
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
22p010
This SRS front airbag system has a ser-
vice reminder indicator to inform the driver
of operating problems. If either of the fol-
lowing conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to ser-
vice the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or the light remains on.
The light comes on while driving.

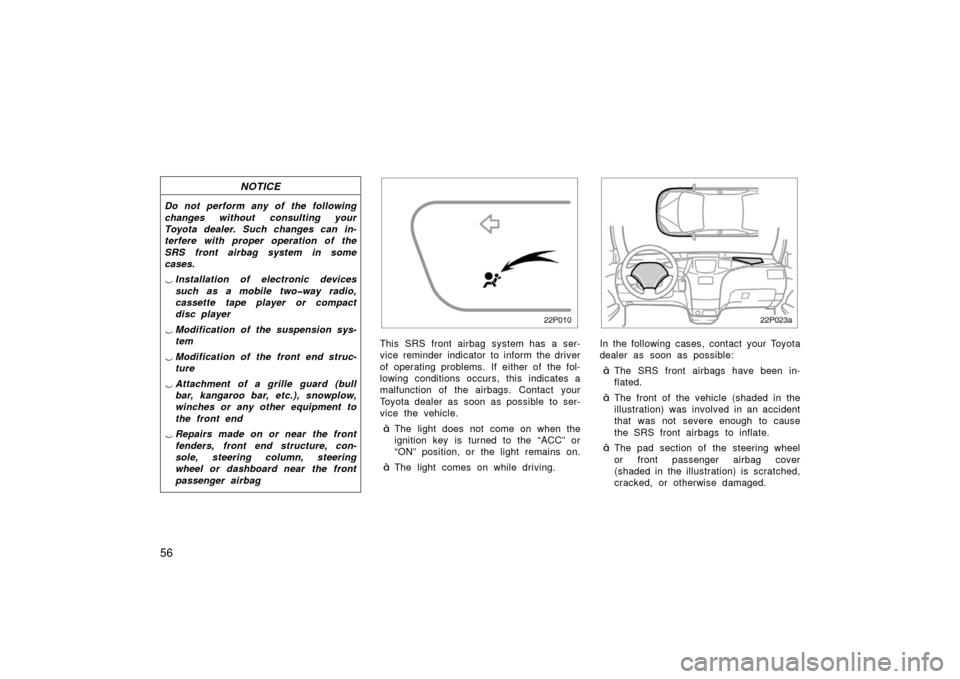

22p023a
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.

58

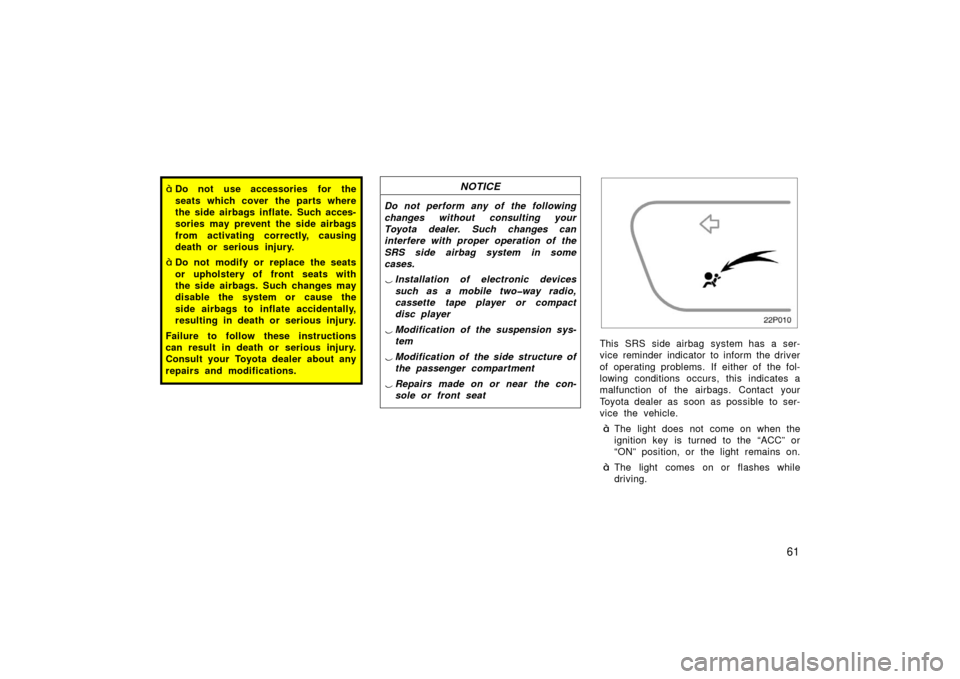

22p010
This indicator comes on when the igni-
tion key is turned to the “ACC” or
“ON” position. It goes off after about
6 seconds. This means the SRS side
airbags are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, warning light, in-
terconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 93 in
Section 24.)

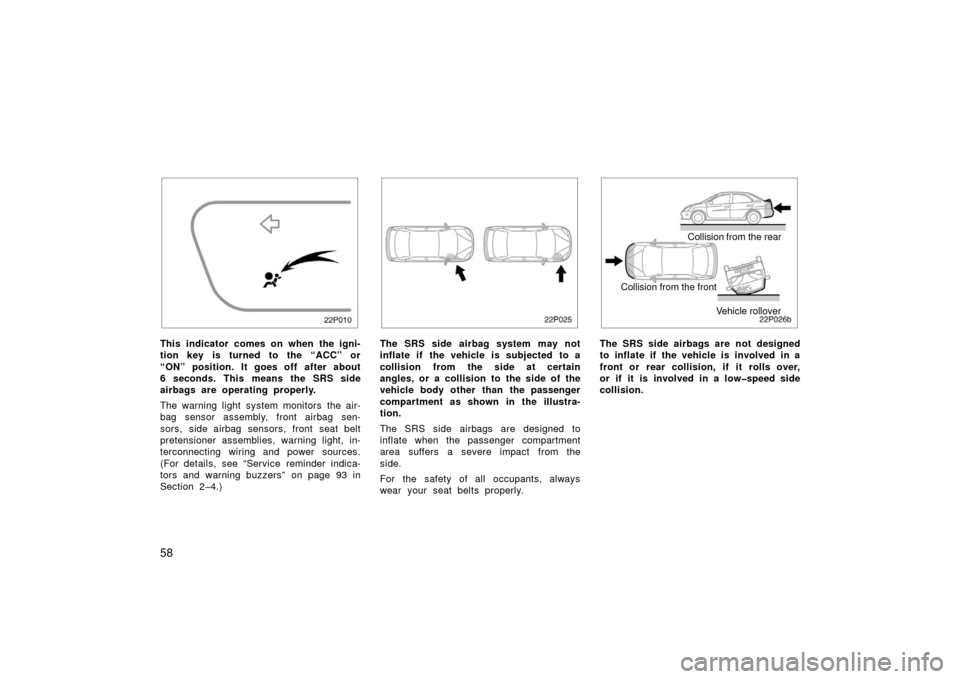

22p025
The SRS side airbag system may not
inflate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
For the safety of all occupants, always
wear your seat belts properly.
22p026b
Collision from the rear
Collision from the front
Vehicle rollover
The SRS side airbags are not designed
to inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a lowspeed side
collision.

61
Do not use accessories for the
seats which cover the parts where
the side airbags inflate. Such acces-
sories may prevent the side airbags
from activating correctly, causing
death or serious injury.
Do not modify or replace the seats
or upholstery of front seats with
the side airbags. Such changes may
disable the system or cause the
side airbags to inflate accidentally,
resulting in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
22p010
This SRS side airbag system has a ser-
vice reminder indicator to inform the driver
of operating problems. If either of the fol-
lowing conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to ser-
vice the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or the light remains on.
The light comes on or flashes while
driving.
