2003 TOYOTA PRIUS engine

13
CAUTION
Never remove or disassemble the
high voltage parts, high voltage
cables (orange color) and their con-
nectors. It may cause death or seri-
ous injury.

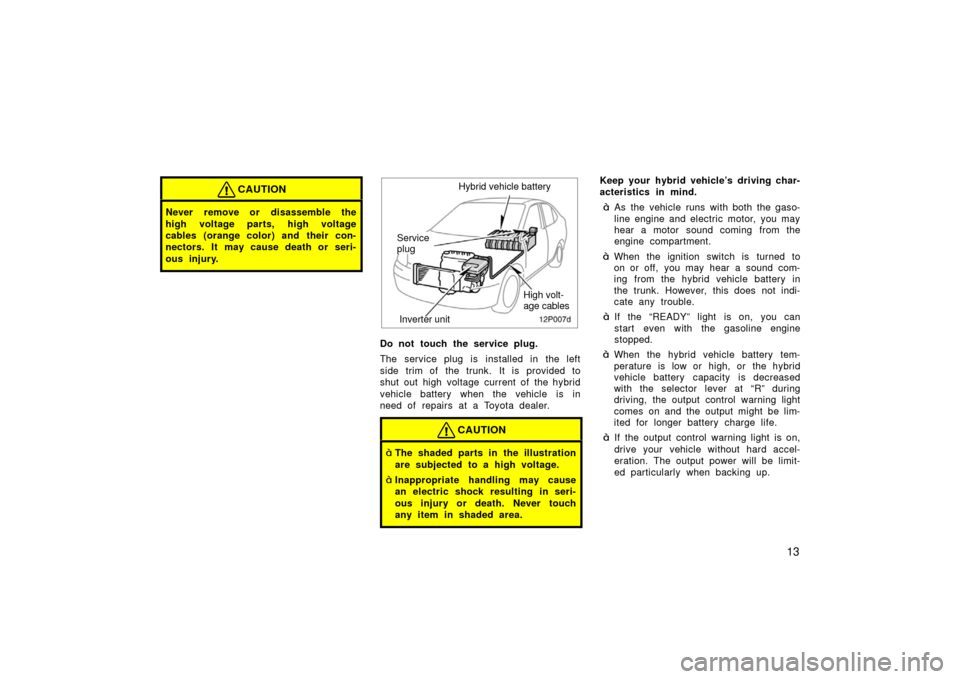

12p007d
Inverter unitHybrid vehicle battery
Service
plug
High volt-
age cables
Do not touch the service plug.
The service plug is installed in the left
side trim of the trunk. It is provided to
shut out high voltage current of the hybrid
vehicle battery when the vehicle is in
need of repairs at a Toyota dealer.
CAUTION
The shaded parts in the illustration
are subjected to a high voltage.
Inappropriate handling may cause
an electric shock resulting in seri-
ous injury or death. Never touch
any item in shaded area.
Keep your hybrid vehicle’s driving char-
acteristics in mind.
As the vehicle runs with both the gaso-
line engine and electric motor, you may
hear a motor sound coming from the
engine compartment.
When the ignition switch is turned to
on or off, you may hear a sound com-
ing from the hybrid vehicle battery in
the trunk. However, this does not indi-
cate any trouble.
If the “READY” light is on, you can
start even with the gasoline engine
stopped.
When the hybrid vehicle battery tem-
perature is low or high, or the hybrid
vehicle battery capacity is decreased
with the selector lever at “R” during
driving, the output control warning light
comes on and the output might be lim-
ited for longer battery charge life.
If the output control warning light is on,
drive your vehicle without hard accel-
eration. The output power will be limit-
ed particularly when backing up.

14

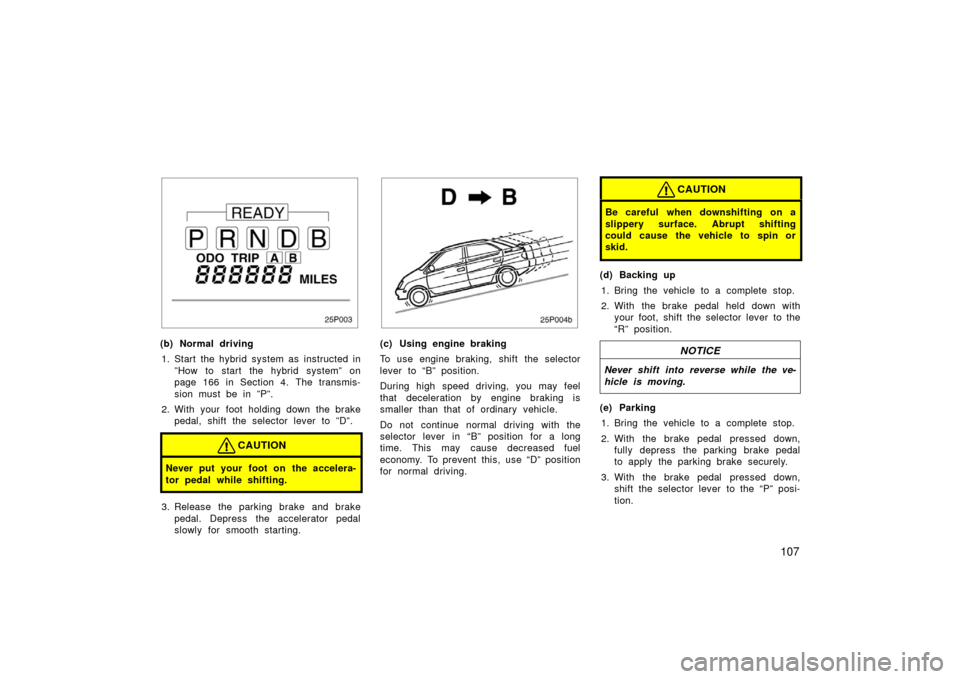

When you put the running mode selec-
tor lever in “B” position and release
your foot from the accelerator pedal,
engine braking will be applied. Howev-
er, during the high speed driving you
may feel that deceleration by engine
braking is less than that of ordinary
vehicle.
Drive your vehicle without hard accel-
eration if the output control warning
light
() is on.
The hybrid vehicle battery temperature is
low or high, or the hybrid vehicle battery
capacity is decreased with the selector
lever at “R” during driving. If this occurs,
the output control warning light comes on.
If the output control warning light is on,
the hybrid system output is limited. Drive
your vehicle without hard acceleration.
Vehicle performance might be reduced sig-
nificantly especially when backing up.
Be sure to put the running mode selec-
tor lever in “P” position when parking.
With the selector lever in “N” position, the
hybrid vehicle battery assembly is not
charged, even if the gasoline engine is
operating. You cannot run your vehicle if
the selector lever is left in “N” position for
a long time because the hybrid vehicle
battery assembly will be discharged. When you leave your vehicle, apply the
parking brake with the running mode
selector lever in “P” position and be
sure to remove the key and lock all the
doors.
When you leave the the ignition key in the
“ACC” or “ON” position if the hybrid sys-
tem is not operating, the hybrid system
may not start because the auxiliary bat-
tery will be discharged.
CAUTION
When you leave your vehicle, be
sure to shut off the hybrid system.
Be sure to put the running mode
selector lever in “P” position be-
cause the vehicle can start with the
“READY” light on and the engine
stopped (no engine sound and
vibration). When the “READY” light
is on, if you leave your vehicle with
the running mode selector lever in
a position other than “P” and “N”,
the vehicle will creep and start
abruptly with the accelerator pedal
being depressed by mistake. It may
cause death or serious injury.
12p008a
If the multiinformation display shows
a message, the master warning light
() comes on in the instrument clus-
ter. Read the message and follow the
instruction.
When you leave your vehicle, or stop
or park for a while, put the selector
lever in “P”.
Charging is necessary. With the selec-
tor lever in “N” position, charging will
not be applied. The electric generator
operates in “P”, “D” or “B” position. If
you continue driving, put the selector
lever in “D” or “B” position and depress
the accelerator pedal. Do not leave it
in “N” position. When driving in traffic
jam, run in “D” position.

95
(a) Brake System Warning Light andBuzzer
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
When the regenerative brake system
is fails...
When the hydraulic brake booster
fails...
If the hydraulic booster causes a problem
resulting in poor braking performance, the
warning light comes on and buzzer sounds
continuously. Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The light does not turn off even
after the parking brake is released
while the hybrid system is running.
The warning buzzer comes on to-
gether with the warning light.
In either case, this can indicate that
the brakes may not work properly and
your stopping distance will become
longer. Depress the brake pedal firmly
and bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the warning light and
buzzer. It is normal if the light turns off
and the buzzer stops sounding after a
few seconds.
You may hear a small sound in the
engine compartment after the hybrid
system is started or the brake p edal is
depressed repeatedly. This is a pump
pulsating sound of the brake system,
and it is not a malfunction.

96
(b) Driver’s Seat Belt Reminder Lightand Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to ”ON” or
”START”, the reminder light flashes and
the buzzer sounds if the driver ’s seat belt
is not fastened. Unless the driver fastens
the belt, the light keeps on flashing and
the buzzer sounds 4 to 8 seconds.
(c) Front Passenger ’s Seat Belt Reminder Light
This light reminds you to buckle up the
front passenger ’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light stays flashing.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, builtin
sensors in the seat cushion may detect
the pressure, causing the reminder light to
come on. (d) Discharge Warning Light
This light warns that the auxiliary battery
is being discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The hybrid system will continue to oper-
ate, however, until the auxiliary battery is
discharged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on or the lamp
comes on while driving, first check the
following:
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
This case is a temporary malfunction. The
malfunction indicator lamp will go off after
taking several driving trips.
If the lamp will not go off even after
several trips, contact your Toyota deal-
er as soon as possible.
There is a problem somewhere in the
hybrid system or warning light system
itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.

97
Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (OnBoard Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 204
in Section 7.
(f) Master Warning Light
()
If the master warning light comes on, the
warning light for the faulty system is high-
lighted or the message such as “When
you park your car, make sure you shift to
Park P.” and “The batteries will not charge
if the shifter is in N” appears on the mul-
tiinformation display. (See “Service re-
minder indicators and warning buzzers—
—Multiinformation display” on page 100
in this section or “Precautions for use” on
page 12 in Section 12 or “Fuel gauge”
on page 89 in Section 24 for instruc-
tions.)(g) Output Control Warning Light
()
This light comes on when the ignition
switch is on. It goes off when the electric
motor is ready to run.
The warning light comes on when the hy-
brid vehicle battery temperature is low or
high, or the hybrid vehicle battery capacity
is decreased with the selector lever at “R”
during driving. If the light comes on, the
power will be limited. Drive your vehicle
without hard acceleration.
(h) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(i) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti
lock brake system works properly, the
light turns off after a few seconds. There-
after if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible so
service the vehicle.

106
52.Hybrid transaxle
Your hybrid transaxle has a shift lock sys-
tem to minimize the possibility of incorrect
operation. This means you can only shift
out of “P” position when the brake pedal
is depressed (with the ignition switch in
“ON” position and the lock release button
depressed).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, hybrid system starting and
key removal position
R: Reverse position
N: Neutral position
D: Normal driving position
B: Engine braking position
When the cruise control is being used
even if you shift the selector lever to “B”
position, engine braking will not be applied
because the cruise control is not can-
celled. For ways to decrease the vehicle
speed, see “Cruise control” on page 110.
25p002fWith the brake pedal de-
pressed, shift while holding
the lock release button in.
(The ignition switch must be
in the “ON” position.)
Shift while holding the lock
release button in.
Shift normally.
Lock release button
To prevent misshifting
Selector lever

107
25p003
(b) Normal driving1. Start the hybrid system as instructed in ”How to start the hybrid system” on
page 166 in Section 4. The transmis-
sion must be in ”P”.
2. With your foot holding down the brake pedal, shift the selector lever to ”D”.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
25p004b
(c) Using engine braking
To use engine braking, shift the selector
lever to “B” position.
During high speed driving, you may feel
that deceleration by engine braking is
smaller than that of ordinary vehicle.
Do not continue normal driving with the
selector lever in “B” position for a long
time. This may cause decreased fuel
economy. To prevent this, use “D” position
for normal driving.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(d) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(e) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.

108
If the driver ’s door is opened when the
the “READY” light is on and the the selec-
tor lever is at a position other than “P”
with the parking brake applied, you will
hear beeps to warn you to shift the selec-
tor lever to the “P” position.
CAUTION
While the vehicle is moving, never
attempt to move the running mode
selector lever into “P” position under
any circumstances. Serious mechani-
cal damage and loss of vehicle con-
trol may result.
NOTICE
Be sure to put the selector lever in
“P” position when parking. With the
selector lever in “N” position, the hy-
brid vehicle battery will not be
charged even the gasoline engine op-
erates. You cannot start your vehicle
if the selector lever is left in “N”
position for a long time because the
hybrid vehicle battery will discharge.
(f) Vehicle driving characteristics
Creeping
In order to hold the vehicle properly on an
incline and for better accelerator pedal
operation at starting, vehicle is designed
like an ordinary automatic transmission
vehicle which tends to move without de-
pressing the accelerator pedal with the
selector lever in a position other than “P”
or “N”.
With the selector lever in a position other
than “P” or “N”, depress the brake pedal
firmly even when stopped and apply the
parking brake as required.
When moving in a restricted area or dur-
ing traffic jam, it is an effective way to
control the speed using only the brake
pedal operation without depressing the ac-
celerator pedal.
Regenerative brake
When the accelerator pedal is released or
the brake pedal is depressed, the electric
motor acts as a generator and converts
kinetic energy to electric energy to provide
deceleration and recover the electric ener-
gy to charge the hybrid vehicle battery.
At this time, the electric motor running
noise becomes larger.The operation is the same as an ordinary
gasoline powered vehicle.
You may experience the following condi-
tions while braking. As they do not indi-
cate the malfunction, perform braking as
usual:
When you turn the ignition switch to
“ON” with the brake pedal depressed,
you may feel a little push from the
brake pedal.
When you turn the ignition switch to
“ACC” or “LOCK” from “ON”, the brake
pedal may move a little.
