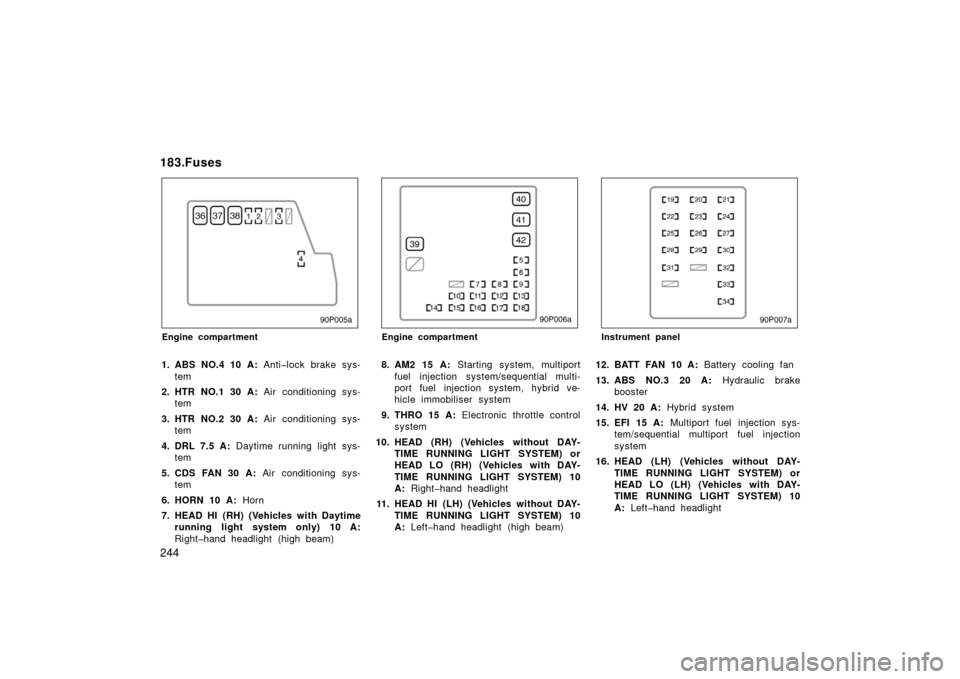

90p005a
Engine compartment
1. ABS NO.4 10 A: Antilock brake sys-
tem
2. HTR NO.1 30 A: Air conditioning sys-
tem
3. HTR NO.2 30 A: Air conditioning sys-
tem
4. DRL 7.5 A: Daytime running light sys-
tem
5. CDS FAN 30 A: Air conditioning sys-
tem
6. HORN 10 A: Horn
7. HEAD HI (RH) (Vehicles with Daytime running light system only) 10 A:
Righthand headlight (high beam)
90p006a
Engine compartment
8. AM2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system, hybrid ve-
hicle immobiliser system
9. THRO 15 A: Electronic throttle control
system
10. HEAD (RH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) or
HEAD LO (RH) (Vehicles with DAY-
TIME RUNNING LIGHT SYSTEM) 10
A: Righthand headlight
11. HEAD HI (LH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) 10
A: Lefthand headlight (high beam)
90p007a
Instrument panel
12. BATT FAN 10 A: Battery cooling fan
13. ABS NO.3 20 A: Hydraulic brake
booster
14. HV 20 A: Hybrid system
15. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
16. HEAD (LH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) or
HEAD LO (LH) (Vehicles with DAY-
TIME RUNNING LIGHT SYSTEM) 10
A: Lefthand headlight
