Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in
order to avoid or reduce the risk of
damage to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
Initial screen
0NAN003
When you start the engine or turn the
ignition switch to “ACC”, the initial “VOICE
NAVIGATION” screen appears and the
system begins operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen appears.
0NAN001
Please read it and follow the instruc-
tions.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen
by pushing the
“NAV” button.
When you push the
“ENT” button to
indicate
“I agree” switch on the dis-
play, the next screen appears.

Corolla_MATRIX_Navi_U (L/O 0208)
iii2003 MY COROLLA MATRIX (OM12774U)
On this screen, you can select the lan-
guage shown on the screen. Select your
desired switch on the screen.“Eng”: English
“Fr”: French
You can also select the language by the
following procedure.
4NAN003

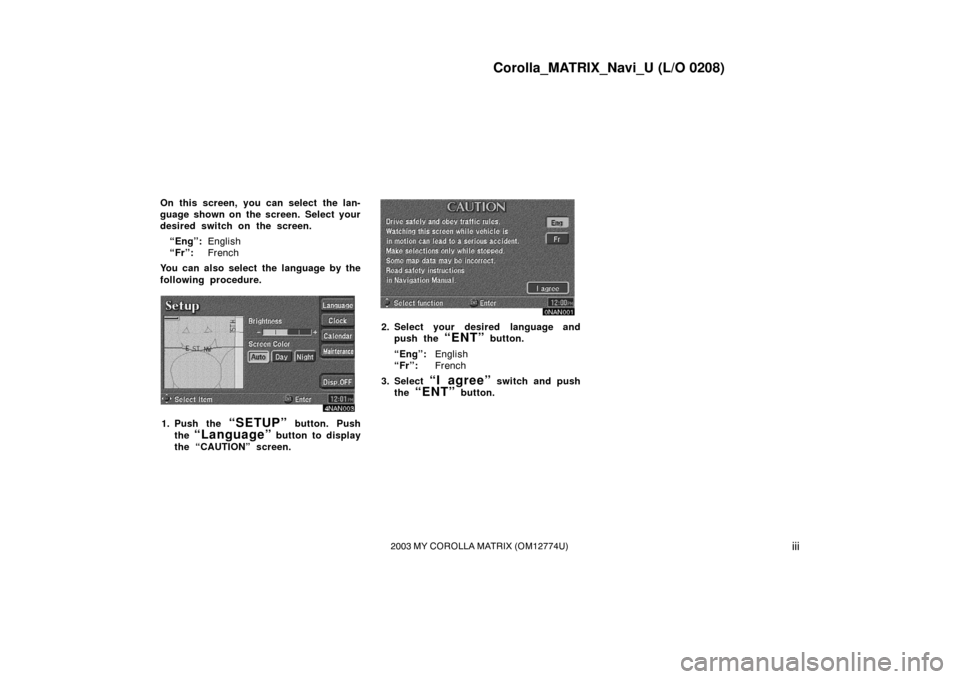

1. Push the “SETUP” button. Push
the
“Language” button to display
the “CAUTION” screen.
0NAN001
2. Select your desired language and push the
“ENT” button.
“Eng”: English
“Fr”: French
3. Select
“I agree” switch and push
the
“ENT” button.

Corolla_MATRIX_Navi_U (L/O 0208)
vi2003 MY COROLLA MATRIX (OM12774U)
Symbols, Switches and Buttons
Northup symbol and scale of map
Indicates north on the map. The
figure also indicates the map scale.
For details, see pages 42 through
43.
“PWR/VOL” knob
Push this knob to turn the
navigation system on and off. For
details, see page 2.
“NAV” button
Push this button to turn the
navigation screen on. When this
button is pressed while the
navigation screen is displayed, it
functions in the same way as the
“MAP” button.
“GPS” mark
(Global Positioning System)
Whenever your vehicle is receiving
signals from the GPS, this mark is
displayed. For details, see page 45.
“SETUP” button
Push this button to display the
“Setup” screen. This screen allows
you to make adjustments or correct
settings of various options and
functions.
“ENT” button/select and scroll lever
In case of selecting the function and
letters or moving cursor, press the
lever to one direction out of 8
directions. In case of deciding the
function after selecting it on the
screen, push the lever as a button. Eject button
Push this button to eject a
DVD
−ROM. DVDROM slot
Put a map data DVD
−ROM into
the slot.
“MAP” button
Push this button to repeat a
guidance voice, cancel the map
scroll and start a guidance. For
details, see page 31.
“DEST” button
Push this button to display the
“Destinations” screen. For details,
see page 4.
“MENU” button
Push this button to display the
“Menu” screen. This screen allows
you to make adjustments or
correct settings of various options
and functions.
Zoom in button
This button magnifies the map
scale. For details, see page 42.
Zoom out button
This button reduces the map scale.
For details, see page 42.
“BACK” button
Push this button when to call out
the previous screen.
Clock
The digital clock indicates the time.
For details, see page 90.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. The direction will be
indicated when your vehicle is off
the route. For details, see page 26.
Operation guide
To display the switch
function on each screen.
Current vehicle position mark
To indicate the current position.
For details, see page 31.

Corolla_MATRIX_Navi_U (L/O 0208)
vii2003 MY COROLLA MATRIX (OM12774U)
Changing the map
directionNZ02622
When the dual screen is displayed, the
left screen can be switched to “North−
up”/“Heading −up”.
Display of Point of
Interest
NZ02623
Symbols such as restaurants and hotels,
etc. can be displayed on the screen. For
details, see page 38. Changing the route
guidance
NZ02624
When you select this switch, the “Change
route” screen will appear. For details, see
page 26.Quick Registration
of marked point
NZ02625
To register the current vehicle position as
a marked point. For details, see page 55.
Changing the map
direction and Point
of Interest display
on the right screenNZ02626
When the map display is shown on the
dual screens, select this to call out the
editing menu (screen) on the right screen.“Headingup”
symbol and scale of
map
On the map, the vehicle travel direction is
up. The red arrow indicates the north.
INFORMATION
The display may be tinged in purple
due to the reflection of sunlight, but
this is not a malfunction.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.

12003 MY COROLLA MATRIX (OM12774U)
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Your navigation system2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Inputting letters and numbers 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to move the cursor 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Destination input Explains 11 ways to input your destination 4
. . . . . . .
Explains 11 ways to input your destination
Entering destination 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Route guidance screen 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Guidance screen 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Map appearance 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Current position display 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Voice guidance adjustment 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registration of your home 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Detour setting 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Displaying points of interest 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn list 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Map scale 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Screen scrolling 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Orientation of the map 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Limitations of the navigation system 45
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 48
. . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

Corolla_MATRIX_Navi_U (L/O 0208)
22003 MY COROLLA MATRIX (OM12774U)
INFORMATION
This navigation unit has a thermal
shut down system. When the tempera-
ture of the unit becomes extremely
high, the unit automatically shuts
down with a beep and warning mes-
sage. When the unit cools down
enough, it automatically returns to op-
eration.
Your navigation system works when the
ignition switch is in the “ACC” or “ON”
position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the navigation
system on longer than necessary
when the engine is not running.
Turning the system on and off
“PWR/VOL”: Push this knob to turn the
navigation system on and off. The system
turns on in the last mode used.
4NAN012
When using the navigation system, if you
push the
“PWR/VOL” knob, the clock
screen is always displayed.
Even after the ignition switch is turned off,
if you push the
“PWR/VOL” knob, the
clock screen is displayed for a few sec-
onds.
Your navigation system

Corolla_MATRIX_Navi_U (L/O 0208)
32003 MY COROLLA MATRIX (OM12774U)
The navigation system can be operated
by buttons on the bezel. To input let-
ters and/or numbers, move the select
and scroll lever to the 8 directions, and
when the letter or number you wish to
input is lit up, push the
“ENT” but-
ton. A beep sound is heard, and the
letter or number is input. Repeat this
procedure to input the name or number,
etc.
1MAN001
If you type a wrong letter, delete it using
the
switch. Selecting the switch
erases one letter. Selecting the
“List” switch on the
screen, the screen will be changed to dis-
play the database items that match the
name or address that you have entered
on the screen. The number of matching
items is shown to the right side of the
screen.
To input numerals, select the
“0–9”
switch and the display will change the
screen to number input display.

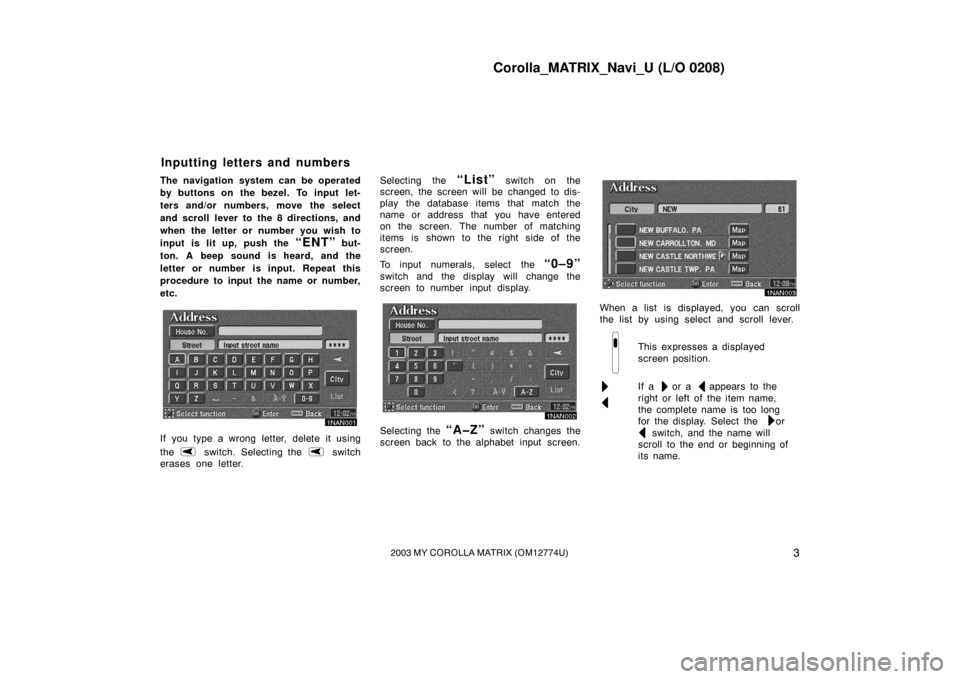

1NAN002
Selecting the “AZ” switch changes the
screen back to the alphabet input screen.
1NAN003
When a list is displayed, you can scroll
the list by using select and scroll lever.
This expresses a displayed
screen position.
If a or a appears to the
right or left of the item name,
the complete name is too long
for the display. Select the or
switch, and the name will
scroll to the end or beginning of
its name.
Inputting letters and numbers

Corolla_MATRIX_Navi_U (L/O 0208)
42003 MY COROLLA MATRIX (OM12774U)
1NAN004
1. Move the cursor to the desired
point by operating the select and
scroll lever. When you release the
lever, scro lling stops.
1NAN005
2. In case of making the position indi-
cated by the cursor
on the dis-
play as a destination, push the
“ENT” button and select your de-
sired switch on the switch menu on
the right of the screen. Push the
“DEST” button and the “Des-
tinations” screen appears.
1NAN100
The “Destinations” screen allows you to
select the area to be searched for your
destination.
To shift to the next or previous
page.
Select the “Change” switch on the
screen to display a map of the United
States divided into 10 regions and a
part of Canada.
How to move the cursor Destination input
