2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
SU73057
3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Front fog lights
SU73052a
1. Turn the bulb base counterclockwise to the front of the vehicle as shown.
2003 ECHO from Aug. ’02 Prod. (OM52481U)

222

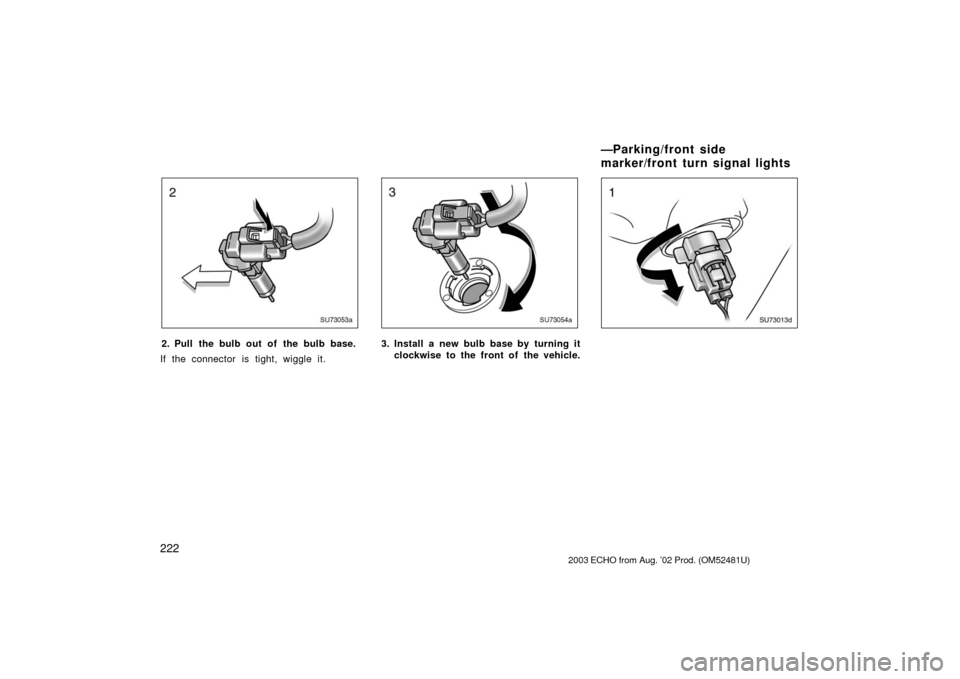

SU73053a
2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.
SU73054a
3. Install a new bulb base by turning it clockwise to the front of the vehicle.
SU73013d
2003 ECHO from Aug. ’02 Prod. (OM52481U)
—Parking/front side
marker/front turn signal lights

223
SU73014bSU73033a
SU73055
SU73056

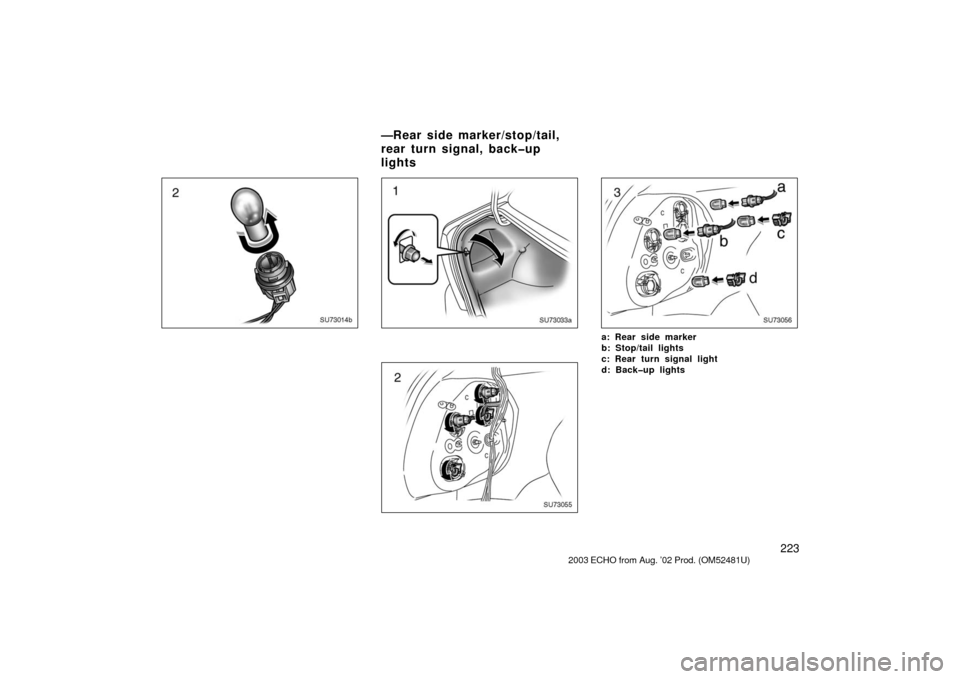

a: Rear side marker
b: Stop/tail lights
c: Rear turn signal light
d: Backup lights
2003 ECHO from Aug. ’02 Prod. (OM52481U)
—Rear side marker/stop/tail,
rear turn signal, backup
lights

224
—License plate lights
SU73034c
SU73025c

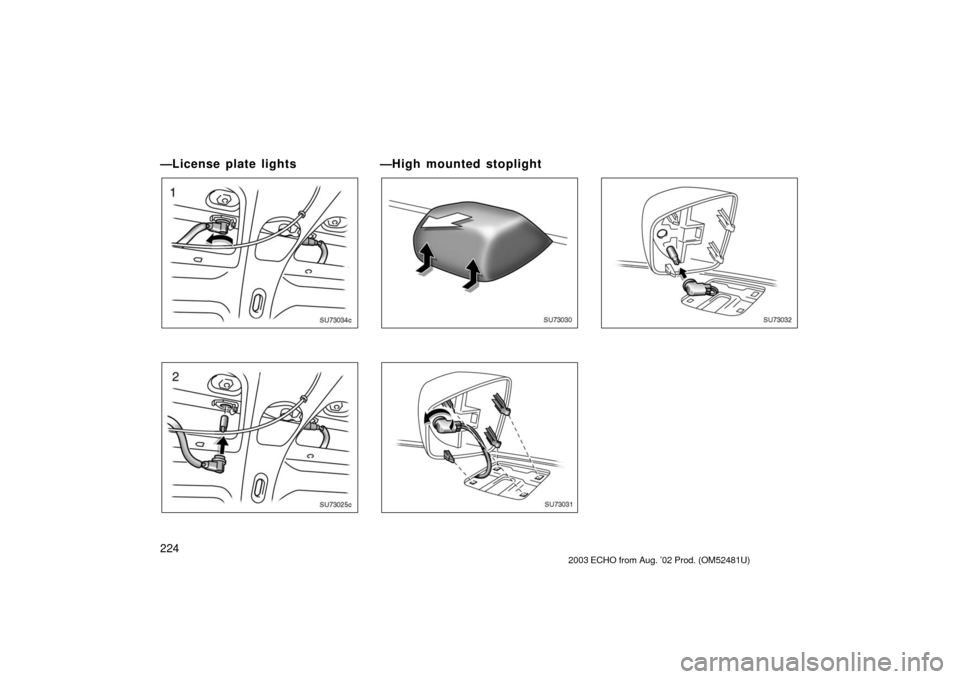

—High mounted stoplight
SU73030
SU73031
SU73032
2003 ECHO from Aug. ’02 Prod. (OM52481U)

225
SPECIFICATIONS
Specifications
Dimensions and weight226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Engine 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 227
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 229
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
2003 ECHO from Aug. ’02 Prod. (OM52481U)
SECTION 8

226
Dimensions and weight
Overall length mm (in.):4180 (164.6)
Overall width mm (in.):
1660 (65.4)
1690 (66.5)
∗1
Overall height mm (in.):
1510 (59.4)∗2
1520 (59.8)∗3
Wheelbase mm (in.):
2370 (93.3)
Front tread mm (in.): 1440 (56.7)
Rear tread mm (in.): 1420 (55.9)
Vehicle capacity weight
(occupants+luggage) kg(lb.):
351 (775)
∗ 1:With Sports Fender And Rocker Panel
Extensions
∗ 2:With P175/65R14 81S tires
∗3:With P185/60R15 84T tires
Engine
Model:
1NZFE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87 (Re-search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 45 (11.9, 9.9)
2003 ECHO from Aug. ’02 Prod. (OM52481U)

227
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO K16RU
NGK BKR5EYA
Spark plug gap, mm(in.): 0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT3373F (used belt), lbf: Generator belt 100 20
Power steering pump belt 65 10
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
“Toyota Genuine Motor Oil” is f illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity. Oil grade:
API grade SL “EnergyConserving” or
ILSAC multigrade engine oil
Please contact your Toyota dealer for fur-
ther details.
Recommended oil viscosity:
SAE 5W30
OIL008
Outside temperature COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
“Toyota Genuine Long Life Coolant” is
filled in your Toyota vehicle. In order to
avoid technical problems, we strongly
recommend using “Toyota Genuine Long
Life Coolant” or equivalent.
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
2003 ECHO from Aug. ’02 Prod. (OM52481U)

228
CLUTCH
Pedal free play, mm (in.):5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1.9 (2.0, 1.7)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90
AUTOMATIC TRANSAXLE Fluid capacity (drain and ref ill),
L (qt., Imp. qt.): 2.9 (3.1, 2.6)
Fluid type: Toyota Genuine ATF Type TIV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type TIV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
55 (2.2)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
