2003 TOYOTA ECHO Owners Manual

77
SP14015
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
SU14014
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
2003 ECHO from Aug. ’02 Prod. (OM52481U)

78
Instrument panel light control
SU14006a
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Front fog lights
SU14015
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
when the tail lights are turned on.
Interior light
SU14007
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the door is opened. The light remains on
for a certain time after all the doors are
closed. When all the doors are locked or
the ignition switch is turned to “ACC” or
“ON” after all the doors are closed, the
light fades out.
2003 ECHO from Aug. ’02 Prod. (OM52481U)

79

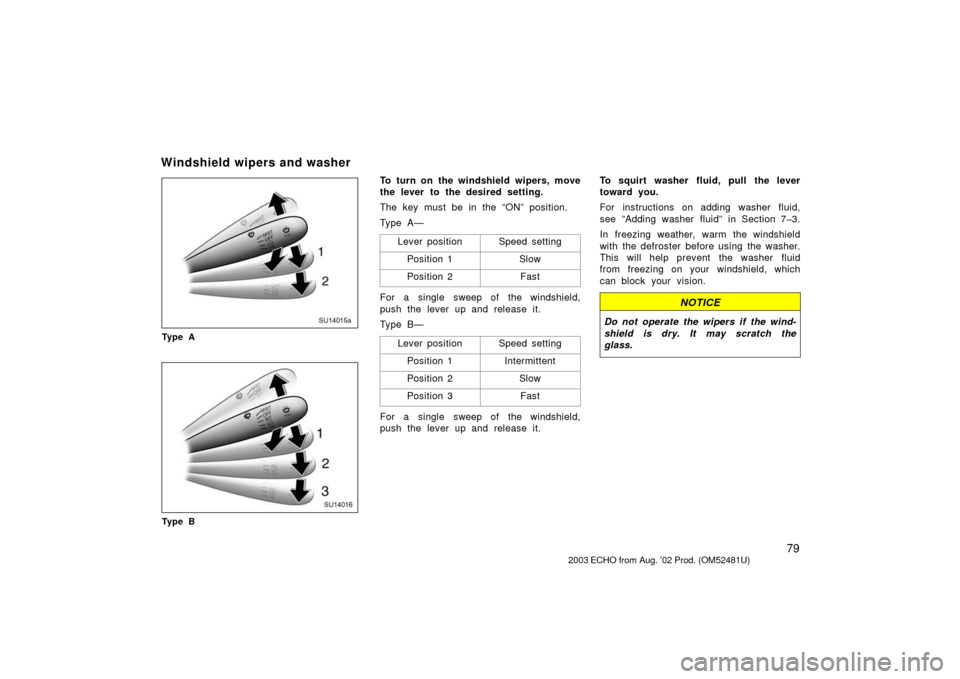

SU14015a
Ty p e A
SU14016
Ty p e B
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Ty p e A —Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B —
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. To squirt washer fluid, pull the lever
toward you.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
2003
ECHO from Aug. ’02 Prod. (OM52481U)
Windshield wipers and washer

80
Rear window defogger
SU14013
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stopand
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE

To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
 When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.
2003 ECHO from Aug. ’02 Prod. (OM52481U)

81
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature indicator and warning light 83
. . . . . . . . . .
Tachometer 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 86
. . . . . . . . . . . . . . .
2003 ECHO from Aug. ’02 Prod. (OM52481U)
SECTION 1 5

82

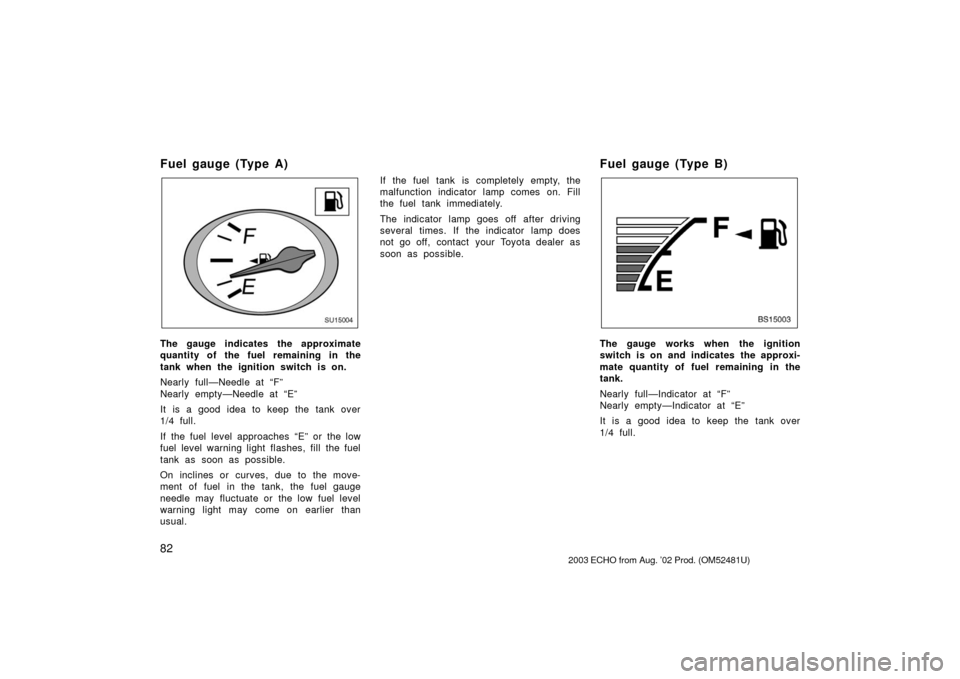

Fuel gauge (Type A)
SU15004
The gauge indicates the approximate
quantity of the fuel remaining in the
tank when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light flashes, fill the fuel
tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Fuel gauge (Type B)
BS15003
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Indicator at “F”
Nearly empty—Indicator at “E”
It is a good idea to keep the tank over
1/4 full.
2003
ECHO from Aug. ’02 Prod. (OM52481U)

83
SU15008
Low fuel level indicator light
If the low fuel level indicator light blinks,
fill the fuel tank as soon as possible.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SU15005
High engine coolant
temperature
warning light in red
Low engine
coolant
temperature
indicator light in
blue
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Toyota dealer
as soon as possible to service the ve-
hicle.If the high engine coolant temperature
warning light flashes, your engine is too
hot. If your vehicle overheats, stop your
vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
NOTICE

Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
Engine coolant temperature
indicator and warning light
(Type A)

84
SU15007
Low engine coolant
temperature indicator
light in blue High engine
coolant
temperature
warning light
in red
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light (red) will come on when the igni-
tion key is turned to the “ON” position.
After a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light (blue)
comes on. If it keeps lighting on with the
engine fully warmed, contact your Toyota
dealer as soon as possible to service the
vehicle.If the high engine coolant temperature
warning light (red) flashes, your engine is
too hot. If your vehicle overheats, stop
your vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
NOTICE

Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 163 in
Section 4.
Tachometer
SH15003
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator get segment
into the red zone. This may cause
severe engine damage.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
Engine coolant temperature
indicator and warning light
(Type B)
