9B-10 LIGHTING SYSTEM Head Lamp Focusing When using the beam setting device
1. The head lamp focus should be adjusted by using a properbeam setting device.
2. Adjust the head lamp focus by using Up/Down, Left/Right adjusting screws.
When using the screen
1. Put the vehicle on the leveling surface.
2. One person is needed to seat on the driver's seat without other loads(CVW) and check the tire pressure if it is in the specification.
3. The distance between the headlamp and the screen is 25m.
4. Draw the vertical line (crossing the center of each headlamp) on the screen.
5. Start the engine.
6. Check if the cut-off line of the headlamp on the screen is in the specification.
1 ) Left/right direction
- The degree of the cross point at the cut-off line of theheadlamp and the vertical line should be 15.
2 ) Up/down direction - The distance between the cut-off line of the headlampand the horizontal line should be 25cm.
7. Adjust the focus if the cut-off line of the headlamp is out of
the specification by using up/down, left/right adjusting screws. A : Up/down direction adjusting screwB : Left/right direction adjusting secrw

LIGHTING SYSTEM 9B-11
Head Lamp Removal & Installation Procedure
1. Unscrew upper 2(10mm) bolts and lower 1(10mm) bolt ofhead lamp.
2. Disconnect connector and remove the headlamp.
3. Installation should follow the removal procedure in the reverse order.
Bulb Replacement
1. Turn the dust cap of the head lamp to the left and removeit.
2. If it is high/low head lamp, loosen the screw and pull out the return spring and replace the bulb.NoticeFor correct installation, check the original position of the return spring and remove.
High/low-beam head lamp replacement High-beam head lamp replacement
3. If it is high-beam head lamp, pull out the return spring
and replace the bulb. Notice Refern to lamp specifications.

9B-12 LIGHTING SYSTEM
Tail/stop and turn signal lamp
Tail/stop Lamp and backup lamp
Rear Combination Lamp Removal & Installation Procedure
1. Open the tailgate and remove the inner cover of the rear
combination lamp.
2. Unscrew 4(8mm) nuts of tail/stop lamp and turn signal lamp assembly.
3. Unscrew 6(8mm) nuts of tail/stop lamp and back-up lamp assembly.
4. Disconnect each connectors and remove the rear combination lamp. Replace with specified bulb, if
necessary. NoticeRefer to lamp specification.

INSTRUMENTATION/DRIVER INFORMATION 9E-3
COMBINATION METER
COMPONENT LOCATOR
1. Speedometer
2. Odometer
3. Trip odometer
4. Tachometer
5. Coolant temperature gauge
6. Fuel gauge
7. Low fuel level warning light
8. Turn signal indicator (left)
9. Turn signal indicator (right)
10. Outside rearview mirror & tailgate heating switch
11. Reset button
12. Auto shift indicator*
13. Door open warning light
14. TCS indicator (equipped with ABD)*
21. ABS warning light* 22. EBD warning light*
23. ECS / SPORT warning light*
24. 4 - wheel warning light*
25. 4 - wheel high indicator
26. 4 - wheel low indicator
27. WINTER indicator
28. POWER indicator
29. High beam indicator
15. Alternator warning light
16. Engine oil pressure warning light
17. Brake system warning light
18. Glow indicator light (For Diesel engine)
19. Airbag warning light*
20. Seat belt reminder

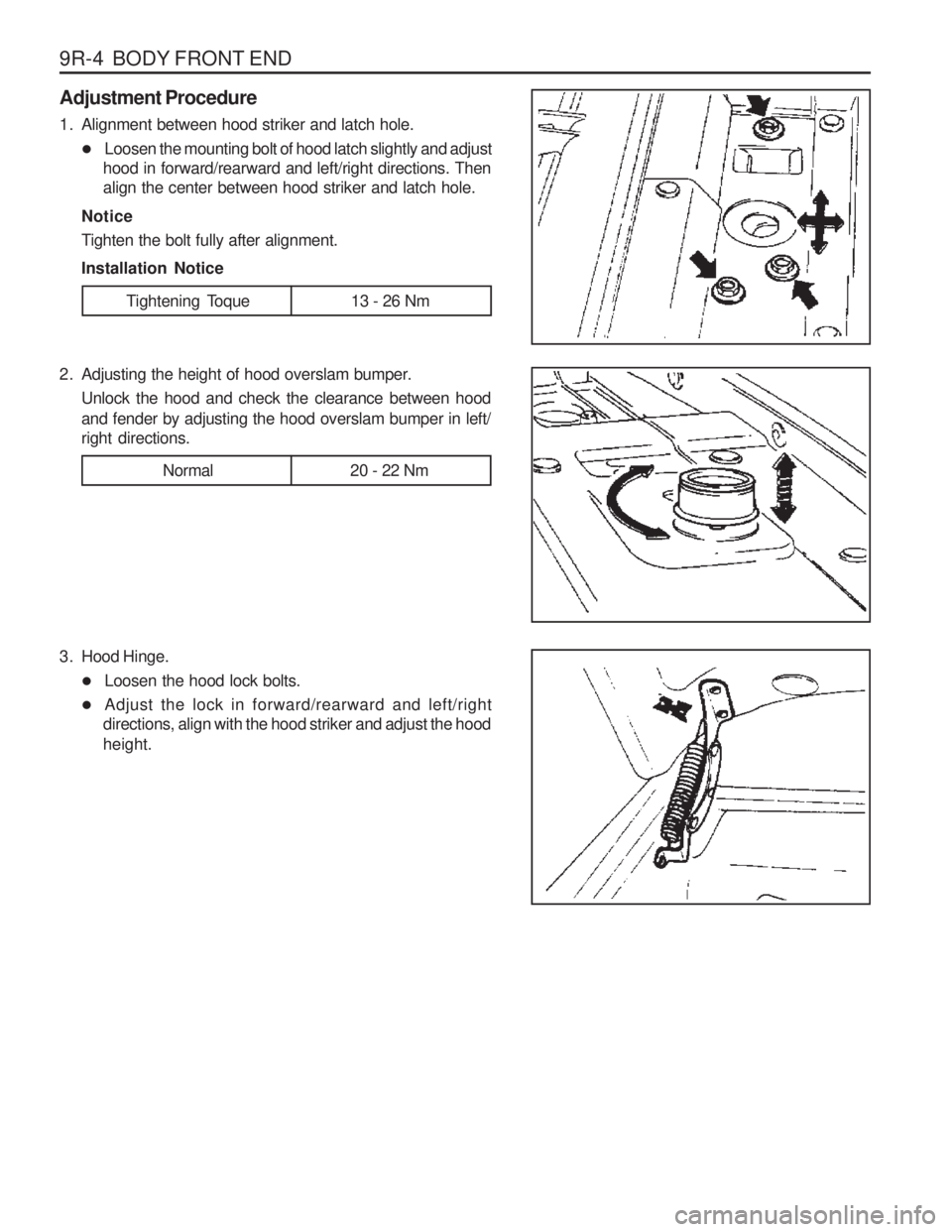

9R-4 BODY FRONT END Adjustment Procedure
1. Alignment between hood striker and latch hole. Loosen the mounting bolt of hood latch slightly and adjust
hood in forward/rearward and left/right directions. Then align the center between hood striker and latch hole.
Notice
Tighten the bolt fully after alignment. Installation Notice
Tightening Toque 13 - 26 Nm
2. Adjusting the height of hood overslam bumper. Unlock the hood and check the clearance between hood and fender by adjusting the hood overslam bumper in left/ right directions.
Normal 20 - 22 Nm
3. Hood Hinge. Loosen the hood lock bolts.
Adjust the lock in forward/rearward and left/right
directions, align with the hood striker and adjust the hood height.

CONTROL UNITS AND SYSTEM 9U-3
FUNCTION DESCRIPTION
STICS Operating Functions
NO.Application Deseription
1 Wiper INT sensing vehicle speed By operating INT time control volume, variable time will be changed within 1.5 - 20 seconds.
2 Washer relating wiper Wiper begins to operate within 0.6 - 1 sec when the washer switch is ON and it operates 3 times after the washer switch is OFF while the IGN2 switch in ON.
3 Dimming room lamp
When room lamp is coupled with door, it turns on if door is opened. After closing the door it maintains 2 seconds of lightingand dims off whithin 3 seconds.
4 Time delayed power window control Power window can be operated within 30 seconds after turning
the IGN1 switch from ON to OFF. If driver ’s/passenger ’s door is
opened within the 30 seconds, time will be prolonged for more 30 seconds from that moment.
5 Rear defogger timer The rear defogger will be operated for 12 min. by turning ON the defogger switch while engine is running.
Defogger will be stopped by pushing the switch again.
The defogger will be operated 6 min, if push ON the switch within10 min. after 12 min. of operation.
6
Seat belt warning The warning lamp will be turned on for about 6 sec. with an intermittent chime bell when the IGN. switch is ON unlessfastening the seat belt.
7 Parking brake warning
The indicator lamp will flash if drive while the parking brake is applied.
8 Tail lamp lighting warning When the driver ’s door is opened while the tail lamp is still ON,
the buzzer operates intermittently. In this condition, the door will be automatically unlocked when it locked.
9 Door ajar warning
The indicator lamp will be blinking when the door is not closed completely and driving.
10 IGN key reminder
The chime will be operated intermittently if the driver ’s door is
opened while the IGN key is still remaining in the ignition switch. In this condition, the door will be automatically unlocked when itlocked.
11 Central door lock All doors will be locked/unlocked by locking/unlocking the driver ’s or passenger ’s door.

9U-6 CONTROL UNITS AND SYSTEM
5. Rear defogger timerT1 : 12±2 min.
T2 : within 10±1 min.
T3 : 6±1 min.
6. Seat belt warning timer T1 : 6±1 sec.
T2 : 0.3±0.1 sec.
T3 : 0.6±0.1 sec.
7. Parking brake warning T1 : 0.3±0.1 sec.
T2 : 0.3±0.1 sec. V1 : 3km/h - 5km/h
8. Tail lamp lighting warning
When the driver ’s door is opened after removing the IGN
key while the tail lamp switch is still ON, the buzzer should be operated.
T1 : 0.3±0.1 sec.
T2 : 0.3±0.1 sec.
