4F-14 ANTILOCK BRAKE SYSTEM
Description
- When measured by multi - meter (AC) : output voltage > 70 mV
- When measured in oscilloscope :
output voltage 120 mV/P-P
Replace the sensor.
Check wire for ground and open.
Check connection of the wheel speed sensor con-
nector and ECU side connector.(Standard air gap : 0.15 - 1.20 mm)
Check output voltage of the sensor by rotating the wheel 1/2 - 1 revolution per second and shaking sen- sor wire.
- When measured by multi - meter (AC) :
output voltage > 70 mV
- When measured in oscilloscope :
output voltage 120 mV/P-P
Replace the sensor.
Check wire for ground and open.
Check connection of the wheel speed sensor con-
nector and ECU side connector.
Measure air gap between wheel teeth and wheelspeed sensor and check installation of wheel tooth.(Standard air gap : 0.15 - 1.20 mm)
Check output voltage of the sensor by rotating thewheel 1/2 - 1 revolution per second and shaking sen- sor wire.
- When measured by multi - meter (AC) :
output voltage > 70 mV
- When measured in oscilloscope : output voltage 120 mV/P-P
Replace the sensor.
Check number of teeth on the wheel rotor and itscondition.
- Number of teeth : 52
Check valve relay voltage.
Check connection of connector and terminals in the
ECU and hydraulic modulator.
Check ground.
Check terminals for open or short.(When connector is removed)
Replace the hydraulic modulator.
Defect Code
09 10
11
12 Application
Rear/left Wheel Speed Sensor (Signal) Rear/right Wheel Speed Sensor (Signal) Wheel Rotor
Valve Relay

4F-16 ANTILOCK BRAKE SYSTEM
Description
Check terminals for open or short. (When connector is removed)
Replace the hydraulic modulator.
Check each valve by using SCANNER's solenoid valve overriding function.
Check connection of connector and terminals in the
ECU hydraulic modulator.
Check terminals for open or short. (When connector is removed)
Replace the hydraulic modulator
Check solenoid internal resistance of the prime(ASV) valve and pilot valve(USV) : 8.04 - 9.04
Check each valve by using SCANNER's solenoid valve overriding function.
Check connection of connector and terminals in the
ECU and hydraulic modulator.
Check terminals for open or short.(When connector is removed)
Replace the hydraulic modulator
Check solenoid internal resistance of the prime(ASV)valve and pilot valve(USV) : 8.04 - 9.04
Check each valve by using SCANNER's solenoid valveoverriding function.
Check connection of connector and terminals in the
ECU and hydraulic modulator.
Check terminals for open or short.(When connector is removed)
Replace the hydraulic modulator
Check each valve by using SCANNER's pump motoroverriding function.
Check resistance between pump motor ground ter-minal and battery negative terminal : total resistanceshould be less than 15 m
Check body ground location.
Check relay supply voltage : IGN on : 11 - 14 V
Relay coil internal resistance : 70 - 80
Replace the hydraulic modulator
Check by using SCANNER's stop lamp switch diag-nosing function from sensor value output function.
Check connection of ECU connector side stop lamp switch terminal.
Check resistance of the stop lamp, switch.
- Each end resistance value of the switch
Application
Rear / Right OUTLET Valve Function and Response of The
Valve Function and Response of The
Valve Motor Relay / Circulation Pump Stop Lamp SwitchDefect Code
20 21 2224 27

5D2-32 TRANSFER CASE (TOD)
Phenomenon “4L ” lamp on cluster continuous blinking and can not go off,
when operated 4H/4L switch as 4L « 4H.
CauseShifting failure.
1. Stop the vehicle
2. Return the 4H/4L switch to first position (before
operating).
- The blinking of 4L indicator lamp is stopped.
NoteIf the first position before switch operating is ‘4L ’ ,
lamp goes on after stopping blink, otherwise it is ‘4H ’ lamp goes off.
3. Reoperate 4H/4L switch to 4H 4L on the below
condition. Positioned Auto T/M to neutral.
 At this time, keep the neutral position for 2 second.
 Stop the vehicle (The R.P.M of front & Rear propeller
shaft is below 80).
4. ‘4L ’ lamp blinks based on 0.3 second.
5. When the shifting is engaged, the blinking of ‘4L ’ lamp
is stopped.
-4H 4L : goes on ‘4L ’ lamp
-4L 4H : goes on ‘4L ’ lamp
6. When the ‘4L ’ indicator lamp continuous blinking,
repositioned to first position and diagnose the system and then fix it. Ye s
No
G1
Ye sNo
Test Stage / Contents
Result
Stage T est Contents and Procedure Specified Value
/Yes/No Countermeasure
Perform 2 stage Diagnose TOD control unit Normal system Perform system test Auto T/N positioned to neutral Check/Replace therelay

FATC-HAVC 7D-5

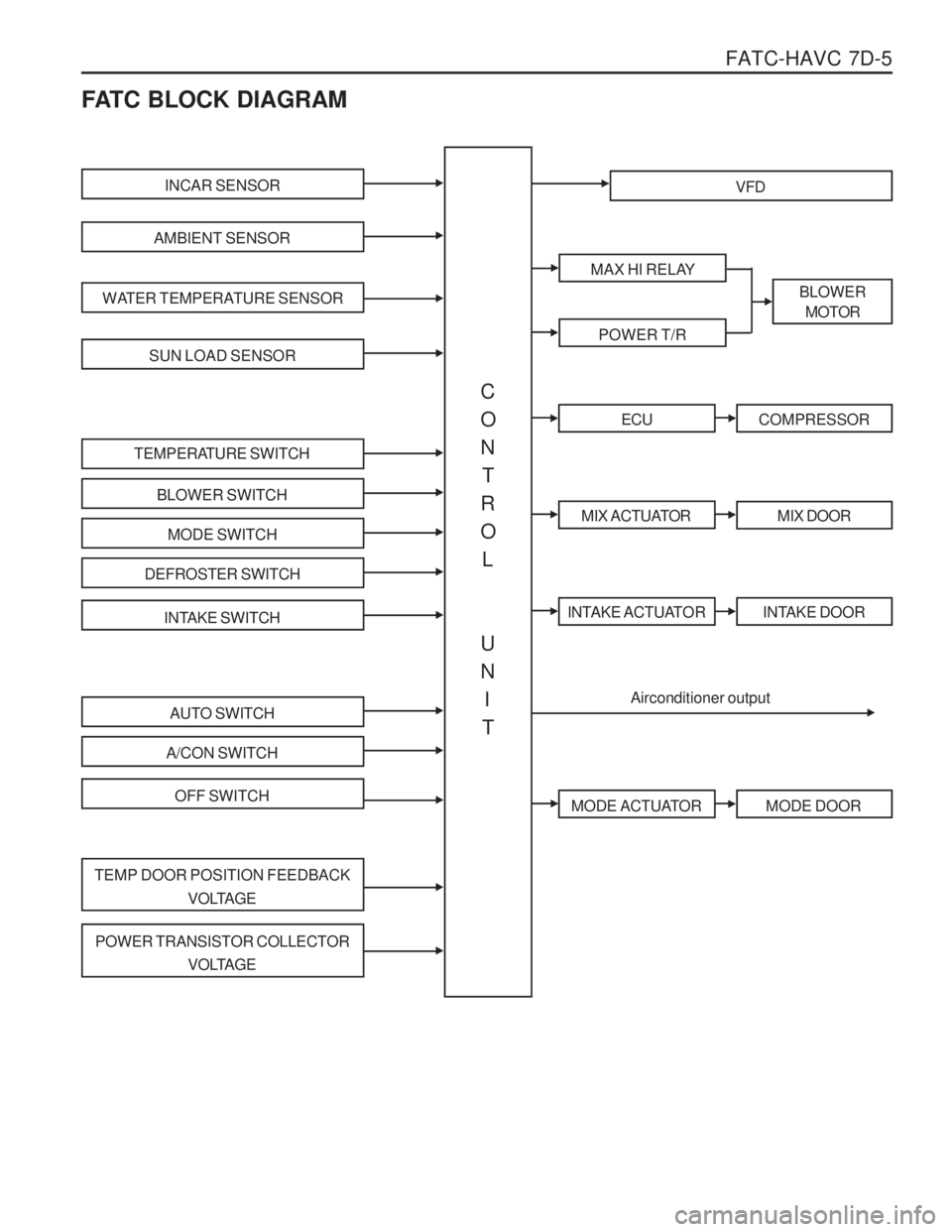

FATC BLOCK DIAGRAM
INCAR SENSOR
AMBIENT SENSOR
WATER TEMPERATURE SENSOR
SUN LOAD SENSOR
TEMPERATURE SWITCH
BLOWER SWITCH
MODE SWITCH
DEFROSTER SWITCH
INTAKE SWITCH
AUTO SWITCH
A/CON SWITCH
OFF SWITCH
TEMP DOOR POSITION FEEDBACKVOLTAGE
POWER TRANSISTOR COLLECTORVOLTAGE
VFD
MAX HI RELAY
POWER T/R
BLOWERMOTOR
ECUCOMPRESSOR
MIX ACTUATORMIX DOOR
INTAKE ACTUATORINTAKE DOOR
MODE ACTUATORMODE DOOR
Airconditioner output
C ON
T
RO L
UN I
T

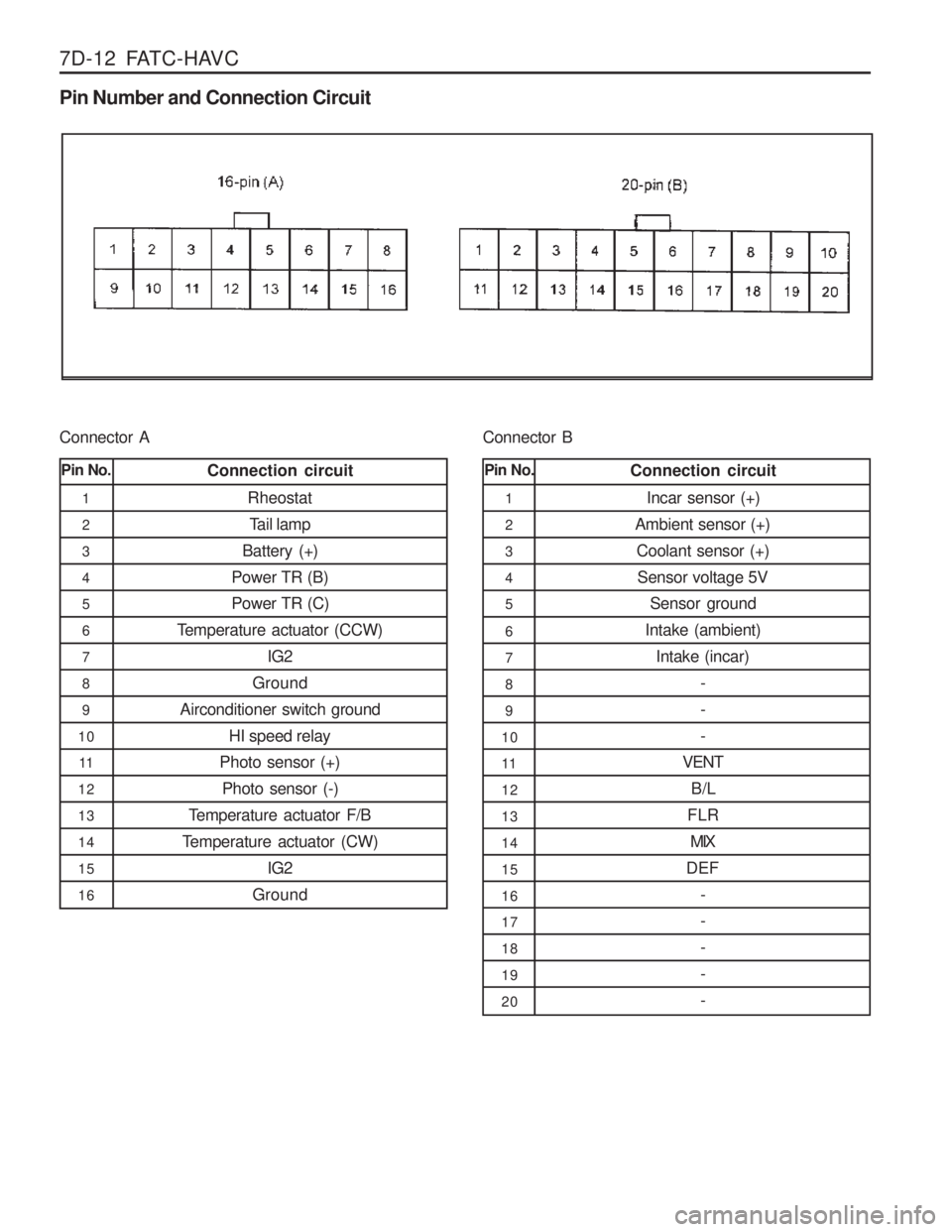

7D-12 FATC-HAVC Pin Number and Connection Circuit
Pin No.1 Connection circuit
2 3456789
10 11
1213141516
Rheostat Tail lamp
Battery (+)
Power TR (B) Power TR (C)
Temperature actuator (CCW) IG2
Ground
Airconditioner switch ground HI speed relay
Photo sensor (+)
Photo sensor (-)
Temperature actuator F/B
Temperature actuator (CW) IG2
Ground
Connector A
Pin No.
1 Connection circuit
2 345 6 789
101112131415
Incar sensor (+)
Ambient sensor (+) Coolant sensor (+)
Sensor voltage 5V Sensor ground
Intake (ambient) Intake (incar)
- --
VENT
B/L
FLR MIX
DEF
--- - -
Connector B
17 18
19
20
16

SUPPLEMENTAL RESTRAINT SYSTEM(SRS) 8B-19
Air Bag Horn (Relay) Remote Control (Electronic Circuit)
CLOCK SPRING
General SpecificationVoltage
Rating Operating VoltageCurrent Rating Air Bag Circuit Resistance Isolating ResistanceRotating Range DC 12V
DC 6 - 18V
10 - 30mA(6A,0.1second)
200 - 220mA
15mA
0.16 - 0.38 (-40°C - 85°C)
5M
2.7 - 3.1 Rotation from neutral Position to Both Sides
Notice
Clock spring can not be repaired.
Do not disassemble or modify.
To adjust to the center position, rotate clockwise until it stops and then rotate it counterclockwise 2.3 ± 0.2revolutions and align marks. If not, airbag system can
not work normally and driver can be injured seriously.

SECTION 9A
BODY WIRING SYSTEM
Schematic and Routing Diagrams . . . . . . . . 9A-2
Power Distribution . . . . . . . . . . . . . . . . . . . . . . 9A-2
Starting & Charging (Gasoline HFM) . . . . . . . 9A-3
Starting & Charging (Diesel) . . . . . . . . . . . . . . 9A-4
Fuse Box and Relay . . . . . . . . . . . . . . . . . . . 9A-5
Location of Connectors by
Wiring Harness . . . . . . . . . . . . . . . . . . . . . 9A-7
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A-7
Engine Room . . . . . . . . . . . . . . . . . . . . . . . . 9A-11
Floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A-13
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A-14
Driver's Door . . . . . . . . . . . . . . . . . . . . . . . . . 9A-15
Passenger's Door . . . . . . . . . . . . . . . . . . . . . 9A-15
TABLE OF CONTENTS
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.
Rear Left Door . . . . . . . . . . . . . . . . . . . . . . . 9A-16
Rear Right Door . . . . . . . . . . . . . . . . . . . . . . 9A-16
Tail Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9A-17
Semi Automatic Air Conditioner . . . . . . . . . . 9A-18
Full automatic Air Conditioner . . . . . . . . . . . . 9A-19
Gasoline Engine (MSE) . . . . . . . . . . . . . . . . 9A-20
Gasoline Engine (HFM) . . . . . . . . . . . . . . . . 9A-21
Diesel Engine . . . . . . . . . . . . . . . . . . . . . . . . 9A-22
Manual Transmission . . . . . . . . . . . . . . . . . . 9A-23
Automatic Transmission (BENZ) . . . . . . . . . . 9A-24
Automatic Transmission (BTRA) . . . . . . . . . . 9A-25
Driver's Seat . . . . . . . . . . . . . . . . . . . . . . . . . 9A-26

BODY WIRING SYSTEM 9A-5

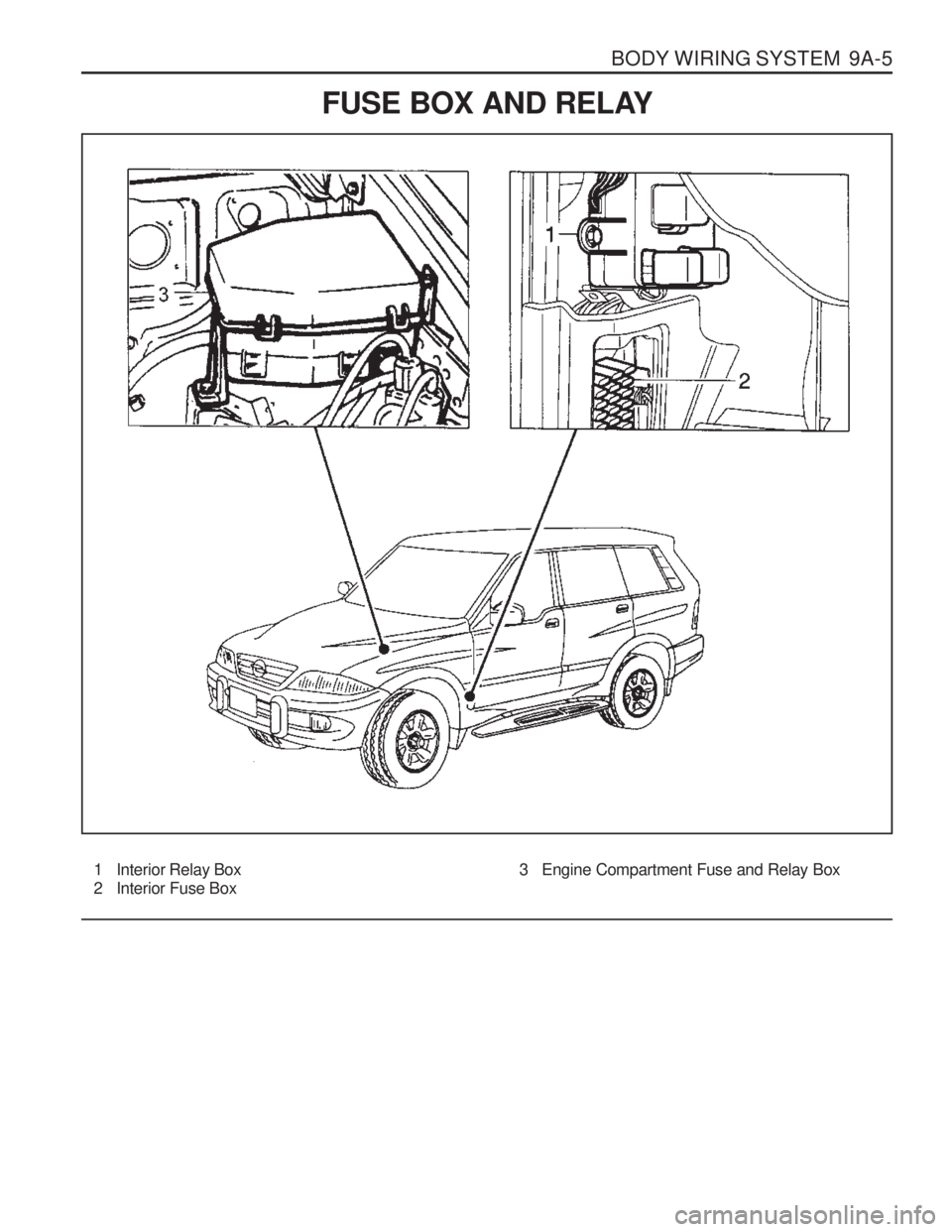

FUSE BOX AND RELAY
1 Interior Relay Box
2 Interior Fuse Box
3 Engine Compartment Fuse and Relay Box
