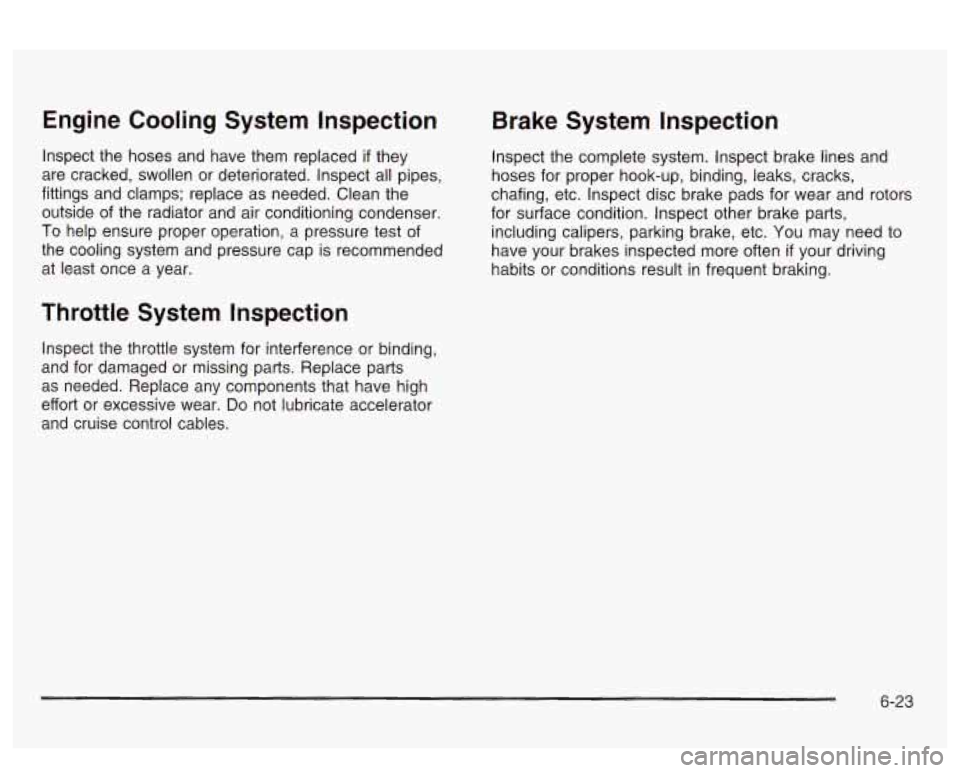

Engine Cooling System Inspection
Inspect the hoses and have them replaced if they
are cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the
outside of the radiator and air conditioning condenser.
To help ensure proper operation, a pressure test of
the cooling system and pressure cap is recommended
at least once a year.
Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as needed. Replace any components that have high
effort or excessive wear.
Do not lubricate accelerator
and cruise control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. You may need to
have your brakes inspected more often
if your driving
habits or conditions result in frequent braking.
6-23

Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number or specification may be obtained from your
dealer.
I Usaae I Fluid/Lubricant I
Engine Oil Engine
oil with the American
Petroleum Institute Certified for
Gasoline Engines starburst symbol
of the proper viscosity. To determine
the preferred viscosity for your
vehicle's engine, see
Engine Oil on
page
5- 75.
Engine
Coolant 50/50 mixture
of clean, drinkable
water and use only DEX-COOL
Coolant. See
Engine Coolant on
Daae
5-26. L ,"
Hydraulic Delco
Supreme 11 Brake Fluid or
Brake System equivalent DOT-3 brake fluid.
Usage I Fluid/Lubricant I
GM Optikleen Washer Solvent or Washer
Solvent equivalent.
Chassis Lubricant
(GM Part No.
US.
12377985, in Canada 88901242, or Parking Brake
Cab'e Guides equivalent) or lubricant meeting
requirements of NLGI #2, Category
Power GM Power Steering Fluid (GM Part
Steering No.
US. 1052884,
in Canada
System 993294, or
equivalent).
Automatic DEXRON@-Ill Automatic Transaxle Transmission Fluid. LB
or GC-LB.
Multi-Purpose Lubricant, Superlube
Key Lock
Canada 10953474, or equivalent). Cylinders (GM Part No. U.S. 12346241, in
Supercharger Oil (GM Part
No. U.S.
Supercharger
See Supercharger Oil on page 5-21.
12345982, in Canada 1095351 3).
6-24
