2003 Peugeot 406 Break headlamp

17-02-2003
11 -Driver's air bag. Horn.
12 - Windscreen wash-wipe stalk.
Trip computer stalk.
13 - Radio remote control stalk.
14 - Steering lock and ignition.
15 - Electric mirror controls.Window controls.Rear window locking control.
16 - Electronic Stability Programme (ASR/ESP)switch.
17 - Headlamp height adjustment.
18 - Fuse box.
19 - Steering wheel adjustment.
20 - Cruise control.
21 - Rear ashtray. 22 -
Cup-holder.
23 - Handbrake.
24 - Heated seat switches. Passenger air bag disarming switch. Alarm button.
25 - Lighter.
26 - Rear footwell heating vent.
27 - Front ashtray.
28 - Gear lever.
29 - Radio.
30 - Heating/ventilation controls.
31 - Multifunction display.
YOUR 406 AT A GLANCE
3
1 - Speaker (tweeter) location.
2 - Window demisting vent.
3 - Side adjustable heating/ ventilation vent and air flowregulation.
4 - Glove box.
5 - Passenger air bag.
6 - Windscreen demistingvents.
7 - Central adjustable heating/ventilation vents and air flowregulation.
8 - Hazard warning lightsswitch.
9 - Lights and directionindicators stalk. Arming/disarming of automatic switching on oflights.
10 - Instrument dials.

Automatic wipe In the AUTO position, the
windscreen wiper ope- rates automatically andadapts its speed to theintensity of the rainfall .
Front/rear fog lamps (ring B)
Turn the ring towards the front to switch on and towards the rear to
switch off. On/off status is dis-played by the indicator light onthe instrument panel.
Front fog lamps(1st rotation of the ringforwards).Front fog lampsand rear fog lamp(2nd rotation of thering forwards).
STEERING WHEEL
STALKS LIGHTING
Front and rear lights (ring A)
Lights off. Side lights.Dipped/main beam headlamps. Automatic illumination ofheadlamps. WINDSCREEN WIPERS Front
2 Rapid wipe (heavy rain)
1 Normal wipe(moderate rain)
AUTO Automatic wipe
0 Off


Single wipe
Windscreen wash: pull the stalktowards you.
Rear
Intermittent Wash/
Off wipe wipe
YOUR 406 AT A GLANCE
5
124126
17-02-2003

17-02-2003
MAINTENANCE OF YOUR 406 23

All driving conditions. oArduous conditions. * According to destination.
A AND C SERVICES AND THE INTERMEDIATE VISIT
- Oil filter.- Fuel filter (Petrol only).- Fuel filter element (Diesel only).- Air filter element.- Spark plugs (Petrol only).HPI
- Operation of lights and indicators.- Condition of glass, headlamp & light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers.- Condition of rubber boots and gaiters.- Brake pads. o- Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check (Petrol only).- Smoke opacity (Diesel only).- Passenger compartment filter (according to specification).o- Visual check of the whole vehicle.
DRAIN and REFILL
REPLACE
LEVELS
CHECK

ROAD TEST
- Courtesy vehicle.
SERVICE*
Level
Operation Description of OperationFirst ServiceA C Intermediate- Engine oil.- Bleed fuel filter (Diesel only).
- Engine oil (check + top-up).- Gearbox level (check + top-up).- Battery level (check + top-up) if cap is removable.- Front/rear screen wash level (check + top-up).- Coolant level (check + top-up).- Brake fluid level (check + top-up).- Power steering fluid level (check + top-up, according to specification).

17-02-2003
INSTRUMENT PANEL DIALS: PETROL/DIESEL1 - Fuel filler cap warning light.
2 - Door open warning ligt.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Service indicator, oil level and
total distance recorder.
19-Right-hand direction indicator.
10 - Speedometer.
11 - Clogging of the particulate emission filter warning light(Diesel).
12 - Front fog lamps indicator light.
13 - Rear fog lamp indicator light.
14 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only).
15 - Low coolant level warning light.
YOUR 406 IN DETAIL 127
16 -
Coolant temperature indicator.
17 - Trip recorder zero reset.
18 - Hand-brake and low brake fluid level warning light.
19 - Seat belt not fastened warning light.
20 - Air bags warning light.
21 - ABS system warning light.
22 - Engine diagnostics warninglight*.
23 - Battery charge warning light.
24 - Diesel engine preheating indicator light.
25 - Passenger air bag disarmingwarning light.
26 - Water in diesel filter warninglight.
27 - Front brake pad wear warninglight.
28 - Engine oil pressure warninglight.
29 - Electronic immobiliser warninglight.
30 - Lighting rheostat.
31 - Fuel gauge.
32 - Low fuel level warning light.
* According to engine.

17-02-2003

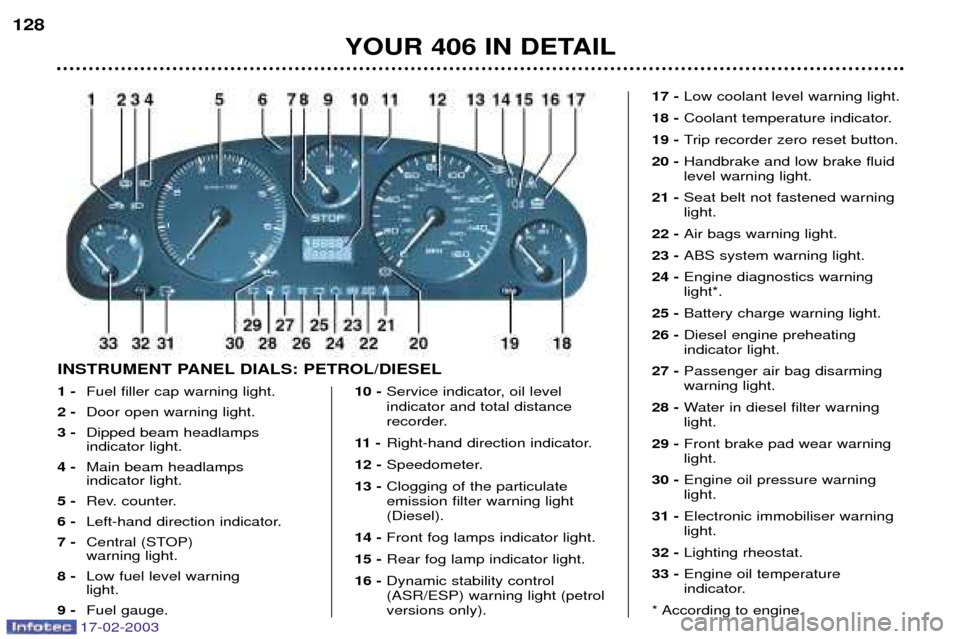

1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indicator and total distance
recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light (petrolversions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine preheating indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warninglight.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warning light.
32 - Lighting rheostat.
33 - Engine oil temperature
indicator.
* According to engine.
YOUR 406 IN DETAIL
128
INSTRUMENT PANEL DIALS: PETROL/DIESEL

17-02-2003
YOUR 406 IN DETAIL129
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level
and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamp indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warning light.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine pre-heating
indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warning
light.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Operating programmes.
32 - Gear lever position indicator.
33 - Electronic immobiliser warninglight.
34 - Lighting rheostat.
35 - Engine oil temperature.
* According to engine.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

17-02-2003
Front fog lamps and rear fog lamp (2nd for-wards turn of the ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringtwice backwards.
Direction indicators(flashers) Left:downwards.
Right: upwards.
THE LIGHTS STALK Front and rear lightsSelection is by turning ring A.
Lights off Side lights on Dipped/main beam headlamps Automatic switching on of lights Dipped/Main beam change Pull the stalk towards you.Note:
with the ignition off, if the dri-
ver's door is open, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards to switch
on and backwards to switch off. The status is confirmed by the light on theinstrument panel.
Front fog lamps (1st for-wards turn of the ring)
YOUR 406 IN DETAIL
124
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are daz-
zling and are prohibited.Do not forget to switch them offwhen they are no longer need-ed.

17-02-2003
AUTOMATIC SWITCHING ON OF THE LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. This function is active when the vehicle
is supplied to the customer.
To disarm or activate the function: Place the key in the accessories position (1st notch),
 Press the end of the lights stalkfor more than two seconds.
Note: In foggy weather, the bright-
ness sensor can detect sufficientlight. Because of this, the lights do
not come on automatically. Do not cover the brightness sen-
sor connected to the rain sensor,located in the windscreen behind
the mirror. It is used for automaticswitching on of the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting of
the headlamps activated" on the
multifunction display. Note: Always operate the lighting
controls manually where this is pos- sible. Disarming Disarming of the function is accom- panied by an audible signal and themessage "Automatic lighting of
the headlamps deactivated" on the
multifunction display. When driving, if this function is
switched off when the headlampswould switch on in automatic mode,the lights remain on. It is however possible to disarm this
function and switch off the lights by:
Ð manually switching off the lights using the lights stalk,
Ð switching off the engine.
YOUR 406 IN DETAIL 125
If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come on).The driver is alerted by the flashing ofthe ''dipped beam'' warning light on theinstrument panel.
Contact a PEUGEOT dealer to have the system checked. Follow me Home When there is a low level of bright- ness or at night, if you leave yourvehicle, the side lights and thedipped beam lights may remain onfor approximately one minute.
To do this: place the lights stalk in the AUTO
position,
 place the key in the accessories position (first notch),
 press the end of the lights stalk for
more than two seconds,
 place the lights stalk in the 0posi-
tion,
 flash the headlamps,
 get out of the car and lock it.
