Rear screen wiper (estate)
Turn ring Ato the first notch,
for intermittent wiping. Rear screen wash (estate)
Turn ring Abeyond the first
notch; the windscreen wash then the windscreen wiperoperate for a fixed period.
WINDSCREEN WIPER STALK Front windscreen wipers2 Rapid wipe (heavy rain)
1 Normal wipe (moderate rain).
AUTO Automatic wipe
0 Off.

Single wipe (press downwards).
Operation In position 1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, thenresumes its initial speed when thevehicle starts again. When the ignition has been switched off for more than a
minute with the stalk in the AUTOposition, it is necesary to reacti-vate this function. To do this, move
the stalk to any position, then move itback to the AUTOposition. Automatic windscreen wiper In the
AUTO position, the wipers
operate automatically and adjust
their speed to the intensity of the rainfall .
Operating check Switching on Activation of the function is accom- panied by the message "Automatic
windscreen wiper actuated" on the
multifunction display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in downgrademode.
Contact a PEUGEOT dealer to have the system checked.
YOUR 406 IN DETAIL
126
Do not mask the rain detector located on thewindscreen behind the
interior mirror.
If you take the vehicle to anautomatic car wash, switch off theignition or check that the windscreenwiper stalk is not in the automaticposition.
In Winter, it is advisable to wait for complete de-icing of the wind-screen before switching on theautomatic wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and head- lamp wash operate simultaneouslyfor two seconds, only if the head-
lamps are on .

17-02-2003
Automatic day/night interior mirror This automatically and gradually changes between the day and night positions.
To prevent dazzling, the glass of the mirror darkens automatically depending onthe intensity of the light from behind. It clears as the light (headlamps of follow-
ing vehicles, sunlight) decreases, ensuring maximum visibility. Operation Switch on the ignition and press switch 1:
Ð Indicator light 2lit (switch pressed): automatic operation.
Ð Indicator light 2off: automatic system off. The mirror remains at its most clear.
Special feature
To ensure maximum visibility during manoeuvres, the mirror clears automatical- ly when reverse gear is engaged.
YOUR 406 IN DETAIL 143
AREAS FOR TOLL
CARDS/CAR PARK TICKETS The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing tollcards and/or car park tickets.
Manual interior mirror The interior mirror has two positions:
Ð day (normal),
Ð night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.

17-02-2003
HORN Press one of the spokes or the centre of the steeringwheel.
HEADLAMP ADJUSTMENT Depending on the load in your vehicle, it is recommended that theheadlamp beam is adjusted.0 1 or 2 people in the front seats.
Ð 3 people.
1 5 people.
2 5 people + maximum authorised load.
3 Driver + maximum authorised load.
Initial setting is position 0. Hazard warning lights Press the button, the direction indi- cators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
A.
Adjust the height and depth of thesteering wheel, then lock it by pushinghandle Adown fully.
YOUR 406 IN DETAIL
144
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time youaccelerate.
It is also possible to switch them off by pressing the button.* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406
26
1.8 litre 16V and 2 litre 16V petrol engines 1 -
Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406 27
2 litre 16 valve HPI petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406
28
2.2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406 29
3 litre 24 valve V6 petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406
30

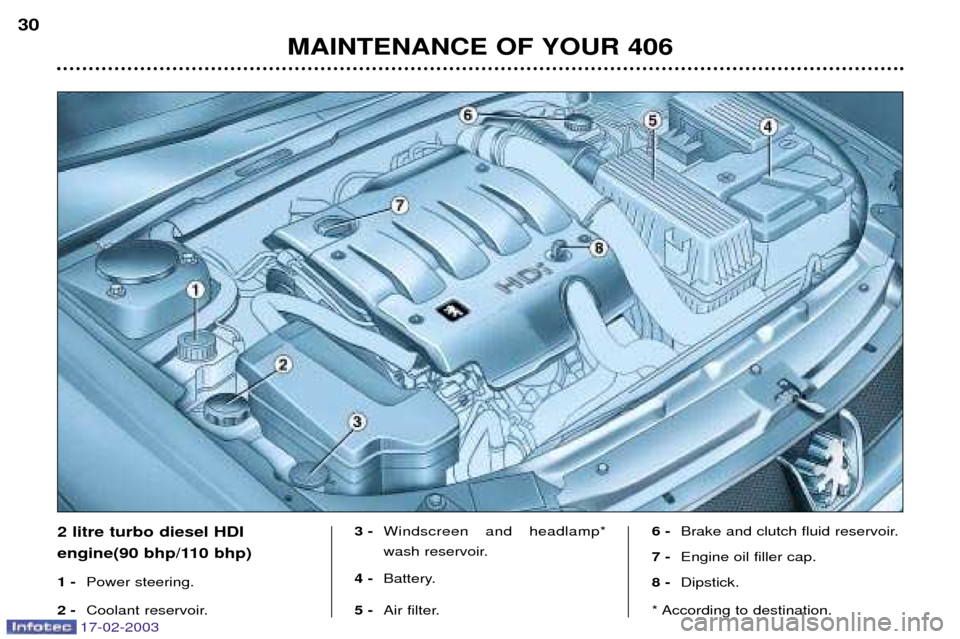

2 litre turbo diesel HDI
engine(90 bhp/110 bhp) 1 -
Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.
