MAINTENANCE OF YOUR 406 31
2.2 litre 16V turbo diesel HDI engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp* wash
reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
CHECKING THE LEVELS Oil levelCheck the level regularly and top up between changes. Maximum con-sumption is 0.5 litres per 600 miles(1 000 km). The oil level should be checked with the vehicle level and the engine coldusing the oil gauge or the dipstick.Dipstick There are two marks on the dipstick: A= maximum
Never fill past this mark.B = minimum
To maintain the reliability of the engines and of theemission control systems,the use of additives in theengine oil is prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
Note: avoid any prolonged contact of
used oil with the skin.
Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments.
MAINTENANCE OF YOUR 406
32
Brakes and clutch level:
Ð The level should always be
between the DANGER and MAX
marks on the reservoir.
Ð If the level drops substantially, con- tact a PEUGEOT dealer imme-
diately.
Fluid change:
Ð must be carried out according to the manufacturer's servicing schedule.
Ð use fluids recommended by the manufacturer, which fulfil DOT4standards.
Note: the brake fluid is noxious and
very corrosive. Avoid any contactwith the skin. Coolant level Use the fluid recommended by the
manufacturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan. Because this fan
can operate with the ignition off andbecause the cooling system is pres-surised, wait for at least one hourafter the engine has stopped beforecarrying out any work. To avoid any risk of burns, slackenthe cap to the first notch to releasethe pressure. When the pressure hasdropped, remove the cap and top upthe level. Used products Do not dispose of used oil, brake fluid or coolant down drains or on theground. Power steering fluid level Open the reservoir with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp* wash fluid level For best quality cleaning and for your
safety, we recommend that you use
products recommended by PEUGEOT.
* According to destination.

17-02-2003
Amber bulbs must be replaced by bulbs of iden-tical specification and
colour.
In certain weather conditions (lowtemperatures, humidity), the pres-
ence of condensation on theinside of the headlamp glass isnormal ; it disappears a few min-
utes after the lights have beenswitched on.
CHANGING A BULB 1 - Dipped beam headlamps 2 - Main beam headlamps 2 bulbs (H7-55 W)
Ð Press the tab and remove the protective cover corresponding to the faulty bulb.
Ð Disconnect the connector.
Ð Press the end of the securing clip to remove it. Change the bulb.
Ð When fitting, ensure that the direction notches are positioned correctly and that the securing clip is corrrectly fixed.
Ð Reconnect the connector.
Ð Refit the protective cover. 3 - Side lights (W 5 W)
Turn the socket using the lever and remove it. Change the bulb.
4 - Direction indicators (P 21 W)
Turn the bulb holder a quarter turn and remove it. Change the bulb. Note: only handle H7 bulbs using a dry cloth.
To replace the left-hand bulbs, remove the protective battery cover. Direction indicator (WY 5 W)
Ð Pull the rear section of the trans-
parent cover and release the
assembly.
Ð Turn the connector a quarter turn and remove it.
Ð Change the bulb.
MAINTENANCE OF YOUR 406 37

17-02-2003

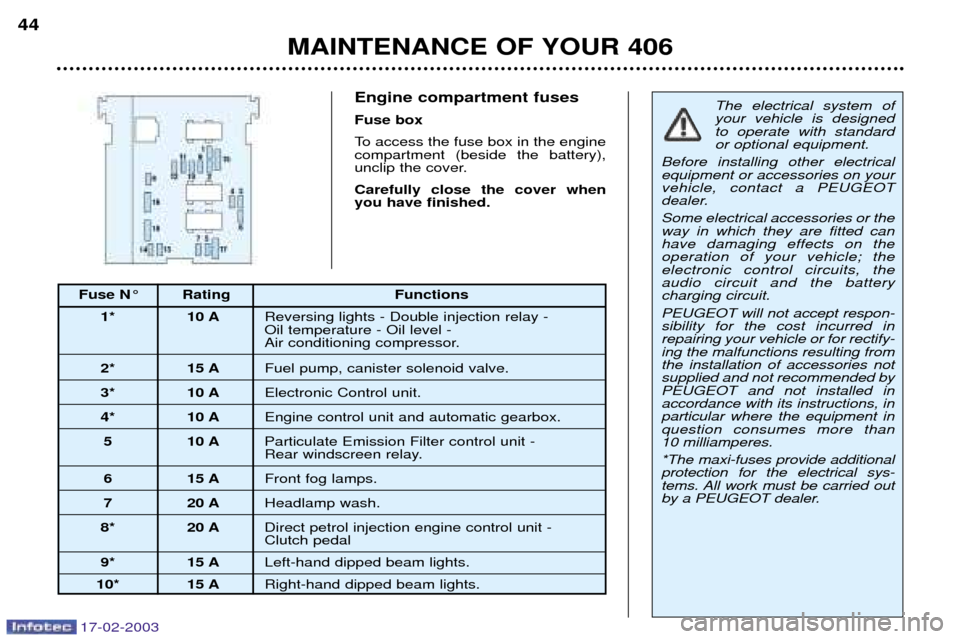

Fuse N¡ Rating Functions1* 10 A Reversing lights - Double injection relay - Oil temperature - Oil level -
Air conditioning compressor.
2* 15 A Fuel pump, canister solenoid valve.
3* 10 AElectronic Control unit.
4* 10 AEngine control unit and automatic gearbox.
5 10 A Particulate Emission Filter control unit -
Rear windscreen relay.
6 15 A Front fog lamps.
7 20 AHeadlamp wash.
8* 20 A Direct petrol injection engine control unit -
Clutch pedal
9* 15 A Left-hand dipped beam lights.
10* 15 A Right-hand dipped beam lights.
Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fitted canhave damaging effects on theoperation of your vehicle; theelectronic control circuits, theaudio circuit and the batterycharging circuit. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for rectify-ing the malfunctions resulting fromthe installation of accessories notsupplied and not recommended byPEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment inquestion consumes more than
10 milliamperes. *The maxi-fuses provide additional protection for the electrical sys-
tems. All work must be carried out
by a PEUGEOT dealer.
MAINTENANCE OF YOUR 406
44
