Low coolant level warning light Linked to the central STOPwarning light.
This comes on for approximately 3 seconds each time the ignition is switched on.
This warning light is accompanied by an audible signal and the message "Top
up coolant" on the multi-function display.
Stop immediately.
Warning: Allow the engine to cool before topping up. Central STOP warning light This light comes on each time the ignition is switched on. It is linked to the "engine oil pressure", ''oil temperature'', ''coolant level low'', ''brake fluid level'', "electronic brake force distribution
fault' and ''coolant temperature gauge'' warning lights. Stop immediately if it flashes with the engine running.
Contact a PEUGEOT dealer.
Engine oil pressure warning light Linked to the central STOPwarning light.
If it comes on with the engine running, it is accompanied by an audible signal and the message ''Oil pressure low''or ''Top up engine oil'' on
the multi-function display.
Stop immediately.If there is a lack of oil in the lubrication circuit, top up the level.
Contact a PEUGEOT dealer without delay.
INSTRUMENTS AND CONTROLS
AA permanently lit warning light or one that flashes with the engine run- ning, indicates an operating fault in the relevant unit. Some warning lights
may be linked to buzzers and a message on the multi-function display. Donot ignore this warning: contact a PEUGEOT dealer as soon as possible.
If the Central STOP warning light comes on when you are driving, stopimmediately where it is safe to do so. The cooling system is pressurised.
To prevent the risk of scalding, uns- crew the cap by two turns to allowthe pressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Handbrake and low brake fluid levelwarning light Linked to the central STOP
warning light. This comes on each time the ignition is switched on. Illumination of this light is accompa- nied by an audible signal and a mes-sage on the multi-function displayindicating the cause of the warning: - ''Handbrake on'' , if the handbrake
is applied or has not been released
correctly,
- ''Low brake fluid level'' if there is
an excessive drop in the brakefluid (if the light remains on evenwith the handbrake released),
- ''Brake system problem'' is dis-
played simultaneously with theABS light, indicating a malfunctionof the electronic brake force distri-bution.
Stop immediately.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
30

14-04-2003
Battery charge warning lightThis comes on each time
the ignition is switched on.
If it comes on with the engine run-
ning, it is accompanied by an audible signal and a message "Low battery
charge" on the multi-function dis-
play. It can indicate:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals,
- a cut or slack alternator belt,
- an alternator fault.
Contact a PEUGEOT dealer.
ABS warning light This light comes on for 3 seconds each time the igni-tion is switched on.
If it remains on or comes on above 8mph (12 kmh), this indicates a mal-
function of the ABS.
However, the vehicle retains conven- tional servo-assisted braking. Illumination of this light is accompa- nied by an audible signal and themessage ''ABS system problem''
on the multi-function display.
Contact a PEUGEOT dealer.Electronic stability programme (ESP/ASR) warning light
This comes on for 3 seconds each time the ignition is switched on. If the light remains on or comes on when the engine is running and thevehicle is moving, it is accompanied by an audible signal and the mes-
sage ''ESP/ASR system not operational'' on the multi-function display; contact
a PEUGEOT dealer.
Diesel pre-heat light This comes on each time the ignition is switched on
Wait until it goes out before trying the starter.
Water in diesel filter warning light (according to country) Illumination of this warning light is accompanied by an audible signal and the message ''Water in diesel filter'' on the multi-function display.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer a soon as possible. Engine diagnostics warning light This comes on each time the ignition is switched on. If it comes on with the engine running, accompanied by an audible signal and the message on the multi-function display:
- ''Emission control system problem'' , it indicates a malfunction in the emis-
sion control system.
- ''Diesel additive low level'' or "Risk of clogging of particulate emission fil-
ter" indicates a malfunction in the particulate emission filter (due to exceptio-
nally prolonged urban driving conditions: reduced speed, long traffic jams, ...).
To regenerate the filter, you are advised to drive, as soon as possible when traf-fic conditions permit, at a speed of 35 mph (60 km/h) or above for at least fiveminutes (until the warning light goes out). If the warning light remains on,
contact a PEUGEOT dealer.
If it flashes when the engine is running, accompanied by an audible signal andthe message ''Catalytic converter faulty'' on the multi-function display, it indi-
cates a malfunction in the injection or ignition system. There is a risk of damageto the catalytic converter (petrol engines only).
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS 31

14-04-2003
Passenger air bag disarmed indicator light Illumination of this warning light is accompanied by an audible signal and the message "Passenger air bag disarmed" on the multi-function
display.
If the passager air bag is disarmed, the indicator light comes on when the igni-tion is switched on and remains on.
In all cases, if the warning light flashes; contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, this indicator light comes on when the driver's seat belt is not fastened.Low fuel level warning light. The warning light comes on for three seconds when the ignition is switched on. When this light comes on with the engine running, it is accompa-
nied by an audible signal and the message "Fuel level low"on the multi-func-
tion display.When the warning light comes on, you have enough fuel to drive at least 30 miles (50 km) . The tank capacity is approximately 60 litres.
This light flashes to indicate a malfunction of the fuel gauge.
Contact a PEUGEOT dealer. Air bag warning light This light comes on for a few seconds when the ignition is switched on.
Illumination of this warning light, with the engine running, is accompa-
nied by an audible signal and the message "Air bag fault"on the multi-
function display indicating : - a fault in the front air bags,or- a fault in the side air bags or curtain air bags.

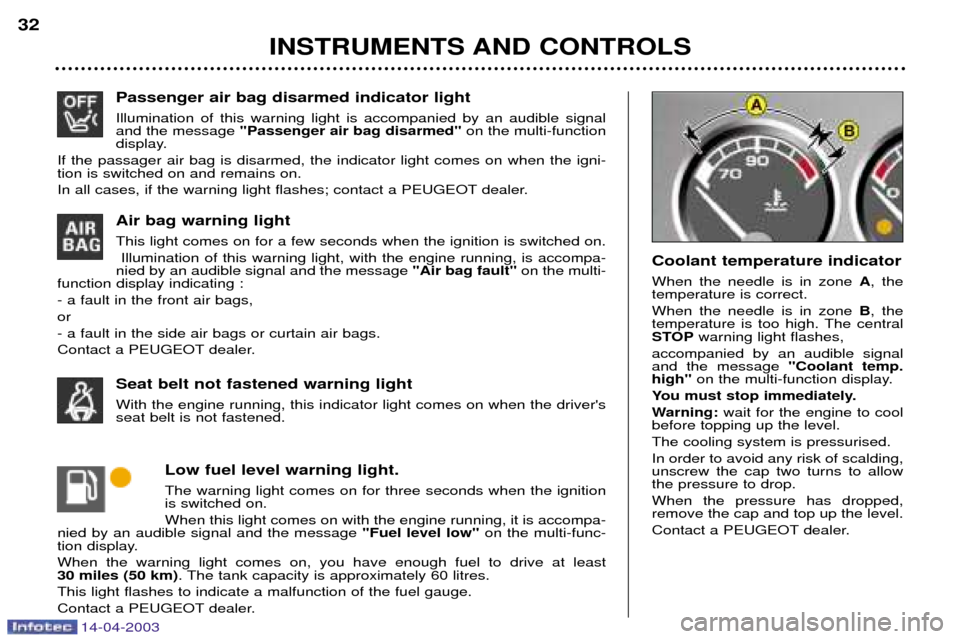

Contact a PEUGEOT dealer. Coolant temperature indicator When the needle is in zone
A, the
temperature is correct. When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes,
accompanied by an audible signaland the message "Coolant temp.
high" on the multi-function display.
You must stop immediately.
Warning: wait for the engine to cool
before topping up the level. The cooling system is pressurised.In order to avoid any risk of scalding, unscrew the cap two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
32

14-04-2003
Passenger air bag disarmed indicator light Illumination of this warning light is accompanied by an audible signal and the message "Passenger air bag disarmed" on the multi-function
display.
If the passager air bag is disarmed, the indicator light comes on when the igni-tion is switched on and remains on.
In all cases, if the warning light flashes; contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, this indicator light comes on when the driver's seat belt is not fastened.Low fuel level warning light. The warning light comes on for three seconds when the ignition is switched on. When this light comes on with the engine running, it is accompa-
nied by an audible signal and the message "Fuel level low"on the multi-func-
tion display.When the warning light comes on, you have enough fuel to drive at least 30 miles (50 km) . The tank capacity is approximately 60 litres.
This light flashes to indicate a malfunction of the fuel gauge.
Contact a PEUGEOT dealer. Air bag warning light This light comes on for a few seconds when the ignition is switched on.
Illumination of this warning light, with the engine running, is accompa-
nied by an audible signal and the message "Air bag fault"on the multi-
function display indicating : - a fault in the front air bags,or- a fault in the side air bags or curtain air bags.
Contact a PEUGEOT dealer. Coolant temperature indicator When the needle is in zone
A, the
temperature is correct. When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes,
accompanied by an audible signaland the message "Coolant temp.
high" on the multi-function display.
You must stop immediately.
Warning: wait for the engine to cool
before topping up the level. The cooling system is pressurised.In order to avoid any risk of scalding, unscrew the cap two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
32

14-04-2003
Instrument panel display After switching on the ignition, three functions are shown in succession: - service indicator (see corresponding section),
- engine oil level indicator,- total distance recorder (total and trip distances).Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level indicator When the ignition is switched on, the engine oil level is indicated for approxima- tely 10 seconds, after the servicing information.
Surplus oil Flashing indicates a surplus of oil which can cause damage to the engine.If the surplus of oil is confirmed by checking using the dipstick,
contact a PEUGEOT dealer without delay. No oil Flashing indicates a lack of oil which can cause damage to the engine.If the lack of oil is confirmed by checking using the dipstick, it isessential to top up the level. Oil level gauge fault Check the oil level using the dipstick.
If the level is correct, the flashing indicates a true engine oil levelgauge fault.
Contact a PEUGEOT dealer. Lighting rheostat With the lights on, press the button tovary the intensity ofthe lighting on theinstrument panel andthe multi-function dis-
play. When the ligh-
ting reaches the minimum (or maxi-mum) setting, release the buttonthen press it again to increase (orreduce) the brightness. As soon as the lighting is of the required brightness, release the but-ton.
Trip recorder zero reset With the ignition on, press the button.
INSTRUMENTS AND CONTROLS
34
The value obtained by checking the level using the dipstick is only correct if the vehicle has been on level ground, with the engine off, for more than 10 minutes.

14-04-2003
YOUR 307 SW IN DETAIL35
MULTI-FUNCTION SCREENS Presentation Monochrome screen B This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (the ¡C
symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the openings (doors, bonnet ...),
- the warning messages (e.g. "Battery charge fault") or informa- tion messages (e.g. "Passengerair bag disarmed") displayed tem-porarily can be cleared by pressingbutton 1or 2,
- the trip computer (see correspon- ding section).Monochrome screen CT and colour screen DT These two systems are controlled by the RT3 audio/telephone keypad.
They enable the following informa-tion to be displayed:
- the time,
- the date,
- the outside temperature (a messa- ge warns you when there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the telematic system displays (telephone, services, ...),
- the status of the openings (doors, bonnet, ...),
- the warning messages (e.g. "Fuel level low") and vehicle functionsstatus messages (e.g. "Passengerair bag disarmed") displayed tem-
porarily,
- the trip computer display (see cor- responding section),
- the satellite navigation system dis- plays (see corresponding section).
Note: to enable you to use all of your
system's functions, you have two CDROMs: one, "Configuration",contains the software and thevarious display and spoken informa-
tion languages, the other,"Navigation", contains the satellitenavigation system map data. Monochrome screen CT General menu Press the
"MENU"button to access
the general menu and select one of
the following applications:
- navigation - guidance (see section "Satellite navigation system"),
- trip computer (see corresponding section),
- audio/telephone" section),
- telematics (see "RT3 audio/tele- phone" section),
- configuration (see corresponding section).

14-04-2003
COMPACT DISC : AUDIO RD3 Selecting CD modeAfter insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, press button Q.
Ejection of a disc Press button Sto eject the disc from the player.
Selecting a track Press button Lto select the next track.
Press button Nto return to the start of the current track or to select the previous track.
Accelerated play Press and hold button Lor Nfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle (RDM)When the CD player is selected, press and hold button Qfor two seconds. The tracks will be played in random sequence.
Pressing the button again for two seconds returns you to normal play.
Shuffle mode is de-activated each time the set is switched off.
YOUR 307 SW IN DETAIL 49
The use of copied compact discs may cause faults.
Insert circular compact discs only.

14-04-2003
YOUR 307 SW IN DETAIL71
CD CHANGER
This is located in the centre of the fascia under the radio. It holds up to 5 discs.
To load the changer, insert the discs with the printed side upwards.
To remove a disc, press and hold one of the buttons "1"to "5" .
The use of copied compact discs may cause faults.
Insert circular compact discs only.
