2003 OLDSMOBILE AURORA Owners Manual

GM Vehicle Care/Appearance
Materials
See your GM dealer for more information on purchasing
the following products.
GM Vehicle Care/Appearance Materials
I Description I Usage I
Polishing Cloth
Wax-Treated Interior
and exterior
polishing cloth.
Tar and Road
Oil
Remover Removes
tar, road oil and I asphalt.
Chrome Cleaner and Use on chrome or
I Polish stainless steel.
White Sidewall Tire
Cleaner Removes
soil and black
marks from whitewalls.
Vinyl Cleaner Cleans
vinyl tops,
upholstery and
convertible tops.
GM Vehicle Care/Appearance Materials
(cont’d)
Description
Chrome and Wire Wheel
Cleaner Finish Enhancer
Swirl Remover
Polish
Cleaner Wax
Foaming Tire Shine Low
Gloss
Usage
Removes dirt, grime,
smoke and fingerprints.
Removes dirt and grime
from chrome wheels and
wire wheel covers.
Removes dust,
fingerprints, and surface
contaminants, Spray on
wipe
off.
Removes swirl marks,
fine scratches and other light surface
contamination.
Removes light scratches
and protects finish.
Cleans, shines and
protects in one easy step,
no wiping necessary.
5-88
ProCarManuals.com

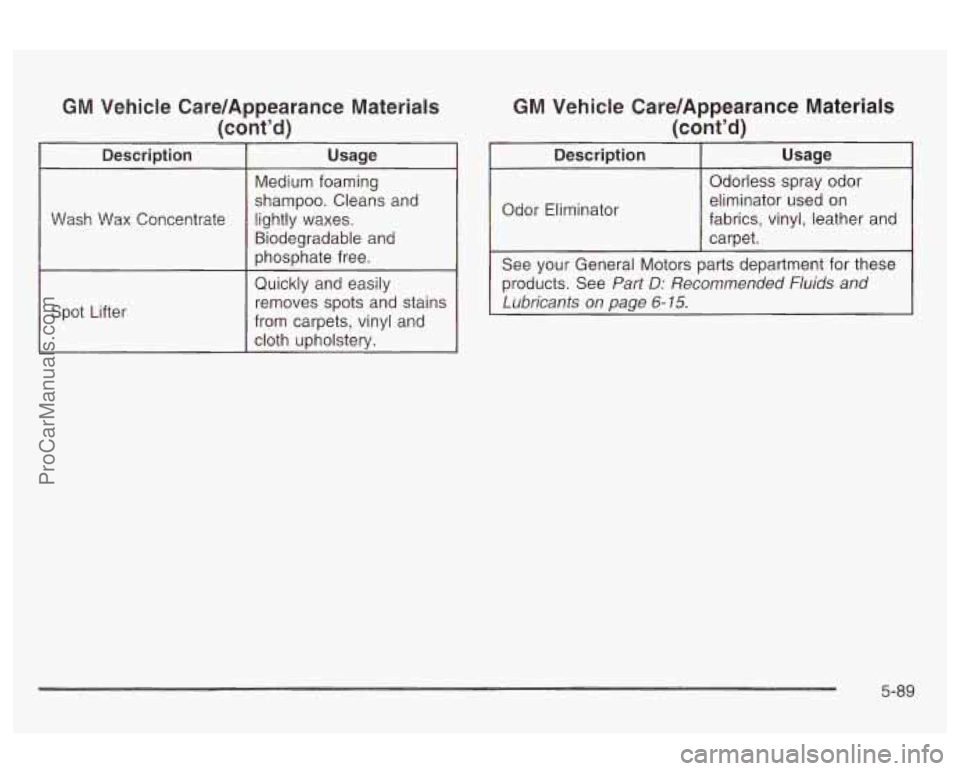

GM Vehicle Care/Appearance Materials
(cont’d)
Spot Lifter
GM Vehicle Care/Appearance Materials
(cont’d)
Description Usage
Odorless swav odor
Odor Eliminator eliminator
ked on
fabrics, vinyl, leather and
carpet.
See your General Motors parts department for these
products. See
Part D: Recommended Fluids and
Lubricants
on page 6- 15.
5-89
ProCarManuals.com

Vehicle Identification
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver’s side. You can see it
if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the underside of the spare tire
cover.
It’s very helpful if you ever need to order
parts. On this label is:
your VIN,
the model designation,
paint information and
a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
5-90
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
Nofice: Don’t add anything electrical to your
vehicle unless
you check with your dealer first.
Some electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as they
should.
Your vehicle has an air bag system. Before attempting
to add anything electrical to your vehicle, see
Servicing Your Air Bag-Equipped Vehicle on page 1-54.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the wiring harness. An electrical overload will cause
the lamps to go on and
off, or in some cases to remain
cff. if this hqppns, hawe p1r headlamp system
checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse, If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, have it fixed.
Power Windows and Other Power
Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is fixed.
5-91
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires
caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating. If a MaxiFuse@ should blow, see your
dealer for service immediately.
If you ever have a problem on the road and don’t have
a spare fuse, you can “borrow” one that has the
same amperage. Pick some feature of your vehicle that
you can get along without
- like the radio or cigarette
lighter
- and use its fuse, if it is the correct amperage.
Replace it as soon as you can. You will find a fuse puller
clipped in both
of the fuse blocks. Snap the wide end
of the fuse puller at the side indentations and pull
the fuse out.
The MaxiFuses@ are located in two fuse blocks, one
located in the engine compartment and the other under
the rear seat. If a MaxiFuse@ should blow, have your
vehicle serviced by your dealer immediately.
Engine Compartment Fuse Block
The engine compartment
fuse block is located near
the front on the
Comparfment Oiewiew on
page 5-14 for more
information on location.
Lift the cover to gain access. Fuse
22 or 23 can be
moved
to the outer position to provide continuous power
to the accessory power outlet or cigarette lighter
when the ignition is not on. See your dealer for
additional assistance,
if needed.
Leaving an accessory on for a long period of time can
drain the vehicle’s battery.
5-92
ProCarManuals.com

Fuses
1
2
3
4
5
6 - 1
Usage
Not Used
Accessory
Windshield Wipers
Not Used Left Low-Beam Headlamp
Right Low-Beam Headlamp
Spare Fuses
8
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24
25
26
Usage Powertrain Control Module Battery
Right High-Beam Headlamp
Left High-Beam Headlamp
Ignition
1
Not Used
Transaxle Cruise Control Direct Ignition System
Injector Bank #2
Not Used
Not Used
Powertrain Control Module Ignition
Oxygen Sensor
Injector Bank
#I
Auxiliary Power
Cigarette Lighter Fog Lamps/Daytirne Running Lamps
Horn
Air Conditioning Clutch
5-93
ProCarManuals.com

Relays 27
28
29 30
31
32
33
34
35
36
37
38
39
40 Usage
High-Beam Headlamp
Low-Beam Headlamp
Fog Lamps
Daytime Running Lamps
Horn
Air Conditioner Clutch
HVAC Solenoid
Accessory
Air Pump
Starter
1
Cooling Fan 1
Ignition 1
Cooling Fan Series/Parallel
Cooling Fan 2 Circuit
Breakers
41
Fuses 42
43
44
45
46
47
48
49
50
51
52
53 Usage
Starter
Usage
Not Used Empty
ABS
Air Pump A
Cooling Fan
1
Cooling Fan 2
Spare
Spare
Spare
Spare
Spare Fuse Puller
5-94
ProCarManuals.com

Removing the Rear Seat Cushion
To access the battery and rear compartment fuse
panels, the rear seat cushion
must be removed. This
procedure is somewhat difficult. You may wish to have
your dealer do this for you.
Notice: The battery and main fuse blocks are
located under the rear seat cushion. The battery’s
ground terminal and some relay wires are exposed.
To help avoid damage to the battery and wires,
be careful when removing or reinstalling the seat
cushion.
Do not remove covers from covered parts.
Do not store anything under the seat, as objects
could touch exposed wires and cause a short.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release the
2. Pull the cushion up and out toward the front of the
front hooks.
vehicle.
To reinstall the rear seat cushion, do the following: A safety belt that
isn’t properly routed through
the seat cushion or
is twisted won’t provide
the protection needed
in a crash. ld the safety
belt hasn’t been routed through the seat
cushion at all,
it won’t be there to work for the
next passenger. The person sitting
in that
position could be badly injured. After
reinstalling the seat cushion, always check to
be sure that the safety belts are properly
routed and are not twisted.
5-95
