DOOR SWITCH CHECKNJEL0580S07Driver SideNJEL0580S0701
1 CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switch “DR DOOR SW” in “DATA MONITOR” mode with CONSULT-II.
SIIA1590E
MTBL1496
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between smart entrance control unit harness connector M194 terminal 43 (R/W) and ground.
SIIA1588E
MTBL1497
OK or NG
OK Door switch is OK.
NG GO TO 2.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-283

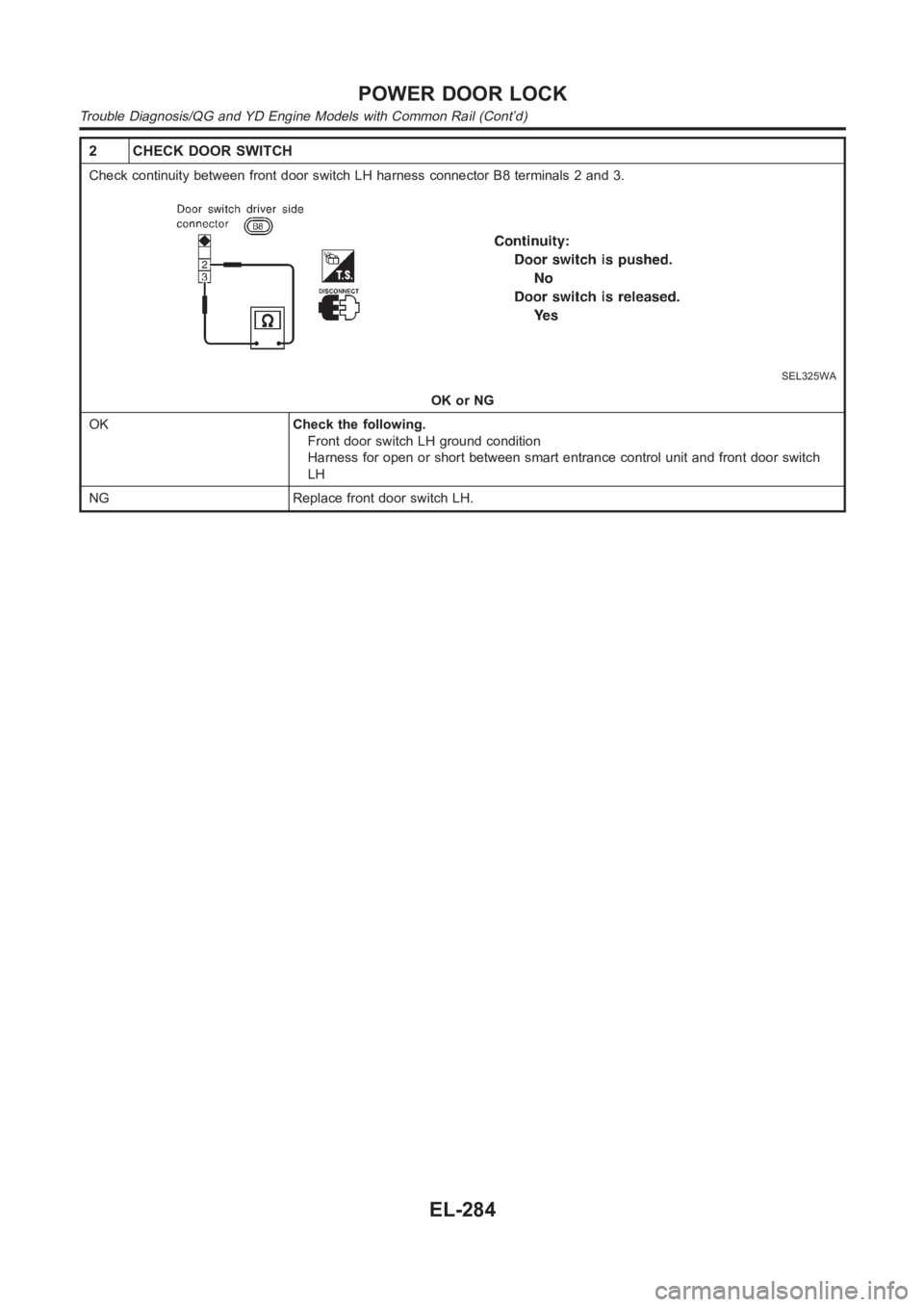

2 CHECK DOOR SWITCH
Check continuity between front door switch LH harness connector B8 terminals 2 and 3.
SEL325WA
OK or NG
OKCheck the following.
Front door switch LH ground condition
Harness for open or short between smart entrance control unit and front door switch
LH
NG Replace front door switch LH.
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-284

Passenger SideNJEL0580S0702

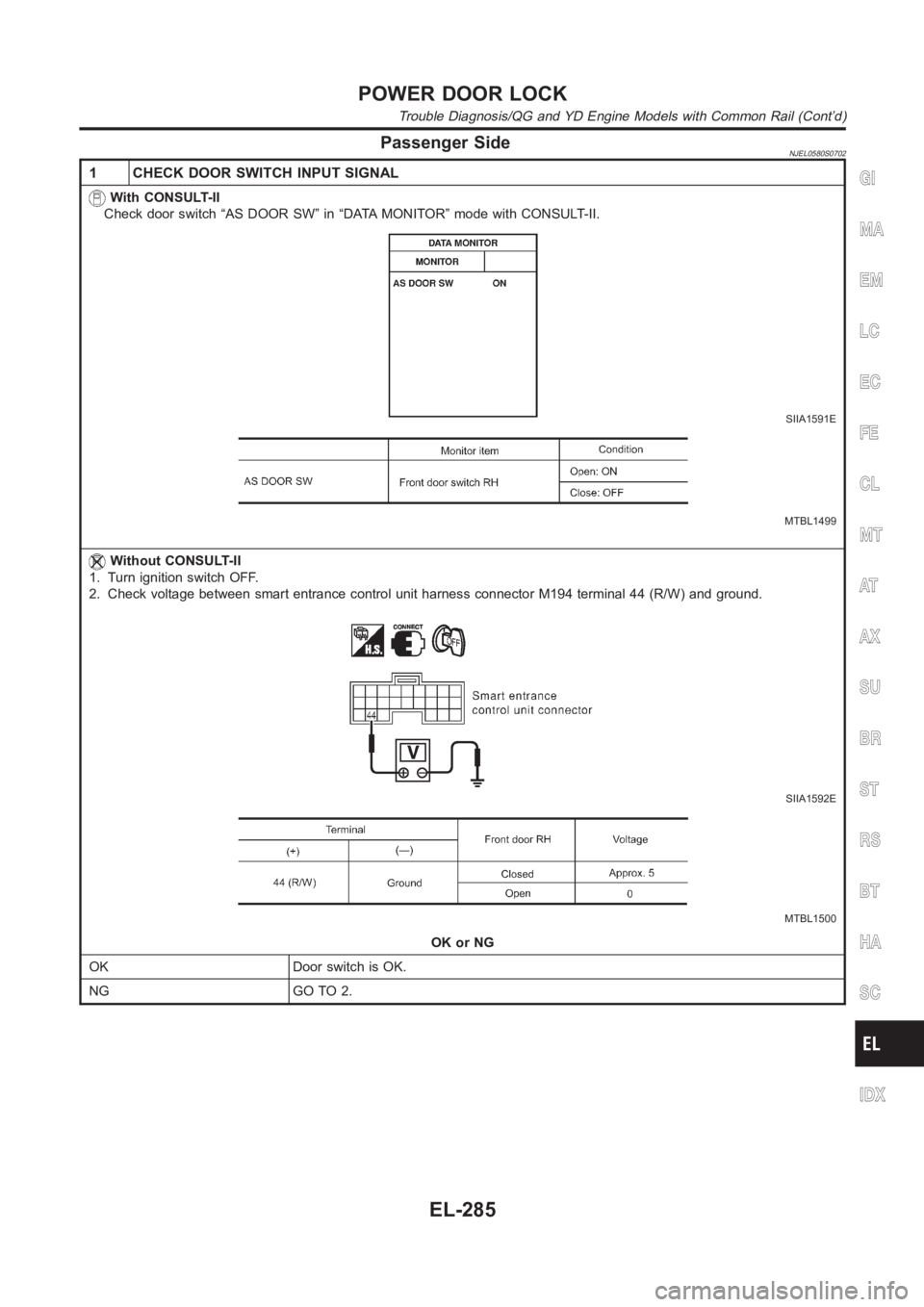

1 CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switch “AS DOOR SW” in “DATA MONITOR” mode with CONSULT-II.
SIIA1591E
MTBL1499
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between smart entrance control unit harness connector M194 terminal 44 (R/W) and ground.
SIIA1592E
MTBL1500
OK or NG
OK Door switch is OK.
NG GO TO 2.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-285

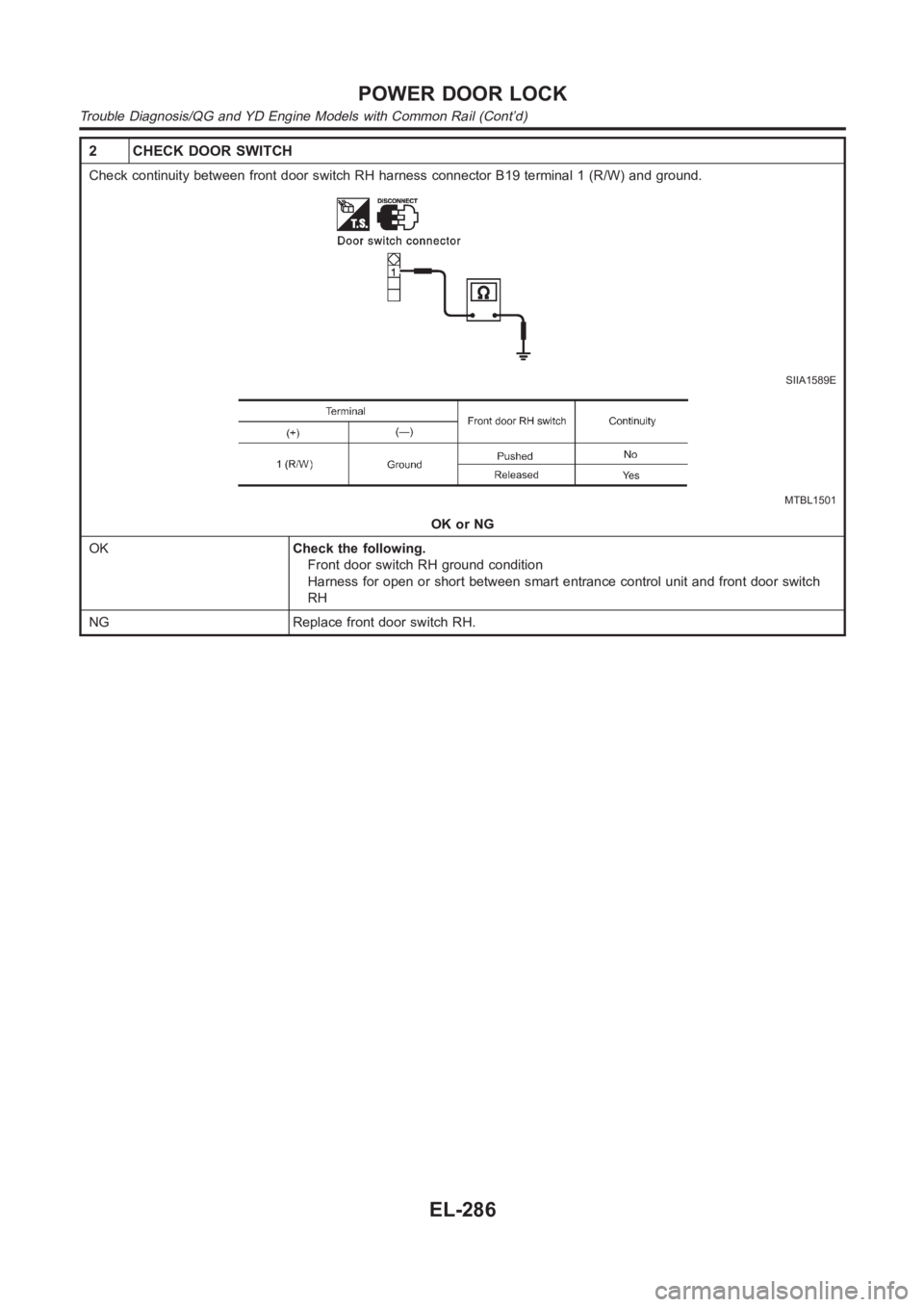

2 CHECK DOOR SWITCH
Check continuity between front door switch RH harness connector B19 terminal 1 (R/W) and ground.
SIIA1589E
MTBL1501
OK or NG
OKCheck the following.
Front door switch RH ground condition
Harness for open or short between smart entrance control unit and front door switch
RH
NG Replace front door switch RH.
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-286

Rear LH SideNJEL0580S0703

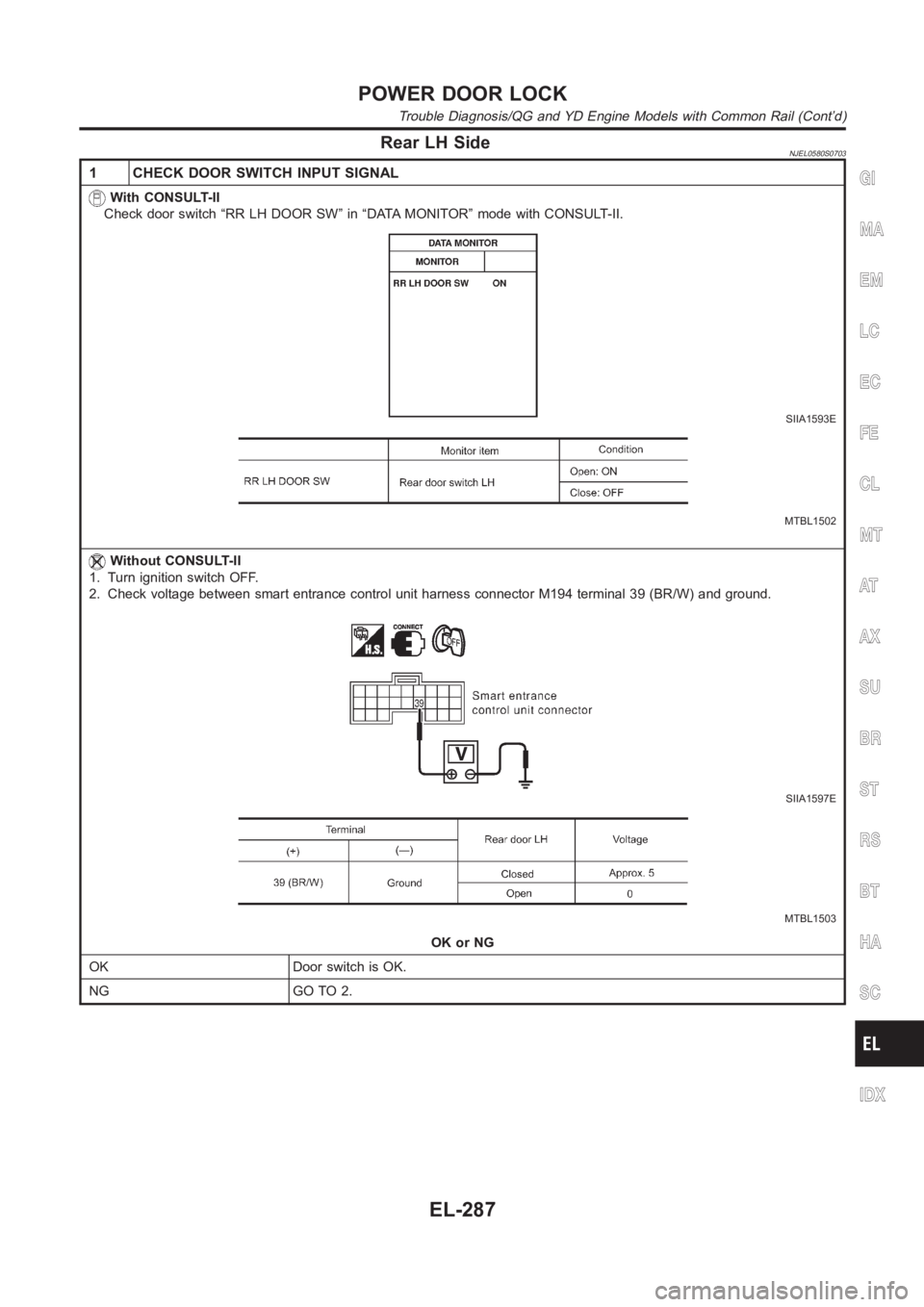

1 CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switch “RR LH DOOR SW” in “DATA MONITOR” mode with CONSULT-II.
SIIA1593E
MTBL1502
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between smart entrance control unit harness connector M194 terminal 39 (BR/W) and ground.
SIIA1597E
MTBL1503
OK or NG
OK Door switch is OK.
NG GO TO 2.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-287

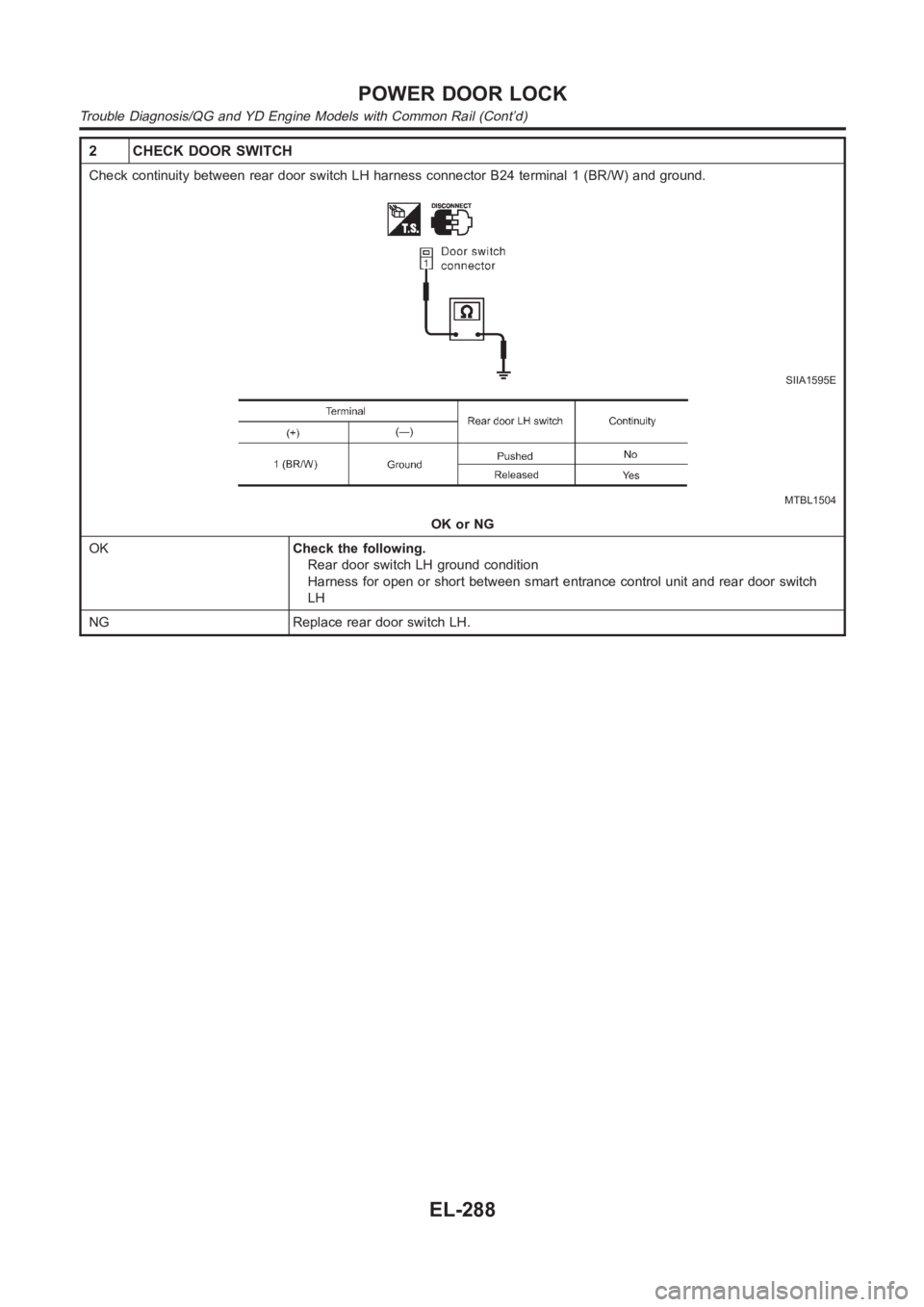

2 CHECK DOOR SWITCH
Check continuity between rear door switch LH harness connector B24 terminal 1 (BR/W) and ground.
SIIA1595E
MTBL1504
OK or NG
OKCheck the following.
Rear door switch LH ground condition
Harness for open or short between smart entrance control unit and rear doorswitch
LH
NG Replace rear door switch LH.
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-288

Rear RH SideNJEL0580S0704

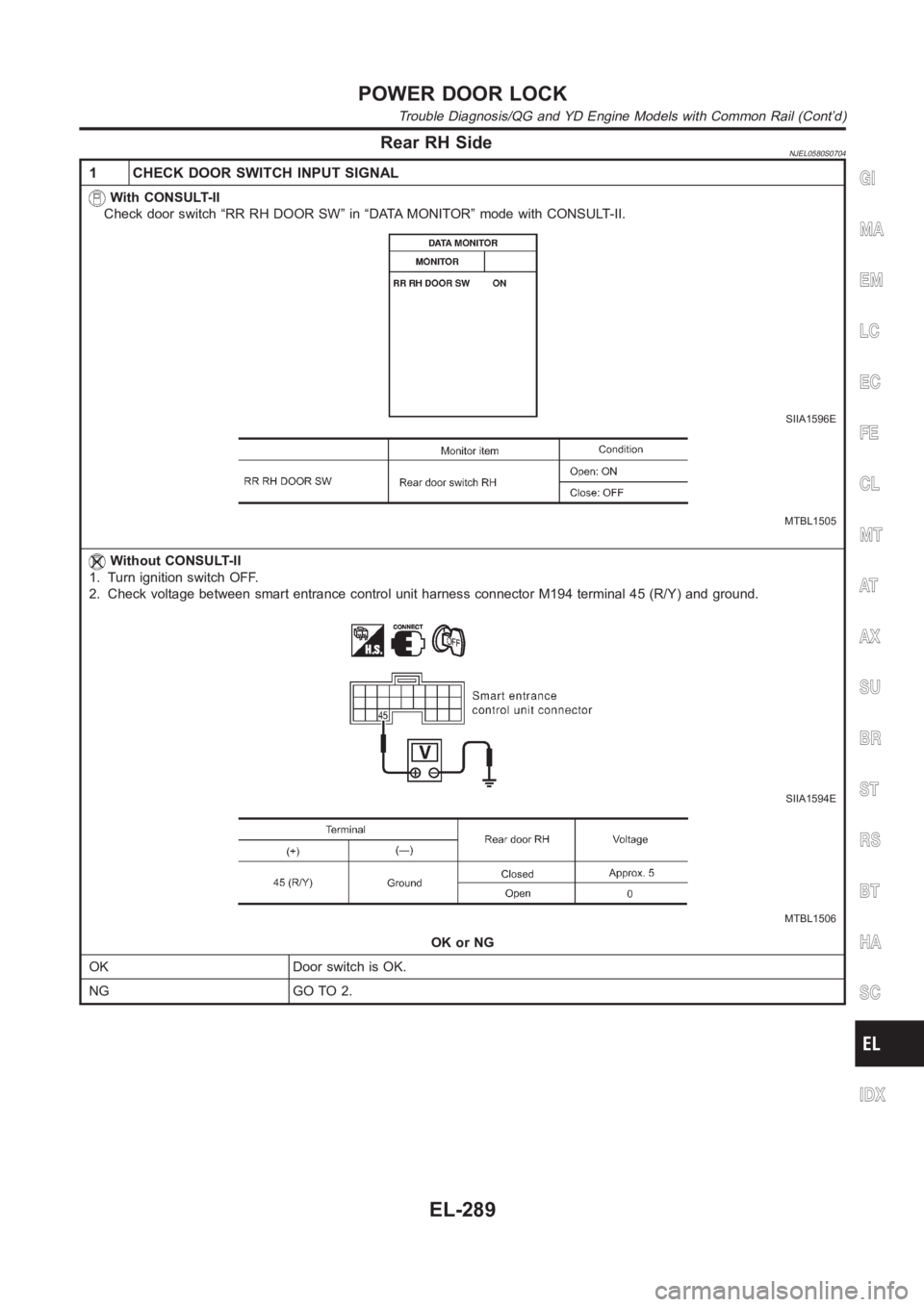

1 CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switch “RR RH DOOR SW” in “DATA MONITOR” mode with CONSULT-II.
SIIA1596E
MTBL1505
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between smart entrance control unit harness connector M194 terminal 45 (R/Y) and ground.
SIIA1594E
MTBL1506
OK or NG
OK Door switch is OK.
NG GO TO 2.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-289

2 CHECK DOOR SWITCH
Check continuity between rear door switch RH harness connector B35 terminal 1 (R/Y) and ground.
SIIA1595E
MTBL1507
OK or NG
OKCheck the following.
Rear door switch RH ground condition
Harness for open or short between smart entrance control unit and rear doorswitch
RH
NG Replace rear door switch RH.
POWER DOOR LOCK
Trouble Diagnosis/QG and YD Engine Models with Common Rail (Cont’d)
EL-290
