2003 MITSUBISHI SHOGUN check engine

H23A254A
RHDNOTE
On an air conditioned vehicle, the cool air
from the ventilators may appear as a mist.
This is due to moist air being suddenly
cooled by the air conditioning. This will clear
after a few moments.
CAUTION
(1) When using the air condition-
ing, the idling speed may slightly
increase as the air condition-
ing compressor is switched
on/off automatically. Especially
for vehicles with an automatic
transmission, while the vehicle
is stationary, fully depress the
brake pedal to prevent the
vehicle from creeping.
CAUTION
(2) On 3500 models, if a problem is
detected in the air conditioning
compressor, the air condition-
ing operation indicator lamp
blinks. Stop the vehicle in a safe
place, turn off the engine, then
restart the engine. If the air con-
ditioning operation indicator
lamp does not blink, there is no
problem. If it does blink, have it
checked at an authorized MIT-
SUBISHI dealer.
2- Blower speed selection dial
There are 4 blower speeds for control of
the amount of air flow.
Adjust the blower speed by turning the
blower speed selection dial clockwise or
anticlockwise.
The setting for ordinary use should be
the first or second speed.
3- Temperature control dial
The heater will not operate if the dial is
set all the way to the left.
The air flow temperature will gradually
increase as the dial is turned to the right.
NOTE
When the engine coolant temperature is
low, temperature of air introduced into the
passenger compartment does not change
even if the temperature control dial is
moved to the high temperature side.
H16A296A
MODE SELECTION AIR OUTLETS
B, CB, C, D, EA*, C*, D, EA, C*, D, EA, C*
A:From front and side demister
B:From centre ventilators
C:From side ventilators
D:From under the instrument panel
E:From rear end of the centre console
* :means a small amount of air flow
For pleasant driving
6-37
Div:
Out put date:

CAUTION
(1) When using the air condition-
ing, the idling speed may slightly
increase as the air condition-
ing compressor is switched
on/off automatically. Especially
for vehicles with an automatic
transmission, while the vehicle
is stationary, fully depress the
brake pedal to prevent the
vehicle from creeping.
(2) On 3500 models, if a problem is
detected in the air conditioning
compressor, the air condition-
ing operation indicator lamp
blinks. Stop the vehicle in a safe
place, turn off the engine, then
restart the engine. If the air con-
ditioning operation indicator
lamp does not blink, there is no
problem. If it does blink, have it
checked at an authorized MIT-
SUBISHI dealer.
Demisting of the windscreen and
door windows
EH03DOH
CAUTION
For safety, make sure you have a
clear view through all windows.
To remove the frost or mist from the wind-
screen and door windows, use the mode
selection dial (“
”or“
”).
H03D151A
- To keep the windscreen and door
windows clear of mist, and to keep
leg area heating (when driving in rain
or snow).
1- Set the air selection switch (A) to the
outside position.
2- Set the mode selection dial to the“
”
position.
3- Select the desired blower speed by turn-
ing the blower speed selection dial.
4- Select the desired temperature by turn-
ing the temperature control dial.
5- Push the air conditioning switch (B).
For pleasant driving
6-50Div:
Out put date:

H03D152A
- For quick demisting
1- Set the mode selection dial to the“
”
position.
2- Set the blower speed to the maximum
blower speed position.
3- Set the temperature to the maximum
temperature position.
NOTE
(1) While the mode selection dial is set to
the“
”position, the air condition-
ing will operate automatically and the
outside air position will also be selected
automatically. This is done for opti-
mum performance.
(In the case, the air conditioning indi-
cator lamp will not change.)
(2) Do not set the temperature control dial
around the max. cool position. Cool air
will blow against the window glasses
and form mist on them.
H04F099A
Cooling
EH04FAOb
Set the mode selection dial to the“
”
position.
Set the air selection switch (A) to the out-
side position and push the air condition-
ing switch (B).
Adjust the temperature by turning the tem-
perature control dial clockwise or anticlock-
wise. Select the desired blower speed.
NOTE
If the outside air is dusty or otherwise con-
taminated, or if high cooling performance
is desired, set the air selection switch to the
recirculation position and the tempera-
ture control dial all the way to the left.
Switch to the outside position periodically
to increase ventilation so that the win-
dows do not become fogged up.
CAUTION
(1) When using the air condition-
ing, the idling speed may slightly
increase as the air condition-
ing compressor is switched
on/off automatically. Especially
for vehicles with an automatic
transmission, while the vehicle
is stationary, fully depress the
brake pedal to prevent the
vehicle from creeping.
(2) On 3500 models, if a problem is
detected in the air conditioning
compressor, the air condition-
ing operation indicator lamp
blinks. Stop the vehicle in a safe
place, turn off the engine, then
restart the engine. If the air con-
ditioning operation indicator
lamp does not blink, there is no
problem. If it does blink, have it
checked at an authorized MIT-
SUBISHI dealer.
For pleasant driving
6-51
Div:
Out put date:

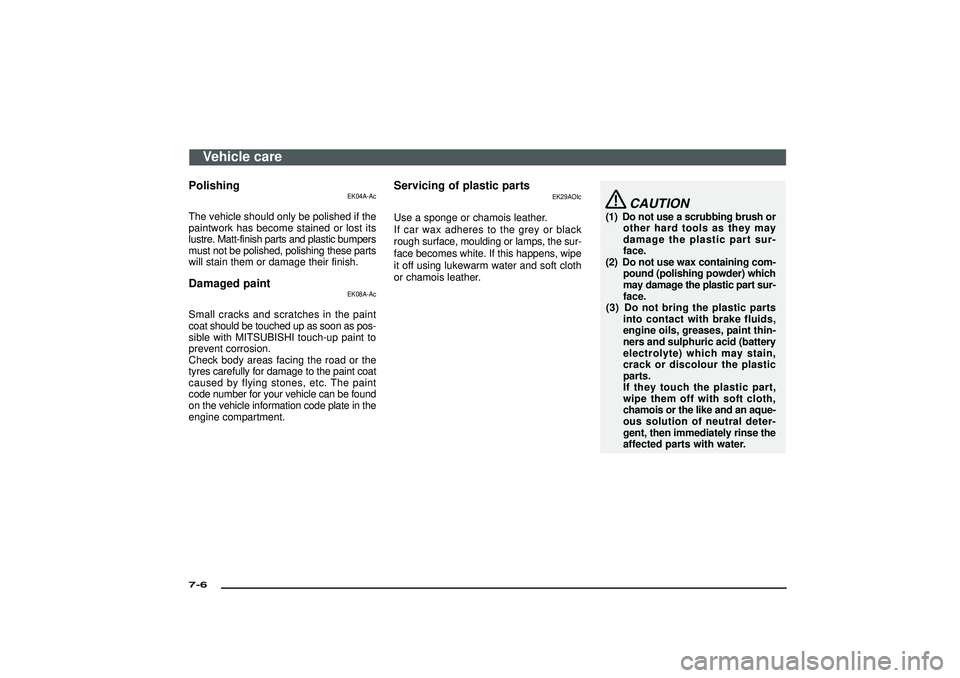

Polishing
EK04A-Ac
The vehicle should only be polished if the
paintwork has become stained or lost its
lustre. Matt-finish parts and plastic bumpers
must not be polished, polishing these parts
will stain them or damage their finish.Damaged paint
EK08A-Ac
Small cracks and scratches in the paint
coat should be touched up as soon as pos-
sible with MITSUBISHI touch-up paint to
prevent corrosion.
Check body areas facing the road or the
tyres carefully for damage to the paint coat
caused by flying stones, etc. The paint
code number for your vehicle can be found
on the vehicle information code plate in the
engine compartment.
Servicing of plastic parts
EK29AOIc
Use a sponge or chamois leather.
If car wax adheres to the grey or black
rough surface, moulding or lamps, the sur-
face becomes white. If this happens, wipe
it off using lukewarm water and soft cloth
or chamois leather.
CAUTION
(1) Do not use a scrubbing brush or
other hard tools as they may
damage the plastic part sur-
face.
(2) Do not use wax containing com-
pound (polishing powder) which
may damage the plastic part sur-
face.
(3) Do not bring the plastic parts
into contact with brake fluids,
engine oils, greases, paint thin-
ners and sulphuric acid (battery
electrolyte) which may stain,
crack or discolour the plastic
parts.
If they touch the plastic part,
wipe them off with soft cloth,
chamois or the like and an aque-
ous solution of neutral deter-
gent, then immediately rinse the
affected parts with water.
Vehicle care
7-6Div:
Out put date:

Chassis and underbody protection
EK12A-Jc
Your vehicle’s underbody has been treated
at the factory in order to protect it from rust
and corrosion. Some areas have been
injected with anti-corrosion agents and wax.
The effectiveness of these measures, how-
ever, will be reduced by flying stones, road
chemicals, etc., as the vehicle is driven.
You should take your vehicle to your autho-
rized MITSUBISHI dealer every 12 months
to have the body sheet metal inspected for
condition, and it is recommended to have
the underbody checked regularly (autumn
and spring) and have additional protec-
tion treatment carried out as required.
As not all of the commercially available
materials are suitable for use on your
vehicle, it is recommended that you have
this work carried out by an authorized
MITSUBISHI dealer.
When washing the vehicle, especially in
winter, spray the underbody with water to
remove dirt and dust which might contain
salts, road chemicals, etc.
Engine compartment
EK13A-Aa
Clean the engine compartment at the
beginning and end of winter. Pay particu-
lar attention to flanges, crevices and periph-
eral parts where dust containing road
chemicals and other corrosive materials
might collect.
If salt and other chemicals are used on the
roads in your area, clean the engine com-
partment at least once every three months.
Vehicle care
7-8Div:
Out put date:

N25A336A
RearIf your vehicle is to be towed, pay care-
ful attention to the following points:
(1) For vehicles with an automatic trans-
mission, check the automatic transmis-
sion fluid level. (Refer to“Automatic
transmission fluid”on page 9-4)
If the fluid level is low, transport the
vehicle with all wheels off the ground.
CAUTION
If the vehicle is out of automatic
transmission fluid, the transmis-
sion could be damaged.
(2) Move the gear shift lever (manual
transmission) or the selector lever
(automatic transmission) to the
“Neutral”or“N”(NEUTRAL).(3) Move the transfer shift lever to“2H”
position.
CAUTION
If the vehicle is towed with the trans-
fer shift lever in“4H”or“4L”posi-
tion (part time 4WD models)“4H”,
“4HLc”or“4LLc”position (super
select 4WD II models) the drive
mechanism may be dameged.
(4) Be sure the towing speed is within the
legal limit. In addition, if the vehicle is
equipped with an automatic transmis-
sion, make sure that the towing speed
and distance given below are never
exceeded.
Towing speed: 50 km/h (31 mph)
Towing distance: 50 km (31 miles)
(5) If the transmission is malfunctioning or
damaged, or if the vehicle is equipped
with an automatic transmission and
must be towed farther than 50km (31
miles), tow the vehicle by a tow truck.
(6) Turn the ignition switch to the“ACC”or
“ON”position to unlock the steering
wheel.
CAUTION
(1) As the engine is not running, the
brake booster and power steer-
ing pump do not operate. This
means higher brake depres-
sion force and higher steering
effort are required. Therefore,
vehicle operation is more diffi-
cult than usual.
(2) Do not leave the key in the
“LOCK”position. If the key is
removed while driving, the steer-
ing will be locked causing loss
of control.
For emergencies
8-19
Div:
Out put date:

WARNING
(1) Remember that under the bon-
net, there can be boiling water
gushing out, or the support bar
could be burning hot. If the bon-
net is opened suddenly, you
could get burnt.
(2) Be careful of hot steam, which
could be blowing off the reserve
tank cap.
(3) Do not attempt to remove the
radiator cap while the engine is
hot.
N26A209A
3. After the engine coolant temperature has
dropped to the normal temperature, stop
the engine.
N26A143A
4. Check the coolant level in the reserve
tank. If there is none, make sure that the
engine has cooled down before remov-
ing the radiator cap, because hot steam
or boiling water otherwise will gush from
the filler port and may scald you.
5. Add coolant to the radiator and/or
reserve tank if necessary (refer to the
“Maintenance”section).
CAUTION
Adding cold water rapidly when the
engine is hot could cause the cylin-
der head and/or block to crack, add
the water a little at a time while run-
ning the engine.
For emergencies
8-22Div:
Out put date:

CAUTION
(1) Do not smoke or have any other
open flame near the vehicle
while bleeding the fuel system.
(2) Be sure to carefully clean away
any spilt fuel which could ignite
and cause a fire.
N07B021A
Removal of water from the fuel
filter (diesel- powered vehicles
only)
EN07B-Bc
If the warning lamp illuminates during driv-
ing, it indicates that water has accumu-
lated in the fuel filter. If this occurs, remove
the water as described below.
1. Loosen the drain plug (A) at the bot-
tom of the fuel filter.
N07B022A
2. Operate the hand pump (B) slowly 6 or
7 times in order to force the water out
through the drain plug (A).
3. Tighten the drain plug (A) when water no
longer comes out.
4. Loosen the air plug and bleed the air.
(Refer to“Bleeding the fuel system.”)
5. Check to be sure that the warning lamp
illuminates when the ignition key is
turned to“ON”, and that it goes off when
the engine is started. If in doubt, con-
sult your nearest authorized MITSUB-
ISHI dealer.
For emergencies
8-24Div:
Out put date:
