Page 257 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204197 CONNECTORS : G-06, G-22 AB G-06 G-22 G-06 HARNESS SIDE G-22 HARNESS SIDE 1 5 7 82 6 104 9 3 1 5 7 82 6 104 9 3 AC204699AB G-06-1 G-22-1 G-06-2 G-22-2 G-06-1 HARNESS SIDE G-22-1 HARNESS SIDE <

Page 258 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204699AB G-06-1 G-22-1 G-06-2 G-22-2 G-06-1 HARNESS SIDE G-22-1 HARNESS SIDE <VEHICLES WITH A/C>G-06-2 HARNESS SIDE G-22-2 HARNESS SIDE 1 21 4 3 652 1 21 4 3 652 <VEHICLES WITHOUT A/C> CONNECTORS :

Page 259 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204193 CONNECTORS : E-17, E-21, E-22 AC E-17, E-21, E-22 E-17 <VEHICLES WITH REAR COOLER> E-21 <VEHICLES WITH REAR HEATER> E-22 <VEHICLES WITH REAR A/C> HARNESS SIDE 1 7 2 8 10 11 5 13 6 14 124 9 3

Page 260 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204193 CONNECTORS : E-17, E-21, E-22 AC E-17, E-21, E-22 E-17 <VEHICLES WITH REAR COOLER> E-21 <VEHICLES WITH REAR HEATER> E-22 <VEHICLES WITH REAR A/C> HARNESS SIDE 1 7 2 8 10 11 5 13 6 14 124 9 3

Page 261 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204197 CONNECTORS : G-06, G-22 AB G-06 G-22 G-06 HARNESS SIDE G-22 HARNESS SIDE 1 5 7 82 6 104 9 3 1 5 7 82 6 104 9 3

Page 262 of 1000

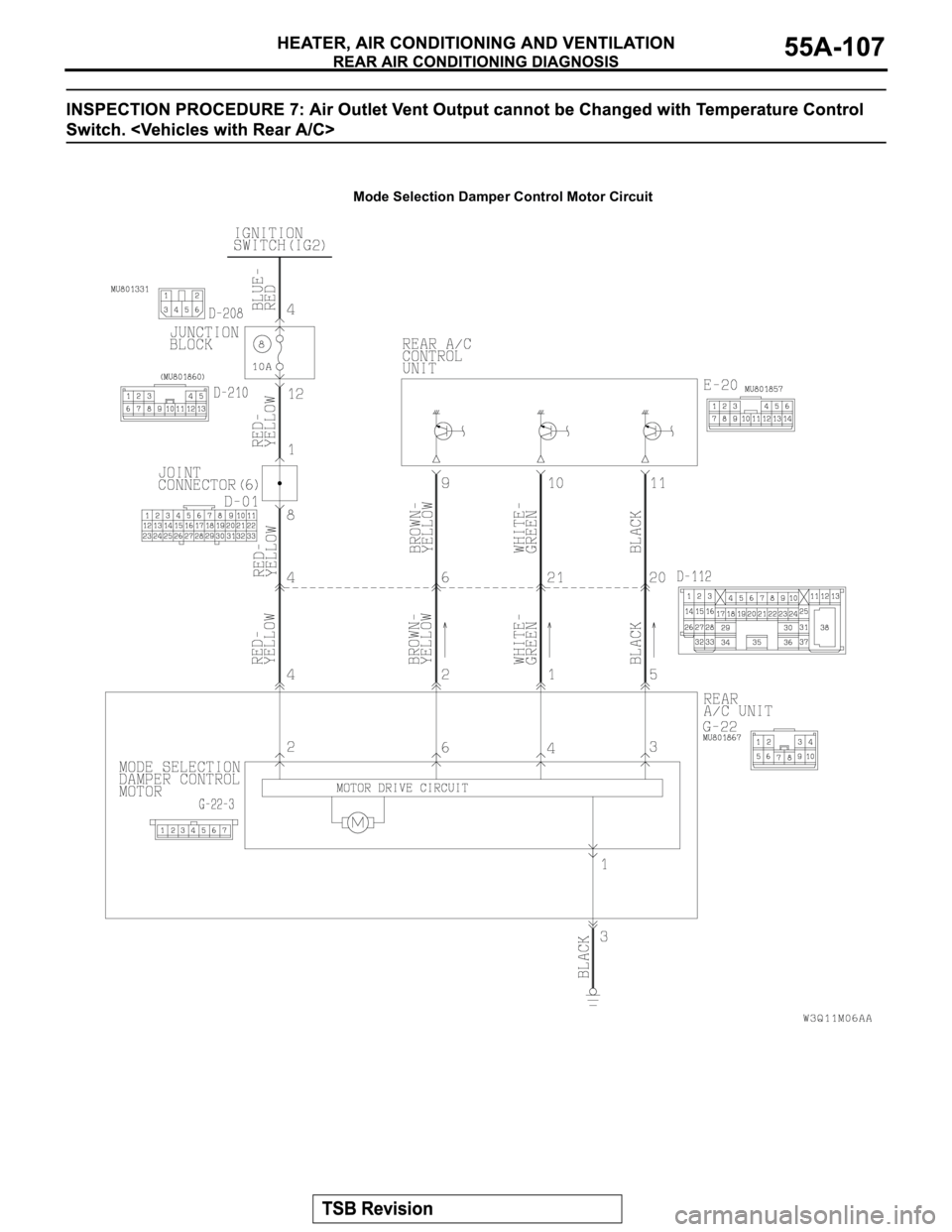

MITSUBISHI MONTERO 2003 Service Repair Manual Mode Selection Damper Control Motor Circuit

Page 263 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204170 CONNECTOR : D-01 CXAC204171 CONNECTOR : D-112 AU AC204173 CONNECTORS : D-208, D-210 BF D-208 D-210 AC204176 CONNECTOR : E-20 BG AC204179 CONNECTOR : G-22 AXAC204698AS CONNECTOR : G-22-3

Page 264 of 1000

MITSUBISHI MONTERO 2003 Service Repair Manual AC204179 CONNECTOR : G-22 AP HARNESS SIDE 1 5 7 82 6 104 9 3 AC204738CN HARNESS SIDE : G-22 1 5 7 82 6 104 9 3 AC204179 CONNECTOR : G-22 AP HARNESS SIDE 1 5 7 82 6 104 9 3 AC204179 CONNECTOR : G-22 AP
