2003 MERCEDES-BENZ SLK CLASS jump start

Contents
Installing....................................... 228
Flat tire .............................................. 229
Preparing the vehicle.................... 229
Sealing tires with TIREFIT kit 1 ..... 229
Sealing tires with TIREFIT kit 2 ..... 234
Mounting the spare wheel ............ 238
Battery ............................................... 245
Disconnecting the battery ............ 246
Removing the battery ................... 246
Charging and reinstalling battery . 246
Reconnecting the battery ............. 246
Jump starting ..................................... 247
Towing the vehicle ............................. 249
Towing eye ................................... 251
Installing towing eye bolt.............. 252
Fuses ................................................. 253
Main fuse box ............................... 253
Auxiliary fuse box ......................... 254
Technical data.................................. 255
Spare parts service ............................ 256
Warranty coverage ............................. 257
Loss of Service and Warranty
Information Booklet...................... 257
Identification labels............................ 258Layout of poly-V-belt drive ................. 259
SLK 230 Kompressor ................... 259
SLK 320 ....................................... 259
SLK 32 AMG................................. 259
Engine................................................ 260
Rims and Tires ................................... 261
Same size tires ............................. 262
Mixed size tires ............................ 263
Spare wheel with collapsible tire.. 265
Electrical system ............................... 266
Main Dimensions ............................... 267
Weights.............................................. 268
Fuels, coolants, lubricants etc. .......... 269
Capacities .................................... 269
Engine oils.................................... 271
Engine oil additives ...................... 271
Air conditioning refrigerant .......... 271
Brake fluid .................................... 271
Premium unleaded gasoline ......... 272
Fuel requirements ........................ 272
Gasoline additives ........................ 272
Coolants....................................... 273
Windshield and headlamp*
washer system ............................. 275
Consumer information ....................... 276
Uniform tire quality grading ......... 276
Technical terms............................... 279Index................................................. 285

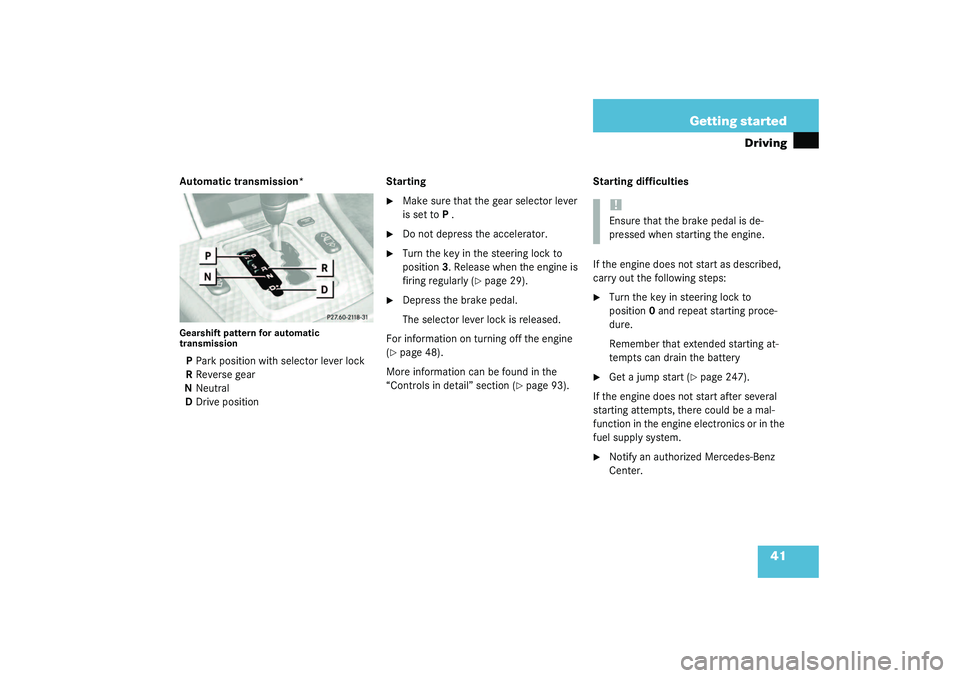

41 Getting started
Driving
Automatic transmission*Gearshift pattern for automatic
transmissionPPark position with selector lever lock
RReverse gear
NNeutral
DDrive positionStarting

Make sure that the gear selector lever
is set toP .

Do not depress the accelerator.

Turn the key in the steering lock to
position3. Release when the engine is
firing regularly (
page 29).

Depress the brake pedal.
The selector lever lock is released.
For information on turning off the engine
(
page 48).
More information can be found in the
“Controls in detail” section (
page 93).Starting difficulties
If the engine does not start as described,
carry out the following steps:

Turn the key in steering lock to
position0 and repeat starting proce-
dure.
Remember that extended starting at-
tempts can drain the battery

Get a jump start (
page 247).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.!Ensure that the brake pedal is de-
pressed when starting the engine.

148 Controls in detailUseful features
Roadside Assistance button
•
Located below the center armrest cover is
the Roadside Assistance button
•
.

Press and hold the button (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress.
The Tele Aid system will transmit data gen-
erating the vehicle identification number,
model, color and location (subject to avail-
ability of cellular and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.
These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.


Remote Vehicle Diagnostics: This func-
tion permits the Mercedes-Benz Road-
side Assistance dispatcher to
download malfunction codes and actu-
al vehicle data.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

193 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

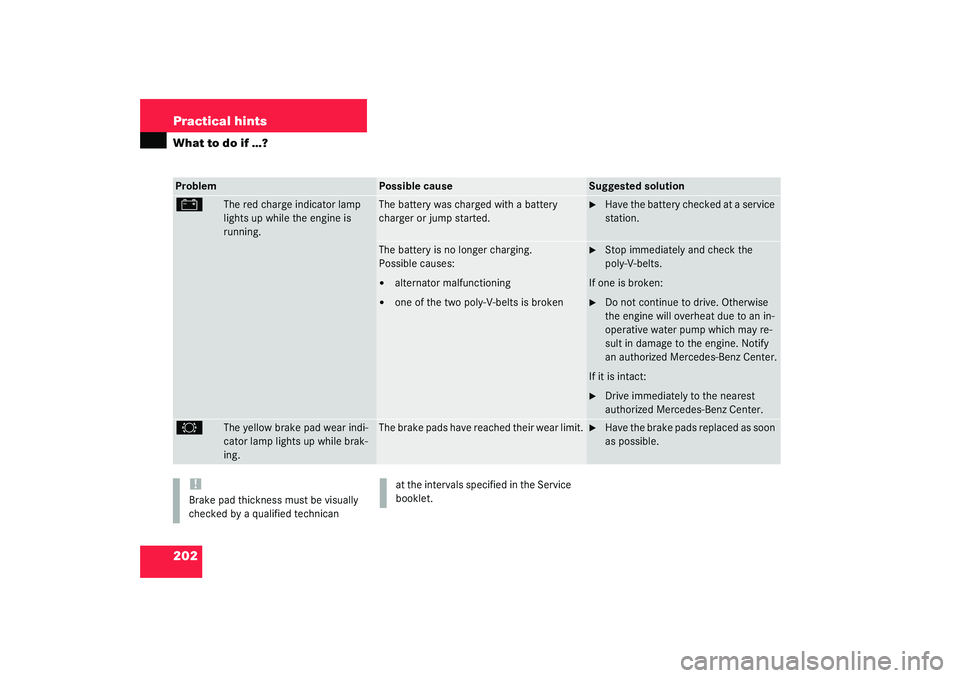

202 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
#
The red charge indicator lamp
lights up while the engine is
running.
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


one of the two poly-V-belts is broken

Stop immediately and check the
poly-V-belts.
If one is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest
authorized Mercedes-Benz Center.
2
The yellow brake pad wear indi-
cator lamp lights up while brak-
ing.
The brake pads have reached their wear limit.

Have the brake pads replaced as soon
as possible.
!Brake pad thickness must be visually
checked by a qualified technican
at the intervals specified in the Service
booklet.

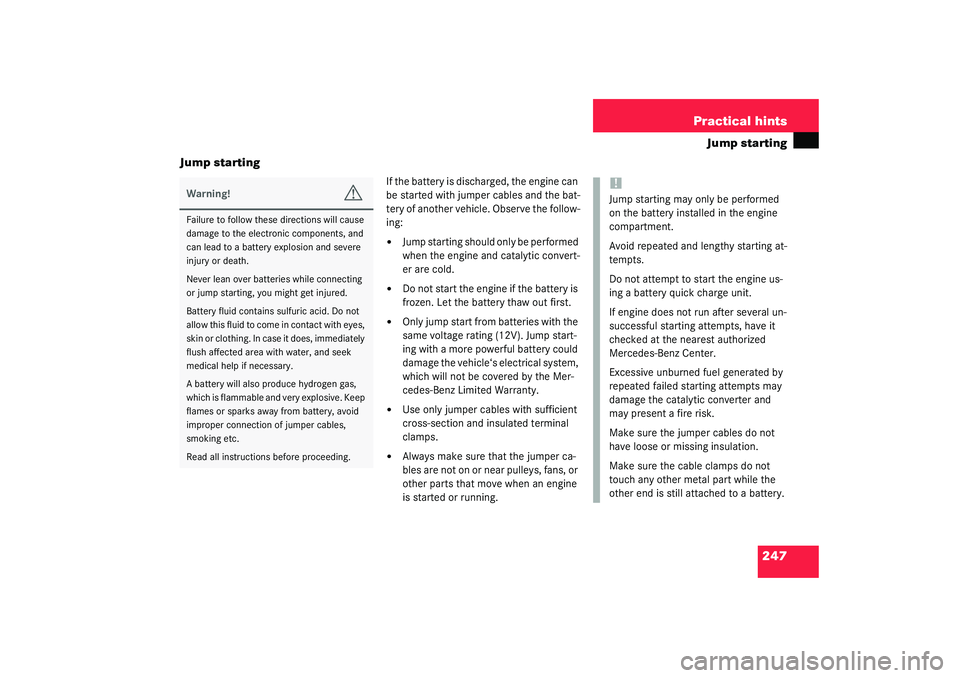

247 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12V). Jump start-
ing with a more powerful battery could
damage the vehicle‘s electrical system,
which will not be covered by the Mer-
cedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans, or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
Read all instructions before proceeding.
!Jump starting may only be performed
on the battery installed in the engine
compartment.
Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If engine does not run after several un-
successful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

248 Practical hintsJump startingThe battery is located in the engine com-
partment on the right hand side.
Make sure that the two vehicles do not
touch.

Turn off all electrical consumers, ex-
cept hazard warning flashers or work
lights.

Apply parking brake.

Shift selector lever to positionP (man-
ual transmission to Neutral).1Positive terminal of charged battery
2Positive terminal of discharged battery
3Negative terminal of discharged
battery
4Negative terminal of charged battery

Connect positive terminals1 and2 of
the batteries with the jumper cables.
Clamp cable to charged battery1 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals3 and4 of
the batteries with the jumper cables.
Clamp cable to charged battery4 first.

Start the engine of the disabled vehi-
cle.
Now you can again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals3 and4 of the bat-
teries and then from positive
terminals1 and2.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries.
iVehicles with automatic transmission:
Do not tow-start vehicle.

251 Practical hints
Towing the vehicle
Towing eye
SLK 230 Kompressor except Sport
Package*, SLK 320 except Sport
Package*
The rear towing eye is located at the right,
below the bumper.
The front towing eye is located on the pas-
senger-side behind the grille in the bumper
panel.
1Grille SLK 320
except Sport Package*
2Grille SLK 230 Kompressor
except Sport Package*Removing grille SLK 320

Hold left and right end of grille1 and
pull out firmly.
Installing grille SLK 320

Position grille1 and press securely.
The grille should audibly snap into
place.
Removing grille SLK 230 Kompressor

Hold grille2, fold it down and pull out
firmly.
Installing grille SLK 230 Kompressor

Position grille2 and press securely.
The grille should audibly snap into
place.
iThe selector lever will remain locked in
positionP and the key will not turn in
the starter switch if the battery is dis-
connected or discharged. See notes on
the battery (
page 245) or on jump
starting (
page 247).
Vehicles with automatic transmission:
Manual unlocking of transmission se-
lector lever (page 214).
