2003 MERCEDES-BENZ SLK 230 KOMPRESSOR Owner's Manual

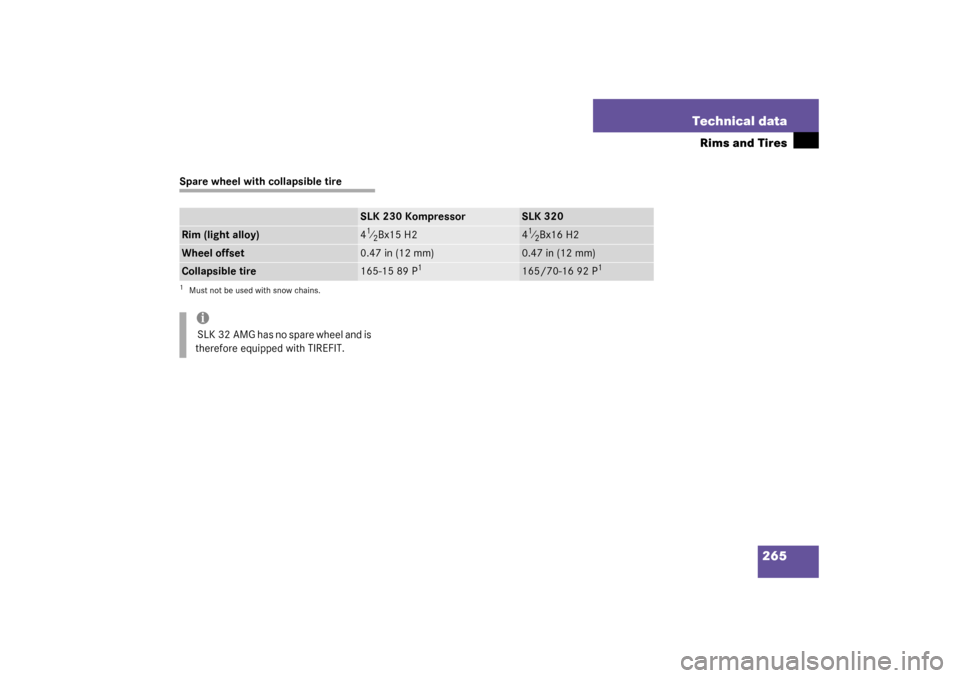

265 Technical data
Rims and Tires
Spare wheel with collapsible tire
SLK 230 Kompressor
SLK 320
Rim (light alloy)
41⁄2Bx15 H2
41⁄2Bx16 H2
Wheel offset
0.47 in (12 mm)
0.47 in (12 mm)
Collapsible tire
165-15 89 P
1
165/70-16 92 P
1
1Must not be used with snow chains.i S L K 3 2 A M G h a s n o s p a r e w h e e l a n d i s
therefore equipped with TIREFIT.

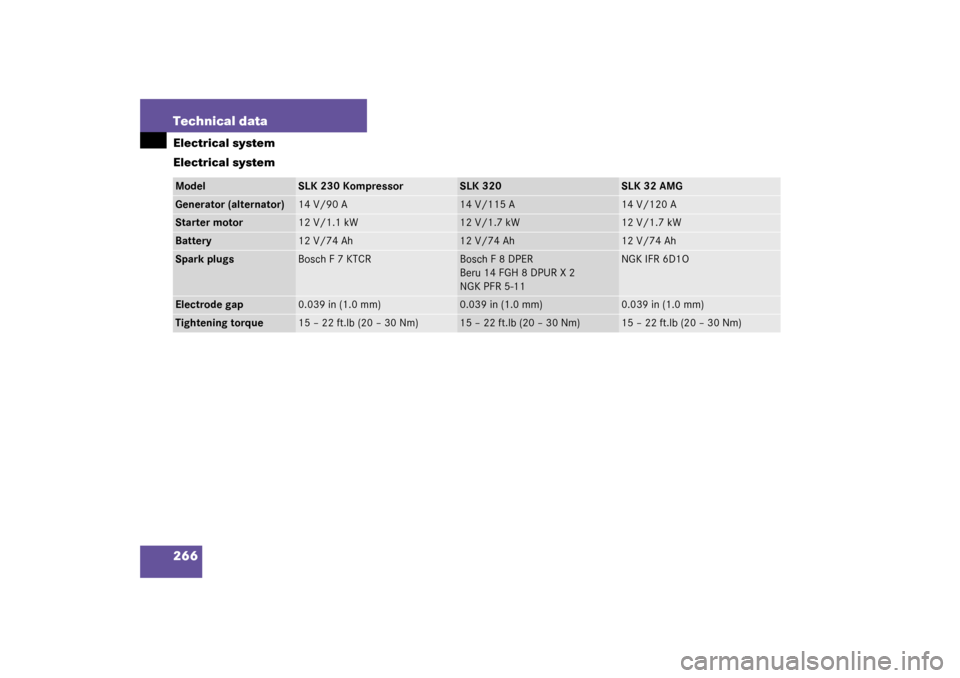

266 Technical dataElectrical system
Electrical systemModel
SLK 230 Kompressor
SLK 320
SLK 32 AMG
Generator (alternator)
14 V/90 A
14 V/115 A
14 V/120 A
Starter motor
12 V/1.1 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/74 Ah
12 V/74 Ah
12 V/74 Ah
Spark plugs
Bosch F 7 KTCR
Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5-11
NGK IFR 6D1O
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)

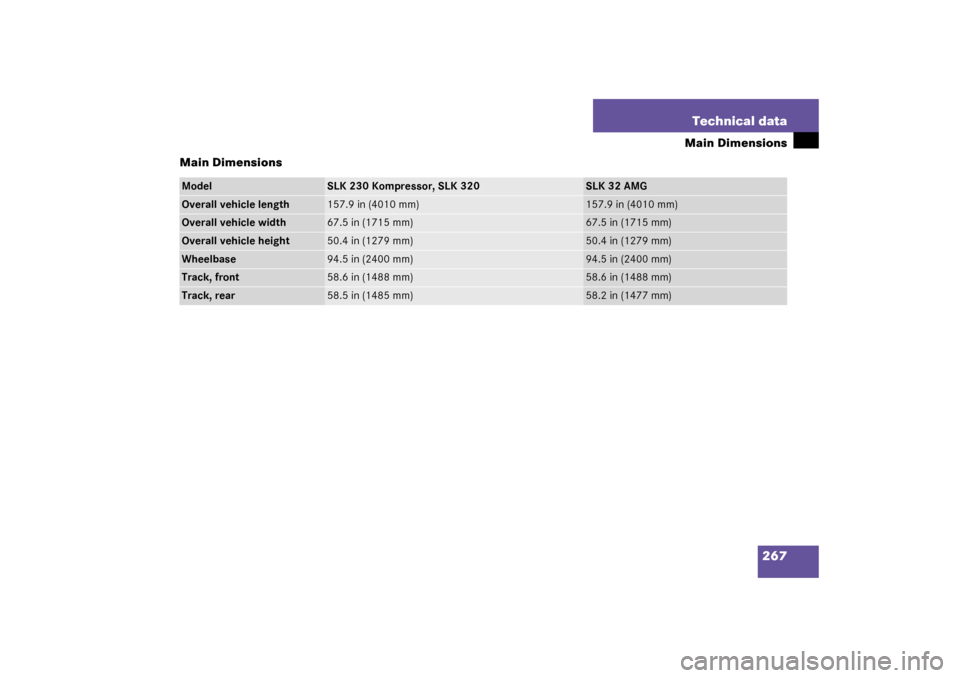

267 Technical data
Main Dimensions
Main Dimensions
Model
SLK 230 Kompressor, SLK 320
SLK 32 AMG
Overall vehicle length
157.9 in (4010 mm)
157.9 in (4010 mm)
Overall vehicle width
67.5 in (1715 mm)
67.5 in (1715 mm)
Overall vehicle height
50.4 in (1279 mm)
50.4 in (1279 mm)
Wheelbase
94.5 in (2400 mm)
94.5 in (2400 mm)
Track, front
58.6 in (1488 mm)
58.6 in (1488 mm)
Track, rear
58.5 in (1485 mm)
58.2 in (1477 mm)

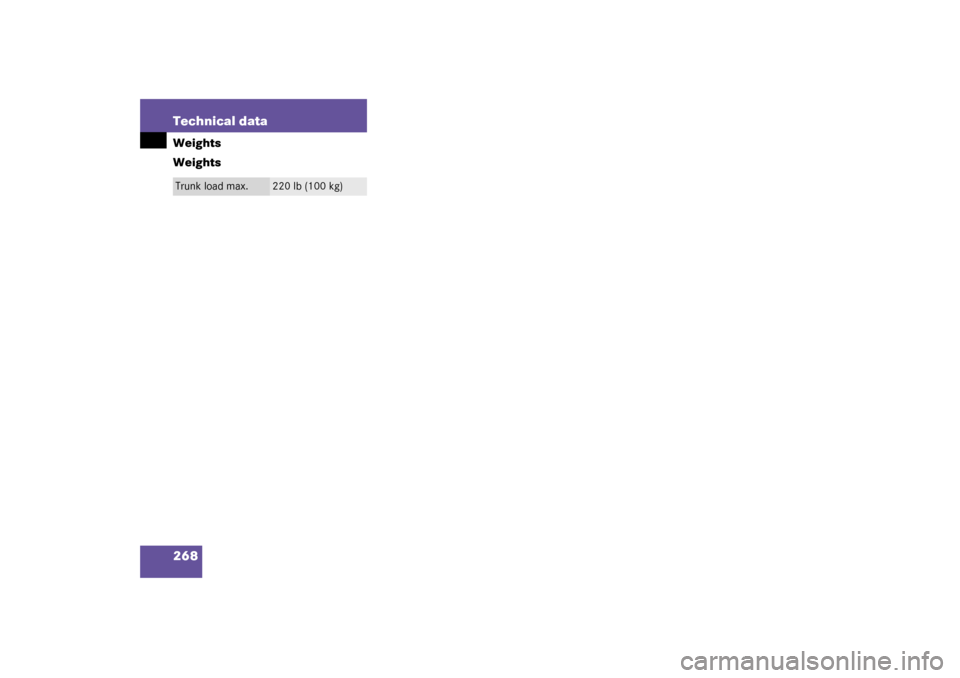

268 Technical dataWeights
WeightsTrunk load max.
220 lb (100 kg)

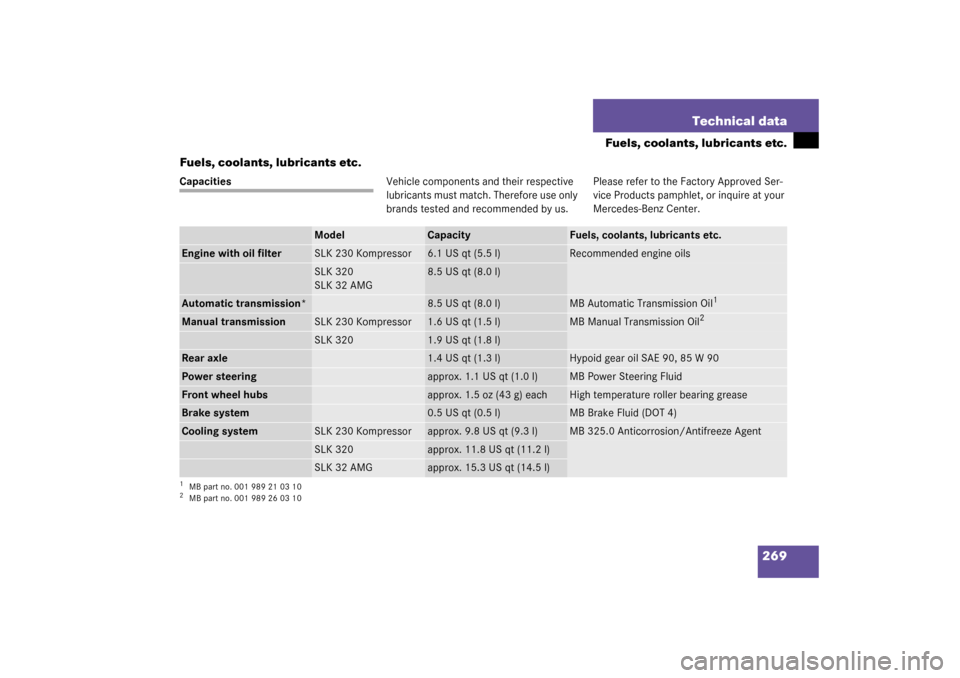

269 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
SLK 230 Kompressor
6.1 US qt (5.5 l)
Recommended engine oils
SLK 320
SLK 32 AMG
8.5 US qt (8.0 l)
Automatic transmission*
8.5 US qt (8.0 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Manual transmission
SLK 230 Kompressor
1.6 US qt (1.5 l)
MB Manual Transmission Oil
2
2MB part no. 001 989 26 03 10
SLK 320
1.9 US qt (1.8 l)
Rear axle
1.4 US qt (1.3 l)
Hypoid gear oil SAE 90, 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid
Front wheel hubs
approx. 1.5oz (43g) each
High temperature roller bearing grease
Brake system
0.5 US qt (0.5 l)
MB Brake Fluid (DOT 4)
Cooling system
SLK 230 Kompressor
approx. 9.8 US qt (9.3 l)
MB 325.0 Anticorrosion/Antifreeze Agent
SLK 320
approx. 11.8USqt (11.2l)
SLK 32 AMG
approx. 15.3USqt (14.5l)

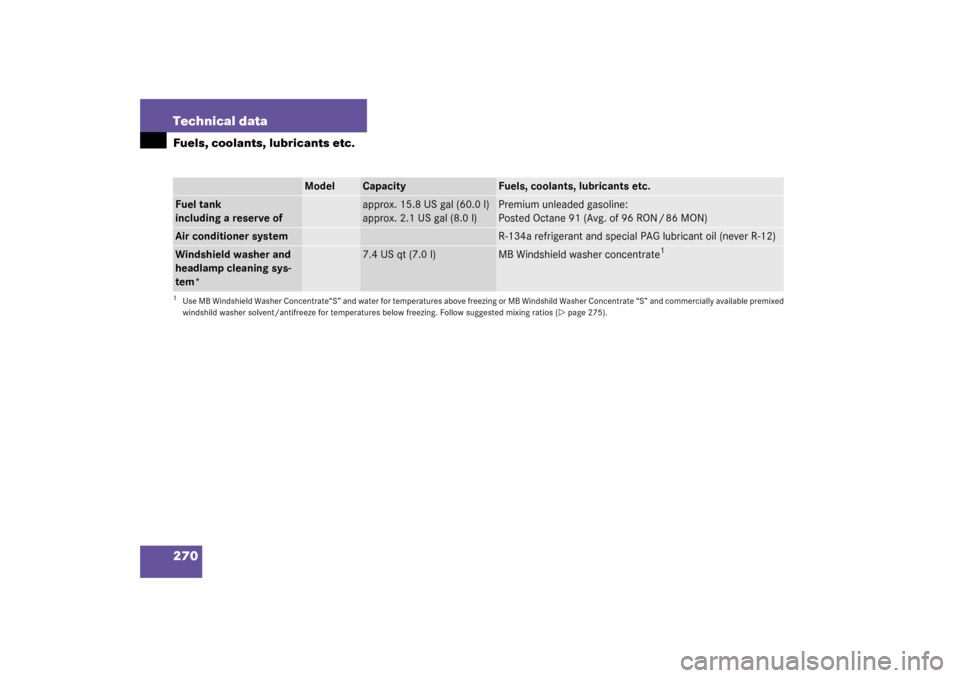

270 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Fuel tank
including a reserve of
approx. 15.8 US gal (60.0 l)
approx. 2.1 US gal (8.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96 RON / 86 MON)
Air conditioner system
R-134a refrigerant and special PAG lubricant oil (never R-12)
Windshield washer and
headlamp cleaning sys-
tem*
7.4 US qt (7.0 l)
MB Windshield washer concentrate
1
1Use MB Windshield Washer Concentrate“S” and water for temperatures above freezing or MB Windshild Washer Concentrate “S” and commercially available premixed
windshild washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (
page 275).

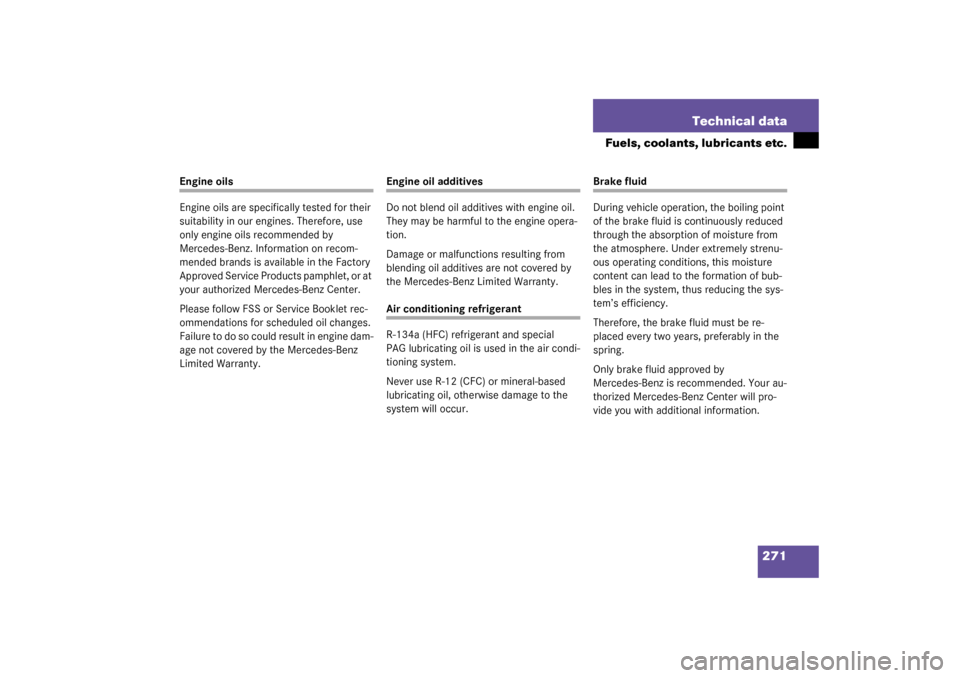

271 Technical data
Fuels, coolants, lubricants etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, use
only engine oils recommended by
Mercedes-Benz. Information on recom-
mended brands is available in the Factory
Approved Service Products pamphlet, or at
your authorized Mercedes-Benz Center.
Please follow FSS or Service Booklet rec-
ommendations for scheduled oil changes.
F ai lu re to d o s o could res ul t in engi ne da m -
age not covered by the Mercedes-Benz
Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may be harmful to the engine opera-
tion.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special
PAG lubricating oil is used in the air condi-
tioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil, otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.

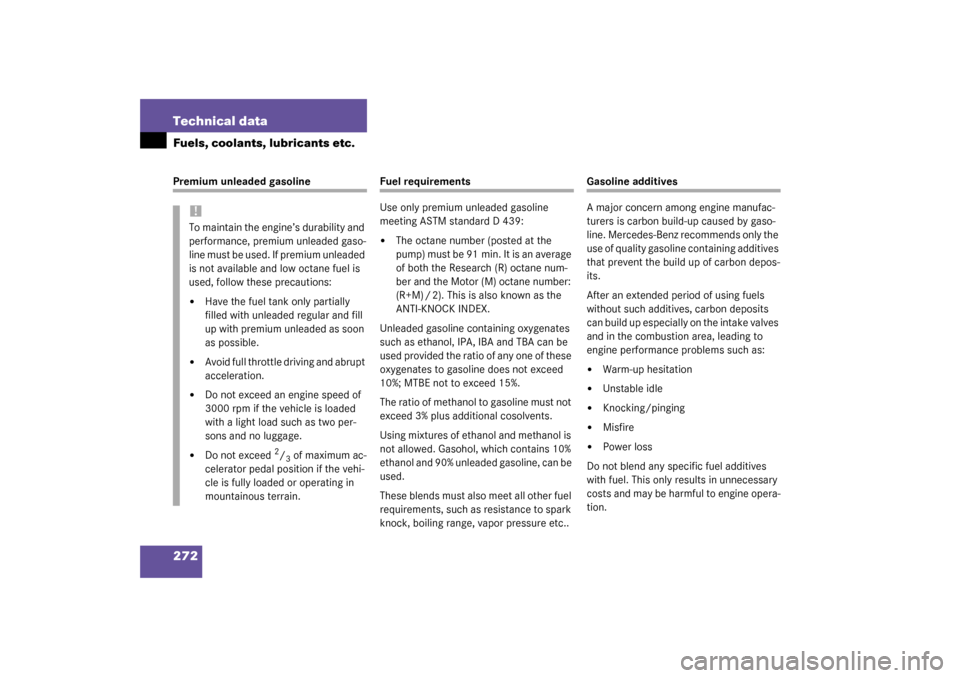

272 Technical dataFuels, coolants, lubricants etc.Premium unleaded gasoline
Fuel requirements
Use only premium unleaded gasoline
meeting ASTM standard D 439:

The octane number (posted at the
pu mp ) m us t b e 91 mi n. It is an a ve ra ge
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE not to exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure etc..
Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build up of carbon depos-
its.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking/pinging


Misfire


Power loss
Do not blend any specific fuel additives
with fuel. This only results in unnecessary
costs and may be harmful to engine opera-
tion.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed
2/3of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.
