2003 MERCEDES-BENZ S CLASS jump start

348 Practical hintsJump startingThe battery is located on the right side of
the trunk under the battery cover
(page 344).

Make sure that the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to positionP.

Open the trunk lid.

Remove battery cover (
page 344).1Positive terminal of discharged battery
2Negative terminal of discharged
battery
3Positive terminal of charged battery
4Negative terminal of charged battery

Connect positive terminals1 and3 of
the batteries with the jumper cable.
Clamp cable to charged battery3 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals2 and4 of
the batteries with the jumper cable.
Clamp cable to charged battery4 first.

Start the engine of the disabled vehi-
cle.
You can now turn on the electrical con-
sumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
You can now turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 344).
!Never invert the terminal connections.
!Do not tow-start the vehicle.

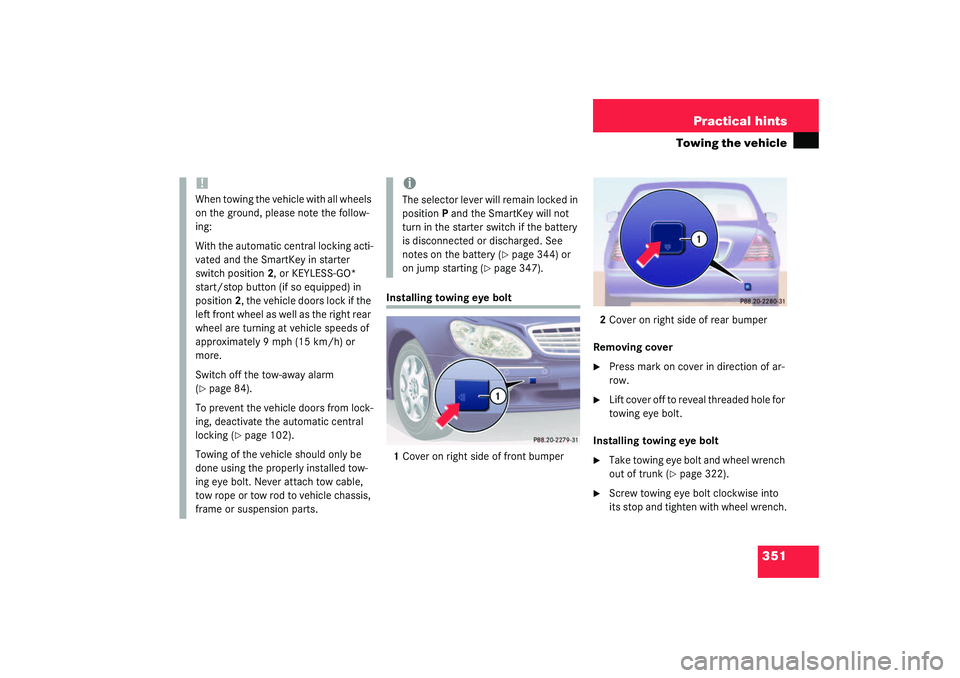

351 Practical hints
Towing the vehicle
Installing towing eye bolt
1Cover on right side of front bumper2Cover on right side of rear bumper
Removing cover

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
Installing towing eye bolt

Take towing eye bolt and wheel wrench
out of trunk (
page 322).

Screw towing eye bolt clockwise into
its stop and tighten with wheel wrench.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button (if so equipped) in
position2, the vehicle doors lock if the
left front wheel as well as the right rear
wheel are turning at vehicle speeds of
approximately 9 mph (15 km/h) or
more.
Switch off the tow-away alarm
(page 84).
To prevent the vehicle doors from lock-
ing, deactivate the automatic central
locking (
page 102).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to vehicle chassis,
frame or suspension parts.
iThe selector lever will remain locked in
positionP and the SmartKey will not
turn in the starter switch if the battery
is disconnected or discharged. See
notes on the battery (
page 344) or
on jump starting (
page 347).

389 Index
Gear selector lever position 163
Gear shifting malfunctions 165
Kickdown 165
One-touch gearshifting 161
Program mode selector switch 164
Selector lever position 160
Starting the engine 43
Steering wheel gearshift control
(Speedshift) and manual shift pro-
gram S 55 AMG 166
Transmission fluid 268
Winter program mode 166
Auxiliary cup holder 230
Inserting 230
Removing 231
Auxiliary fuse box 353
B
BabySmart
TM
Airbag deactivation system 69
Compatible child seats 69, 381
Self-test 70
BabySmart
TM airbag deactivation system
381
Backrest supports
Lumbar region 108
Shoulder region 108Backup lamps 332, 336
Bulbs 332
BAS 78, 381
Messages in display 300, 310
Batteries, KEYLESS-GO* card
Check lamp 92
Checking 92
Batteries, SmartKey
Changing 328, 329
Check lamp 88
Checking 88
Battery discharged
Jump starting 347
Battery, vehicle 270, 344
Charging 345
Disconnecting 345
Reconnecting 345
Reinstalling 345
Removing 345
Bi-Xenon headlamps* 381
Block heater* 279
Blocking
Rear window operation 74
Brake assist system (BAS) 381
Brake fluid 262, 373
Brake lamp bulbs 332Brake lamp, high mounted 332
Brake pads
Message in display 302
Brakes 252
Warning lamp 293
Break-in period 250
Bulbs, replacing 331
Additional turn signals 331
Backup lamps 332
Brake lamps 332
Fog lamps 331
Front lamps 331
High beam 331
High mounted brake lamp 332
License plate lamps 332, 336
Low beam 331
Parking and standing lamps 331
Parking lamps 332, 335
Rear fog lamp 332
Rear fog lamps 336
Side marker lamps 331, 335
Standing lamps 331, 332, 335
Tail lamp assemblies 332, 336
Turn signal lamps 331, 332

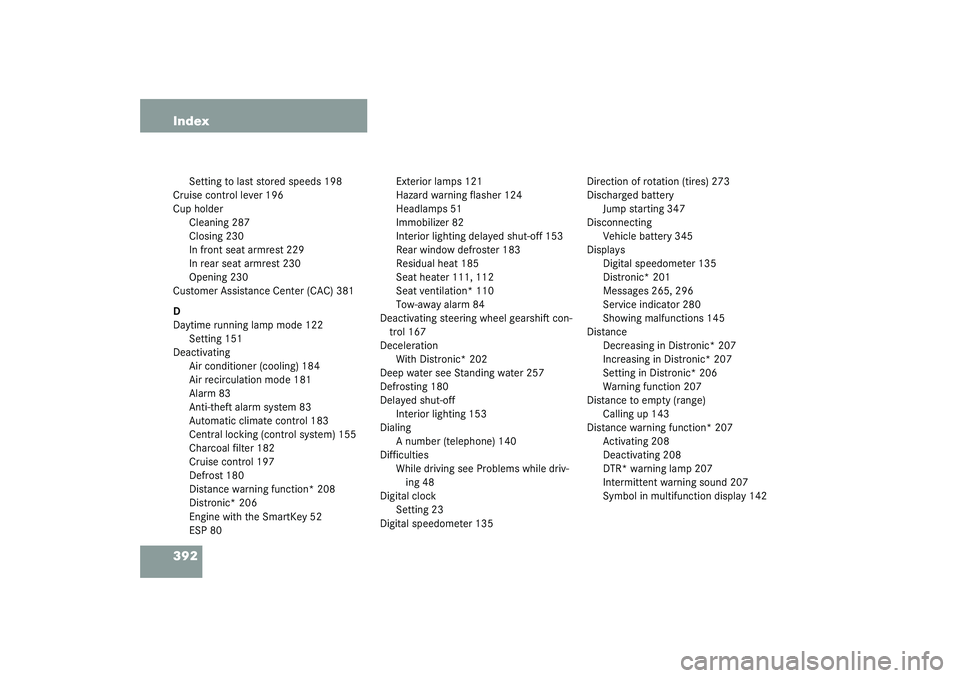

392 Index
Setting to last stored speeds 198
Cruise control lever 196
Cup holder
Cleaning 287
Closing 230
In front seat armrest 229
In rear seat armrest 230
Opening 230
Customer Assistance Center (CAC) 381
D
Daytime running lamp mode 122
Setting 151
Deactivating
Air conditioner (cooling) 184
Air recirculation mode 181
Alarm 83
Anti-theft alarm system 83
Automatic climate control 183
Central locking (control system) 155
Charcoal filter 182
Cruise control 197
Defrost 180
Distance warning function* 208
Distronic* 206
Engine with the SmartKey 52
ESP 80Exterior lamps 121
Hazard warning flasher 124
Headlamps 51
Immobilizer 82
Interior lighting delayed shut-off 153
Rear window defroster 183
Residual heat 185
Seat heater 111, 112
Seat ventilation* 110
Tow-away alarm 84
Deactivating steering wheel gearshift con-
trol 167
Deceleration
With Distronic* 202
Deep water see Standing water 257
Defrosting 180
Delayed shut-off
Interior lighting 153
Dialing
A number (telephone) 140
Difficulties
While driving see Problems while driv-
ing 48
Digital clock
Setting 23
Digital speedometer 135Direction of rotation (tires) 273
Discharged battery
Jump starting 347
Disconnecting
Vehicle battery 345
Displays
Digital speedometer 135
Distronic* 201
Messages 265, 296
Service indicator 280
Showing malfunctions 145
Distance
Decreasing in Distronic* 207
Increasing in Distronic* 207
Setting in Distronic* 206
Warning function 207
Distance to empty (range)
Calling up 143
Distance warning function* 207
Activating 208
Deactivating 208
DTR* warning lamp 207
Intermittent warning sound 207
Symbol in multifunction display 142

397 Index
Rolling code programming 246
Interior lighting 124
Activating automatic control 125
Deactivating automatic control 125
Delayed shut-off 153
Manual operation 125
Interior storage spaces 224
Cup holder 229
Glove box 224
Parcel net 232
Storage compartment in front of arm-
rest 225, 226, 227, 228
J
Jump starting 347
K
Key dependency memory
Settings 156
Key see SmartKey 30, 52
Key, mechanical 326
Key, SmartKey
Positions in starter switch 31
KEYLESS-GO* 383
Activating ignition with 33
Closing side windows 93
Closing sliding/pop-up roof 93Closing sliding/pop-up roof with 190,
194
Closing windows with 190, 194
Locking the vehicle 93
Loss of KEYLESS-GO card 94
Messages in display 303
Starting the engine 43
Turning off engine 53
Unlocking with 32
KEYLESS-GO* card 89
Checking the batteries 92
Checking vehicle lock status 93
Factory setting 91
Global locking 91
Global unlocking 92
Loss of 94
Messages in display 303
Reprogramming 91
Unlocking 89
Keys 86
Kickdown 165, 383
Kilometers/miles in speedometer 149
Km/h or mph in speedometer 149L
Lamp bulbs, exterior 331
Lamps, exterior
Front 331
Light sensor 312
Messages in display 314
Rear 332
Lamps, indicator and warning
ABS 291
Airbag Off 61
Battery (SmartKey) 87
Brakes 293
CHECK ENGINE 294
Coolant 304
DTR* 201
Engine diagnostics 294
ESP 290
Fuel reserve 294
Instrument cluster 290–294
Seat belts 294
Service indicator 280
SRS 57
Language
Multifunction display 150
Setting 150
LATCH child seat anchors 72
