2003 MERCEDES-BENZ S CLASS jump start

ContentsAt the gas station............................... 261
Check regularly and before a
long trip ........................................ 262
Engine compartment.......................... 263
Hood ............................................ 263
Engine oil...................................... 264
Transmission fluid level ................ 268
Active Body Control* (ABC*)
fluid level ...................................... 268
Coolant......................................... 268
Battery ......................................... 270
Windshield washer system and
headlamp cleaning system* ......... 271
Tires and wheels ................................ 272
Important guidelines .................... 272
Life of tires ................................... 273
Direction of rotation ..................... 273
Checking tire inflation pressure ... 273
Rotating wheels............................ 277
Winter driving..................................... 278
Winter tires................................... 278
Block heater* ............................... 279
Snow chains ................................. 279Maintenance ...................................... 280
Clearing the service indicator....... 280
Service term exceeded ................ 280
Calling up the service indicator .... 281
Resetting the service indicator..... 281
Vehicle care ....................................... 282
Cleaning and care of vehicle ........ 282
Practical hints.................................. 289
What to do if …? ................................. 290
Lamps in instrument cluster......... 290
Lamp in center console ................ 295
Messages in the display ............... 296
Where will I find ...? ........................... 322
First aid kit ................................... 322
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ........... 322
Unlocking/locking in an emergency .. 326
Unlocking the vehicle ................... 326
Locking the vehicle ...................... 327
Changing batteries ....................... 328
Fuel filler flap ............................... 329
Opening/closing in an emergency ..... 330
Sliding/pop-up roof ..................... 330Replacing bulbs ................................. 331
Bulbs ............................................ 331
Replacing bulbs for front lamps ... 333
Replacing bulbs for rear lamps .... 336
Replacing wiper blades ...................... 337
Removing ..................................... 337
Installing ...................................... 338
Flat tire .............................................. 339
Preparing the vehicle ................... 339
Mounting the spare wheel............ 339
Battery............................................... 344
Disconnecting the battery ............ 345
Removing the battery................... 345
Charging and reinstalling
battery ......................................... 345
Reconnecting the battery............. 345
Jump starting ..................................... 347
Towing the vehicle ............................. 349
Installing towing eye bolt ............. 351
Fuses ................................................. 353
Fuse boxes in passenger
compartment ............................... 353
Fuse boxes in engine
compartment ............................... 354
Emergency engine shut-down ...... 355

31 Getting started
Unlocking
Starter switch positionsStarter switch0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment may cause an accident
and/or serious personal injury.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the SmartKey is left in starter switch
position 0 for an extended period of
time, it can no longer be turned in the
starter switch.

Remove the SmartKey from the
starter switch and reinsert.
If the SmartKey can still not be turned,
the battery may not be sufficiently
charged.

Check the battery and charge it
if necessary (
page 344).

Get a jump start (
page 347).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch.

44 Getting startedDrivingStarting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO: Close any doors that
may be open to allow for better detec-
tion of the KEYLESS-GO card.
or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the KEYLESS-GO
card.

Repeat the starting procedure
(page 42). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 347).If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.
Parking brake
1Parking brake pedal
2Parking brake release handle

Release the parking brake by pulling
handle2.
The indicator lamp
;
(USA only) or
3
(Canada only) in the instrument
cluster goes out.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Children could release
the parking brake, which could result in an
accident and/or serious injury.

241 Controls in detail
Useful features
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established. When a
voice connection is established, the audio
system mutes and the message
TELE AID
– ROADSIDE ASSISTANCE CALL ACTIVE
ap-
pears in the multifunction display.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.


Remote Vehicle Diagnostics: This func-
tion permits the Mercedes-Benz Road-
side Assistance dispatcher to
download malfunction codes and actu-
al vehicle data.
iThe indicator lamp in the Roadside As-
sistance button
•
remains illumi-
nated in red for approx. 10 seconds
during the system self-check after turn-
ing the key in the starter switch to
position2 (together with the SOS but-
ton and the Information button
¡
).
See system self-check (
page 238)
when the indicator lamp does not light
up in red or stays on longer than ap-
proximately 10 seconds.
If the indicator lamp in the Roadside
Assistance button
•
is continuous-
ly illuminated and no voice connection
to the Response Center was estab-
lished, the Tele Aid system could not
initiate a Roadside Assistance call (e.g.
the relevant cellular phone network is
not available). The message
ROADSIDE
ASSISTANCE – CALL FAILED appears in
the multifunction display. Roadside As-
sistance calls can be terminated using
the
ì
button on the multifunction
steering wheel.

289 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

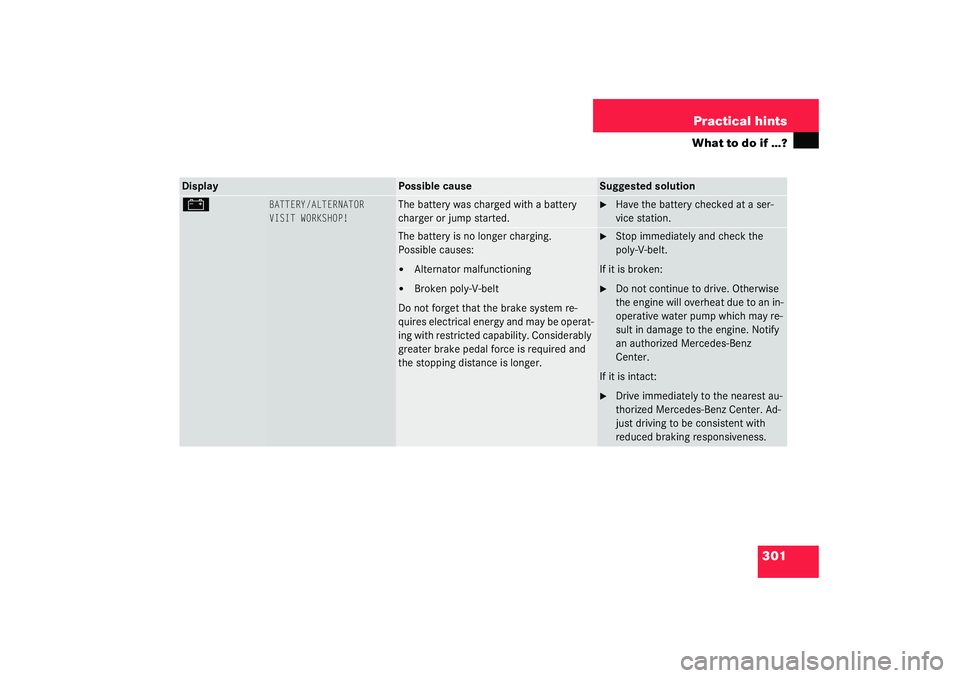

301 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
#
BATTERY/ALTERNATOR
VISIT WORKSHOP!
The battery was charged with a battery
charger or jump started.

Have the battery checked at a ser-
vice station.
The battery is no longer charging.
Possible causes:

Alternator malfunctioning


Broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be operat-
ing with restricted capability. Considerably
greater brake pedal force is required and
the stopping distance is longer.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify
an authorized Mercedes-Benz
Center.
If it is intact:

Drive immediately to the nearest au-
thorized Mercedes-Benz Center. Ad-
just driving to be consistent with
reduced braking responsiveness.

344 Practical hintsBattery
Battery
The battery is located on the right side of
the trunk under the battery cover.
1Battery cover
Pull on the outer, right-hand side of
cover1 and remove it in the direction
of the arrow.
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Service Booklet for mainte-
nance intervals or contact your autho-
rized Mercedes-Benz Center for further
information.Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button (if so equipped) on the selector
lever will have no effect


the selector lever will remain locked in
positionP

347 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12V). Jump start-
ing with a more powerful battery could
damage the vehicle’s electrical system,
which will not be covered by the Mer-
cedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Avoid repeated and lengthy starting at-
tempts.
Do not attempt to start the engine us-
ing a battery quick charge unit.
If engine does not run after several un-
successful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.
