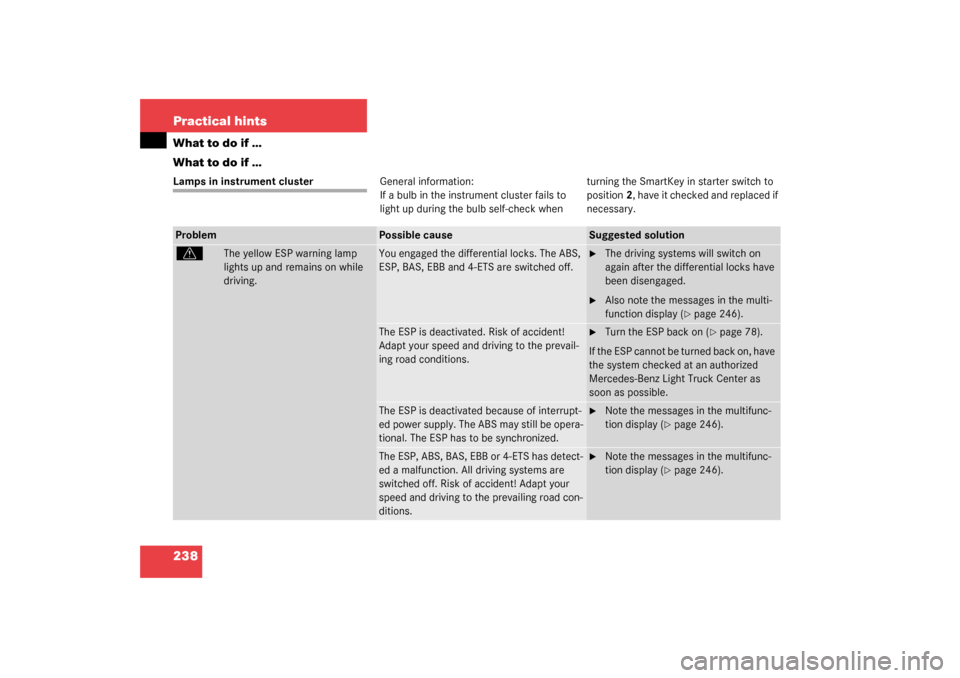

238 Practical hintsWhat to do if …
What to do if …Lamps in instrument clusterGeneral information:
If a bulb in the instrument cluster fails to
light up during the bulb self-check when turning the SmartKey in starter switch to
position2, have it checked and replaced if
necessary.Problem
Possible cause
Suggested solution
v
The yellow ESP warning lamp
lights up and remains on while
driving.
You engaged the differential locks. The ABS,
ESP, BAS, EBB and 4-ETS are switched off.

The driving systems will switch on
again after the differential locks have
been disengaged.

Also note the messages in the multi-
function display (
page 246).
The ESP is deactivated. Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.

Turn the ESP back on (
page 78).
If the ESP cannot be turned back on, have
the system checked at an authorized
Mercedes-Benz Light Truck Center as
soon as possible.
The ESP is deactivated because of interrupt-
ed power supply. The ABS may still be opera-
tional. The ESP has to be synchronized.

Note the messages in the multifunc-
tion display (
page 246).
The ESP, ABS, BAS, EBB or 4-ETS has detect-
ed a malfunction. All driving systems are
switched off. Risk of accident! Adapt your
speed and driving to the prevailing road con-
ditions.

Note the messages in the multifunc-
tion display (
page 246).

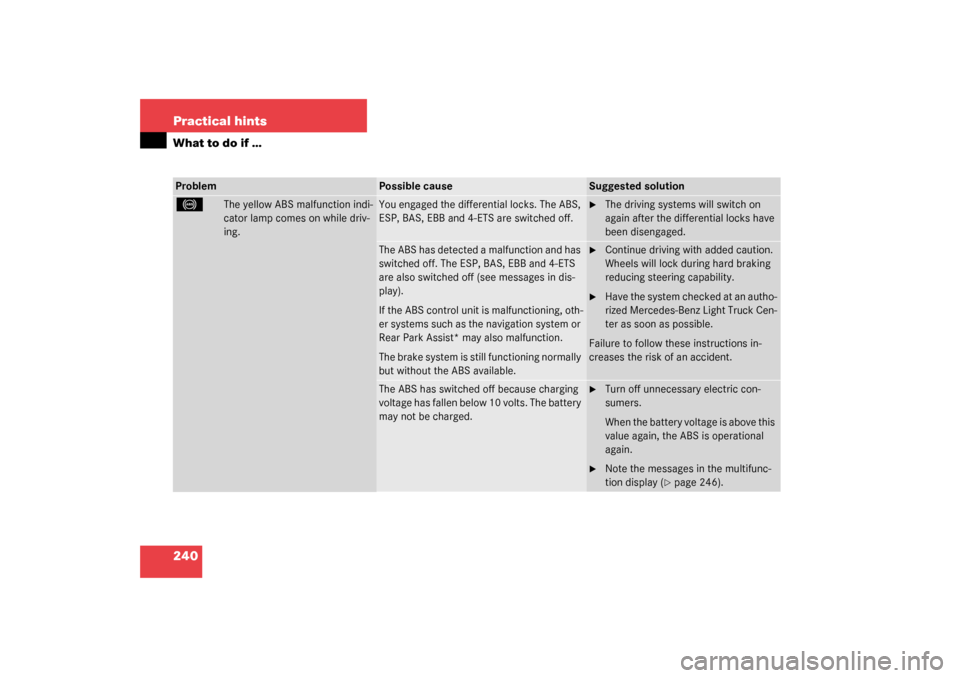

240 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction indi-
cator lamp comes on while driv-
ing.
You engaged the differential locks. The ABS,
ESP, BAS, EBB and 4-ETS are switched off.

The driving systems will switch on
again after the differential locks have
been disengaged.
The ABS has detected a malfunction and has
switched off. The ESP, BAS, EBB and 4-ETS
are also switched off (see messages in dis-
play).
If the ABS control unit is malfunctioning, oth-
er systems such as the navigation system or
Rear Park Assist* may also malfunction.
The brake system is still functioning normally
but without the ABS available.

Continue driving with added caution.
Wheels will lock during hard braking
reducing steering capability.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The ABS has switched off because charging
voltage has fallen below 10 volts. The battery
may not be charged.

Turn off unnecessary electric con-
sumers.
When the battery voltage is above this
value again, the ABS is operational
again.

Note the messages in the multifunc-
tion display (
page 246).

241 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.

Release the parking brake
(page 44).

Also note the messages in the multi-
function display (
page 246).
The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Light Truck Center.
Do not add brake fluid! This will not
solve the problem.

Also note the messages in the multi-
function display (
page 246).
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on.
Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

242 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)
-
The red brake warning lamp and
the yellow ABS malfunction indi-
cator lamp come on when the
engine is running and you hear a
warning sound for approximately
five seconds.
The EBB has detected a malfunction and has
switched off. You should be prepared for your
vehicle to perform differently than normal
when braking.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.

Also note the messages in the multi-
function display (
page 246).
Failure to follow these instructions in-
creases the risk of accidents.
1
The red SRS indicator lamp lights
up while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident.
This could result in serious or fatal injury, or
it might deploy unexpectedly and unneces-
sarily which could also result in an accident
and/or injury to you or others.

243 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction of:

The fuel management system


The ignition system


The emission control system


Systems which impact emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its limp-home (emergency operation)
mode. Serious damage can occur to the
emission system.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
c o d e s . I t i s l o c a t e d n e a r t h e h o o d l o c k
release on the upper left of footwell.
The fuel cap is not closed tightly.

Check the fuel cap.
Your gas tank is empty.

After refuelling, start the engine three
or four times in succession. The
limp-home mode is canceled.
<
The red seat belt warning lamp
blinks for a brief period after
starting the engine.
The warning lamp reminds you to fasten seat
belts.

Fasten your seat belt.
The yellow fuel tank reserve warning lamp
illuminates while driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station.

Also note the messages in the multi-
function display (
page 246).

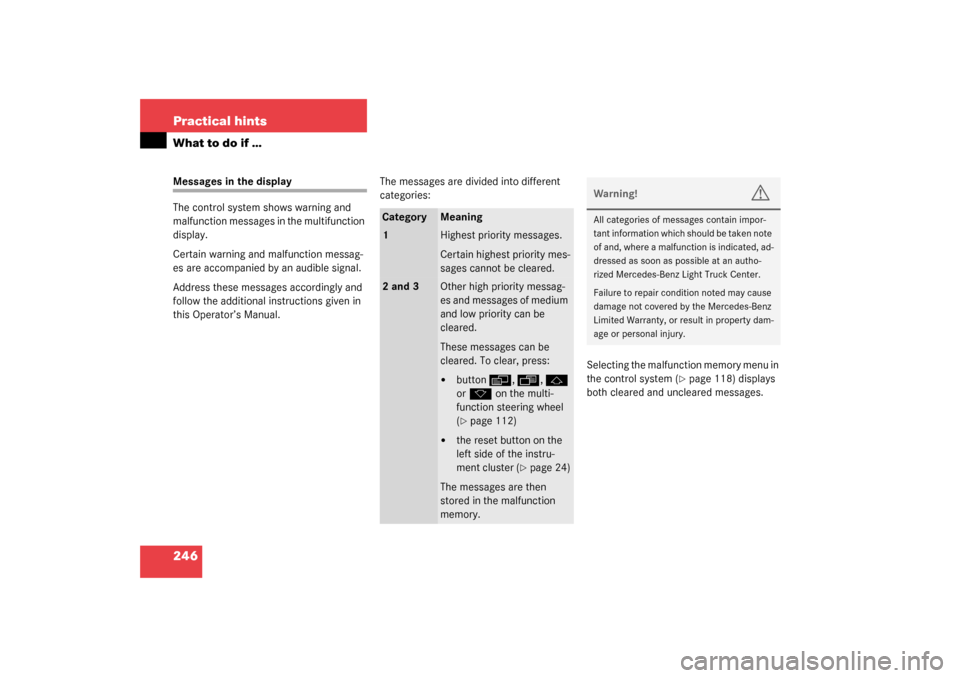

246 Practical hintsWhat to do if …Messages in the display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.The messages are divided into different
categories:
Selecting the malfunction memory menu in
the control system (
page 118) displays
both cleared and uncleared messages.
Category
Meaning
1
Highest priority messages.
Certain highest priority mes-
sages cannot be cleared.
2 and 3
Other high priority messag-
es and messages of medium
and low priority can be
cleared.
These messages can be
cleared. To clear, press:

button
è
, ÿ
, j

or
k
on the multi-
function steering wheel
(
page 112)


the reset button on the
left side of the instru-
ment cluster (
page 24)
The messages are then
stored in the malfunction
memory.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Light Truck Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.

247 Practical hints
What to do if …

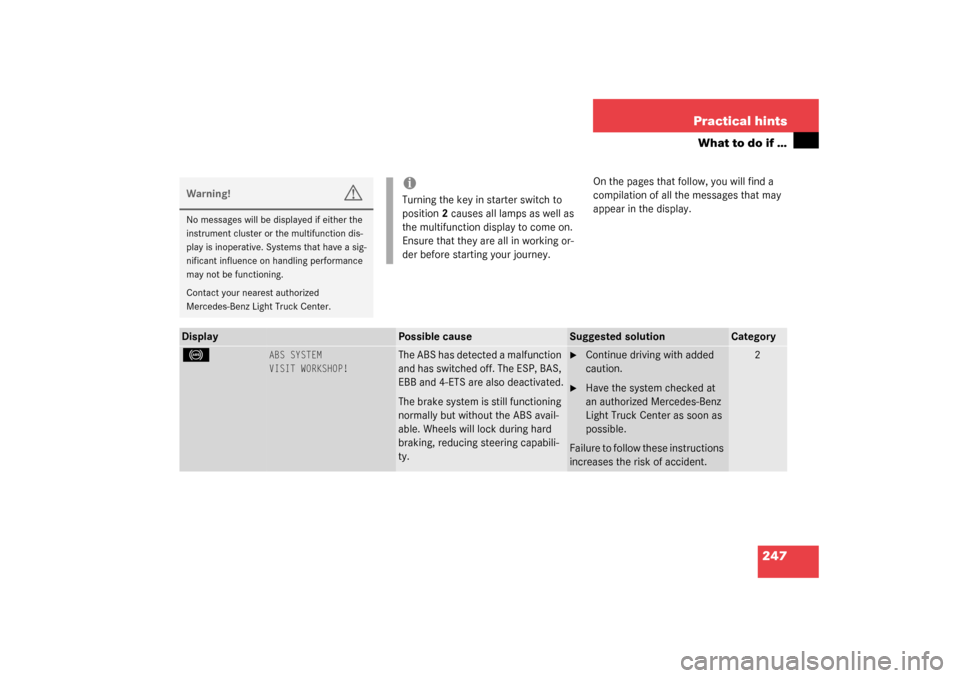

On the pages that follow, you will find a
compilation of all the messages that may
appear in the display.
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative. Systems that have a sig-
nificant influence on handling performance
may not be functioning.
Contact your nearest authorized
Mercedes-Benz Light Truck Center.
iTurning the key in starter switch to
position2 causes all lamps as well as
the multifunction display to come on.
Ensure that they are all in working or-
der before starting your journey.
Display
Possible cause
Suggested solution
Category
-
ABS SYSTEM
VISIT WORKSHOP!
The ABS has detected a malfunction
and has switched off. The ESP, BAS,
EBB and 4-ETS are also deactivated.
The brake system is still functioning
normally but without the ABS avail-
able. Wheels will lock during hard
braking, reducing steering capabili-
ty.

Continue driving with added
caution.

Have the system checked at
an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
Failure to follow these instructions
increases the risk of accident.
2

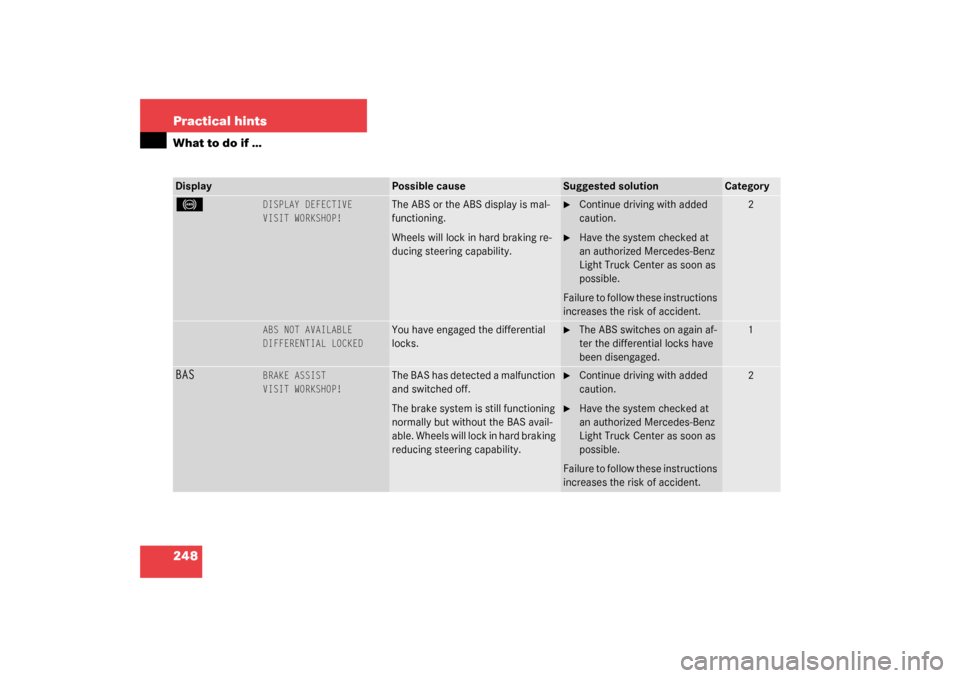

248 Practical hintsWhat to do if …-
DISPLAY DEFECTIVE
VISIT WORKSHOP!
The ABS or the ABS display is mal-
functioning.
Wheels will lock in hard braking re-
ducing steering capability.

Continue driving with added
caution.

Have the system checked at
an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
Failure to follow these instructions
increases the risk of accident.
2
ABS NOT AVAILABLE
DIFFERENTIAL LOCKED
You have engaged the differential
locks.

The ABS switches on again af-
ter the differential locks have
been disengaged.
1
BAS
BRAKE ASSIST
VISIT WORKSHOP!
The BAS has detected a malfunction
and switched off.
The brake system is still functioning
normally but without the BAS avail-
able. Wheels will lock in hard braking
reducing steering capability.

Continue driving with added
caution.

Have the system checked at
an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
Failure to follow these instructions
increases the risk of accident.
2
Display
Possible cause
Suggested solution
Category
