2003 MERCEDES-BENZ G55AMG window

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 13
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 15
Symbols ............................................... 16
Operating safety .................................. 17
Proper use of the vehicle ............... 17
Problems with your vehicle .................. 18
Reporting safety defects...................... 19
Reporting safety defects ................ 19
At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29
Door control panel................................ 30Getting started................................... 31
Unlocking ............................................. 32
Unlocking with the SmartKey.......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38Driving .................................................. 40
Fastening the seat belt ................... 40
Starting the engine ......................... 43
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Rear window wiper/washer ............ 48
Problems while driving .................... 49
Parking and locking .............................. 50
Parking brake ................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 51
Safety and Security........................... 53
Occupant safety ................................... 54
Airbags ........................................... 55
Seat belts ....................................... 60
Children in the vehicle .................... 63
Blocking rear door window
operation ........................................ 69
Panic alarm .......................................... 70

Contents
Climate control .................................. 150
Setting the temperature ............... 152
Adjusting air distribution and
volume ......................................... 153
Defrosting .................................... 154
Air recirculation............................ 154
Rear window defroster ................. 155
Residual engine heat utilization.... 156
Deactivating the climate control
system ......................................... 156
Air conditioning ............................ 157
Rear passenger compartment
adjustable air vents ...................... 157
Power windows.................................. 158
Opening and closing the windows 158
Sliding/pop-up roof ........................... 160
Opening and closing the
sliding/pop-up roof ...................... 160
Driving systems ................................. 162
Cruise control .............................. 162
Rear Park Assist* ......................... 165
Loading.............................................. 168
Roof rack ..................................... 168
Cargo area cover.......................... 168
Enlarged cargo area ..................... 169
Split rear seat bench .................... 169Partition net* (MB Accessory) ...... 171
Loading instructions ..................... 173
Cargo tie-down rings ..................... 175
Useful features ................................... 176
Interior storage spaces ................. 176
Ashtrays........................................ 179
Cigarette lighter ............................ 181
Electrical outlet ............................. 181
Telephone* ................................... 182
Tele Aid ......................................... 183
Garage door opener ...................... 191
Heated steering wheel .................. 194
Operation.......................................... 195
The first 1000 miles (1500 km) .......... 196
Driving instructions ............................ 197
Drive sensibly – save fuel.............. 197
Drinking and driving ...................... 197
Pedals ........................................... 197
Power assistance .......................... 198
Brakes........................................... 198
Driving off ..................................... 199
Parking.......................................... 199
Tires .............................................. 200
Hydroplaning................................. 200Tire traction .................................. 201
Tire speed rating ........................... 201
Winter driving instructions ............ 202
Standing water ............................. 203
Passenger compartment............... 203
Off-road driving ............................. 203
Control and operation of radio
transmitters .................................. 210
Driving abroad .............................. 211
Catalytic converter ....................... 211
Emission control ........................... 212
Coolant temperature .................... 212
At the gas station ............................... 214
Check regularly and
before a long trip .......................... 215
Engine compartment .......................... 216
Hood ............................................. 216
Engine oil ...................................... 217
Transmission fluid level ................ 220
Coolant level ................................. 220
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 222
Battery ............................................... 223

Contents
Technical data................................. 307
Spare parts service ............................ 308
Warranty coverage............................. 309
Loss of Service and Warranty
Information Booklet ..................... 309
Identification labels ........................... 310
Layout of poly-V-belt drive ................. 311
G 500/G 55 AMG ........................ 311
Engine................................................ 312
Rims and tires.................................... 313
Tires and Spare wheel .................. 313
Electrical system ............................... 314
Main dimensions, vehicle weights
and ratings......................................... 315
Main dimensions .......................... 315
Vehicle weights and ratings ......... 315Fuels, coolants, lubricants etc. ........... 316
Capacities ..................................... 316
Engine oils .................................... 317
Engine oil additives ....................... 317
Air conditioning refrigerant ........... 317
Brake fluid..................................... 318
Premium unleaded gasoline .......... 318
Fuel requirements ......................... 318
Gasoline additives......................... 319
Coolants ....................................... 319
Anticorrosion/antifreeze .............. 320
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 321
Consumer information ........................ 322
Uniform tire quality grading .......... 322
Technical terms............................... 325Index................................................. 331

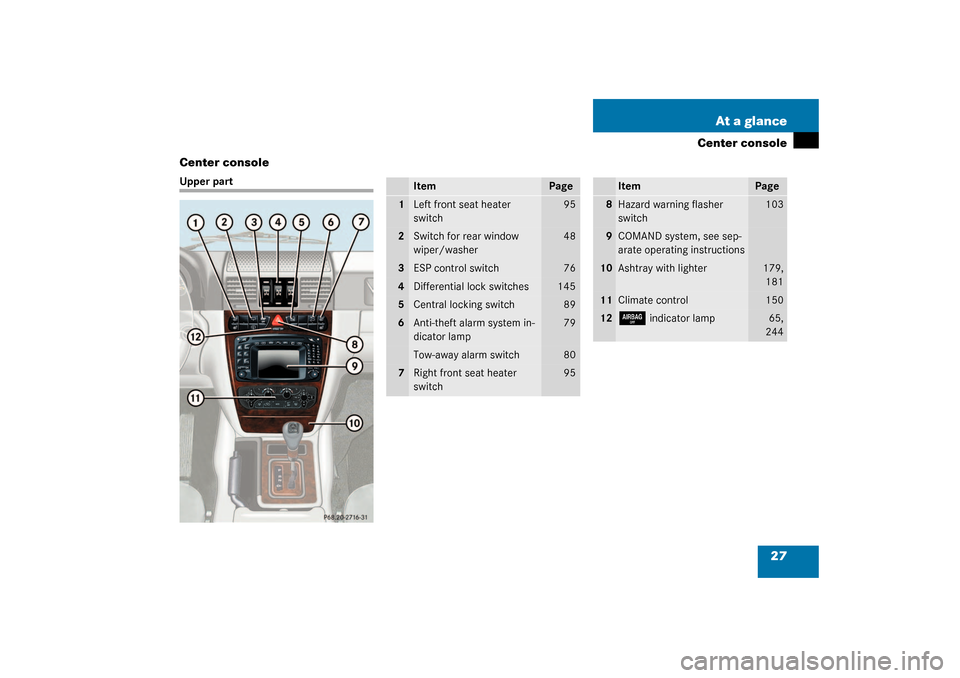

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Left front seat heater
switch
95
2
Switch for rear window
wiper/washer
48
3
ESP control switch
76
4
Differential lock switches
145
5
Central locking switch
89
6
Anti-theft alarm system in-
dicator lamp
79
Tow-away alarm switch
80
7
Right front seat heater
switch
95
Item
Page
8
Hazard warning flasher
switch
103
9
COMAND system, see sep-
arate operating instructions
10
Ashtray with lighter
179,
181
11
Climate control
150
12
7
indicator lamp
65,
244

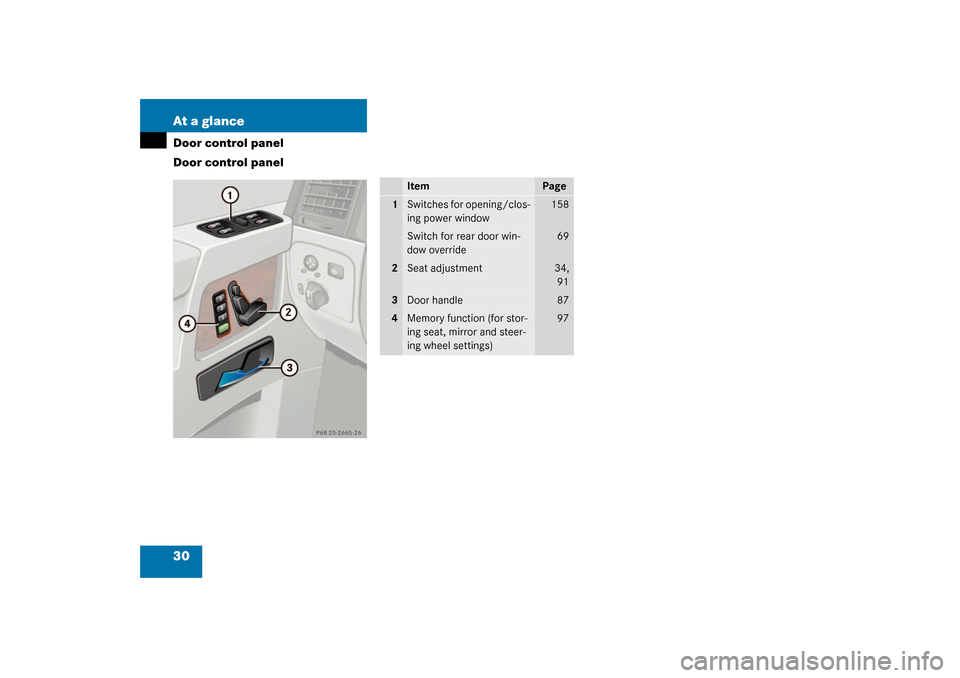

30 At a glanceDoor control panel
Door control panel
Item
Page
1
Switches for opening/clos-
ing power window
158
Switch for rear door win-
dow override
69
2
Seat adjustment
34,
91
3
Door handle
87
4
Memory function (for stor-
ing seat, mirror and steer-
ing wheel settings)
97

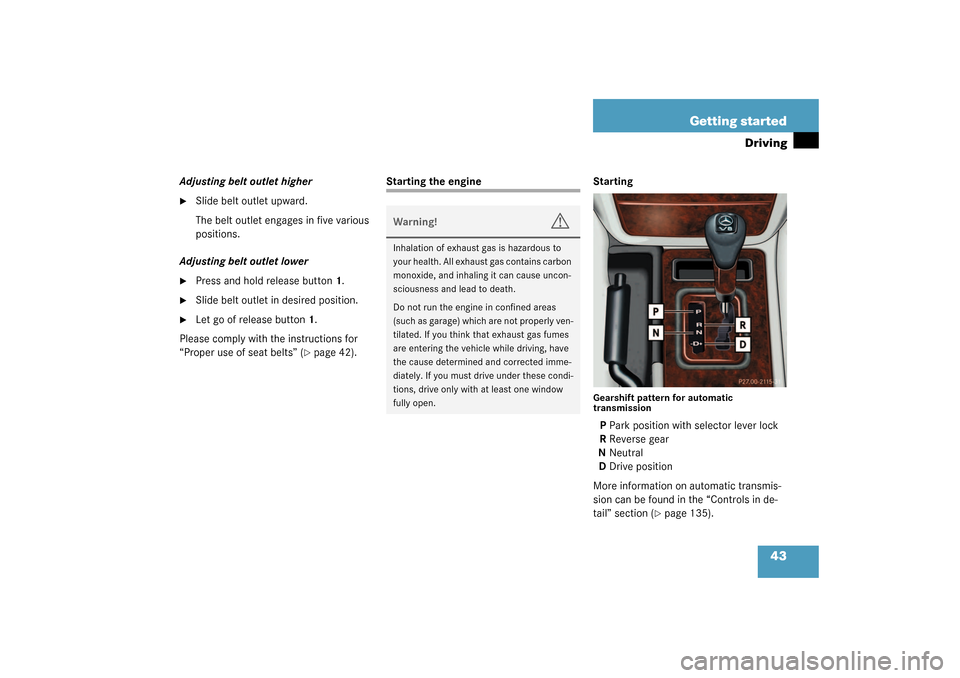

43 Getting started
Driving
Adjusting belt outlet higher
Slide belt outlet upward.
The belt outlet engages in five various
positions.
Adjusting belt outlet lower

Press and hold release button1.

Slide belt outlet in desired position.

Let go of release button1.
Please comply with the instructions for
“Proper use of seat belts” (
page 42).
Starting the engine Starting
Gearshift pattern for automatic
transmissionPPark position with selector lever lock
RReverse gear
NNeutral
DDrive position
More information on automatic transmis-
sion can be found in the “Controls in de-
tail” section (
page 135).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.

48 Getting startedDriving
Rear window wiper/washer
The rear window wiper / washer switch is
located on the upper part of the center
console.
1Interval wiping on/off
2Indicator lamp
3Simultaneous operation of wiper and
washer

Make sure that the ignition is switched
on.
Interval wiping
Switching on

Press upper half1 of the switch.
The indicator lamp2 comes on.
Switching off

Press upper half1 of the switch again.
The indicator lamp2 goes out.
Wiping with windshield washer fluid

Press and hold lower half3 of the
switch.
The wiper operates with washer fluid.
The rear window will be wiped for ap-
proximately another five seconds after
the switch is released.
Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (page 222).
!If leaves, snow, etc. block the wind-
shield wipers, switch off the wipers.

For safety reasons, withdraw key
from starter switch. Remove block-
age.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed.


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center.
iThe rear window wiper will also auto-
matically engage if the windshield wip-
ers are engaged and the selector lever
is placed inR “Reverse”.

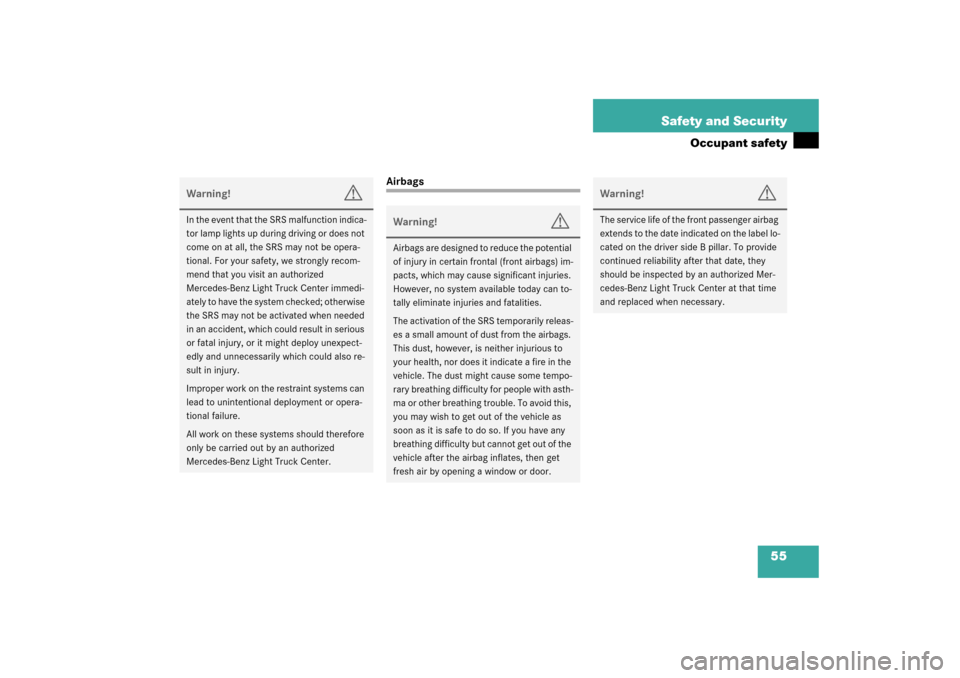

55 Safety and Security
Occupant safety
Airbags
Warning!
G
In the event that the SRS malfunction indica-
tor lamp lights up during driving or does not
come on at all, the SRS may not be opera-
tional. For your safety, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked; otherwise
the SRS may not be activated when needed
in an accident, which could result in serious
or fatal injury, or it might deploy unexpect-
edly and unnecessarily which could also re-
sult in injury.
Improper work on the restraint systems can
lead to unintentional deployment or opera-
tional failure.
All work on these systems should therefore
only be carried out by an authorized
Mercedes-Benz Light Truck Center.
Warning!
G
Airbags are designed to reduce the potential
of injury in certain frontal (front airbags) im-
pacts, which may cause significant injuries.
However, no system available today can to-
tally eliminate injuries and fatalities.
The activation of the SRS temporarily releas-
es a small amount of dust from the airbags.
This dust, however, is neither injurious to
your health, nor does it indicate a fire in the
vehicle. The dust might cause some tempo-
rary breathing difficulty for people with asth-
ma or other breathing trouble. To avoid this,
you may wish to get out of the vehicle as
soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the airbag inflates, then get
fresh air by opening a window or door.
Warning!
G
The service life of the front passenger airbag
extends to the date indicated on the label lo-
cated on the driver side B pillar. To provide
continued reliability after that date, they
should be inspected by an authorized Mer-
cedes-Benz Light Truck Center at that time
and replaced when necessary.
