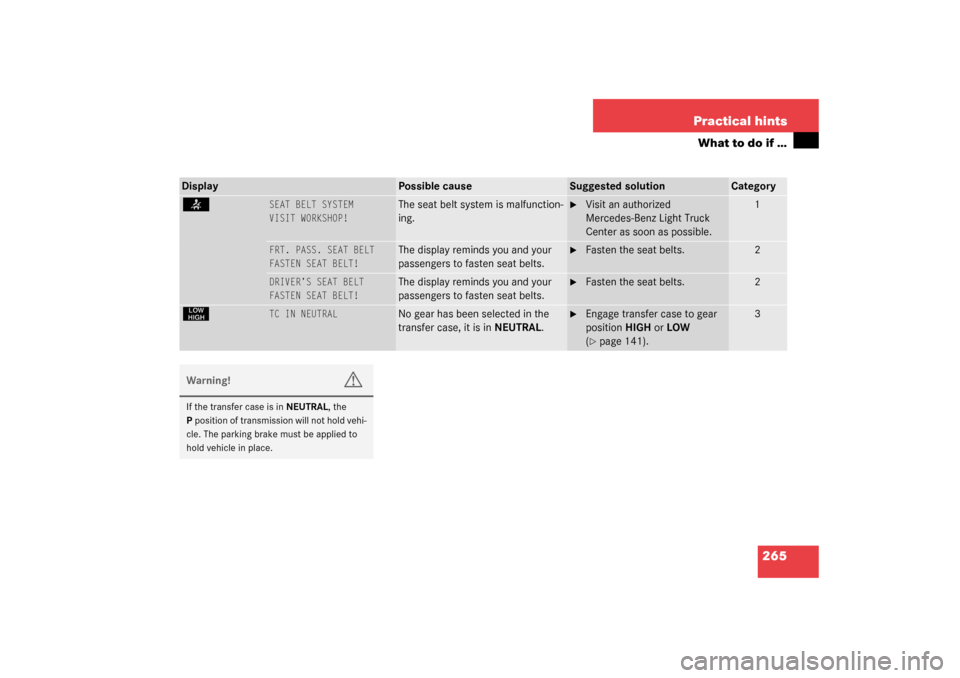

265 Practical hints
What to do if …
Display
Possible cause
Suggested solution
Category
<
SEAT BELT SYSTEM
VISIT WORKSHOP!
The seat belt system is malfunction-
ing.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
1
FRT. PASS. SEAT BELT
FASTEN SEAT BELT!
The display reminds you and your
passengers to fasten seat belts.

Fasten the seat belts.
2
DRIVER’S SEAT BELT
FASTEN SEAT BELT!
The display reminds you and your
passengers to fasten seat belts.

Fasten the seat belts.
2
§
TC IN NEUTRAL
No gear has been selected in the
transfer case, it is in NEUTRAL.

Engage transfer case to gear
position HIGH or LOW
(page 141).
3
Warning!
G
If the transfer case is in NEUTRAL, the
Pposition of transmission will not hold vehi-
cle. The parking brake must be applied to
hold vehicle in place.

266 Practical hintsWhat to do if …Display
Possible cause
Suggested solution
Category
§
TC SHIFT
CANCELLED
The shift process in the transfer
case was cancelled because of a
malfunction.

Repeat the shift process
(page 141).
2
§
TC SHIFT CONDITIONS
NOT FULFILLED
You have not met the shift condi-
tions for a selection process in the
transfer case.

Repeat the shift process
(page 141).
2
§
TRANSFER CASE
VISIT WORKSHOP!
The transfer case is malfunctioning.

Do not switch the transfer
case on.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
2
L
TELE AID
VISIT WORKSHOP!
One or more main functions of the
Tele Aid system are malfunctioning.

Have the Tele Aid system
checked by an authorized Mer-
cedes-Benz Light Truck Cen-
ter.
1
Ê
TRUNK OPEN!
This message will appear whenever
the tailgate is open.

Close the tailgate.
2
#
UNDERVOLTAGE
ENGINE ON!
The battery has insufficient voltage.

Start the engine.
1
UNDERVOLTAGE
SWITCH CONSUMER OFF!
The battery has insufficient voltage.

Have the battery checked at a
service station.
1

267 Practical hints
What to do if …
G
VISIT WORKSHOP!
DISPLAY FAULTY
The instrument cluster display is
malfunctioning.
Some systems themselves may also
have failed.

Continue driving with added
caution.

Visit an authorized Mer-
cedes-Benz Light Truck Center
as soon as possible.
2
±
VISIT WORKSHOP!
DISPLAY FAULTY
Certain electronic systems are un-
able to relay information to the con-
trol system. The following systems
may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems
checked by an authorized
Mercedes-Benz Light Truck
Center.
2
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about 1/3 of total reservoir capacity.

Add washer fluid
(page 321).
3
Display
Possible cause
Suggested solution
Category

325 Technical terms
ABS
(A
ntilock B
rake S
ystem)
Prevents the wheels from locking up
during braking so that the vehicle can
continue to be steered.
BabySmart
TM
airbag deactivation
system
This system detects if a special system
compatible child restraint seat is in-
stalled on the front passenger seat. The
system will automatically deactivate
the passenger front airbag when such a
seat is properly installed (indicator
lamp
7
in the center console lights
up). See your authorized
Mercedes-Benz Light Truck Center for
availability.
BabySmartTM
compatible child seats
Special restraint system for children.
The sensor system for the passenger
seat prevents deployment of the pas-
senger front airbag if a BabySmart
TM
compatible child seat is installed.BAS
(B
rake A
ssist S
ystem)
System for potentially reducing braking
distances in emergency braking situa-
tions. The system is activated when it
senses an emergency based on how
fast the brake is applied.
CAC
(C
ustomer A
ssistance C
enter)
Mercedes-Benz customer service cen-
ter, which can help you with any ques-
tions about your vehicle and provide
assistance in the event of a break-
down.
CAN system
(C
ontroller A
rea N
etwork)
Data bus network serving to control ve-
hicle functions such as door locking or
windshield wiping.
Cockpit
All instruments, switches, buttons and
indicator/warning lamps in the passen-
ger compartment needed for vehicle
operation and monitoring.COMAND
(C
ockpit M
anagement and D
ata Sys-
tem)
Information and operating center for
vehicle sound and communications
systems, including the radio and the ra-
dio and navigation system, as well as
for other optional equipment (CD
changer, telephone, etc.).
Control system
The control system is used to call up
vehicle information and to change
component settings. Information and
messages appear in the multifunction
display. The driver uses the buttons on
the multifunction steering wheel to
navigate through the system and to ad-
just settings.

326 Technical termsDifferential locks
On slippery surfaces, differential locks
prevent one wheel of an axle from spin-
ning while the other wheel stands still,
resulting in driving force no longer be-
ing transferred.
Cruise control
Driving convenience system for auto-
matically maintaining the vehicle speed
set by the driver.
Engine number
The number set by the manufacturer
and placed on the cylinder block to
uniquely identify each engine pro-
duced.
Engine oil viscosity
Measurement for the inner friction (vis-
cosity) of the oil at different tempera-
tures. The higher the temperature an
oil can tolerate without becoming thin,
or the lower the temperature it can tol-
erate without becoming viscous, the
better the viscosity.ESP
(E
lectronic S
tability Pr
ogram)
Improves vehicle handling and direc-
tional stability.
ETD
(E
mergency T
ensioning D
evice)
Device which deploys in certain frontal
and rear collisions exceeding the sys-
tem's threshold to tighten the seat
belts.
->SRS
FSS
(F
lexible S
ervice S
ystem)
Service indicator in the speedometer
display that informs the driver when
the next vehicle maintenance service is
due.
Gear range
Number of gears which are available to
the automatic transmission for shifting.
The automatic gear shifting process
can be adapted to specific operating
conditions using the selector lever.GPS
(G
lobal P
ositioning S
ystem)
Satellite-based system for relaying
geographic location information to and
from vehicles equipped with special re-
ceivers. Employs CD digital maps for
navigation.
Instrument cluster
The displays and indicator/warning
lamps in the driver’s field of vision, in-
cluding the tachometer, speedometer,
engine temperature and fuel gauge.
Kickdown
Depressing the accelerator past the
point of resistance shifts the transmis-
sion down to the lowest possible gear.
This very quickly accelerates the vehi-
cle and should not be used for normal
acceleration needs.
Line of fall
The direct line that an object moves
downhill when influenced by the force
of gravity alone.

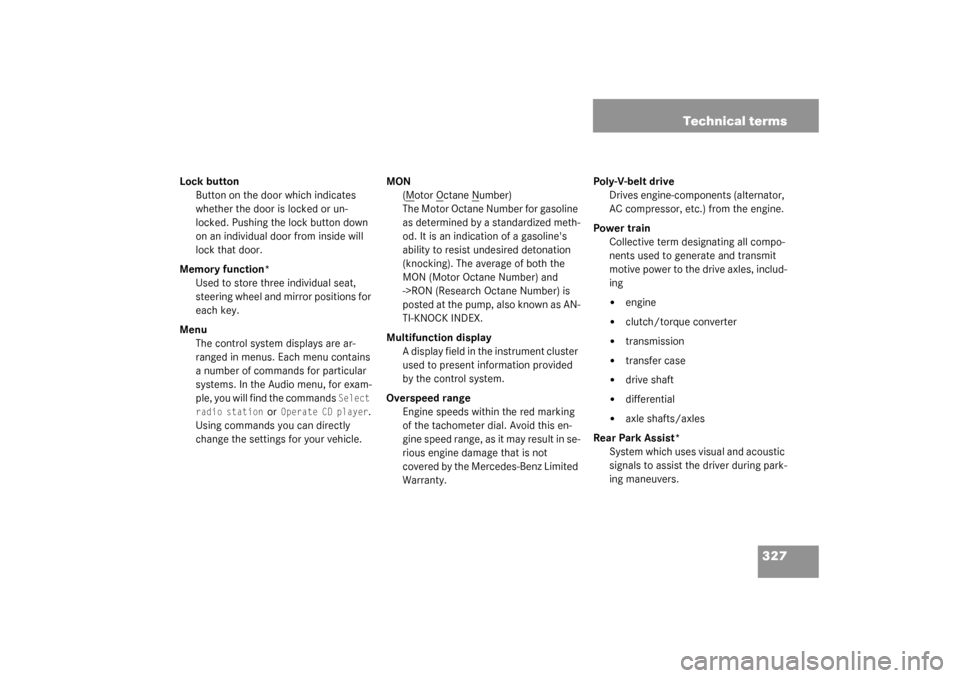

327 Technical terms
Lock button
Button on the door which indicates
whether the door is locked or un-
locked. Pushing the lock button down
on an individual door from inside will
lock that door.
Memory function*
Used to store three individual seat,
steering wheel and mirror positions for
each key.
Menu
The control system displays are ar-
ranged in menus. Each menu contains
a number of commands for particular
systems. In the Audio menu, for exam-
ple, you will find the commands
Select
radio station
or Operate CD player
.
Using commands you can directly
change the settings for your vehicle.MON
(M
otor O
ctane N
umber)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as AN-
TI-KNOCK INDEX.
Multifunction display
A display field in the instrument cluster
used to present information provided
by the control system.
Overspeed range
Engine speeds within the red marking
of the tachometer dial. Avoid this en-
gine speed range, as it may result in se-
rious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.Poly-V-belt drive
Drives engine-components (alternator,
AC compressor, etc.) from the engine.
Power train
Collective term designating all compo-
nents used to generate and transmit
motive power to the drive axles, includ-
ing


engine


clutch/torque converter


transmission


transfer case


drive shaft


differential


axle shafts/axles
Rear Park Assist*
System which uses visual and acoustic
signals to assist the driver during park-
ing maneuvers.
